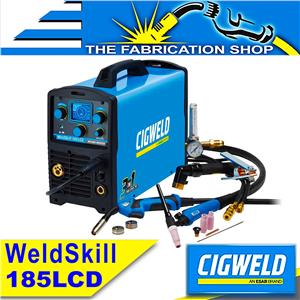

Cigweld Weldskill 185LCD Welder

image image image image image image image image

Includes

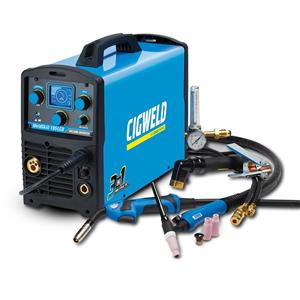

- WeldSkill 185LCD Inverter Welder
  W1008193
- Cigweld  E-180 Mig Torch 3m with
  Euro Connection
- Cigweld  Tig Torch 17V 4m (Remote
  Control)
- Cigweld  Electrode Holder 3m

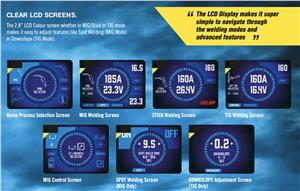

- LCD Display
- Easy Navigation to Select & Clear LCD
  Screens

Price: AU $949.00

Buy Now Ask Question

Categories

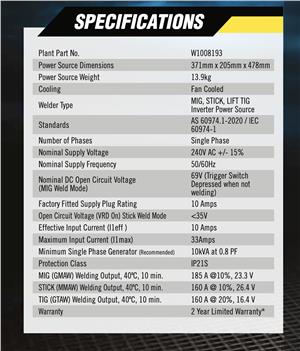

Technical Specifications


Brand:Cigweld
MPN:
W1008193
Barcode:
9310574069176
Certification:
AS 60974.1-2020 IEC 60974-1
Welder Type:
MIG, Stick, Lift TIG (Inverter Power Source)
Number Of Phases:Single Phase
Cooling:Fan Cooled
Nominal Supply Voltage:
240V +/-15%
Nominal Supply Frequency:
50/60Hz
Nominal DC Open Circuit Voltage (MIG Weld Mode):
69V (trigger switch depressed when not welding)
Factory Fitted Supply Plug Rating:
10Amps
Open Circuit Voltage (VRD On) Stick Weld
Mode:
<35V
Effective Input Current (l1eff):
10Amps
Maximum Input Current (l1max): 33Amps
Minimum Single Phase Generator:
10kVA At 0.8PF
Protection Class:IP21S
MIG (GMAW) Welding Output (40ºC, 10min):185A at 10%, 23.3V
STICK (MMAW) Welding Output (40ºC, 10min):
160A at 10%, 26.4V
TIG (GTAW) Welding Output (40ºC, 10min): 160A at 20%, 16.4V
Product Length:371 mm
Product Width:205 mm
Product Height:478 mm
Net Weight:13 kg
Warranty:2 Year Limited Warranty

Product Details

The WeldSkill 185LCD is a complete 3in1 offer that includes all the accessories required to get you MIG, STICK and TIG welding immediately. Like its predecessor, the WeldSkill 185LCD offers the many benefits of a professional welding machine in a compact, portable, easy to use and affordable self-contained single phase welding inverter – but now with the added feature of a digital 2.8” LCD Digital Display. The WeldSkill 185LCD is also backed by a 2 year warranty.

Complete 3 IN 1 Multi-Process: A complete multi-process machine including all accessories required to MIG, STICK and TIG Weld. (MIG Torch, TIG Torch & Electrode Holder). Plug & Play: Plug and play, suitable for use with any standard 10Amp power point. LCD Display: 2.8" Full colour LCD display screen with easy navigation of all functions. Current Range: Current Range for this Power Source is 30 to 185A (MIG Mode) provides DC Output. Adjustable Backburn Control: Adjust the amount of MIG wire that protrudes from the MIG torch after the completion of MIG welding. Arc Control (Inductance): The arc control operates in MIG (GMAW/FCAW) mode only and is used to adjust the intensity of the welding arc. Spot Weld (MIG Mode): Spot Welding allows the user to pre-set the duration time of their welds up to 10 seconds (MIG mode only). Downslope (TIG Mode): Down Slope allows the user to pre-set the time for the weld current to ramp down (TIG mode only). Hot Start: Hot start improves the arc start characteristics of stick electrodes. Anti Stick: Anti stick helps to prevent the stick electrode for sticking to the work surface. Voltage Reduction Device: Standards Compliant Voltage Reduction Device (Stick Mode Only). Over Temperature Protection: Cut out protection has been fitted to the power source.
