Supermicro X10SRL-F LGA2011-3 Intel Xeon Processor e5 2696 v3 18c/36t 2.3GHz

Product Description



Package include:

1X Supermicro X10SRL-F

1x Intel Xeon E5-2696v3 18c/36t 2.3GHz

CPU

Main parameters

CPU frequency

2.3 GHz

Number of cores

18 cores

Number of threads

36 threads

Single-core turbo frequency

3.6 GHz

All-core turbo

2.8 GHz

Core architecture

Haswell-EP

Production process

22 nm

L3 cache

45 MB

TDP power consumption

145W



Memory parameters

Memory type

DDR4 1600/1866/2133

Maximum memory is supported

768 GB

Number of channels

4



Parameter supplementation

Number of PCIe lanes

40

PCIe version

3.0

Slot type

LGA 2011-3

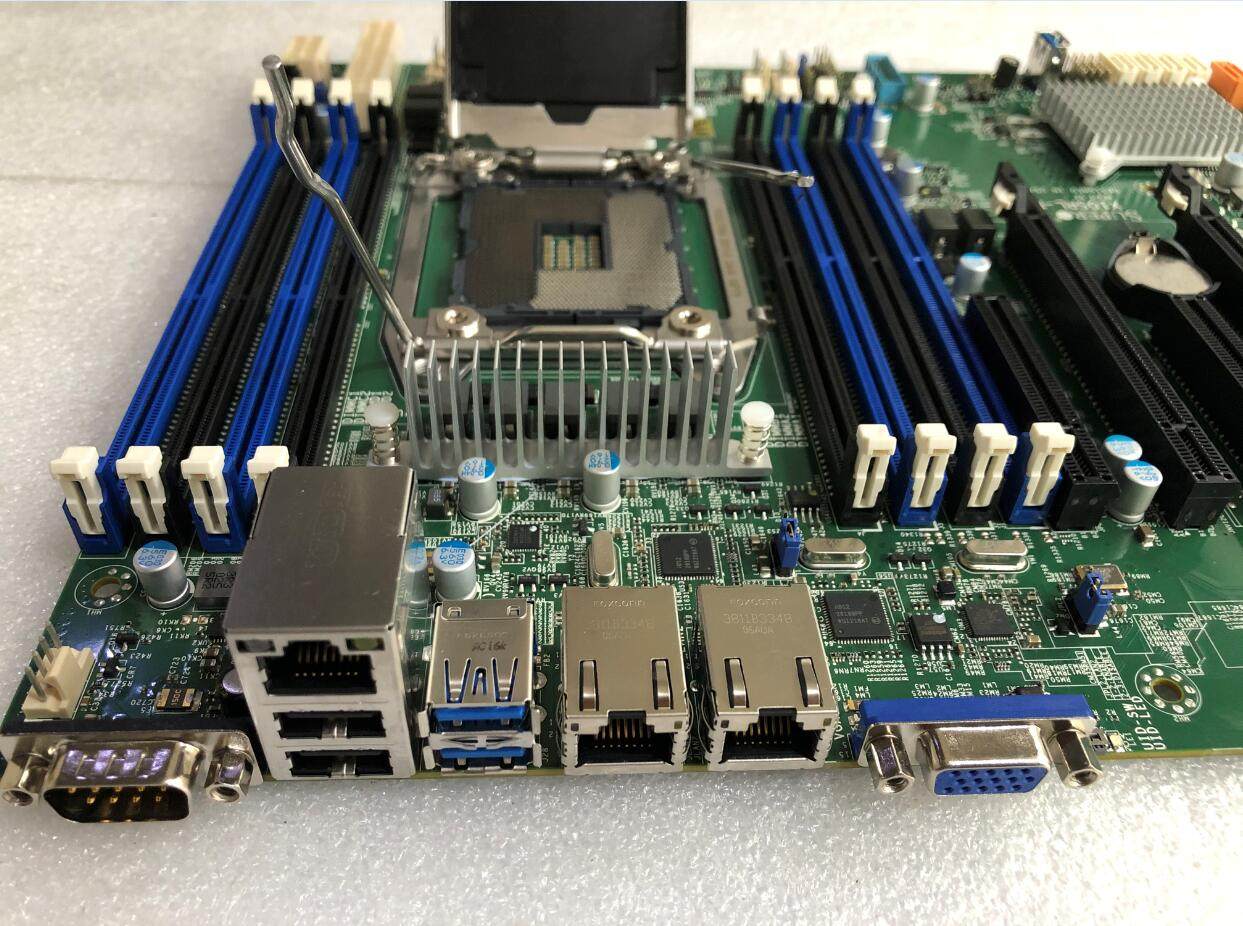

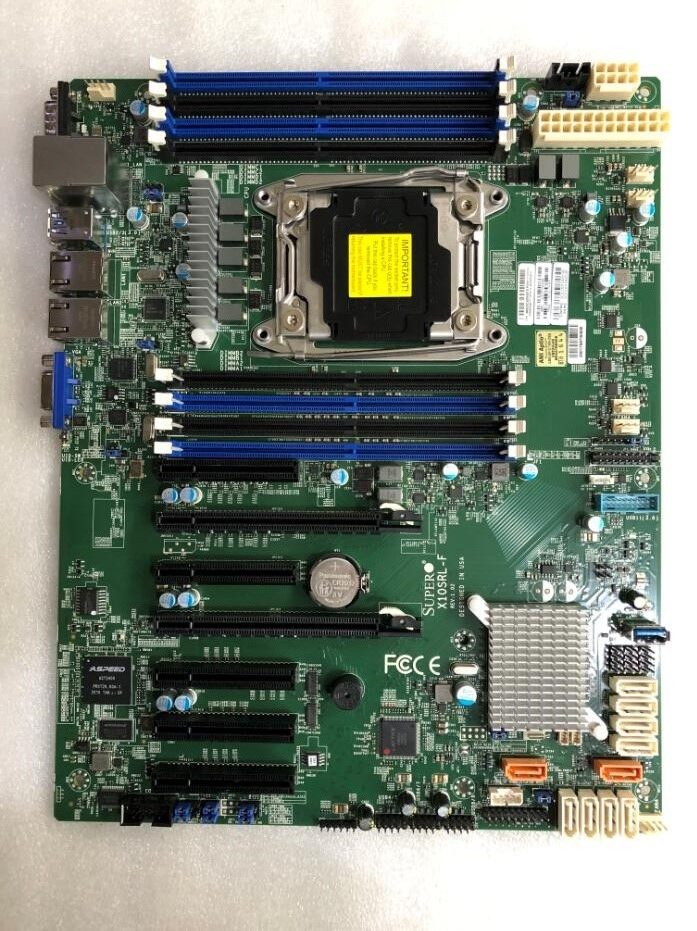

Motherboard




MBD-X10SRL-F
  • X10SRL-F


Physical Stats

Form Factor
  • ATX
Dimensions
  • 12" x 9.6" (cm x 24.38cm)


Processor/Cache

CPU
  • Intel® Xeon® Processor E5-1600 v3, Intel® Xeon® Processor E5-1600 v4, Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4

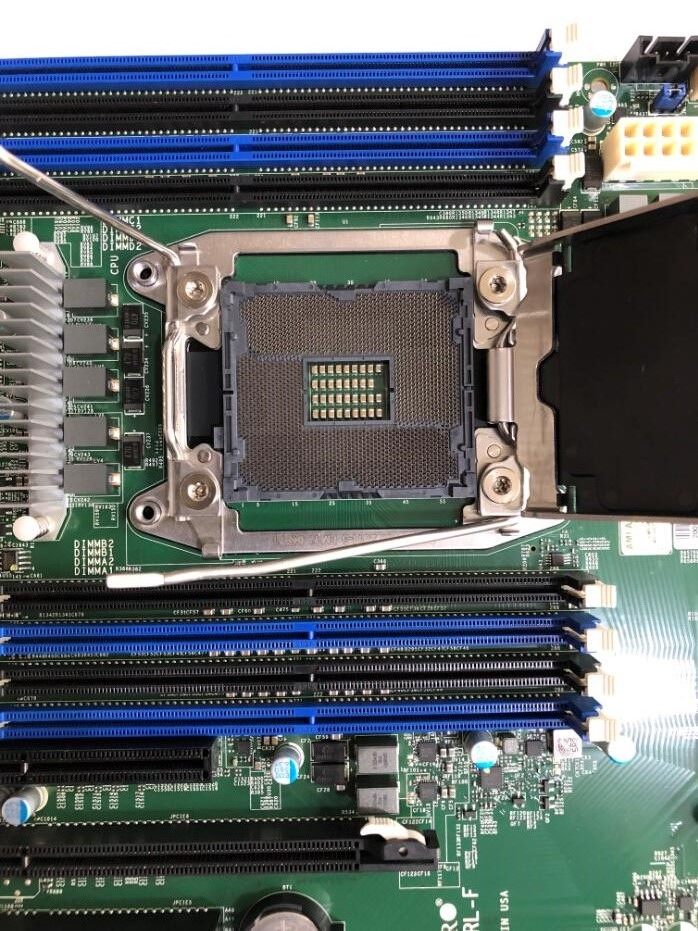

  • Single Socket LGA-2011-3 (Socket R3) supported, CPU TDP supports Up to 145W TDP
Cores / Cache
  • Up to 22 cores † / Up to 55MB† cache
Note
  • † BIOS version 2.0 or above is required
Note
  • ** Motherboard supports this maximum TDP. Please verify your system can thermally support.


System Memory

Memory Capacity
  • Up to 256GB Registered ECC RDIMM, DDR4-2400MHz; Up to 512GB LRDIMM LRDIMM, DDR4-2400MHz, in 8 DIMM slotsUp to 1TB ECC 3DS LRDIMM
Memory Type
  • 2400†/ 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM / LRDIMM) / 284-pin gold-plated DIMMs
DIMM Sizes
  • RDIMM: 4GB, 8GB, 16GB, 32GB
  • LRDIMM: 32GB, 64GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)


On-Board Devices

Chipset
  • Intel® C612
SATA
  • Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Dual LAN with Intel® Ethernet Controller I210Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics
  • ASPEED AST2400 BMC


Input / Output

SATA
  • 10 SATA3 (6Gbps) port
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 8 USB 2.0 ports (2 rear + 6 via headers)
  • 4 USB 3.2 Gen1 ports (2 rear + 1 via header + 1 Type A)
Video Output
  • 1 VGA port
Serial Port / Header
  • 2 COM Ports (1 rear, 1 header)
    2 fast UART 16550 serial
TPM
  • TPM Header

Expansion Slots

PCI-E
  • 2 PCI-E 3.0 x4 (in x8 slot) Auto-switch to 1 x8 and 1 x0,
  • 2 PCI-E 3.0 x8,
  • 2 PCI-E 3.0 x8 (in x16 slot)
  • 1 PCI-E 2.0 x4 (in x8 slot)


System BIOS

BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • DMI 2.3
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI 2.3.1
  • RTC (Real Time Clock) Wakeup


Management

Software
  • Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SUM, SuperDoctor® 5, Watchdog
Power Configurations
  • ACPI Power Management
  • Keyboard Wakeup from Soft-Off
  • CPU Fan auto-off in sleep mode
  • Power-on mode for AC power recovery


PC Health Monitoring

Voltage
  • +12V, +3.3V, +5V, +5V standby, HT, VBAT
Temperature
  • Monitoring for CPU and chassis environment, CPU thermal trip support, I2C temperature sensing logic, Thermal Monitor 2 (TM2) support, PECI
LED
  • CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID
Other Features
  • Chassis intrusion detection, Chassis intrusion header, Chipkill support, RoHS, Halogen Free


Operating Environment

Operating Temperature Range
  • 0°C ~ 55°C (32°F ~ 131°F)
Non-Operating Temperature Range
  • -20°C ~ 60°C (-4°F ~ 140°F)
Operating Relative Humidity Range
  • 10% ~ 85% (non-condensing)
Non-Operating Relative Humidity Range
  • 10% ~ 95% (non-condensing)
