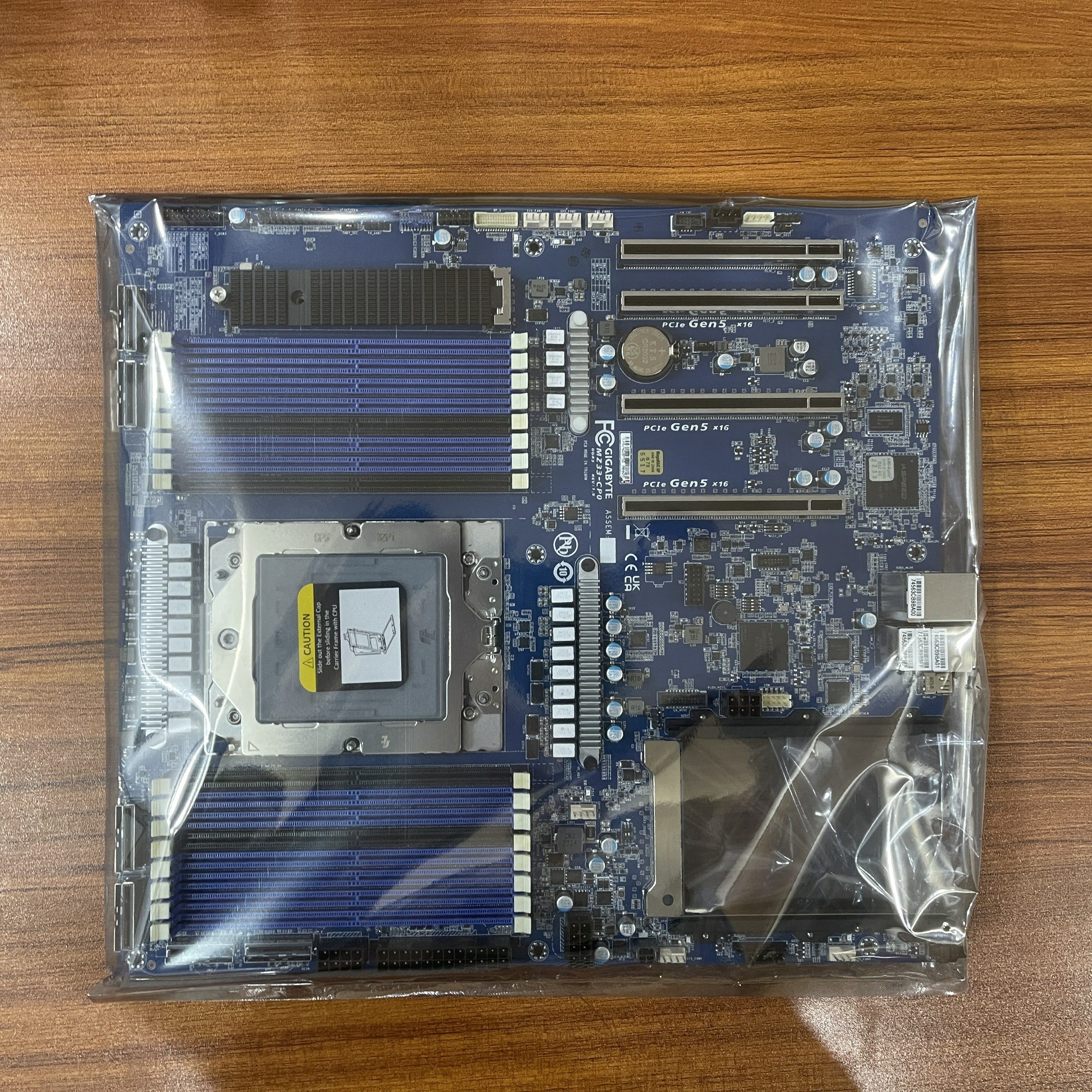

Board Size

E-ATX
304.8W x 330.2D mm

Processor Supported

AMD EPYC™ 9004 Series Processors
AMD EPYC™ 9004 Series Processors with AMD 3D V-Cache™ Technology
Single processor, 5nm technology
Up to 128 cores, 256 threads
cTDP up to 400W

Socket

1 x LGA 6096
Socket SP5

Chipset Description

System on Chip

Memory Type

16 x DIMM slots
DDR5 memory supported only
12-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported
Memory speed: Up to 4800 MT/s (1DPC), 3600 MT/s (2DPC)

Integrated Network

2 x 1Gb/s BASE-T LAN ports (2 x Intel® I210-AT)
Support NCSI function (by switch)

1 x 10/100/1000 Mbps Management LAN

Integrated Video Controller

Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

Integrated Audio Controller

N/A

Storage Interface

4 x MCIO 8i connectors for 8 x Gen5 NVMe
2 x MCIO 8i connectors for 4 x Gen4 NVMe or 16 x SATA 6Gb/s

Support RAID Function

N/A

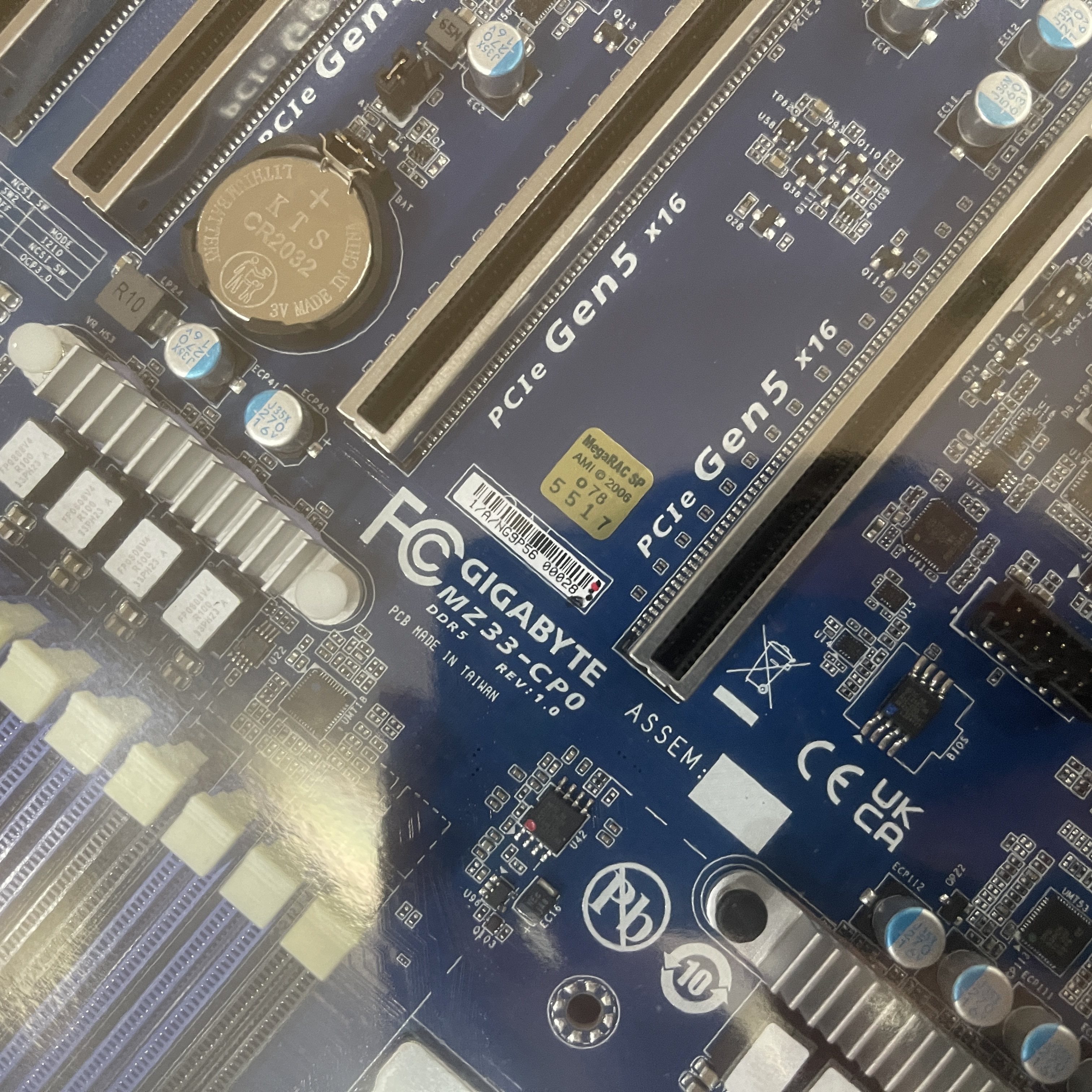

Expansion Slot

Slot_6: PCIe x16 (Gen5 x16) slot
Slot_4: PCIe x16 (Gen5 x16) slot
Slot_2: PCIe x16 (Gen5 x16) slot
Slot_1: PCIe x16 (Gen4 x16) slot

1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth
Support NCSI function (by switch)

1 x M.2 slot:
- M-key
- PCIe Gen3 x4
- Supports 2280/22110 cards

*Total 6 x MCIO 8i connectors:
- 4 x MCIO 8i (PCIe Gen5 x8) connectors
- 2 x MCIO 8i (PCIe Gen4 x8 or SATA) connectors

*Please refer to the optional parts for qualified cables to ensure Gen5 signal quality.

On-Board Connector

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x 6-pin ATX 12V power connector
1 x CPU fan header
5 x System fan headers
1 x USB 3.2 Gen1 x2 header
1 x USB 2.0 x2 header
1 x M.2 slot
6 x MCIO 8i connectors
1 x Front panel header
1 x Backplane board header
1 x PMBus header
1 x IPMB header
1 x TPM header

Rear I/O Connectors

2 x USB 3.2 Gen1
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x ID button with LED

TPM

1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

OS Driver Supported

Please refer to OS compatibility table in support page

Server Management

Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

· Dashboard

· HTML5 KVM

· Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)

· Sensor Reading History Data

· FRU Information

· SEL Log in Linear Storage / Circular Storage Policy

· Hardware Inventory

· Fan Profile

· System Firewall

· Power Consumption

· Power Control

· Advanced power capping

· LDAP / AD / RADIUS Support

· Backup & Restore Configuration

· Remote BIOS/BMC/CPLD Update

· Event Log Filter

· User Management

· Media Redirection Settings

· PAM Order Settings

· SSL Settings

· SMTP Settings

PSU Connector

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x 6-pin ATX 12V power connector

Operating Properties

Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Packaging Bundle

1 x MZ33-CP0
1 x I/O shield
1 x Quick start guide
1 x MCIO 8i to 8 x SATA 6Gb/s cable (600mm)

Single Box dimensions: 409 x 355 x 78 mm
Carton dimensions: 729 x 415 x 432 mm
Quantity: 10 x single boxes in one carton

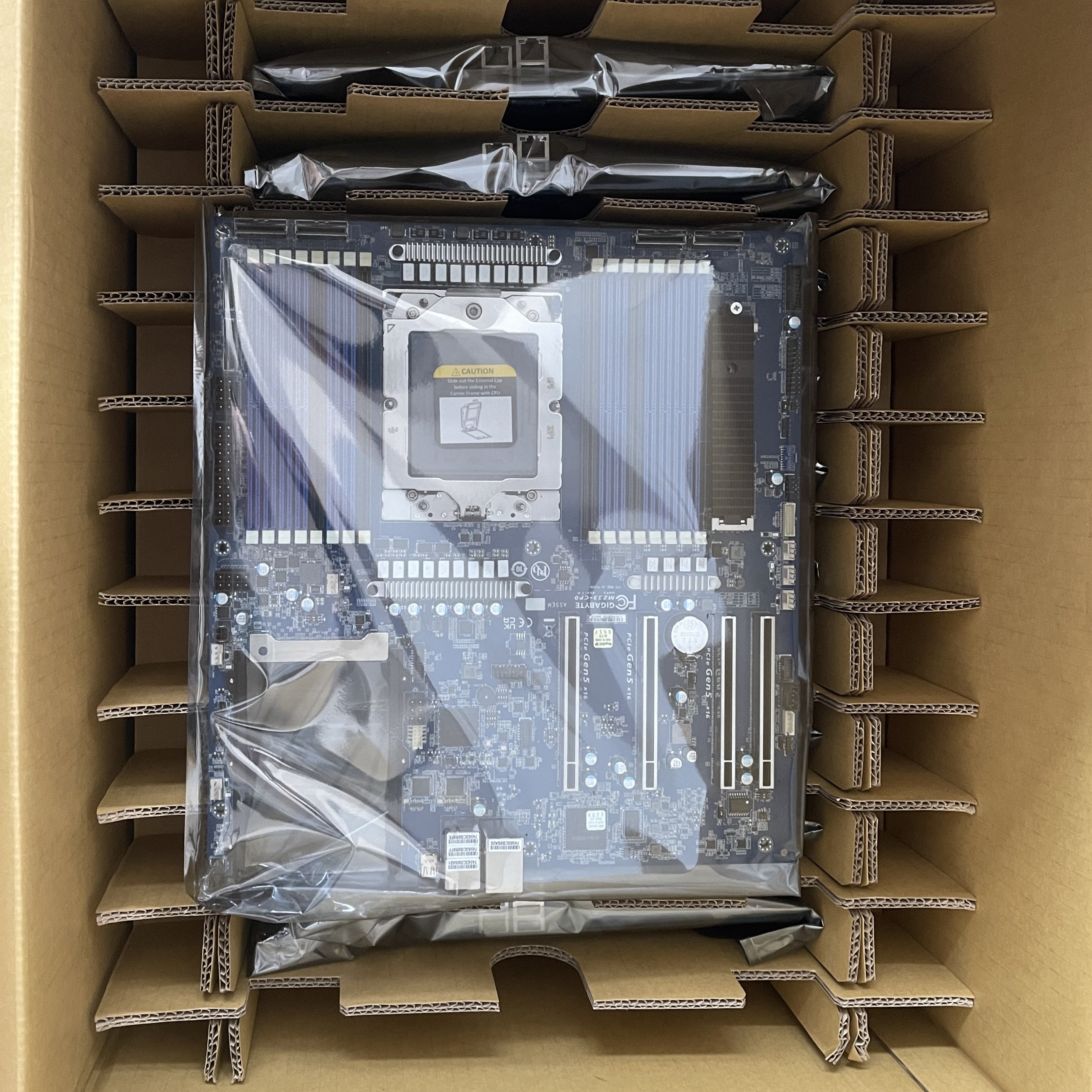

Bulk Packaging Content

10 x MZ33-CP0
10 x I/O shields

Carton dimensions: 600 x 473 x 517 mm

Ordering Information

Retail: 9MZ33CP0MR-000-1*
Bulk: 9MZ33CP0NR-000-1*

Part Numbers:

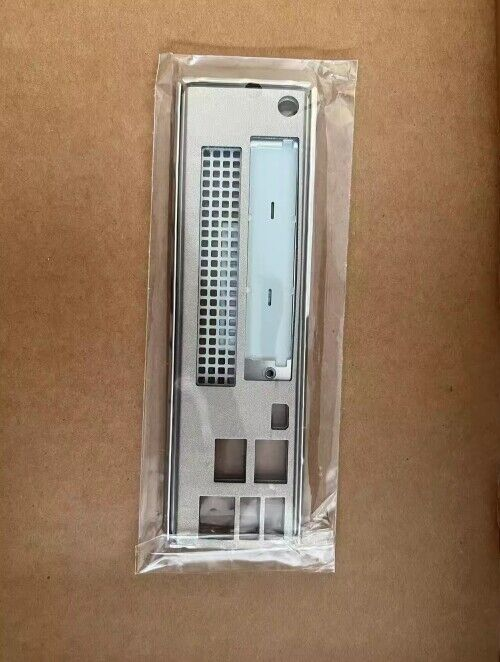

- I/O shield: 12AIO-MS33CP-00R
- MCIO 8i to 8 x SATA cable (600mm): 25CF9-600721-M0R

Optional parts:

- MCIO 8i to 2 x MCIO 4i cable (550mm): 25CF9-550700-A4R
