Parameters:

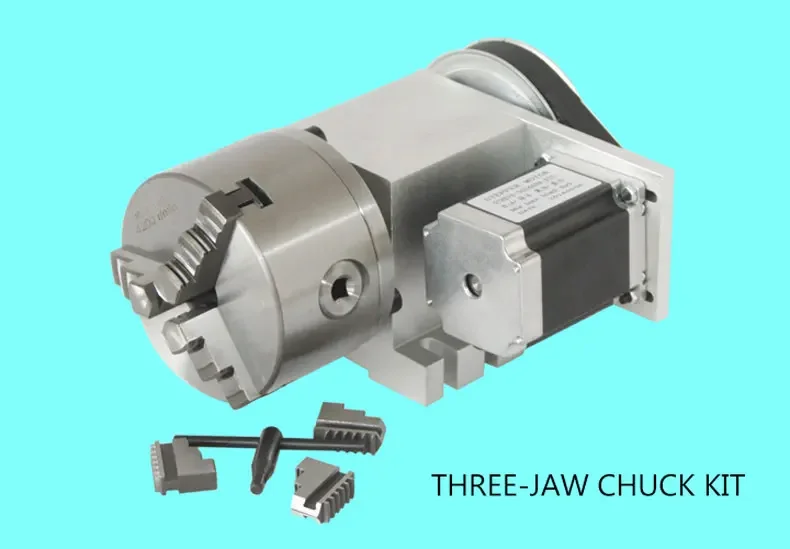

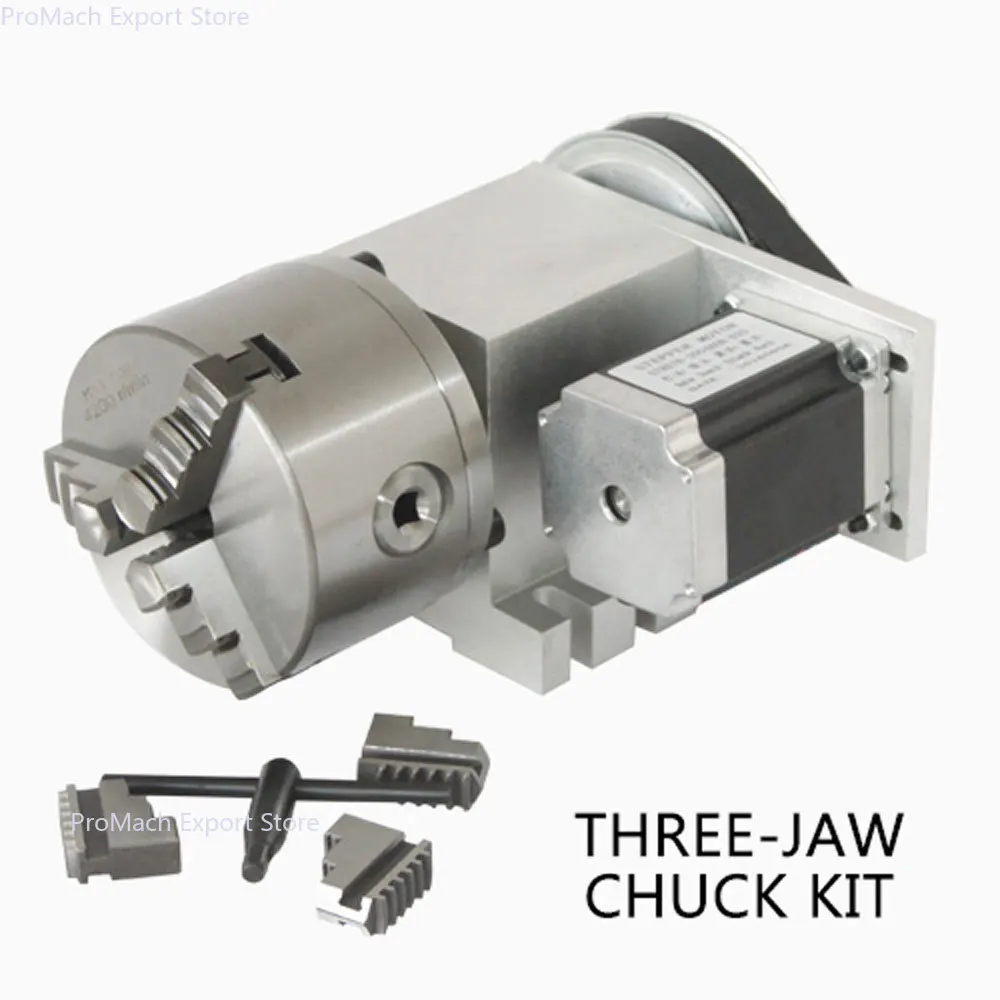

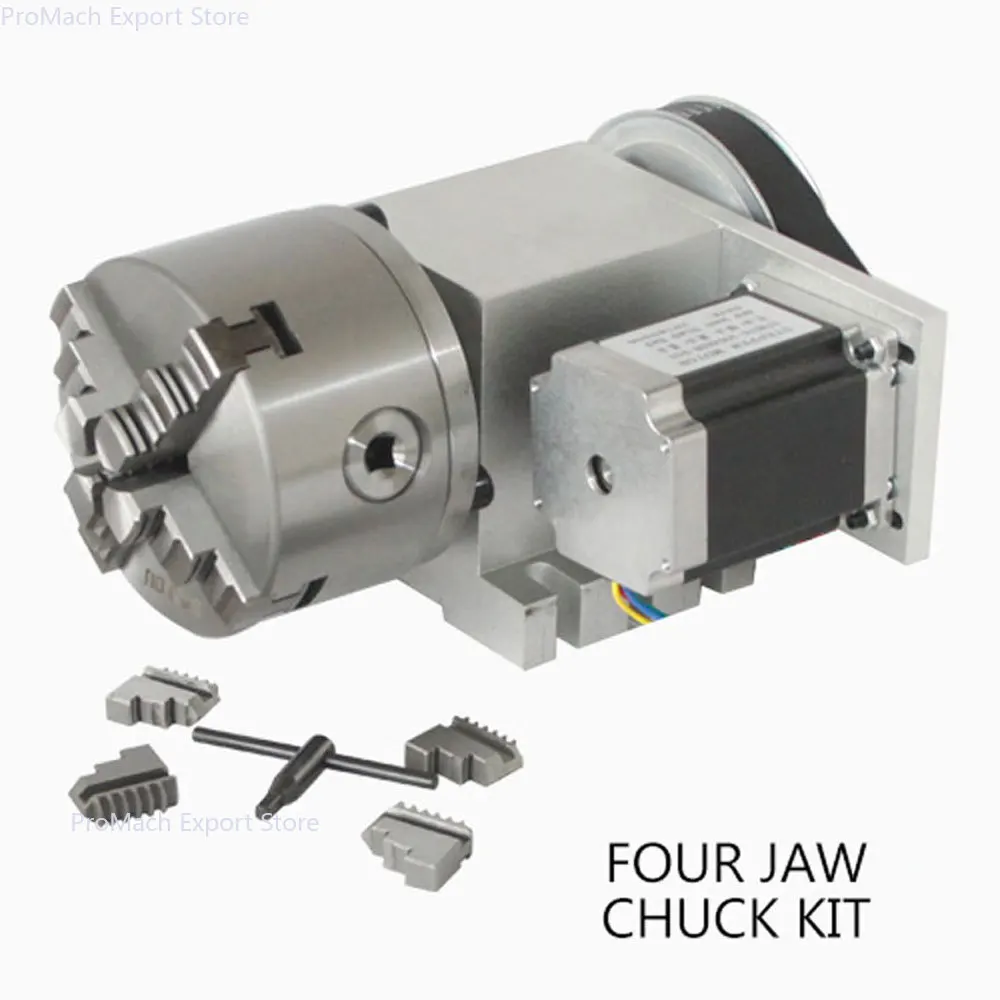

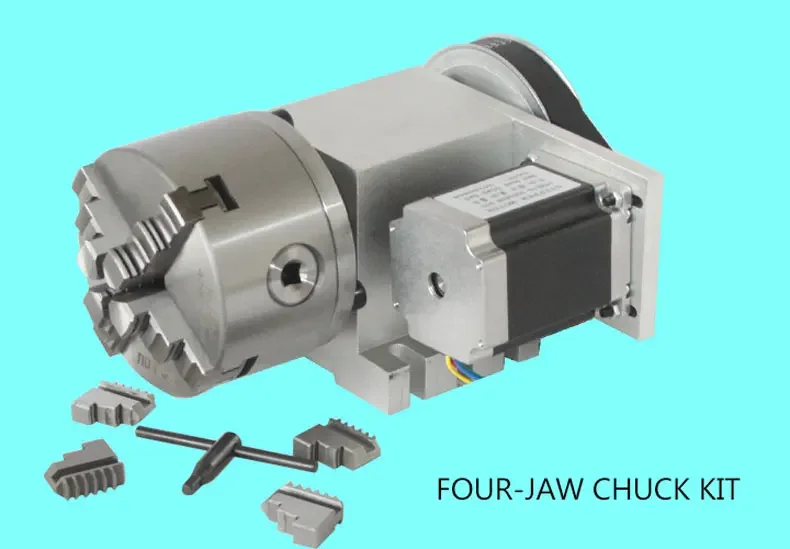

Chuck Model: 100MM Three-jaw/Four-jaw Centering Chuck
Clamping Range: Positive jaws (2~30MM), Reverse jaws (30~80MM)
Center Height: 65MM

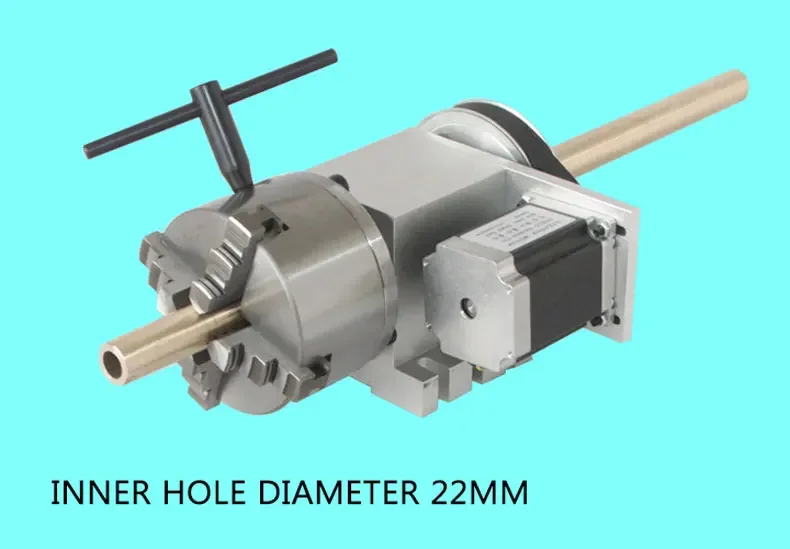

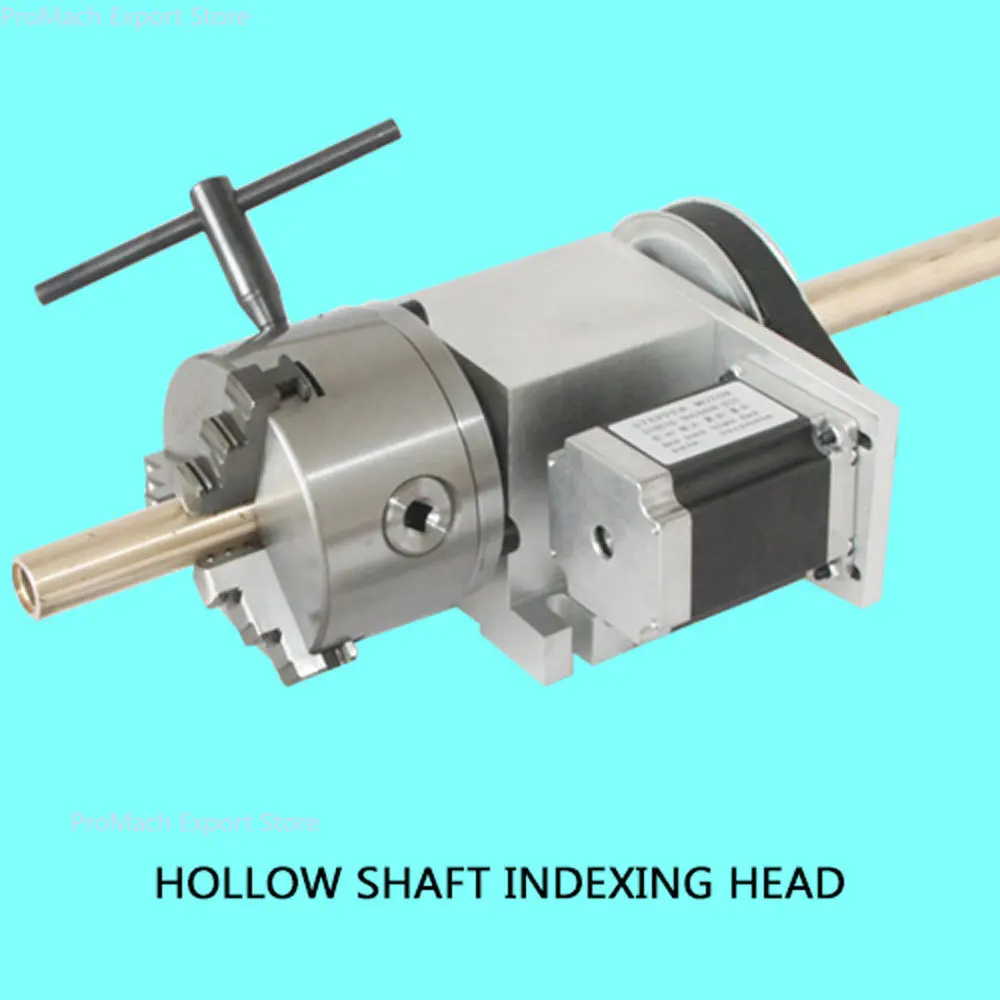

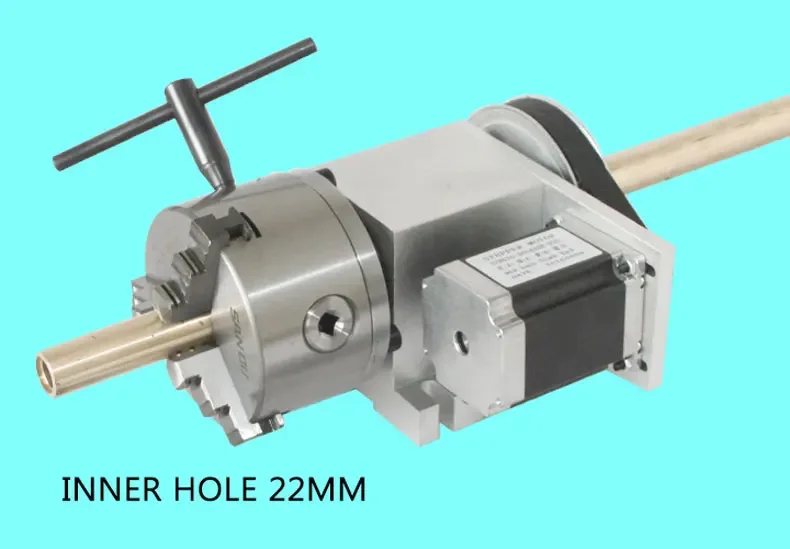

Output Shaft Diameter: 22MM
Angle: 0.3 degrees/step

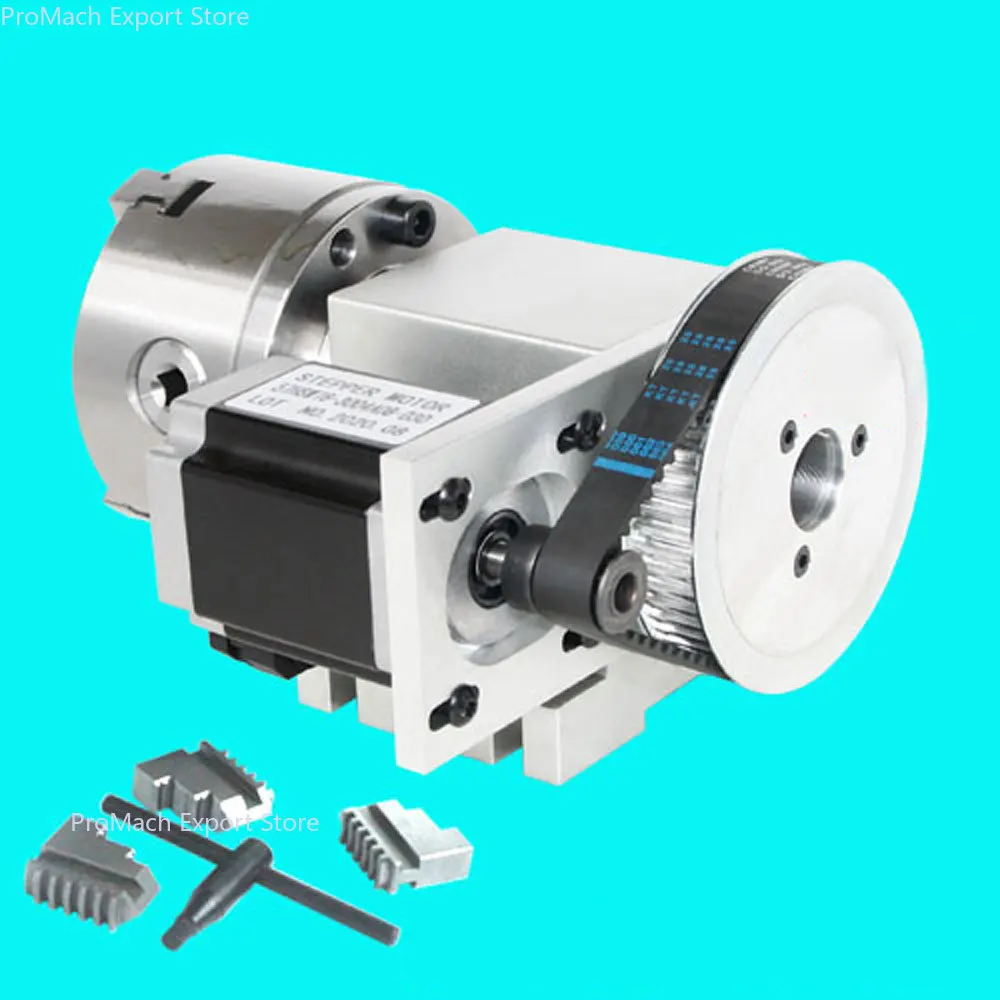

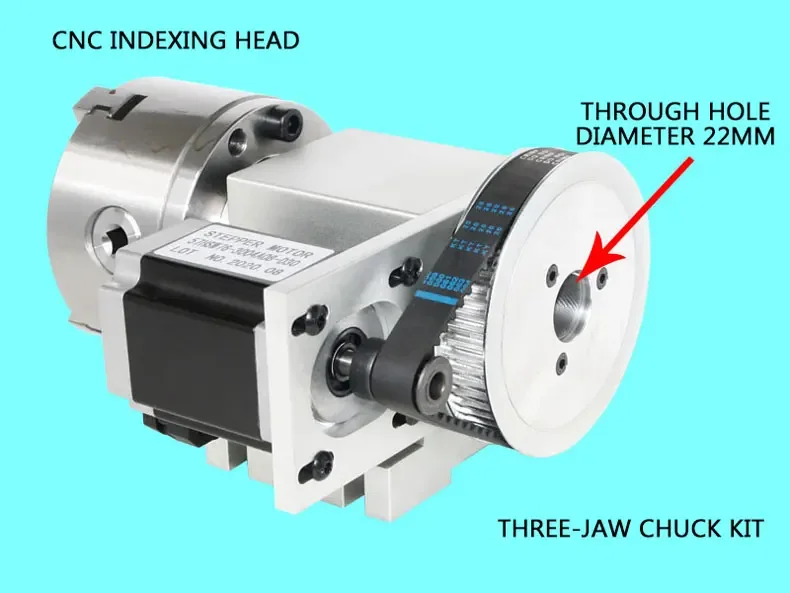

Reduction Ratio: 6:1 (5M synchronous belt reduction method)
Stepper Motor: Two-phase 57mm 4-wire 4.5A stepper motor (Domestic, brand new)
Motor Shaft Diameter: 12.7mm

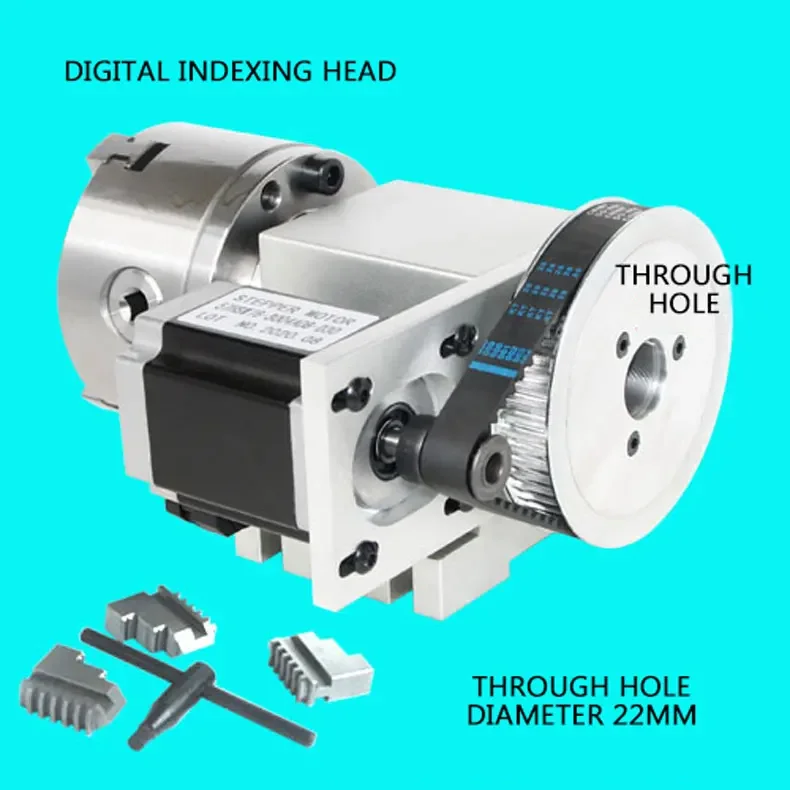

Accessories: One set of total reverse jaws and wrench (as shown)

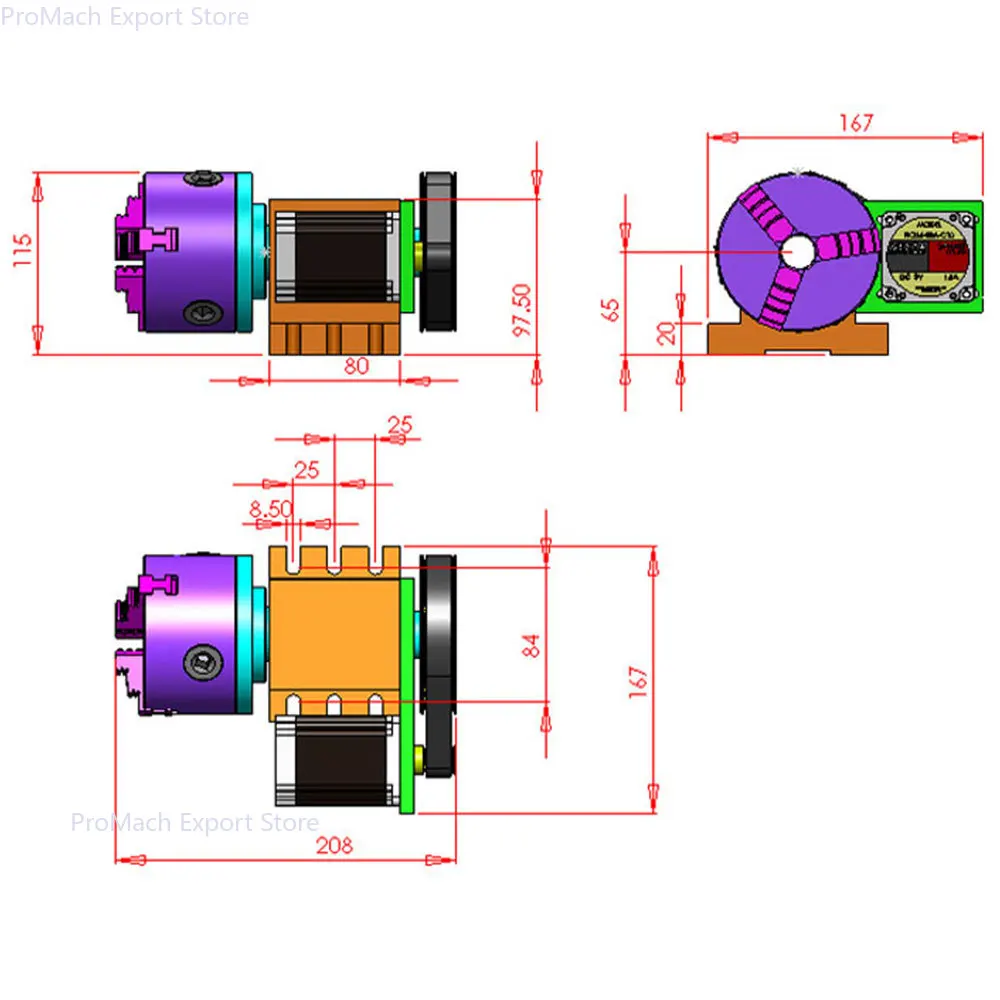

Dimensions: Length 210mm × Width 168mm × Height 115mm
Weight: 7.8kg
