Harris 10.368GHz Up Converter with 1.5W power amp for 1296 IF + 3 adapter cables

Image Hosting by Vendio

Image Hosting by Vendio

Image Hosting by Vendio

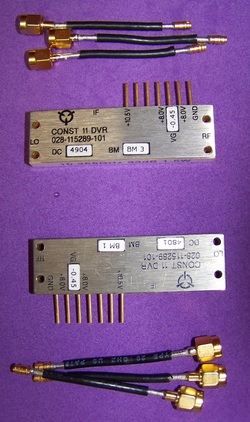

 This is for one Harris 028-115289-101 10-11GHz 1.5W complete Up Converter for 1296MHz I.F. Conversion gain is 33dB. Also comes with 3ea. 4 inch SMA to SMP adapter cables as shown in the last photo. The short adapter cables shown in the other photos are no longer available. In the case where you have your own SMP cables, let me know and ask for an invoice for a total and I will reduce your cost by $15.00 when I send the invoice. Use low side injection for the L.O. with a power level of -17dBm. For 10.368GHz with a 1296MHz I.F. your L.O. should be 9.072GHz@ -17dBm. The Neg. bias voltage must be applied first as with any GaAs FET device. This bias can come from a -2V regulator to a 100 ohm pot to the bias pin and a 50 ohm resistor from the bias pin to ground. Set the pot for zero ohms so to have 2V on the bias pin. Then apply all 3 Positive supply voltages. Now you should adjust your pot to set the voltage specified on top of the converter. Total current for both 8V pins is about 1.1 amps. Current for the 10V supply is .5 amps. I believe the internal mixer is image reject since no filters are required. Opposite side band and L.O. are typically -50dB down Great for your portable 10GHz transverter. 2 available. Please view all photos.
