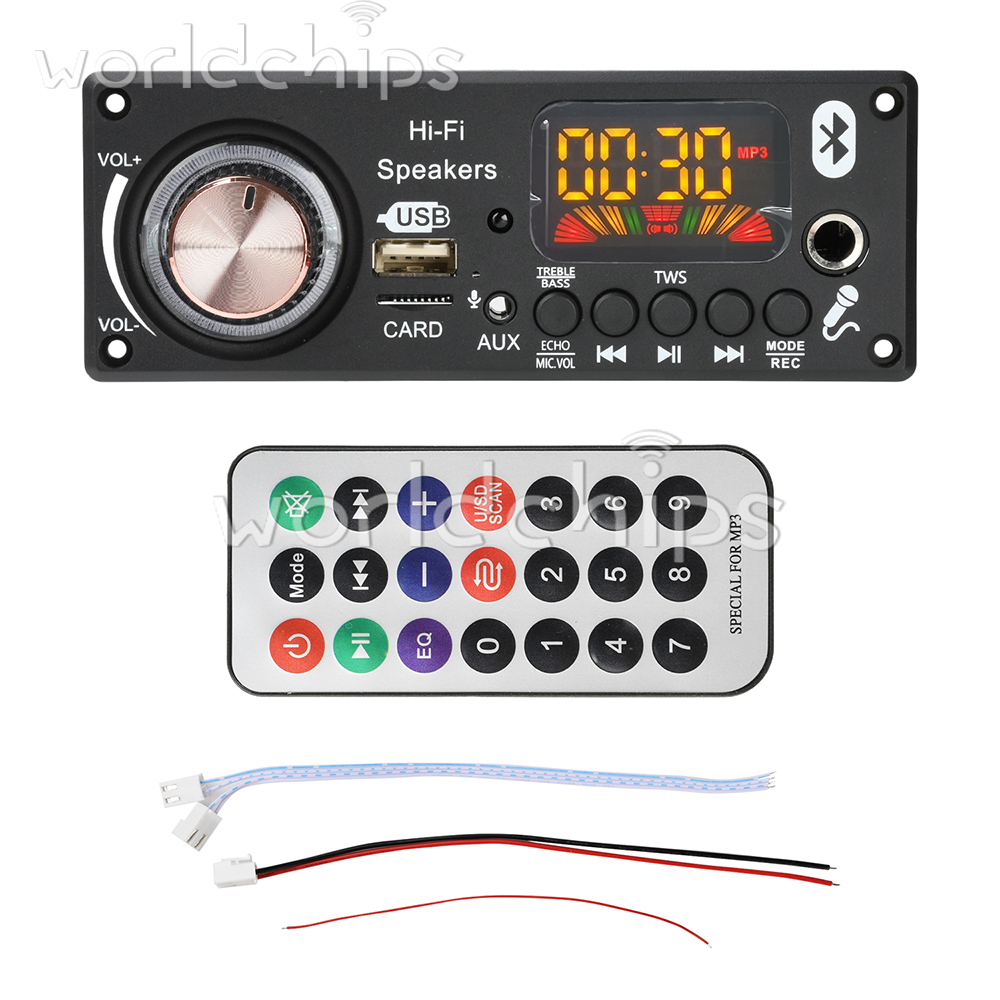

(A , B only the controller not same)
Product Features:
1. Supports 2*100W high-power design for powerful audio output.
2. Features Bluetooth 5.3 for stable connections and efficient transmission.
3. Supports TWS functionality for a true wireless stereo experience.
4. Compatible with multiple audio sources including MP3/USB/TF/FM/Bluetooth.
5. Includes recording capability requiring a connected USB drive or TF card for storage.
1. Supports 2*100W high-power design for powerful audio output.
2. Features Bluetooth 5.3 for stable connections and efficient transmission.
3. Supports TWS functionality for a true wireless stereo experience.
4. Compatible with multiple audio sources including MP3/USB/TF/FM/Bluetooth.
5. Includes recording capability requiring a connected USB drive or TF card for storage.
Product Specifications:

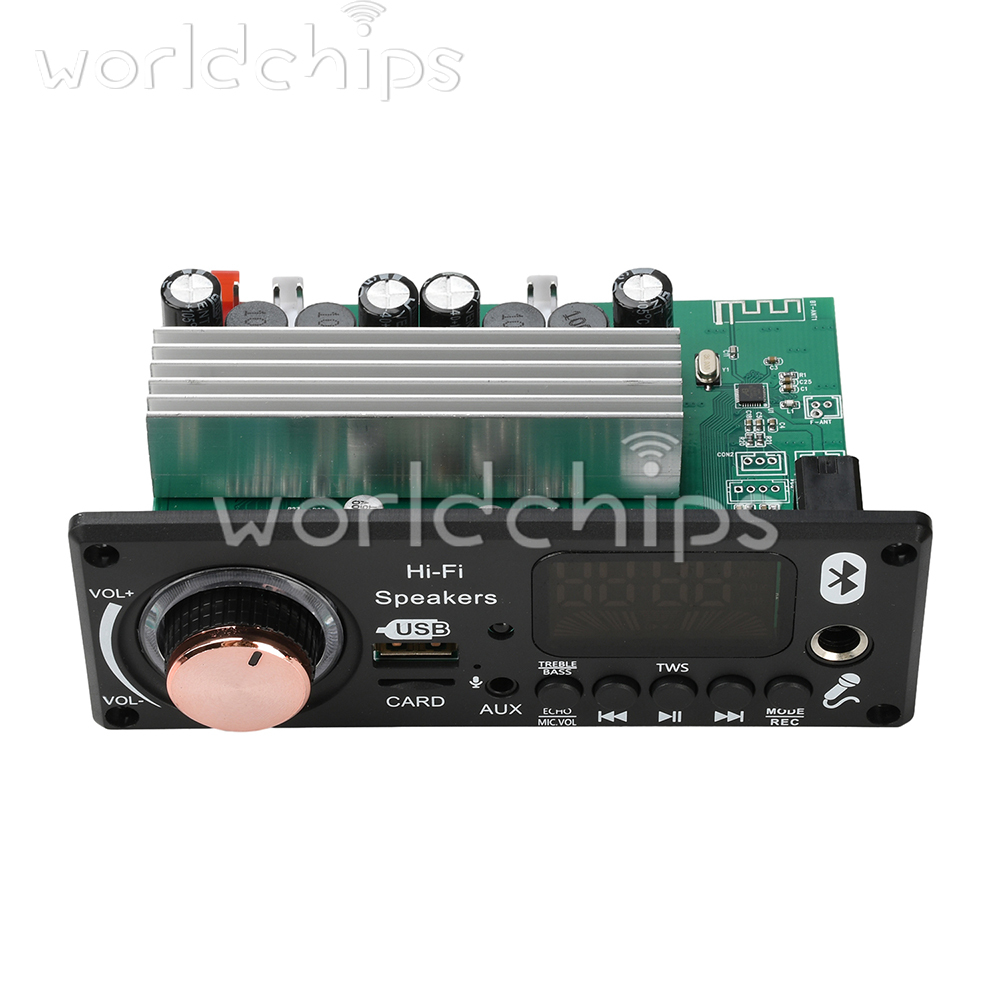

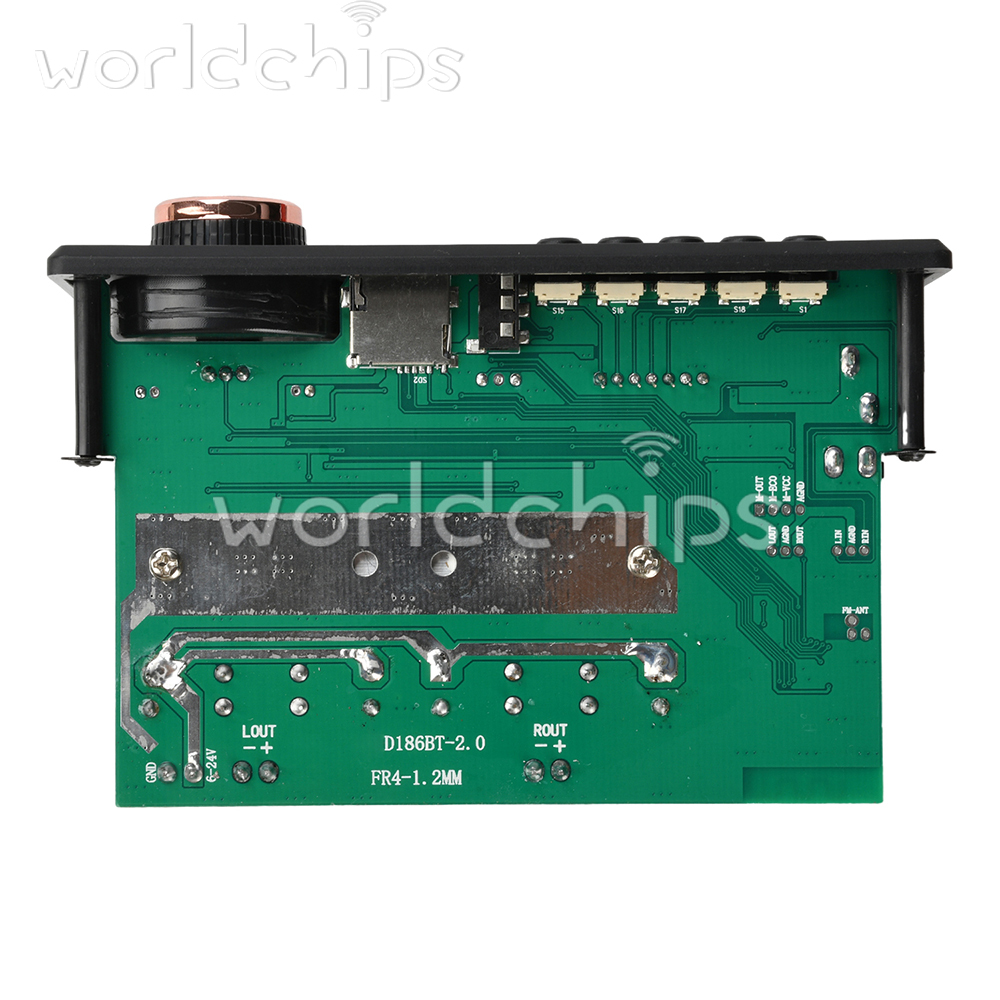

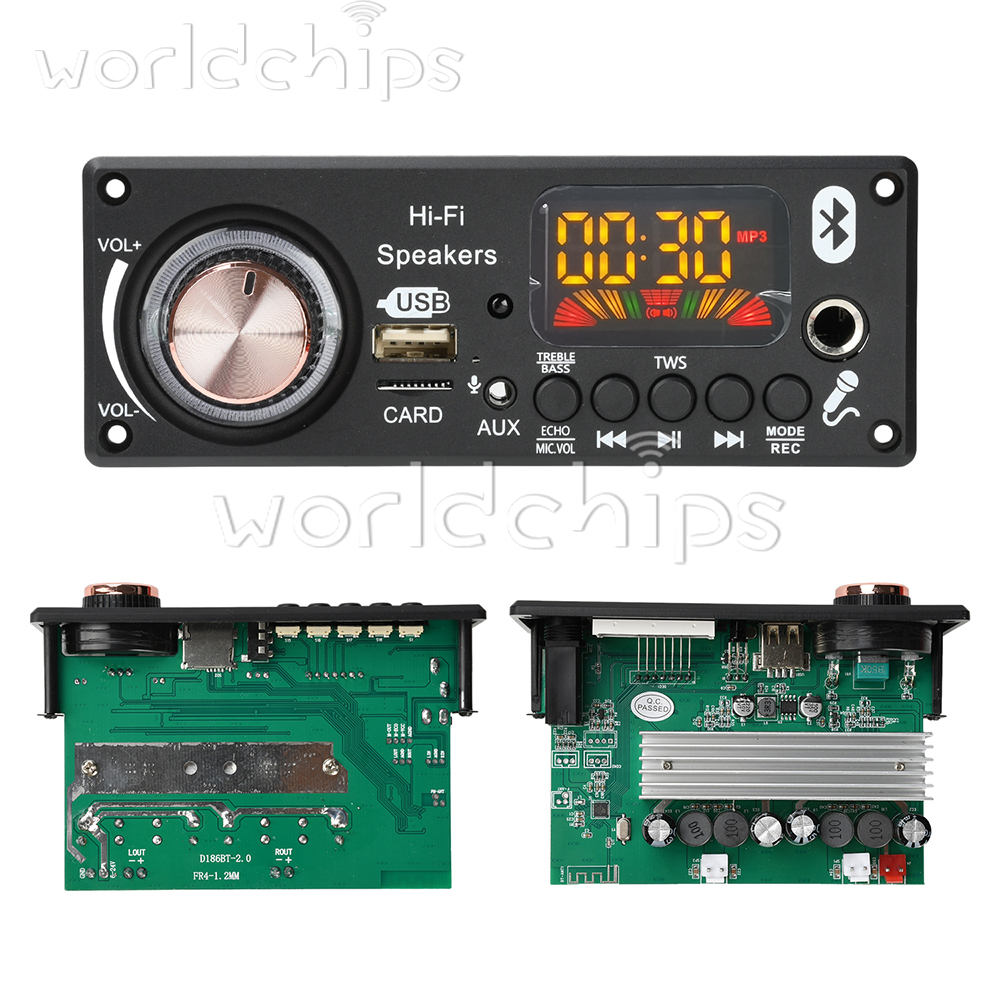

Model: D186BT (Microphone Interface) Version 2.0
Voltage: DC 12V; Current: 2A+
Power: 2x100W
Main Control IC: AB5362B
Bluetooth IC: AB5362B
Bluetooth Version: 5.3

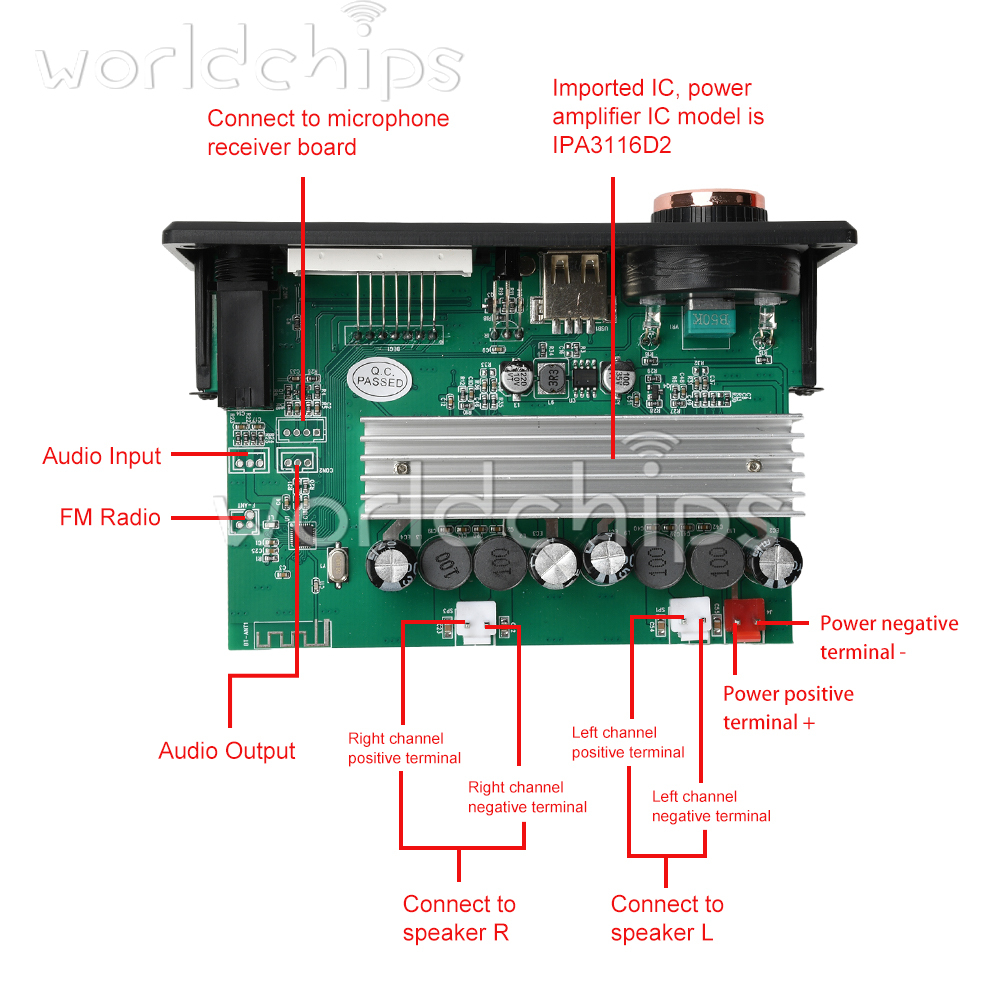

Power Amplifier: TPA3116D2 (2 units); Power: 2x100W
Bluetooth Calling Functionality
Microphone Interface Functionality
Recording Functionality
Folder Switching Functionality
TWS Functionality
Music Formats: MP3 / WMA / WAV / FLAC / APE Lossless Formats
FM Radio Frequency Range: 87–108 MHz
Supported Functions: MP3 / USB / TF / LINE IN / FM / BLUETOOTH / Remote Control Connection
Supports Treble / Bass / Microphone Volume / Microphone Reverb Adjustment
Voltage: DC 12V, Current: 2A or higher

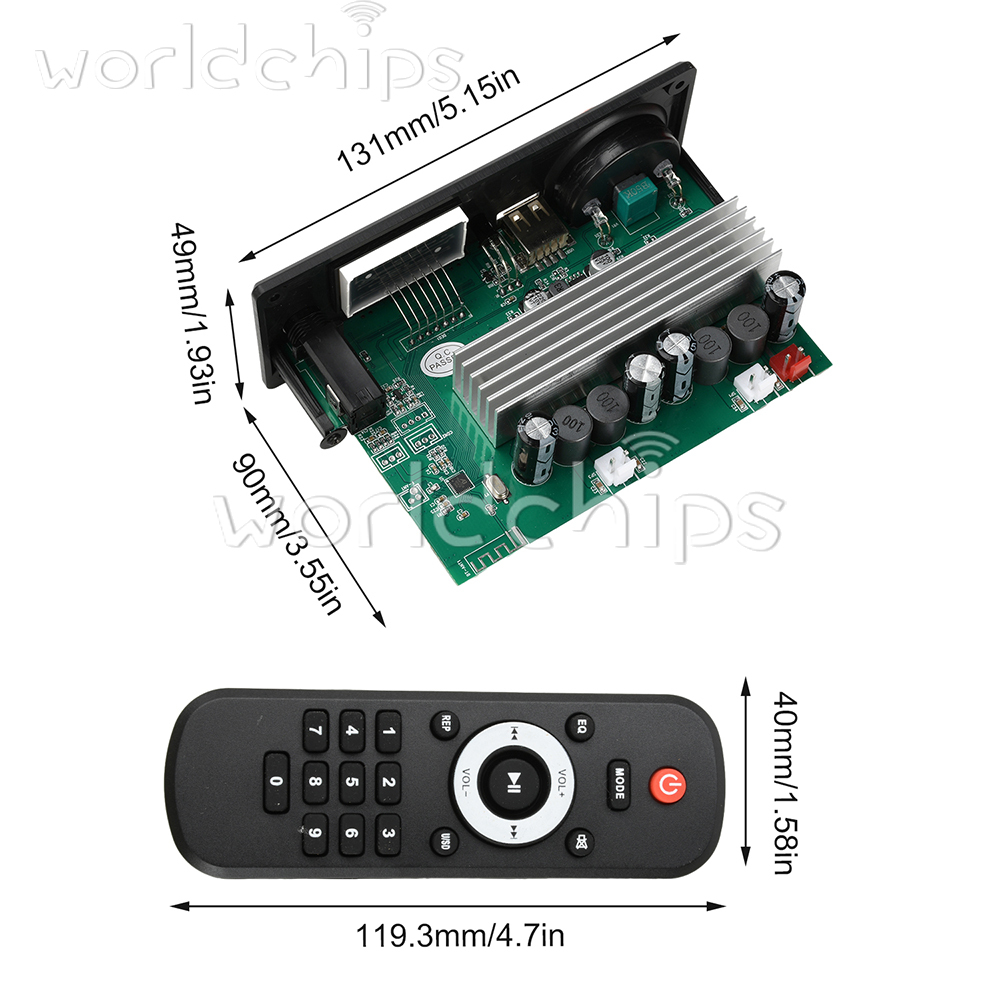

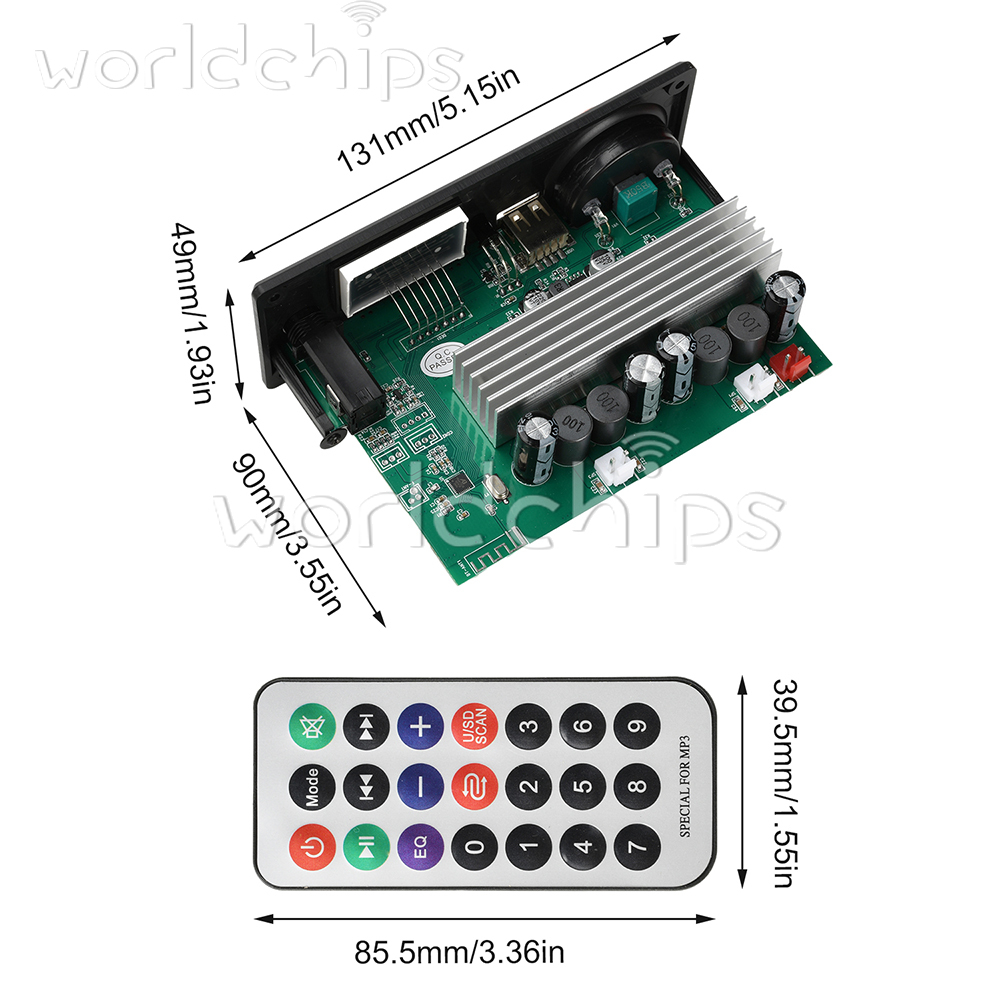

Structure: Panel Dimensions: Length 131mm × Width 49mm, Screw holes around panel edges, Panel Depth: 82mm
Model: D186BT (Microphone Interface) Version 2.0
Voltage: DC 12V; Current: 2A+
Power: 2x100W
Main Control IC: AB5362B
Bluetooth IC: AB5362B
Bluetooth Version: 5.3
Power Amplifier: TPA3116D2 (2 units); Power: 2x100W
Bluetooth Calling Functionality
Microphone Interface Functionality
Recording Functionality
Folder Switching Functionality
TWS Functionality
Music Formats: MP3 / WMA / WAV / FLAC / APE Lossless Formats
FM Radio Frequency Range: 87–108 MHz
Supported Functions: MP3 / USB / TF / LINE IN / FM / BLUETOOTH / Remote Control Connection
Supports Treble / Bass / Microphone Volume / Microphone Reverb Adjustment
Voltage: DC 12V, Current: 2A or higher
Structure: Panel Dimensions: Length 131mm × Width 49mm, Screw holes around panel edges, Panel Depth: 82mm

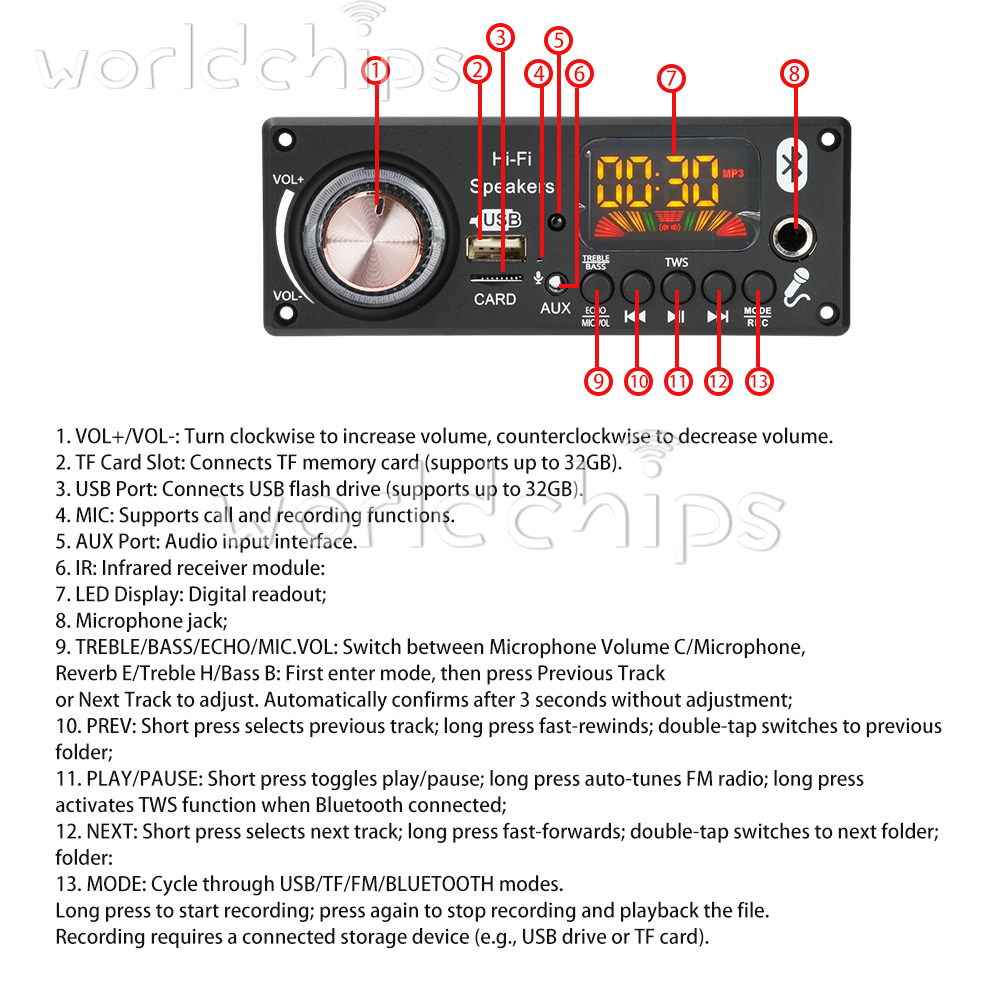

Recording Function Instructions:
1. Press and hold the MODE button to start recording. Press and hold MODE again to cancel recording and play the recorded file.
2. A storage device (e.g., USB flash drive or TF card) must be connected during recording;
3. With a storage device (e.g., USB flash drive or TF card) connected, press and hold the PLAY/PAUSE button to enter the recording folder and playback files;
1. Press and hold the MODE button to start recording. Press and hold MODE again to cancel recording and play the recorded file.
2. A storage device (e.g., USB flash drive or TF card) must be connected during recording;
3. With a storage device (e.g., USB flash drive or TF card) connected, press and hold the PLAY/PAUSE button to enter the recording folder and playback files;

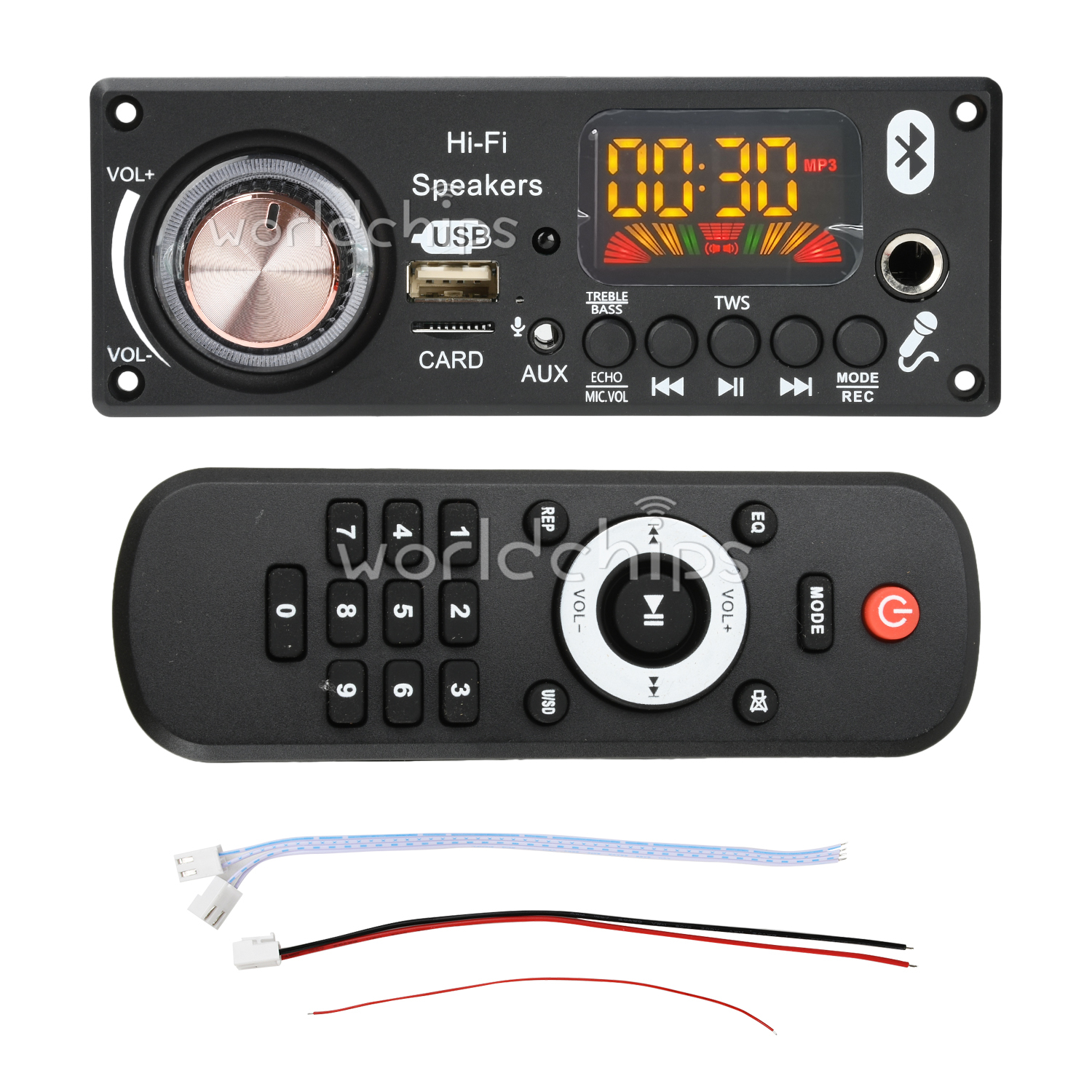

Product List:
1x Decoder Board
4x Cables
1x Remote Controller
1x Decoder Board
4x Cables
1x Remote Controller
-
