Overview

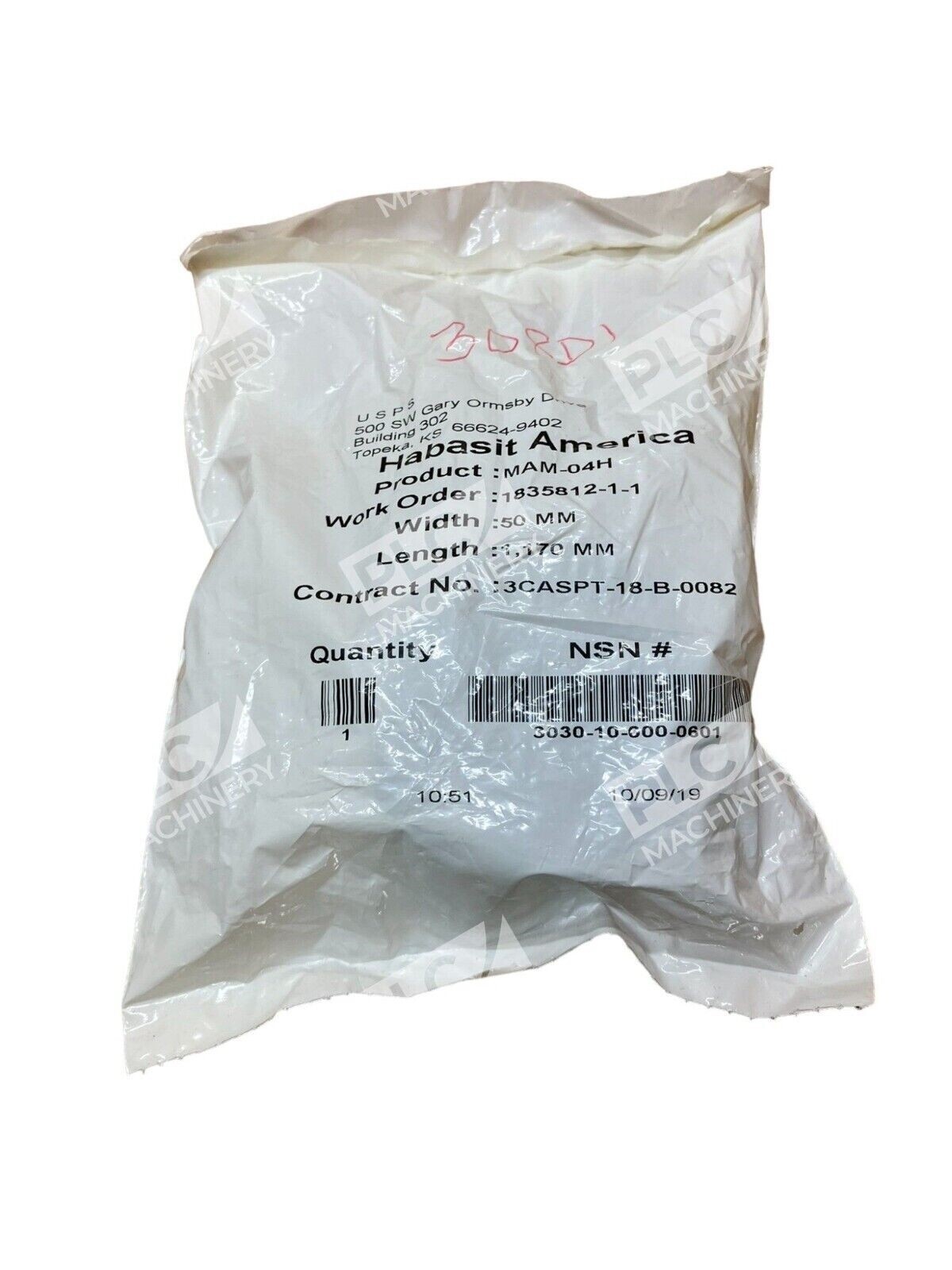

The Habasit MAM-04H 50mm x 1170mm belt is a precision-engineered machine tape built for light to medium-duty conveyor and material transport applications. This modular belt features dual-sided abrasion resistance, exceptional elasticity, and consistent grip properties—making it a drop-in solution for feeder systems, letter sorting equipment, and paper handling machinery commonly found in manufacturing, postal, and packaging environments.

Key Features

• Abrasion-resistant construction on both running and pulley sides for extended service life
• Elastic and dimensionally stable polymer design minimizes slippage and maintains precision alignment
• Wide operating temperature range from -20°C to +60°C for climate-controlled or ambient facilities
• Antistatic capable material suitable for electrostatic-sensitive applications
• Quick-change jointing compatible with Flexproof and Quickmelt joining methods

Technical Specifications

• Width: 50 mm
• Length: 1170 mm
• Thickness: 1.5 mm
• Belt weight: 1.4 kg/m²
• Tensile force (8% static): 2.6 N/mm (15 lbf/in)
• Tensile force (8% relaxed): 1.8 N/mm (10 lbf/in)
• Operating temperature: -20°C to +60°C (-4°F to +140°F)
• Material: Polyamide or polyester blend with elastomer backing
• Seamless manufacturing width: Up to 1140 mm

Typical Applications

• Mail and document sorting systems
• Paper handling and folder belts
• Feeder systems for light industrial machinery
• Letter transport conveyors
• Sheeter and crosscutter operations
• Material handling on automated assembly lines

Compatibility & Replacements

Compatible With

• Modular conveyor systems using standard pulley diameters (consult application-specific requirements)
• Equipment designed for belts 50mm wide and 1140-1170mm circumference
• Systems requiring low-profile, high-precision belting

Replaces / Drop-In Replacement For

• Habasit MAM-04H belts in equivalent dimensions and configurations
• Direct replacement for OEM systems specifying Habasit MAM-04H 50×1170 belting
• Other manufacturers' equivalent 50mm machine tape belts (verify pulley compatibility before ordering)

Works With

• Flexproof joining method (8×30 pin configuration)
• Quickmelt adhesive joining for field splicing
• Habasit guide rails (e.g., GR 1/2 for 50mm belts)
• Standard mechanical pulley and drive systems
