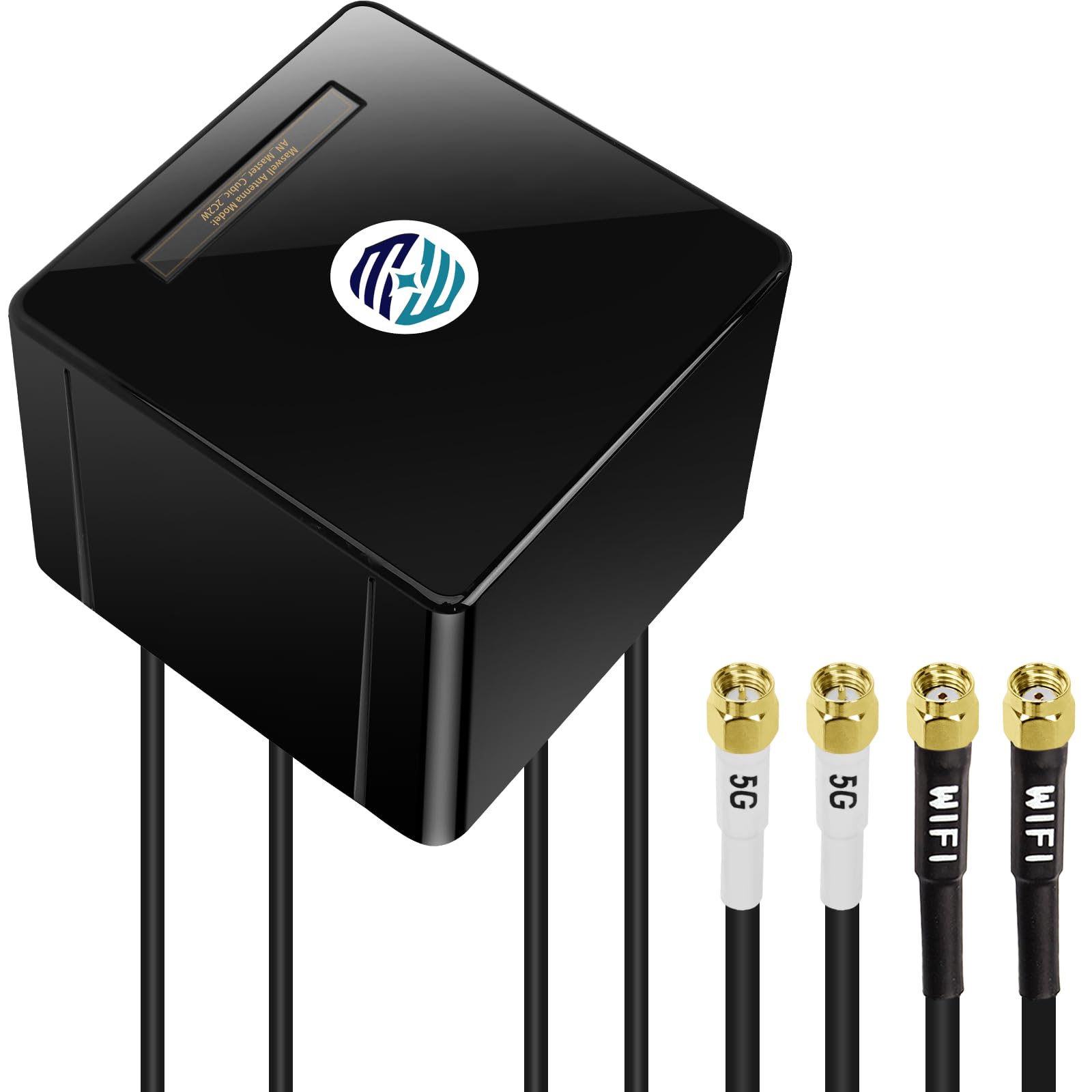

Maswell 2X2 5G MIMO 2X2 WIFI7 Antenna 600MHz~8.0GHz Antenna Cellular 5G 4G LTE 3G WiFi6E UWB and GSM Screw Mount Cubic Antenna SMA Male RP SMA Plug Waterproof
- Cellular/WIFI FREQUENCY: Cellular 5G/4G LTE/3G WiFi6E/UWB :600MHz~8.0GHz;Wifi7/WiFi6E/Bluetooth/Zigbee:2100MHz~7200MHz .Ideal for signal reception of GSM LTE/3G/4G/5G Cellular MIMO Wifi7/WiFi6E/Bluetooth/Zigbee wireless devices.
- PREMIUM QUALITY ANTENNA: Our Omni-Directional Screw Mount Antenna is made from durable material - reinforced plastic, copper wire.It will be a professional, durable accessory!
- Multiple applications: High quality Cellular MIMO Antenna for 5G 4G 3G LTE,WIFI7 Antenna for Wifi7/WiFi6E/Bluetooth/Zigbee antenna. Suitable for GSM/3G/4G/5G LTE Wifi7/WiFi6E/Bluetooth/Zigbee system,For industrial, commercial and Internet Of Things IOT applications such as: Hotspots, Kiosks, Vending, Point-of-Sale POS, Machine-to-Machine M2M, Video Surveillance Cameras, DVRs, NVRs, Vehicles, SCADA, Telemetry, PLCs, RTUs, Digital Signage etc.
- IP67 WATERPROOF: This antenna is completely waterproof IP67 . Ideal for use outdoors, in vending machines, meter housings, equipment sheds, or other locations requiring a low-profile vandal resistant external antenna.
- Outdoor Mount Antenna: This is an outdoor mounting 2x2 MIMO antennas for IoT M2M equipment. UV stability and IP 67 ensure its 24/7 operation capacity for industrial smart meters, sensor systems. If mounted indoor, some speed reduction or signal decrease may be obseved due to the wall blockages between the house walls and the tower. Hence deployment outdoor is highly recommneded. If only indoor antenna is required, please consider our other indoor models.
Item ID:AN_Master_Cubic_2C2W
Antenna 1:5G/4G LTE/WiFi6E/UWB
Frequency Range:600MHz~8.0GHz
Polarization:Linear
Gain:Up to 6.0 dBi （20cm Cable Length)
V.S.W.R:average 3.0
Efficiency:>50%
Antenna 2:5G/4G LTE/WiFi6E/UWB
Frequency Range:600MHz~8.0GHz
Polarization:Linear
Gain:Up to 6.0 dBi （20cm Cable Length)
V.S.W.R:average 3.0
Efficiency:>50%
Antenna 3: WiFi
Frequency Range:2100MHz~7200MHz
Polarization:Linear
Gain:4 dBi
V.S.W.R:<1.5
Impendance:50Ω
Antenna 4: WiFi
Frequency Range:2100MHz~7200MHz
Polarization:Linear
Gain:4 dBi
V.S.W.R:<1.5
Impendance:50Ω
Mechanical
Dimension:122mm *122mm*91mm
Cable:LMR195 1m or Customised
Connector:SMA Male for 5G MIMO,RP SMA Plug for WIFI MIMO
Environmental
Operating Temperature:-40℃~+85℃
Waterproof Grade:IP67
Relative Humidity:Up to 95%
Vibration:10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly:ROHS Compliant
