FIR Gr5 Swing Arm Kit KX KXF, 33032-1189 & 92015-1316, Titanium Factroy Image Racing

⚠️ Fitment note: The Make/Model filter is for guidance only. Please verify model / year / engine size in the product description before purchase.

The product description is the definitive fitment reference. If you’re unsure, message us and we’ll confirm fitment.

Factory Image Racing> Giving your machine the Factory look!

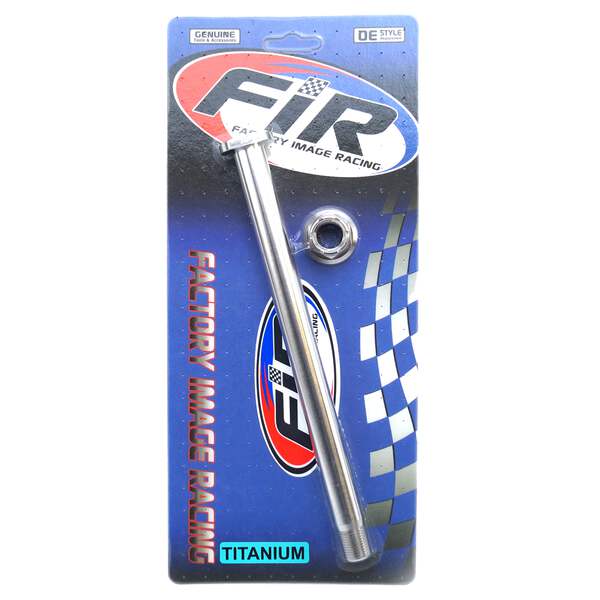

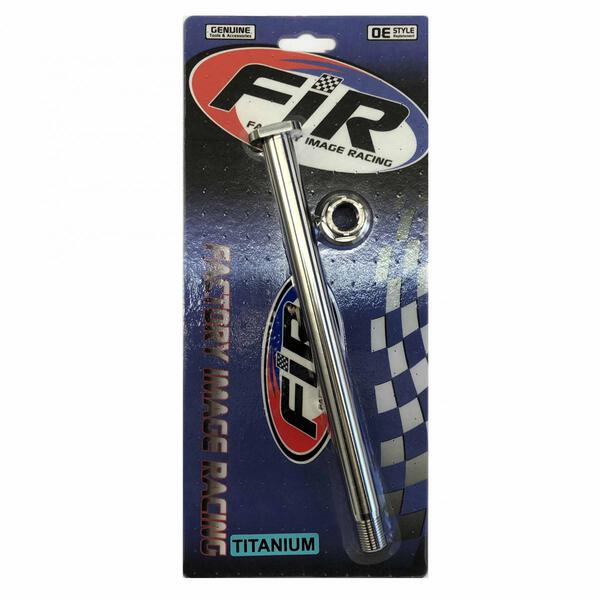

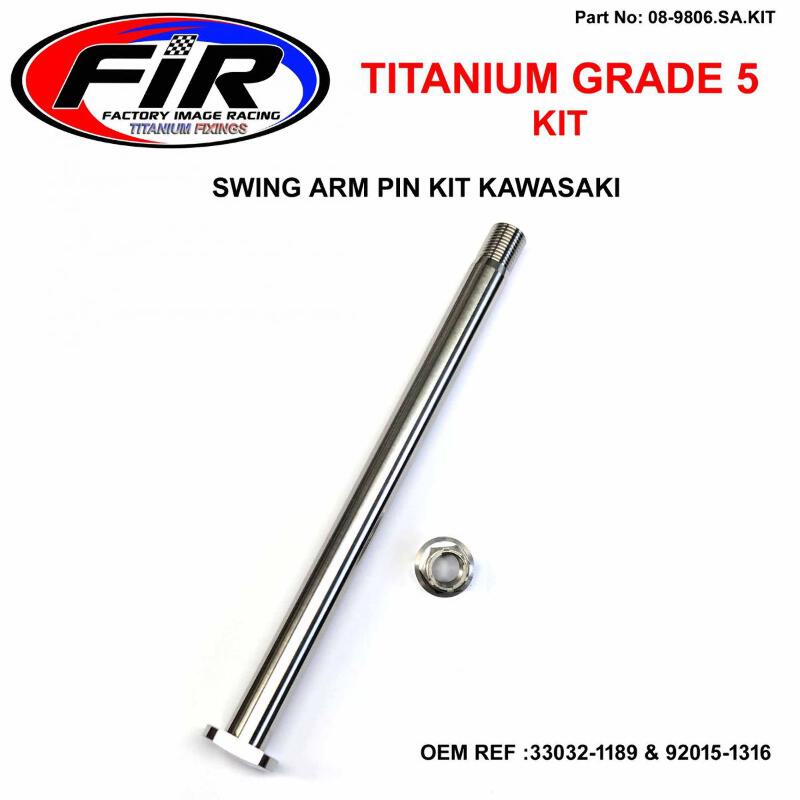

KAWASAKI SWING ARM PIN KIT

50% lighter then standard & strong then steel.

Material: Aerospace Grade 5 (6Al/4V)
Thread D: M16
Pitch P: 1.50mm
OD spindle : 16.95mm
Overall length L: 232.00mm
Thread length : 18.00mm

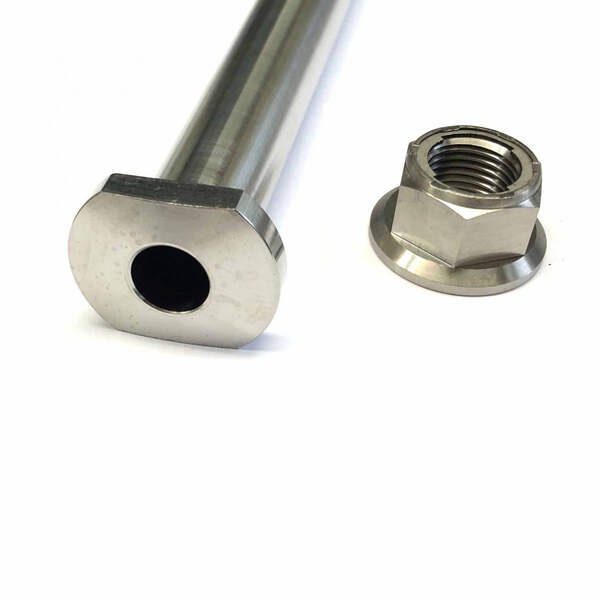

Head: HALF MOON
KIT : SPINDLE & NUT
WEIGHT: 150g spindle only!

The steel OEM spindle weights 228g and the titanium spindle weights 150g. big weight saver!!

No more rusty hardware, Titanium is Corrosion proof. CNC machined from super-strong grade 5. titanium alloy uséd for its high strength super light properties, also fantastic anti- corrosion properties. Uséd in every application from Motorcycles & much more.

Cross references numbers only: 33032-1189 & 92015-1316

33032-1189

Kawasaki Motorcycle 2000 KX250 - KX250-L2 Swingarm
Kawasaki Motorcycle 1998 KX125 - KX125-K5 Swingarm
Kawasaki Motorcycle 1999 KX250 - KX250-L1 Swingarm
Kawasaki Motorcycle 2005 KX250F - KX250-N2 Swingarm
Kawasaki Motorcycle 2002 KX125 - KX125-L4 Swingarm
Kawasaki Motorcycle 2003 KX250 - KX250-M1 Swingarm
Kawasaki Motorcycle 2004 KX250F - KX250-N1 Swingarm
Kawasaki Motorcycle 2004 KX125 - KX125-M2 Swingarm
Kawasaki Motorcycle 2005 KX125 - KX125-M3 Swingarm
Kawasaki Motorcycle 2005 KX250 - KX250-R1 Swingarm
Kawasaki Motorcycle 2001 KX250 - KX250-L3 Swingarm
Kawasaki Motorcycle 2001 KX125 - KX125-L3 Swingarm
Kawasaki Motorcycle 2004 KX250 - KX250-M2 Swingarm
Kawasaki Motorcycle 2006 KX250 - KX250R6F Swingarm
Kawasaki Motorcycle 2007 KX250 - KX250R7F Swingarm
Kawasaki Motorcycle 1998 KX250 - KX250-K5 Swingarm
Kawasaki Motorcycle 1999 KX125 - KX125-L1 Swingarm
Kawasaki Motorcycle 2002 KX250 - KX250-L4 Swingarm
Kawasaki Motorcycle 2003 KX125 - KX125-M1 Swingarm
Kawasaki Motorcycle 2000 KX125 - KX125-L2 Swingarm
