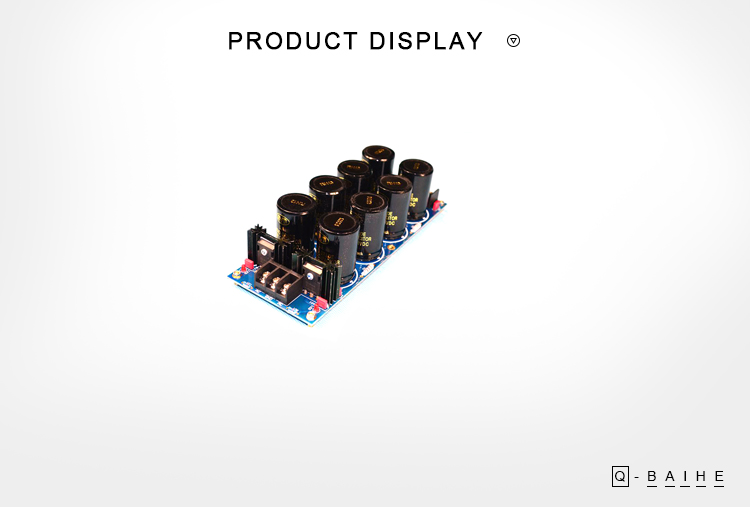

High Version of The Finished Board - High Power High Speed Schottky Rectifier Filter Power Board/Class A Power Amplifier Upgrade Tool |
||
| Introduction: |
PCB with double-sided wiring design, feel the gold process, can effectively make a large current discharge, power board wiring reasonable, dual power output, convenient and practical, suitable for DIY upgrade power amplifier and a variety of power rectifier filter use. 4 original imported Schottky 30A150V equivalent to 120A bridge heap! Schottky's characteristics are fast, small internal resistance (pressure drop naturally low) so better than ordinary rectifier original power amplifier on the high demand, the measured can be more than 2000W load. |
||
| Specification: |
PCB design a variety of holes, can be well compatible, a variety of capacitive feet, a board can be loaded with a total of 8, the board double-sided gold process, good conductivity, but the high cost
PCB Size: Length: 207MM; Width: 79MM
Large capacitance feet: support a variety of special capacitance pin, the maximum capacitance can be installed diameter: 35MM
The capacity is 80V10000UF, and a total of 80000UF per board
|
||
| Input voltage: |
according to the need to determine, in theory, not more than Schottky rectifier bridge 150V; not more than the board installed capacitor voltage can be
|
||
| Note: | No circuit diagram(DIY must have a certain electronic basis and hands-on ability, you do what it can) | ||
| Package: |
1 x High Version of The Finished Board - High Power High Speed Schottky Rectifier Filter Power Board/Class A Power Amplifier Upgrade Tool |
||
