How to distinguish between Recessed NO Magnetic Window and Recessed NC Magnetic Window？

The Recessed Magnetic Window is composed of a reed switch and a magnet.

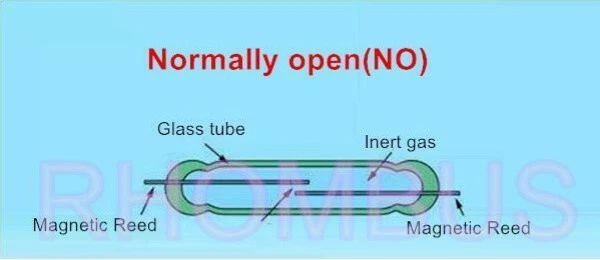

1. The reed switch is normally open（NO）. When there is no magnet approaching, two small pieces of magnetic reed are disconnected;

when the magnet is close, two small pieces of magnetic reed are connected. This is a normally open Recessed Magnetic Window（NO）.

Switch Pattern:normally open (NO), when the door(magnet) closed, the switch keeps connecting

10Pcs/Lot Wired NO Wooden Door Contacts Magnetic Switch Access Control w/screws - Picture 11 of 12

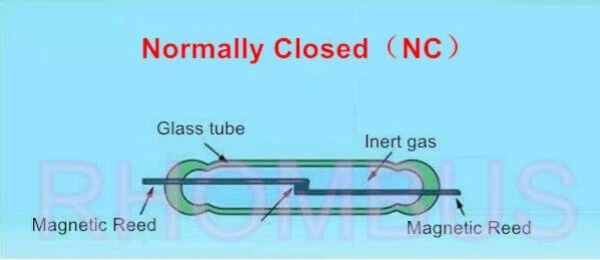

2. The reed switch is normally closed（NC）.  Two small pieces of magnetic reed are connected when there is no magnet approaching.

Two magnets are separated when a magnet approaches. This is a normally closed Recessed Magnetic Window(NC)

Switch Pattern:normally closed (NC), when the door closed, the switch are separated.

10Pcs/Lot Wired NO Wooden Door Contacts Magnetic Switch Access Control w/screws - Picture 12 of 12



Specification:

         permanent magnet close reed switch(less 5mm), magnetic sensor is working station(short circuit). when magnet separate,it is normal open state.

         Normally open (NO), when the door closed, the switch keeps connecting
