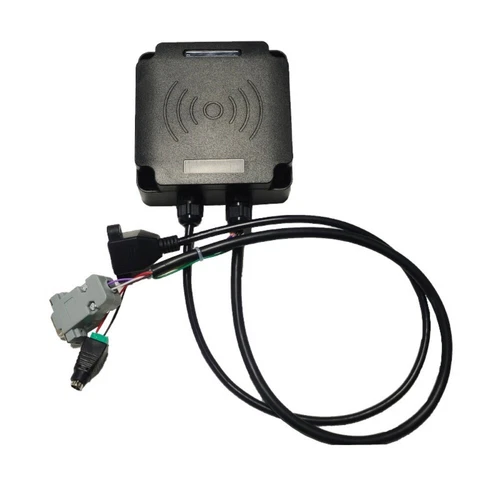

Name: UHF M100 Module Industrial Reader Model Number: SW5402
General Description:
SW5402 is a UHF RFID M100 Module integrated reader. It is designed upon fully self-intellectual property. it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system. Application: - Production flew-line management
- Animals' recording management
- Products anti-counterfeiting detection
Other field: - Club management
- Library management
- Attendance management and more
Features: 1. Based on the M100 RF chip design,Self-intellectual property; 2. Support ISO18000-6C (EPC C1G2) protocol tag; 3. 865~868MHz, 902~928MHz frequency band (frequency customization optional by Soft); 4. FHSS or Fix Frequency transmission; 5. RF output power up to 26dBm (adjustable); 6. 3dBi circular antenna with effect distance up to 0m~2.0m*; 7. Support active mode, answer mode, trigger-activating and password work mode; 8. Low power dissipation with single +12V DC power supply; 9. Support RS232, RS485, Wiegand,Trigger interface,(Relay, USB, RJ45, WIFI, POE,4G)Optional; 10. One Relay (Optional) can control Beep, Motor, Light. 11. Support ModBus (only RS232, RS485, RJ45 interface). 12. Support for White List and Read By Time*; * Effective distance depends on antenna, tag and environment. Product mode explanation:
Model | Interface | SW5402 | Standard(RS232, RS485,WG26,WG34,Trigger) | SW5402T | Standard with RJ45 | SW5402W | Standard with WIFI | SW5402G | Standard with 4G | SW5402R | Standard with Relay | SW5402U | Standard with USB(HID & Keyboard) | -T: RJ45 -W:WIFI -P:POE –R: Relay –U:USB |
Product Technical Parameters Type | UHFM100 Module Industrial Reader | Model Number | SW5402 | Performance | Frequency | 902~928MHz,860~868MHz(frequency customization optional) | Ant. | 3 dBi Antenna | RF Power | 0 - 26dBm | Read Distance * | 0-200cm * Effective distance depends on antenna, tag and environment. | Write Distance * | 0-100cm * Effective distance depends on antenna, tag and environment. | Read Rate | 200cnt / second | Read Type | ISO18000-6C（EPC Gen2） | Reading Prompt | Buzzer | Working Voltage | DC +9 - 24V, 5W | Work Mode | Active mode, Answer mode, Trigger mod, Password mode | Communication | RS232, RS485, WG26, WG34, Trigger, | Relay(Optional), RJ45(Optional), | WIFI(Optional),USB(Optional),4G(Optional) | Read Function | Support for White List and Read By Time* | Net | RJ45 support TCP Client/Server,,HTTP, MQTT, Modbus, DNS, DHCP. | WIFI support TCP Client,HTTP, MQTT. | 4G support TCP Client,HTTP, MQTT. | LLRP(Optional) | Environmental parameters | Operation Temperature | -20~+60℃ | Storage Temperature | -40~+85% | Humidity | 5%～95% RH, Non-condensing | Waterproof Rank | IP65 | Physical parameters | Dimensions | 95x95x40mm | Net Weight | 1.0Kg | Gross Weight | 1.5Kg | Package size | 24*16*13cm | Carton size | 48*32.5*28.5cm, 8pcs/carton | Shell material | ABS | Color | Black | SDK | SDK | Support X86 & X64, C++, C#, VB, Delphi, Linux, ARM, Python, NodeJS, QT, JAVA, Android, Modbus. |
InterfaceItem | Comment | Red | VCC (DC 9V – 24V) | Black | GND | White | RS232 TXD | Purple | RS232 RXD | Brown | GND | Yellow | Wiegand DATA0 | Green | Wiegand DATA1 | Gray | GND | Pink | RS485 A+ | Orange | RS485 B- | Aqua | Trigger input-（TTL level） | Blue | Trigger input+（TTL level） |
Package: - 1 x UHF M100 Module Industrial Reader
|
