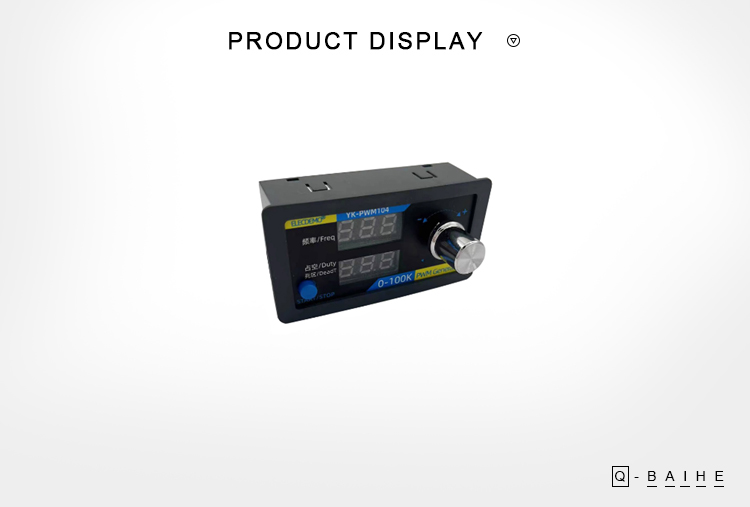

Title： PWM Pulse Square Wave Rectangular Wave Signal Generator PWM Drive Frequency Duty Cycle Adjustable Module

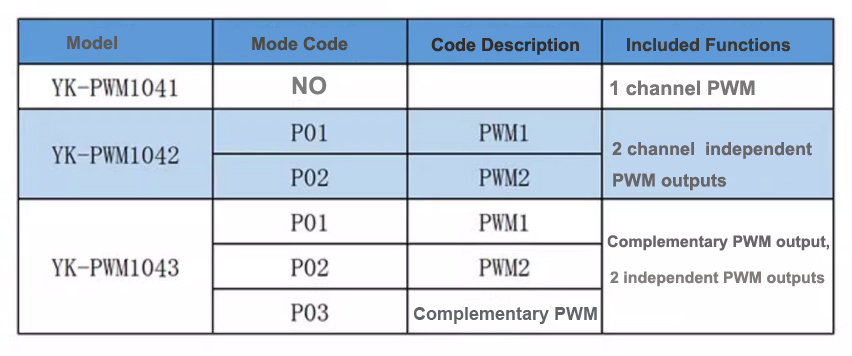

Specifications: Module type: PWM signal generator
Power supply voltage: 4V-28V
Static power consumption: 13mA
Frequency range: 0-100K
Duty range: 0-100%
Dead time: 1-40uS (different ranges at different frequencies)
Dead step: 1uS
Frequency step: 1Hz (0-1KHz); 10Hz (1K-10KHz); 100Hz (10K-100KHz)
Frequency accuracy: 0.2% (0-10KHz); 0.4% (10K-50KHz); 2% (50K-100KHz)
Duty step: 1%
Duty accuracy: 0.20% (0-10KHz); 1% (10K-50KHz)
Rise time: 100ns
Output amplitude: equal to the supply voltage
Output current capacity: 10mA
Module enable: with output switch
Module protection: anti-reverse connection of power supply
Module size: 79**43*50mm; error ±1mm
Housing opening installation size: 76*40mm
FAQ：
Q: What is the limit of the dead time range?
A: The dead time should be less than half of the negative pulse width of PWM1,
that is, DeadT<(1/Freq*(1-Duty))/2; for example, the frequency is 2K and the duty cycle is 90%, then
the dead time should be less than 25us;

Q: What if the dead time is set too large?
A: If the dead time is set too large, one of the complementary signals will not be output.

Q: What is the situation when the product is connected to the circuit without display?
A: Check whether the power supply voltage is normal and whether it is between 4-28V

Q: Can it be powered by batteries?
A: Yes. The module has a wide power supply voltage. As long as the battery voltage is within the product's nominal power supply range, it can be powered by batteries.
Packing:  1* PWM Signal Generator
