If you want to check the hardware manual/software manual/


SDK or the Sample Report firstly,Please email us for more


information. If you have any question, ask me freely and I will respond you within 12 hours.




1. Standalone work

2. Professional Fingerprint Access Control and Time Attendance Check

3. Communication:TCP/IP,RS232/485,USB-Host,Wi-Fi

4. Anti-pass back

5. Free software



Introduction:


F28 is an ultra-thin fingerprint time attendance and access control terminal with BioID sensor and Wi-Fi, which offers unparalleled

performance with advanced algorithm for reliability, precision and excellent matching speed. F22 features the fastest commercial-based

fingerprint matching algorithm and ZK high-performance, high-image quality infrared detection fingerprint sensor.

F28 provides a superior touching experience with touch keypad, and offers flexibility for standalone installation or with any third-party

access control panel that supports standard wiegand signal. TCP/IP, RS485 and Wi-Fi are also available that the device can be used in

different networks.



Features：

  • 2.4-inch TFT color screen and Touch keys
  • Ultra thin and elegant design
  • Full Access Control Features: Anti-passback, access control interface for 3rd party electric lock, door sensor, exit button, alarm
  • Standard Wi-Fi
  • Network interface by TCP/IP or RS485
  • Built-in auxiliary input with enhanced flexibility to link with wired detector or emergency switch
  • Multiple Verification Modes: Multi-verification methods (card is optional) providing user various choices


Specifications：


Display

2.4-inch TFT LCD Color Screen

Fingerprint Capacity

3000

Card Capacity

5000(Optional) ID or mifare card

Transaction Capacity

30,000

Sensor

BioID Sensor/ SilkID Sensor (optional)

Algorithm Version

ZKFinger VX10.0

Communication

RS232/485, TCP/IP, USB-host,Wi-Fi

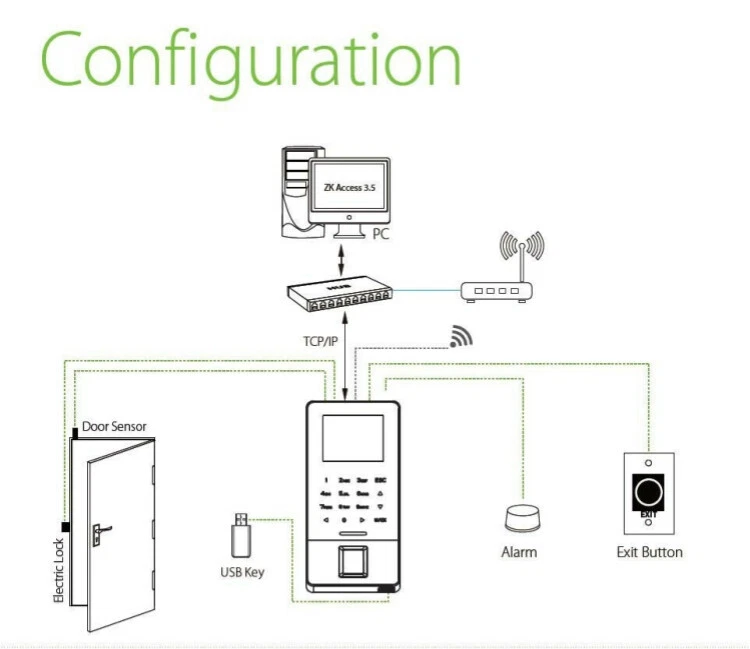

Access Control Interface

3rd Party Electric Lock, Door Sensor, Exit Button, Alarm

Wiegand Signal

Input, Output

Aux. Input

1ea for linkage function

Functions

DST, Automatic Status Switch, Record query, T9 input, 14 digit user ID, Anti-passback, Scheduled-Bell, Printer(Optional), ADMS(Optional)

Power Supply

12V DC,3A

Operating Temperature

0 °C- 45 °C

Operating Humidity

20%-80%

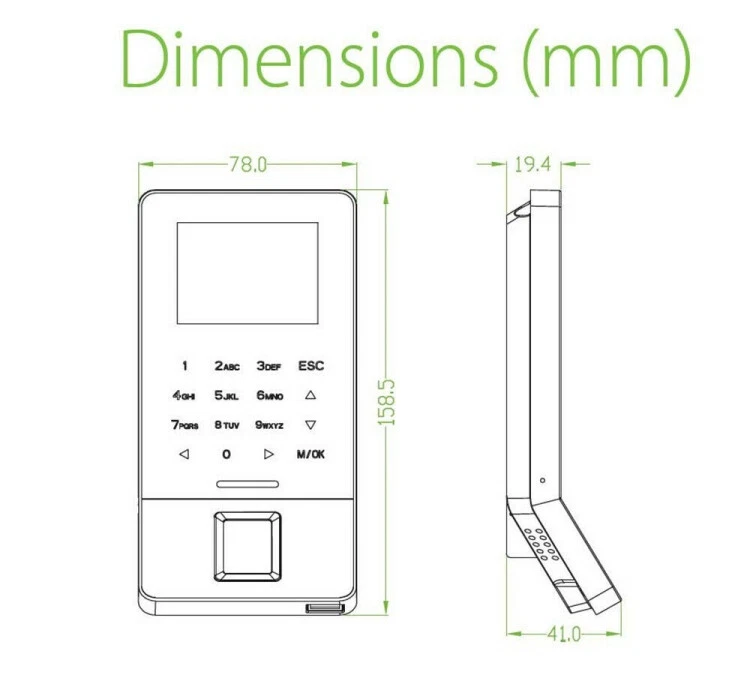

Dimension(LxWxH)

158.5x78.0x19.4mm

SDK and software

Standalone SDK,ZKAccess3.5 software


ZKSoftware-F28 Fingerprint Time Clock And Access Controller System With TCP/IP - Picture 8 of 12

ZKSoftware-F28 Fingerprint Time Clock And Access Controller System With TCP/IP - Picture 9 of 12


ZKSoftware-F28 Fingerprint Time Clock And Access Controller System With TCP/IP - Picture 10 of 12

ZKSoftware-F28 Fingerprint Time Clock And Access Controller System With TCP/IP - Picture 11 of 12


Package

  •  1x fingerprint time attendance and access control
