Mini Tower Sff PC Chieftec ITX 4GB RAM 4TB SSD W11 PRO

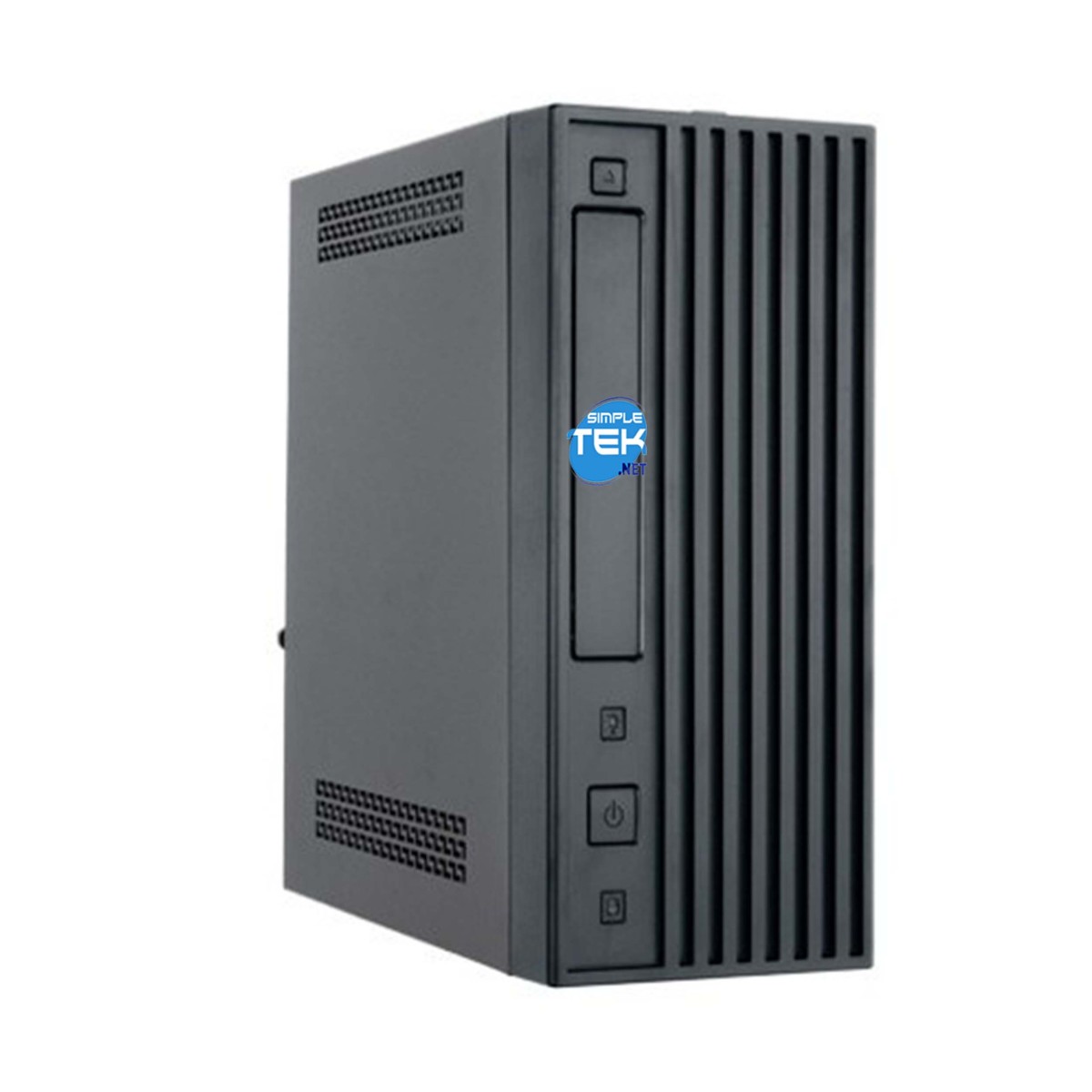

Chieftec BT-02B-U3-250VS: compact and versatile mini PC with Windows 11 Pro

Discover the Chieftec BT-02B-U3-250VS, a Mini PC Compact and powerful, ideal for those looking for a versatile solution for the office, the house or as a media center. Equipped with an Intel Celeron J4125 processor and pre -installed with Windows 11 Professional, this mini PC offers reliable performance in a minimum dimensions.

Optimized performance in a reduced format

The heart of the Chieftec BT-02B-U3-250VS is the Intel Celeron J4125 processor, a quad-core/quad-thread with a base frequency of 2.00 GHz and a turbo boost up to 2.70 GHz. This guarantees good reactivity for daily operations, light multitasking and web browsing. There RAM DDR4 Sodimm (2 slots, max 64gb) allows large customization and updating, ensuring fluidity even with multiple open applications.

Flexible storage and complete connectivity

With Dedicated slot for 1x 2.5 "and 1x HDD 3.5" SSD/HDD, this mini PC offers large storage possibilities for all your data. Although the optical unit is not present of default, it is possible to prepare an "improvised" assembly on request at the time of purchase (see photo 9, 11, 12 for details).

Connectivity is a strong point:

• USB ports: 1x USB 2.0 rear, 2x USB 3.0 front and 3x USB 3.0 rear to connect all your peripherals.
• Video outputs: VGA and HDMI for maximum compatibility with monitors and televisions.
• Net: Porta Gigabit LAN for fast and stable wired connections.
• Legacy doors: A combined PS2 door (keyboard/mouse), an RS232 serial port and a parallel LPT port make it ideal also for industrial applications or Legacy systems.

Integrated graphics and quality audio

There Integrated Intel HD Graphics graphics card, with 128 pre -Carocated MB and shared RAM with the system, manages the reproduction of videos and daily graphic activities without problems. The audio is entrusted to CodeC Realtek ALC887 HD Audio, with inputs and audio outputs both frontal (mic in, headphones out) and rear (Mic in, line in, line out) for a versatile audio connectivity.

Compact design, ready for use

The Chieftec BT-02B-U3-250VS is distinguished by his Compact dimensions (29.5 x 24.0 x 13.5 cm) and a low weight of 3.30 kg, allowing him to easily integrate into any environment. Comes with Windows 11 Professional pre -installed, guaranteeing you an updated and ready to use operating system from the first start.

Expandability and nutrition

Equipped with a 180W or higher SFX power supply, the system is stable and reliable. Includes one PCI-E X16 V.2.0 expansion slot for any upgrade. There are also header for LPT, TPM, USB 2.0 and RS232 for further customization possibilities.

Technical characteristics in summary:

• Brand: Chieftec
• Series: Mini PC
• Model: BT-02B-U3-250VS
• Processor: Intel Celeron J4125 (4 core / 4 threads, 2.00 Ghz / 2.70 GHz Turbo)
• Socket: BGA 1170
• RAM: 2 SLOT DDR4 SODIMM (Max 64GB)
• Storage: 1x 2.5 "Slot, 1x 3.5" slot
• Graphics Card: Intel HD Graphics (integrated)
• Audio: Realtek ALC887 HD Audio Codec
• Net: Gigabit Lan
• USB ports: 1x USB 2.0 (Post.), 5x USB 3.0 (2 front., 3 Post.)
• Video outputs: VGA, HDMI
• Legacy doors: PS2, RS232 serial, LPT parallel
• Operating system: Windows 11 Professional
• Power supply: 180W SFX or higher
• Expansion slot: 1x PCI-E X16 V.2.0
• Dimensions: 29.5 x 24.0 x 13.5 cm
• Weight: 330 kg
• Year of release: 2019
