Universal Rear Suspension Kit with 2500 Air Suspension Bag Triangulated Mounts
.jpg)
.jpg)
Air Tightness Test
MaXpeedingrods air spring bags past 24 hours air tightness test ≤2.0Mpa. Ensure no air leakage
.jpg)

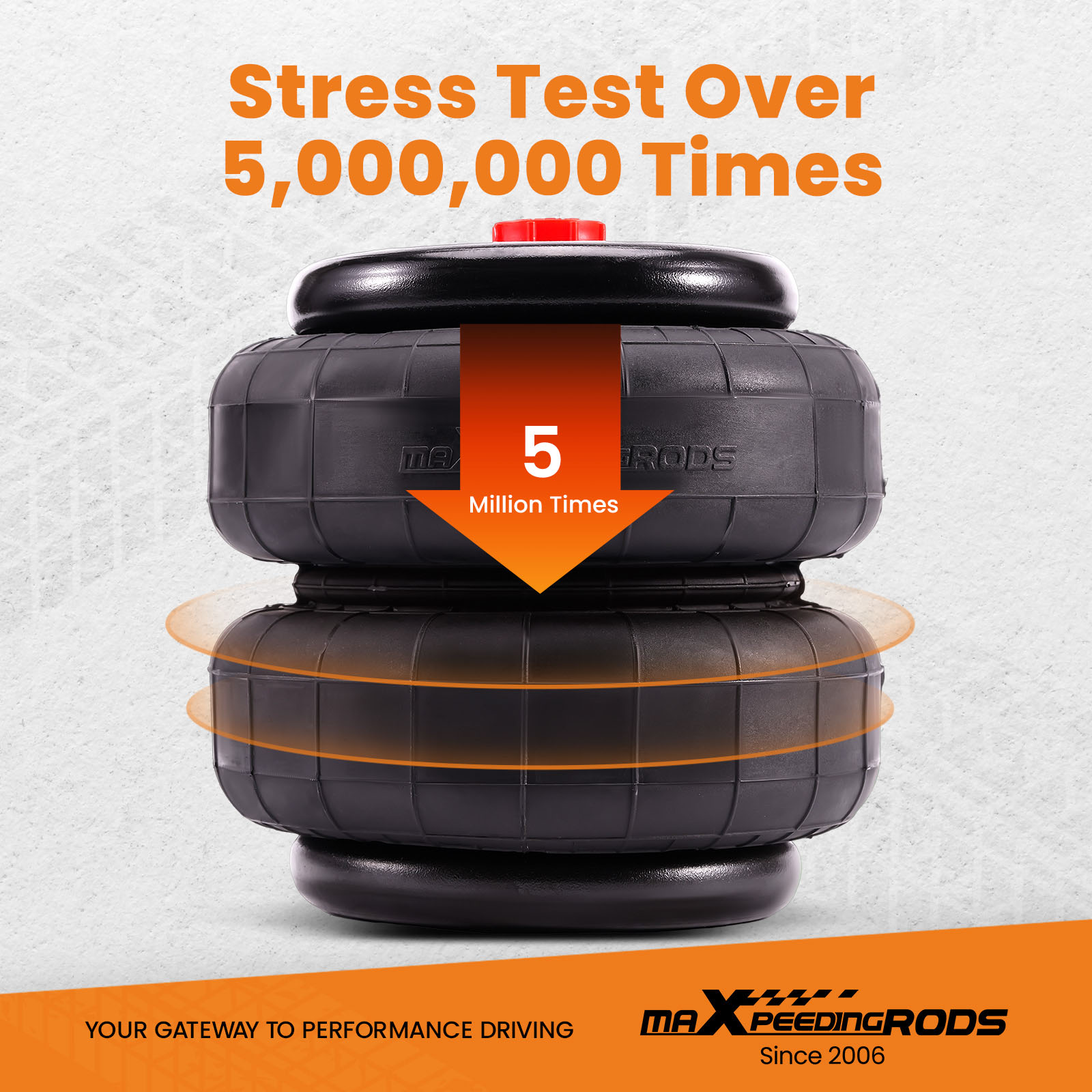

Stress Test
MaXpeedingrods air spring bags past stress test over 5000000 times. Ensure high load-bearing capacity and long life
.jpg)

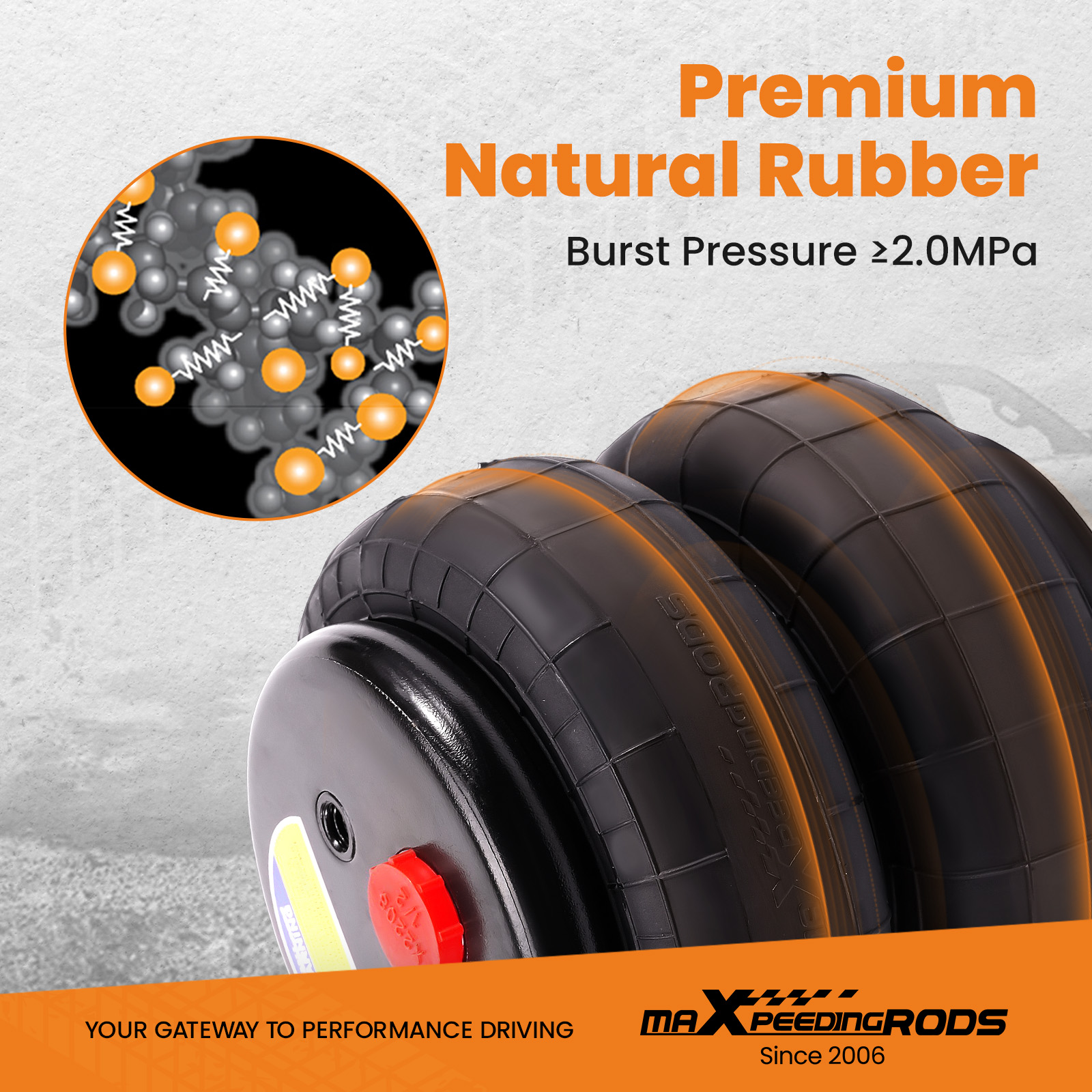

High quality material
MaXpeedingrods air spring bags are made of High quality heavy duty rubber, using Natural Rubber and Hi-tensile steel
.jpg)

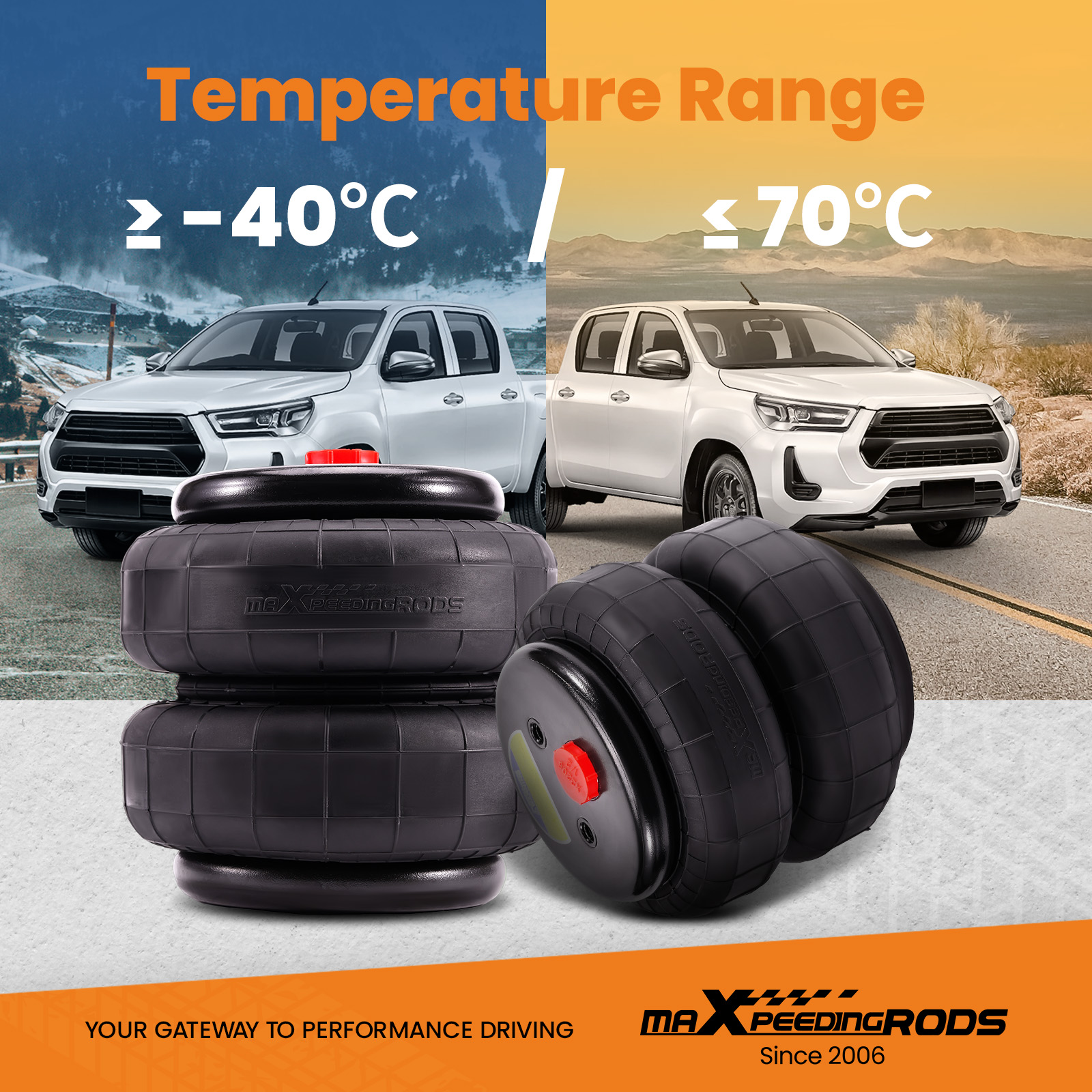

Works well in complicated climate
MaXpeedingrods air spring bags work well in temperature ≤+70° , ≥-40°, easily handle complicated climate
.jpg)
MaXpeedingrods Air suspension kit
Universal Air Suspension Kit W/ 2X 2500LBS Air Suspension Bag
———————————————————
- [Practical Installation]
Easy to install, no-drill systems, typically takes 1 to 2 hours. Professional installation is recommended
- [Manufacturing Process]
Galvanised Heavy duty bracket, with Natural Rubber and Hi-tensile steel offers high load-bearing 5000lbs capacity and long life
.jpg)

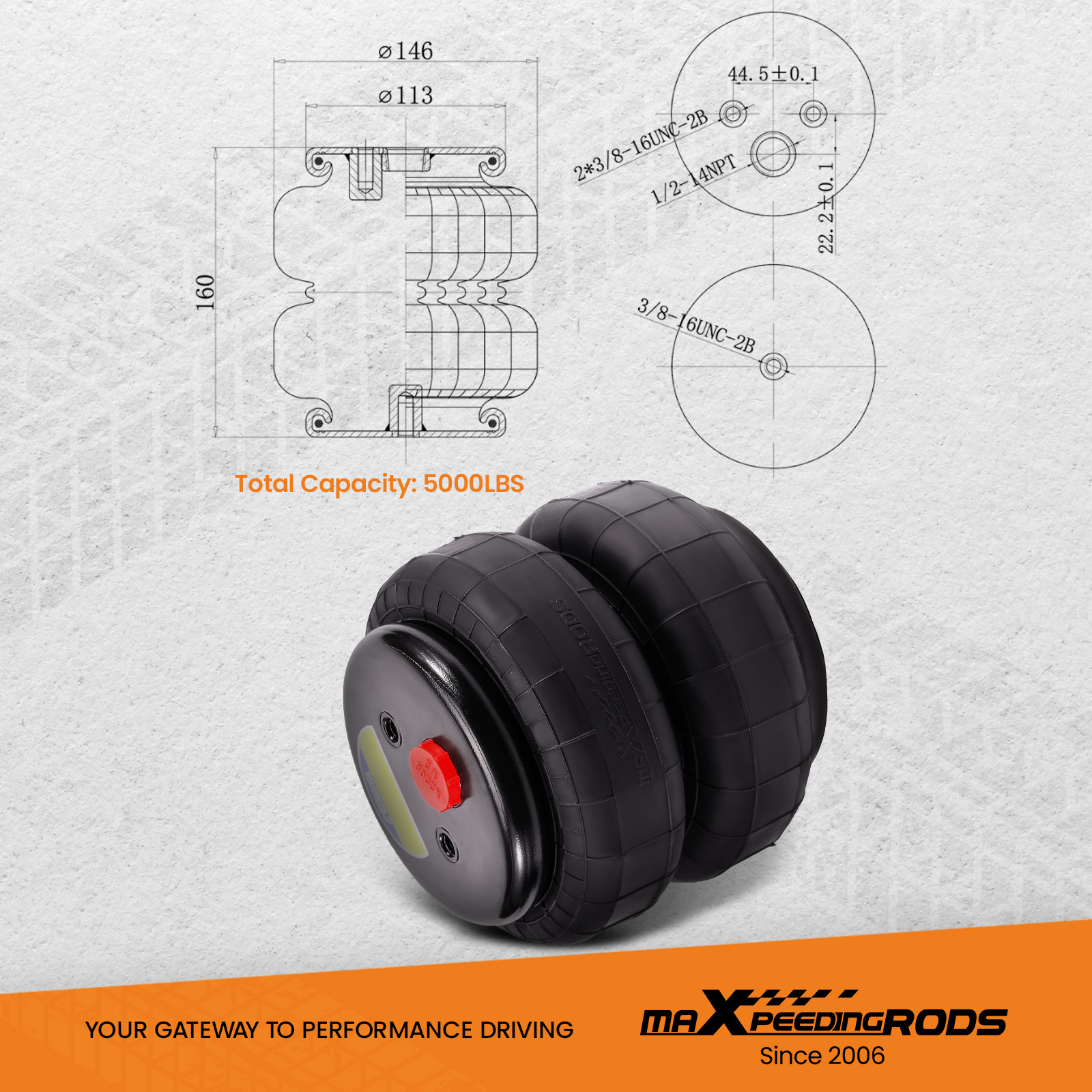

Air spring bag Dimensions
Diameter: 6"
Extended:8"
Closed:2.75"
Air spring bag capacity: 2500LBS
Specification
| Condition | Brand New |
| Placement on Vehicle | Rear Left and Right |
| Capacity | 2500 LBS each |
| Air Compressor inlcuded | No |
4 Link Bar Dimensions:
| Tubing Outside Diameter | 1.25" |
| Tubing Thick Wall | 0.197" |
| All Four Bars | 24.00" |
| Link Bar | Center To Center Adjusted All The Way In |
Air Sping bag Dimensions:
| Diameter | 6" |
| Extended | 8" |
| Closed | 2.75" |
| Air spring bag capacity | 2500LBS |
| Smaller bolt holes diameter | 0.3" |
| Bigger bolt hole diameter | 1/2"-14NPT |
| Top Mounting Holes | Approx 1-3/4" from Eye to Eye |
| Mounting holes | 3/8"-16 UNC |
.jpg)
Appliation
for Universal Rear Weld-On Triangulated 4 Link Suspension Kit
for Ford F150/F250, for GMC Sierra
for Chevrolet Silverado
for Dodge Ram 1500 2500 3500, etc
for Most Pickup Trucks, Hotrod, Ratrod or Classic Car with 2.75" Axle Tube

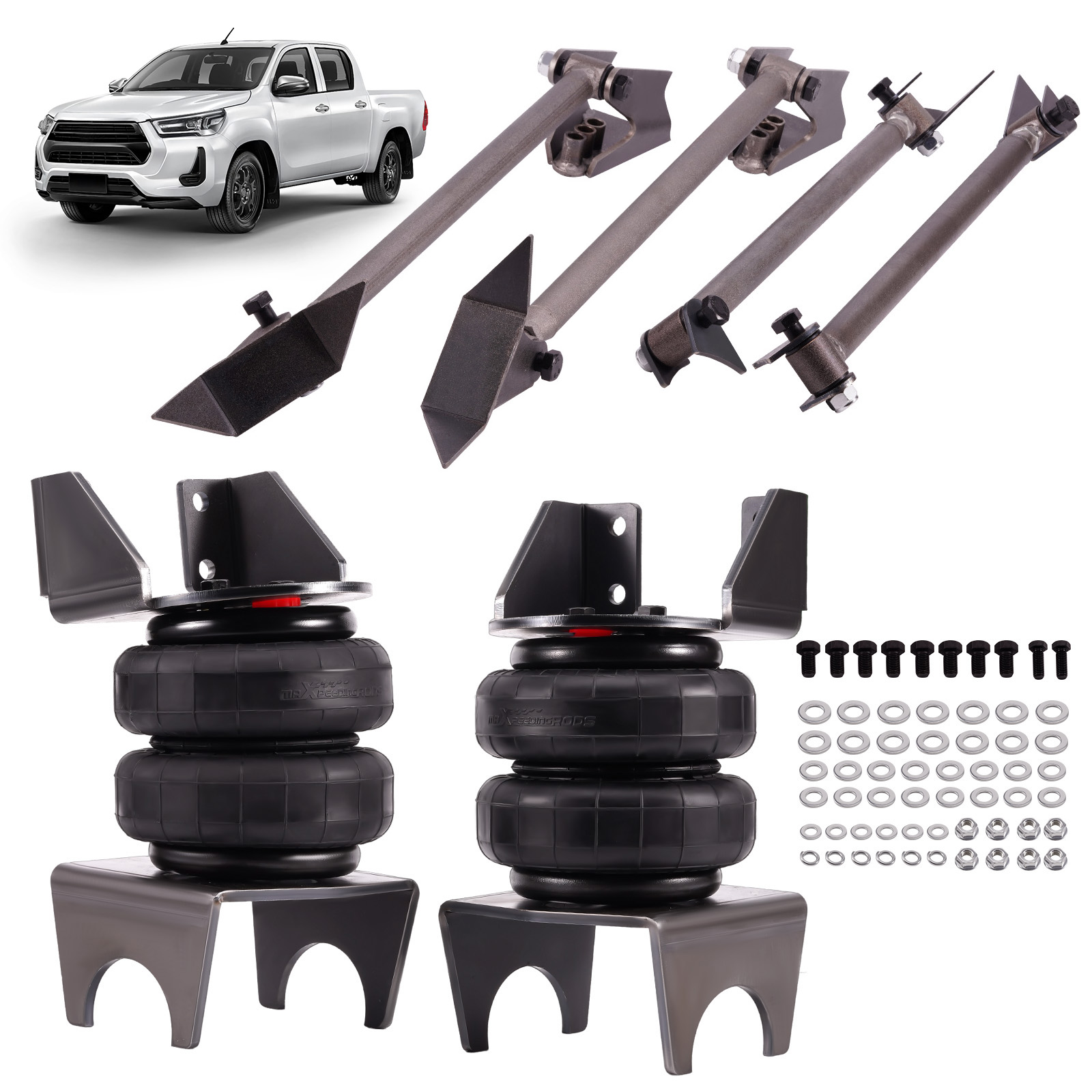

Package Includes:
4 x Heavy Duty Steel Bars
4 x Zinc Plated Steel Rod Ends W/ Urethane Bushings
2 x Steel, Weld-On Triangulated Frame Mounts
2 x Steel, Weld-On Lower Axle Tube Mounts
4 x Steel, Weld-On Center Link Axle Mounts
2 x Steel, Weld-On Side Frame Mounts
8 x Button Head Bolts with Nyloc Nuts
2 x Weld-On Lower Axle Bag Mount
2 x Weld-On Upper Frame Bag Mount
2 x Standard 2500 Single 1/2"npt Port air spring bags
Notice:
- Instructions Are Not Included
- We Recommend Professional Installation
- Please feel free to contact for whatever we can help!
Why choose MaXpeedingrods?
.jpg)

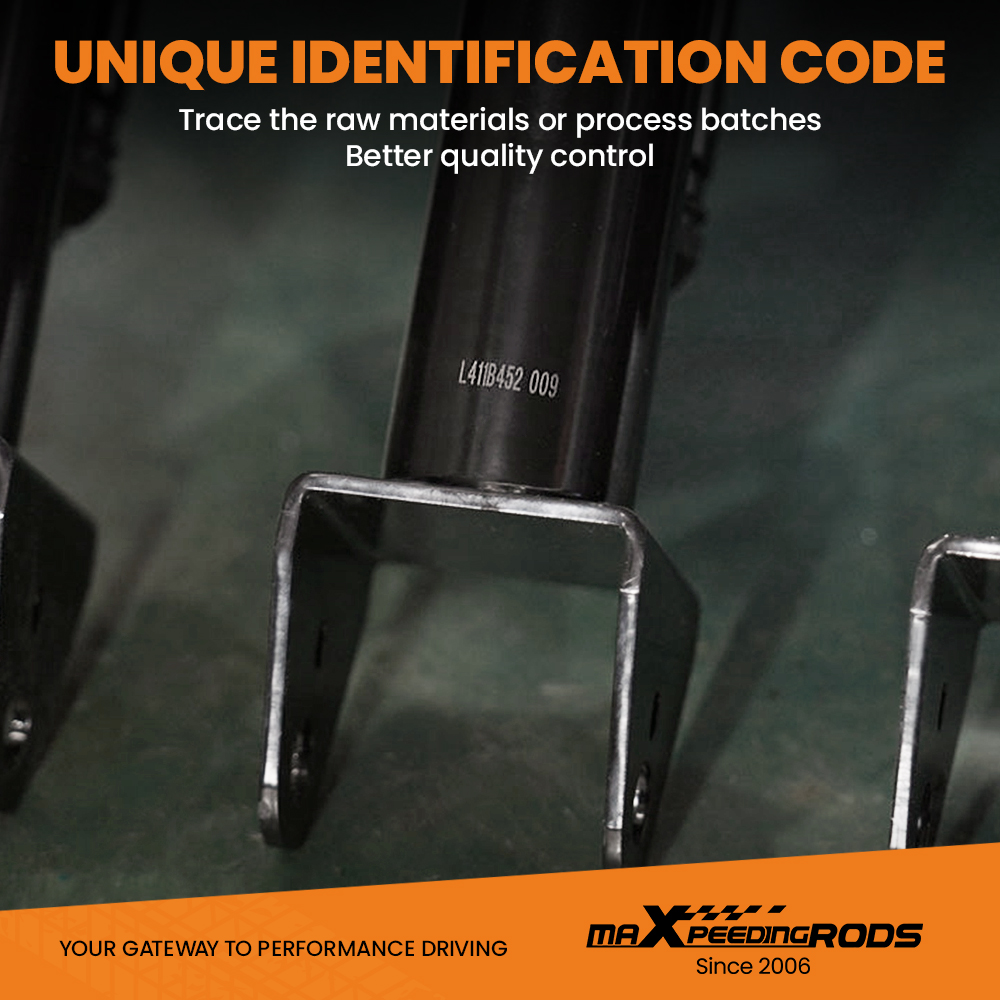

Unique Identifiacation Code
Every MaXpeedingrods Air Spring bags with unique ID Code to trace the raw materials or process batches better quality control.
.jpg)

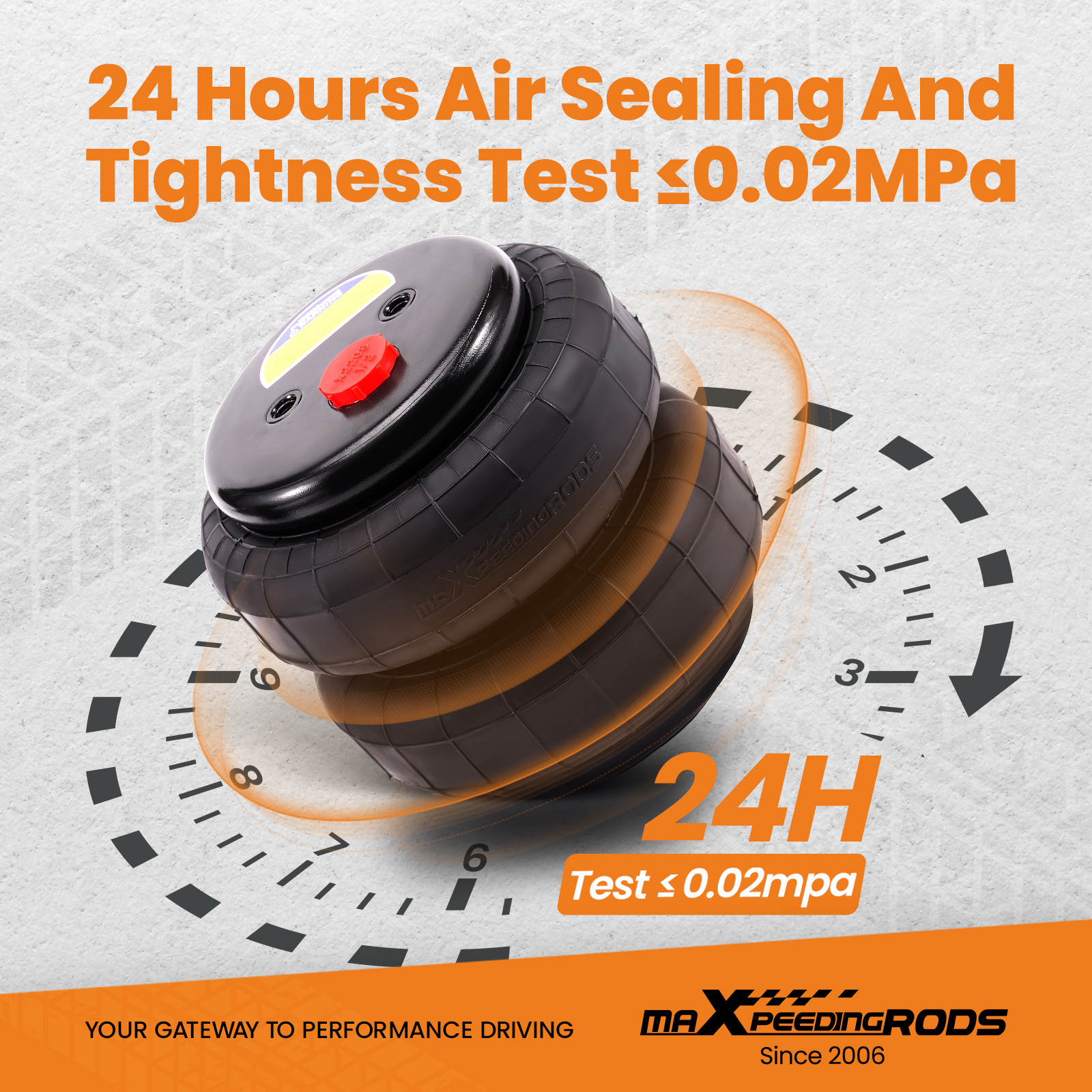

Air Tightness Test
Every MaXpeedingrods Air Spring bag pasts water air tightness test. Ensure no air leakage
.jpg)
Fatigue Testing
Every MaXpeedingrods Air Spring bag pasts withstand 500,000 times fatigue tests, far exceeding industry standards, more durable and safer
.jpg)
Air Pressure Test
Every MaXpeedingrods Air Spring bag pasts 24 hours air tightness test ≤2.0Mpa.
.jpg)
.jpg)
.jpg)
.jpg)
