Gigabyte MU92 TU1 LGA4189 Intel Xeon Platinum 8360Y ES QVM7 2.2GHz 54MB 36c CPU

Product Description

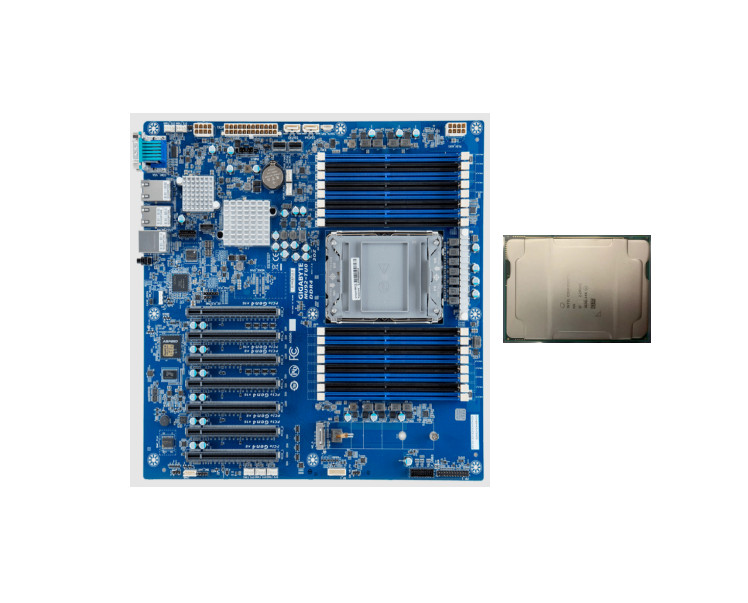

Package include:

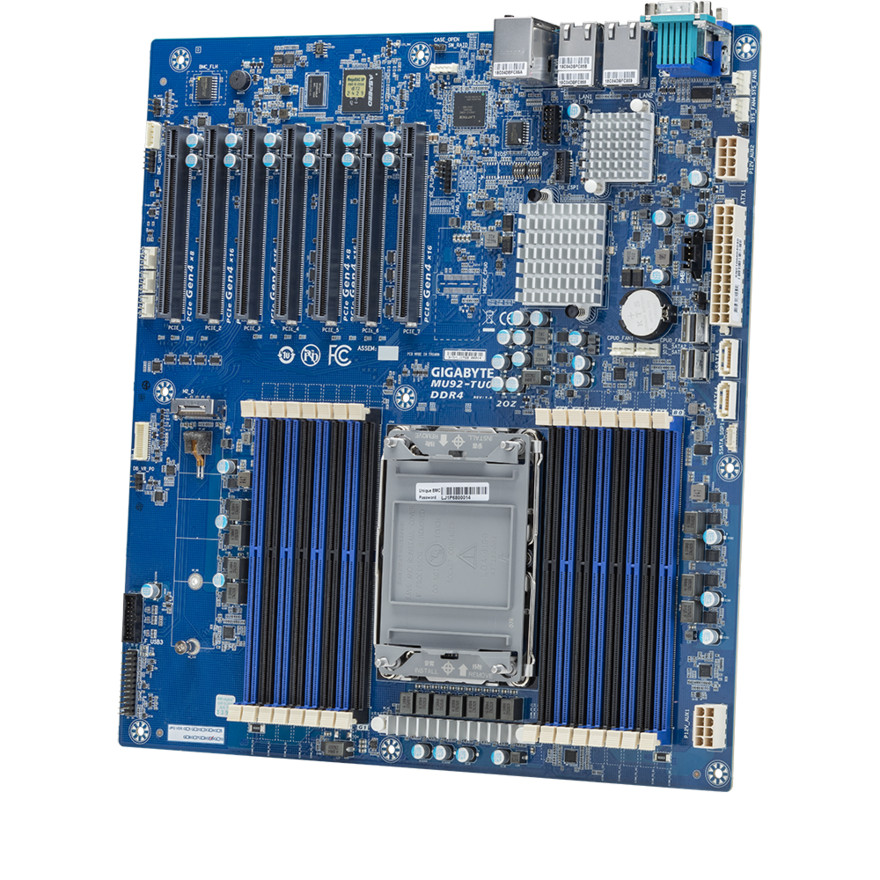

1X Gigabyte MU92 TU1

1x Intel Xeon Platinum 8360Y ES QVM7 2.2GHz 54MB 36c CPU


Board Size

E-ATX
305W x 330D (mm)

Processor Supported

3rd Generation Intel® Xeon® Scalable Processors
Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor
Single processor, 10nm technology
CPU TDP up to 270W

Intel® Xeon® W-3300 Processor Family
CPU TDP up to 270W

Socket

1 x LGA 4189
Socket P+

Chipset Description

Intel® C621A Chipset

Memory Type

16 x DIMM slots
DDR4 memory supported only
8-channel memory architecture per processor
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
1.2V modules: 3200/2933/2666 MHz

Integrated Network

2 x 10Gb/s BASE-T LAN ports (Intel® X710-AT2)
1 x 10/100/1000 management LAN

Integrated Video Controller

Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

Integrated Audio Controller

N/A

Integrated SAS Controller

N/A

Integrated SATA Controller

2 x 7-pin SATA 6Gb/s ports
2 x SlimSAS with 8 x SATA 6Gb/s ports

Support RAID Function

Intel® SATA RAID 0/1/10/5

Expansion Slot

Slot_7: 1 x PCIe x16 (Gen4 x16 bus) slot
Slot_6: 1 x PCIe x16 (Gen4 x16 or x8 bus) slot, shared with Slot_5
Slot_5: 1 x PCIe x16 (Gen4 x0 or x8 bus) slot
Slot_4: 1 x PCIe x16 (Gen4 x16 or x8 bus) slot, shared with Slot_3
Slot_3: 1 x PCIe x16 (Gen4 x0 or x8 bus) slot
Slot_2: 1 x PCIe x16 (Gen4 x16 or x8 bus) slot, shared with Slot_1
Slot_1: 1 x PCIe x16 (Gen4 x0 or x8 bus) slot

1 x M.2 slot:
- M-key
- PCIe Gen3 x4 per slot
- Supports NGFF-2280/22110 cards

On-Board Connector

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
2 x SlimSAS connectors
2 x 7-pin SATA connectors
1 x M.2 slot
2 x CPU fan headers
5 x System fan headers
1 x USB 3.0 header
1 x TPM header
1 x VROC connector
1 x Front panel header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x Case open header
1 x Buzzer

Rear I/O Connectors

2 x USB 3.0
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED

TPM

1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

OS Driver Supported

Windows Server 2016
Windows Server 2019
Windows Server 2022

Red Hat Enterprise Linux 7.9 (x64) or later
Red Hat Enterprise Linux 8.2 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later

SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later

Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update2 or later
VMware ESXi 8.0 or later

Citrix Hypervisor 8.2.0 or later

Server Management

Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

· Dashboard

· HTML5 KVM

· Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)

· Sensor Reading History Data

· FRU Information

· SEL Log in Linear Storage / Circular Storage Policy

· Hardware Inventory

· Fan Profile

· System Firewall

· Power Consumption

· Power Control

· LDAP / AD / RADIUS Support

· Backup & Restore Configuration

· Remote BIOS/BMC/CPLD Update

· Event Log Filter

· User Management

· Media Redirection Settings

· PAM Order Settings

· SSL Settings

· SMTP Settings

PSU Connector

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors

Operating Properties

Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Packaging Bundle

1 x MU92-TU1
1 x I/O shield
1 x Quick start guide
1 x SlimSAS for 4 x SATAIII 6Gb/s cable
Single Box dimensions: 409 x 355 x 78 mm
Carton dimensions: 729 x 415 x 432 mm
Quantity: 10 x single boxes in one carton

Bulk Packaging Content

10 x MU92-TU1
10 x I/O shields
Carton dimensions: 600 x 473 x 495 mm

Ordering Information

Retail: 9MU92TU1MR-00
Bulk: 9MU92TU1NR-00

Part numbers:
- Fan-sink: 25ST4-353203-M1R (optional)
- I/O shield: 12AIO-MU92TU-00R
- SlimSAS for 4 x SATAIII 6Gb/s cable: 25CFM-600700-A4R
- Quick start guide: 12QM1-MU92TU-10H
