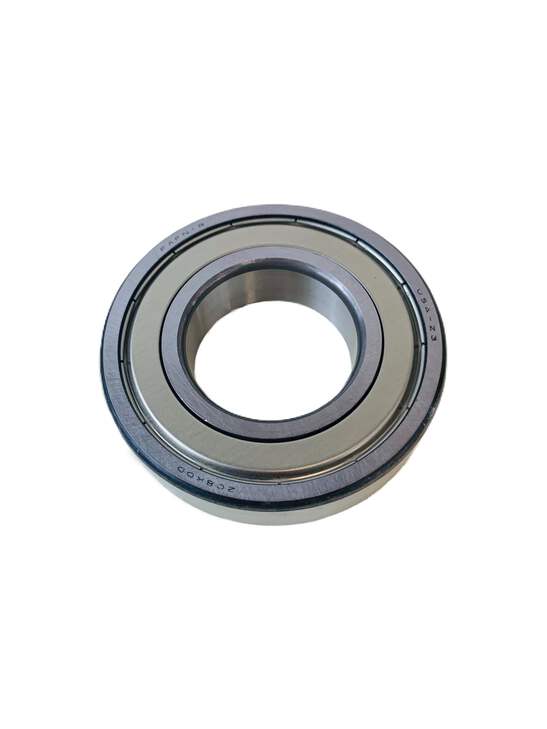

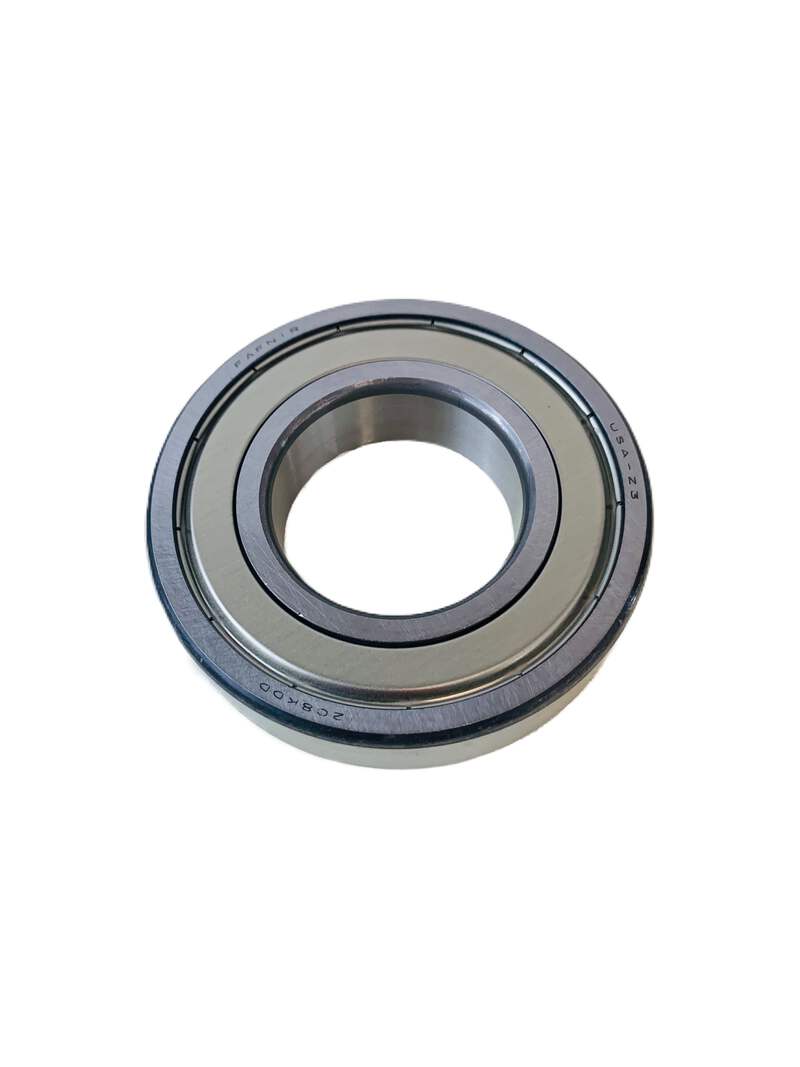

Timken Fafnir 208KDD Radial Ball Bearing 40mm Bore 80mm OD Double Shielded

Radial/Deep Groove Ball Bearing - Round Bore, 40 mm ID, 80 mm OD, 18 mm Width, Double Shielded, Internal Clearance: C0 Conrad-type bearing is well-balanced, with deep races and uninterrupted race shoulders Excellent, general-purpose bearing Bore diameter: 40 mm Precision rating: Not Rated Outside diameter: 80 mm Finish/coating: Uncoated Overall width: 18 mm Cage material: Steel Bore type: Round Outer ring width: 18 mm Closure type: Double Shielded Fillet radius: 1 mm Row type & fill slot: Single Row Non-Fill Slot Maximum rpm: 5830 RPM Internal clearance: C0 Series: 200K Dynamic load capacity: 8300 lb Additional details: Open bearing: Prefix designation K or N , Sealed on both sides: Prefix designation PP , Shielded on both sides: Prefix designation KDD , Snap ring groove: Prefix designation G Static load capacity: 4500 lbs
Top Biz Buy's



Timken Fafnir 208KDD Radial Ball Bearing 40mm Bore 80mm OD Double Shielded

Radial/Deep Groove Ball Bearing - Round Bore, 40 mm ID, 80 mm OD, 18 mm Width, Double Shielded, Internal Clearance: C0

  • Conrad-type bearing is well-balanced, with deep races and uninterrupted race shoulders
  • Excellent, general-purpose bearing
Bore diameter: 40 mm   Precision rating:

Not Rated
Outside diameter: 80 mm   Finish/coating:

Uncoated
Overall width: 18 mm   Cage material:

Steel
Bore type:

Round

   Outer ring width:

18 mm
Closure type:

Double Shielded

   Fillet radius:

1 mm
Row type & fill slot:

Single Row Non-Fill Slot

   Maximum rpm:

5830 RPM
Internal clearance:

C0

   Series:

200K
Dynamic load capacity:

8300 lb

   Additional details: Open bearing: Prefix designation K or N , Sealed on both sides: Prefix designation PP , Shielded on both sides: Prefix designation KDD , Snap ring groove: Prefix designation G
Static load capacity:

4500 lbs




×

We are not an Authorized Dealer, Authorized Distributor, nor Authorized Representative for any manufacturer and therefore TopBizBuys, LLC offers no warranties, expressed or implied for any of the products that we sell.



By purchasing this item, buyer agrees that TopBizBuys, LLC is not responsible for any damages or injuries caused by the misuse, improper installation, or failure of the product.
