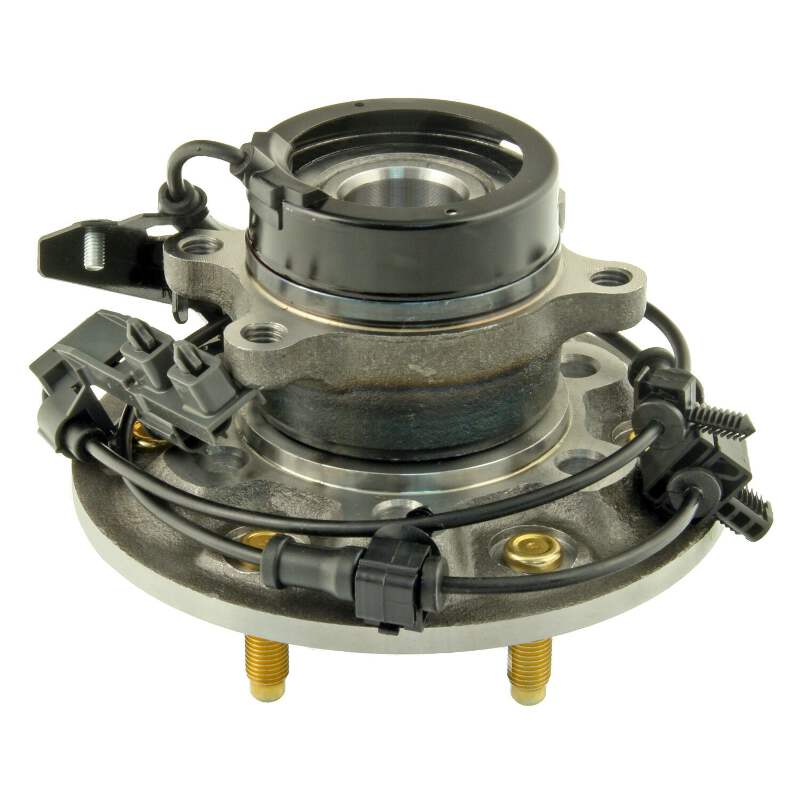

Precision Hub Assembly & Wheel Bearing 515111 for Chevy, GMC & Isuzu *Free Ship*

Hub Bearing comes in original Precision Hub Assemblies box. Box contains wear and damage from shipping and storage. Contents are unaffected and brand new.
  • UPC:  # 29175952969
  • ABS Sensor Included:  Yes
  • ABS Connector Shape:  Square
  • Wiring Harness Included:  Yes
  • Wiring Harness Length (In):  40 Inch
  • Number Of Mounting Bolts To Knuckle:  4
  • Number Of Lug Bolts Included:  6
  • Number Of Flange Bolts Included:  0
  • Driven Or Non-Driven:  Driven
  • Number Of Splines:  27
  • ABS Ring Type:  Sensor
  • Lug Bolt Thread Size:  M12-1.50
  • Total Hub Diameter (In):  7.245 Inch
  • Total Hub Diameter (mm):  184.023mm
  • Total Hub Height (In):  5.14 Inch
  • Total Hub Height (mm):  130.556mm
  • Flange Diameter (In):  7.245 Inch
  • Flange Diameter (mm):  184.02mm
  • Flange Offset (In):  2.647 Inch
  • Flange Offset (mm):  67.234mm
  • Flange Shape:  Rectangle
  • Flange Bolt Thread Size:  M12-1.75
  • Terminal Gender:  Female
  • Number Of Terminals:  1
  • Material:  Steel
  • Bearing Type:  Tapered
  • Hub Pilot Diameter (In):  3.34 Inch
  • Hub Pilot Diameter (mm):  84.836mm
  • Greaseable:  No
  • Gasket Or Seal Included:  No
  • New Or Remanufactured:  New


×
