Autel MaxiVCI Mini VCI Mini Bluetooth-Diagnostic Interface FOR MK808BT MP808 Etc

Original Autel MaxiVCI Mini VCI Mini Bluetooth-compatible Diagnostic Interface

Autel VCI Mini is designed to connect wirelessly with the MaxiCom / Maxicheck / MaxiPro and MaxiTPMS Display Tablet, as a vehicle communication interface (VCI) for vehicle data transmission. Thanks to the wireless Bluetooth-compatible technology, with which you are allowed to work freely around the vehicle. This interface device can communicate with vehicles' electronic control units (E/CUs), guaranteeing performance and speed that redefine multi-brand diagnostics.

Vehicle Communication interface: MaxiVCI MINI

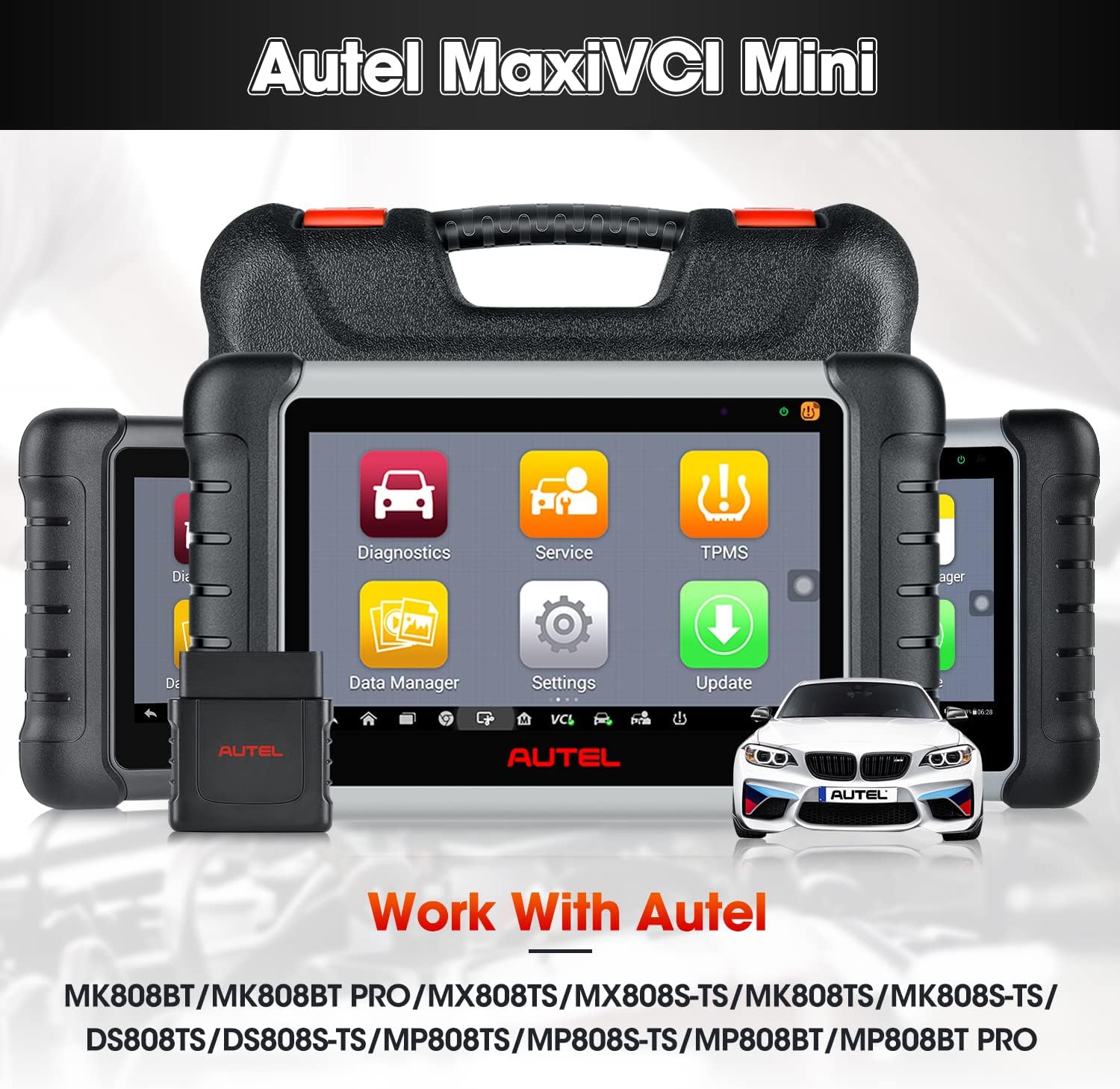

Broad Compatibility: It can work with Autel MK808BT/ MK808BT Pro/ MX808TS/ MK808TS/ MK808S-TS/ DS808TS/ DS808S-TS/ MP808TS/ MP808S-TS/ MP808BT/ MP808BT Pro/ MP808BT Kit/ TS608 etc.
Wireless Bluetooth Technology + 10m Working Range: Thanks to wireless Bluetooth technology, the VCI Mini offers 10-meter wireless diagnostic range that allows you to work unfettered outside the car.
Power Sources: The MaxiVCI Mini operates on 12-volt vehicle power, which is received through the vehicle’s DLC. The unit powers on whenever it is connected to the vehicle’s DLC.
Wirelessly connects EC/U to perform E/CU Coding, Full TPMS, Bi-directional Control, Services etc.

AUTEL VCI MINI

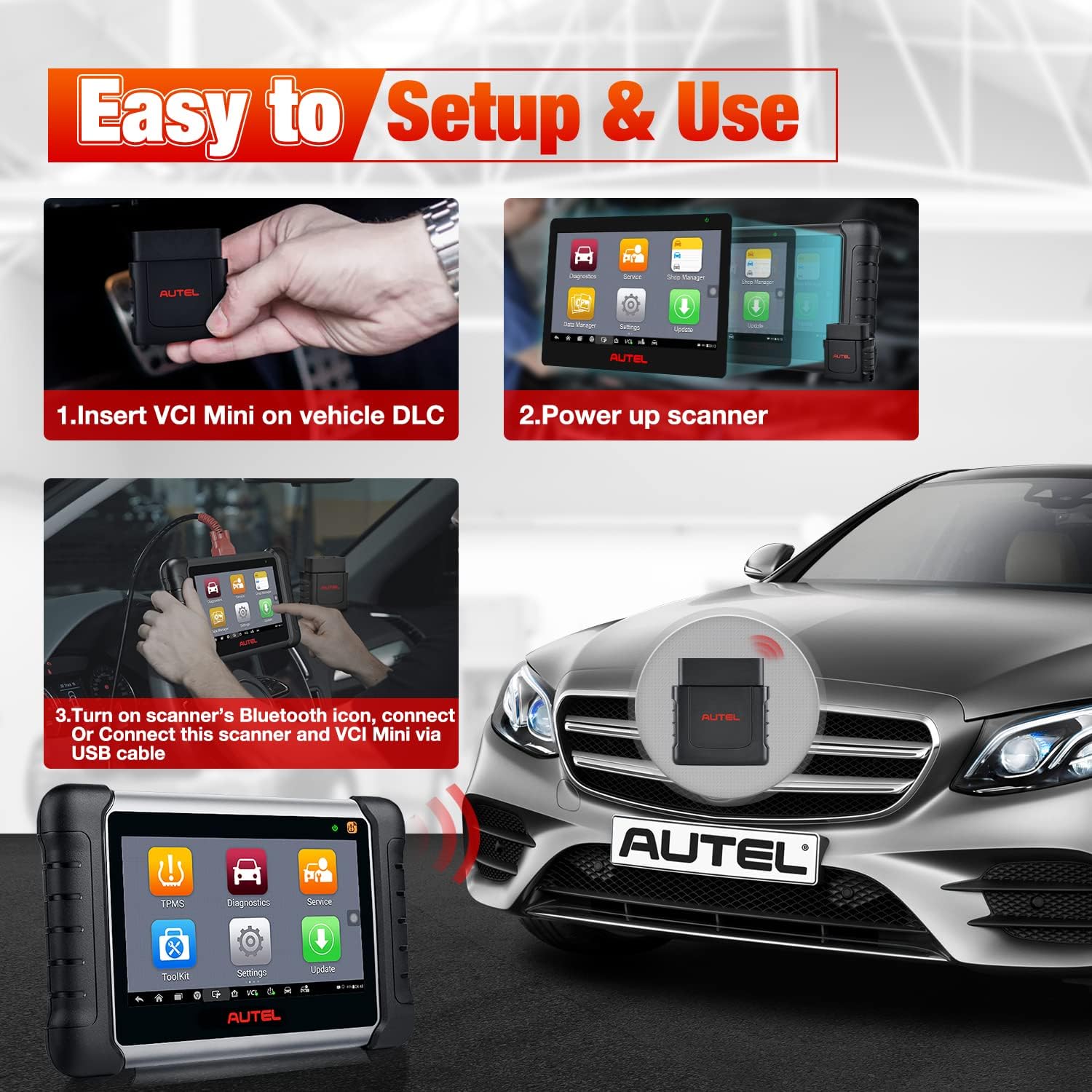

Connect MaxiVCI Mini to Autel Scanner

Connect the VCI MINI to the scanner in three simple steps

Step 1: Insert the MaxiVCI Mini on the vehicle’s DLC
Step 2: Power up scanner
Steps 3: Turn on scanner Bluetooth icon, connect with VCI MINI

To connect to Non-OBD II Vehicles

1. Locate the required OBD I adapter and connect its 16-pin jack to the Vehicle Data Connector on the MaxiVCI Mini.

2. Connect the attached OBD I adapter to the vehicle’s DLC.

Another way to connect via USB Cable:

After VCI mini connected with DLC, you can also use USB Cable to conect with Autel scaner.

NOTE: When both the communication methods are applied at the same time, the MaxiCOM system will use the USB communication as the default priority.

A+3AUTEL VCI MINI

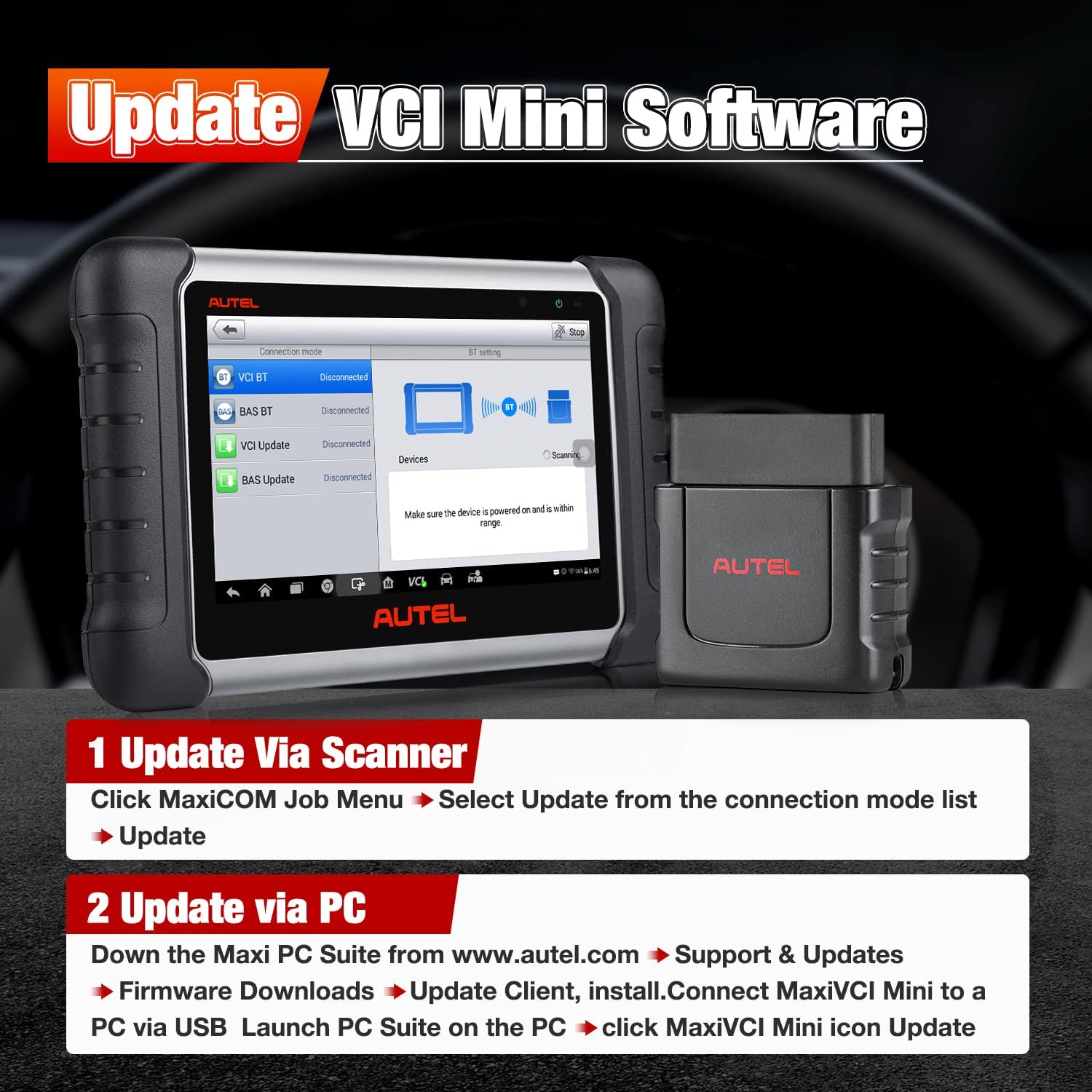

Update Autel MaxiVCI Mini

Update via Scanner:

Before updating the VCI software, ensure the scanner’s connection to the Internet is stable.

To update the MaxiVCI Mini software

1. Power on the scanner.

2. Connect the MaxiVCI Mini to the scanner via USB.

3. Tap the VCI Manager application on the MaxiCheck Job Menu of the scanner.

4. Select Update from the connection mode list.

5. The current version and the latest version of the VCI software will be displayed after a few seconds. Click Update Now to update the VCI software if available.

Update via P-C

1. Download the Maxi P-C Suite from offi-cial we-b> Support > Downloads > Diagnostic Tools, and install it onto your wind-ows-P-C.

2. Connect the MaxiVCI Mini to a P-C using a USB cable.

3. Launch the P-C Suite on the P-C which is installed after the installation of Maxi P-C Suite and click MaxiVCI Mini icon in the Device Selection window.

4. The P-C will automatically recognize the MaxiVCI Mini.

5. Click Update to complete the update if an update is available.

VCI MINI

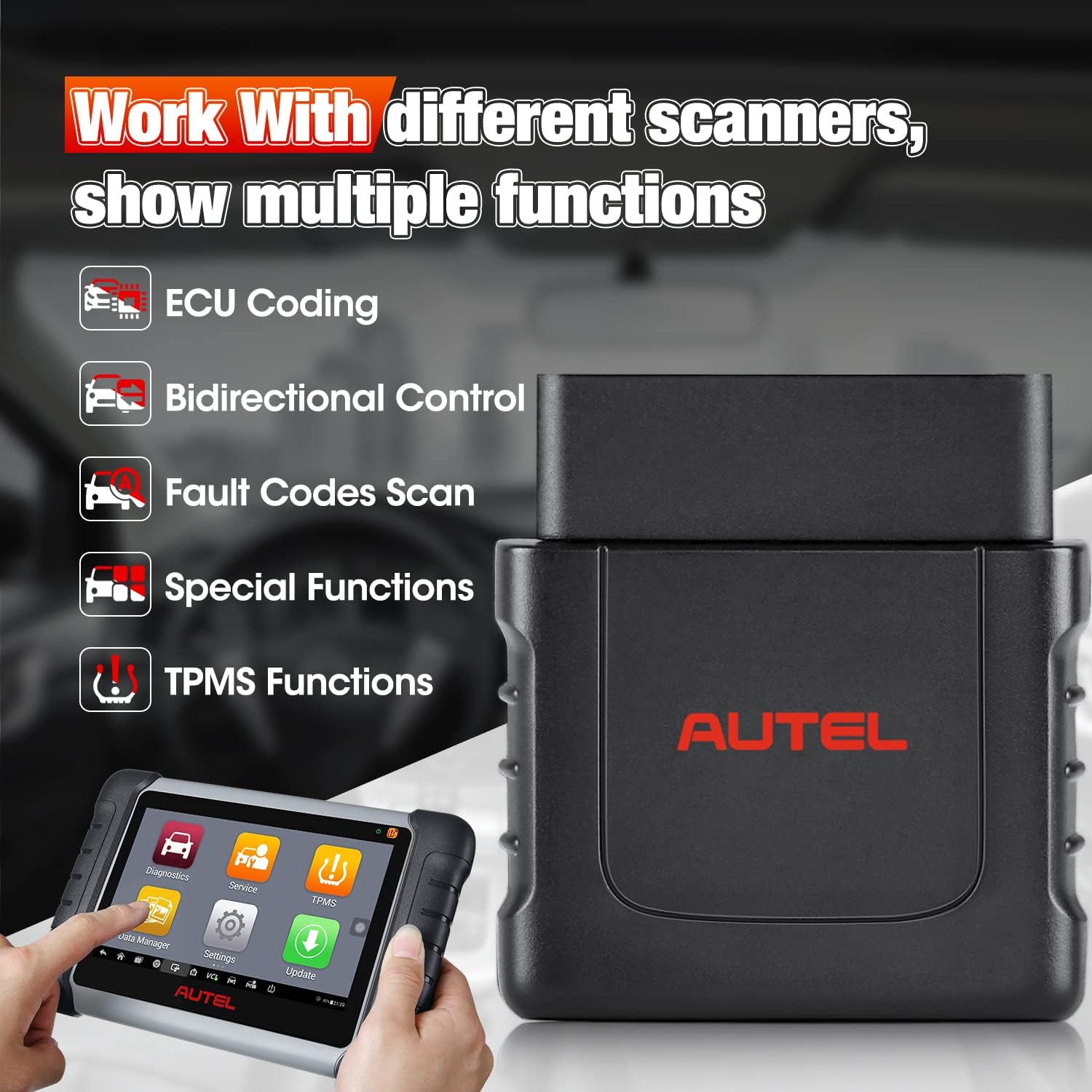

Special Functions

Once connected to the scanner, the MaxiVCI mini can perform advanced features such as E/CU Coding, hot services for 99% cars, all system diagnosis, active test ect.

Using the Bluetooth connector makes maintenance easier and more convenient, doubles the efficiency and doubles the convenience.

AUTEL VCI MINI 1

AUTEL VCI MINI

Tips:

1. Connects to The Vehicles OBDII Port

2. Lightweight Vehicle Connection Interface (VCI)

3. Enables The Autel Tablet to Connect to The Vehicles

4. Allows Technician to Perform Testing Outside Vehicles

5. The Tablet in This Advertising is Not Included! It is for Reference Only!

6. The MaxiVCI Need to Be Used With Autel Tablet Device Like MK808BT, MK808TS, MX808TX, MP808TS, etc.

Power Sources

The MaxiVCI Mini operates on 12-volt vehicle power, which is received through the vehicle's DLC. The unit powers on whenever it is connected to the vehicle's DLC.

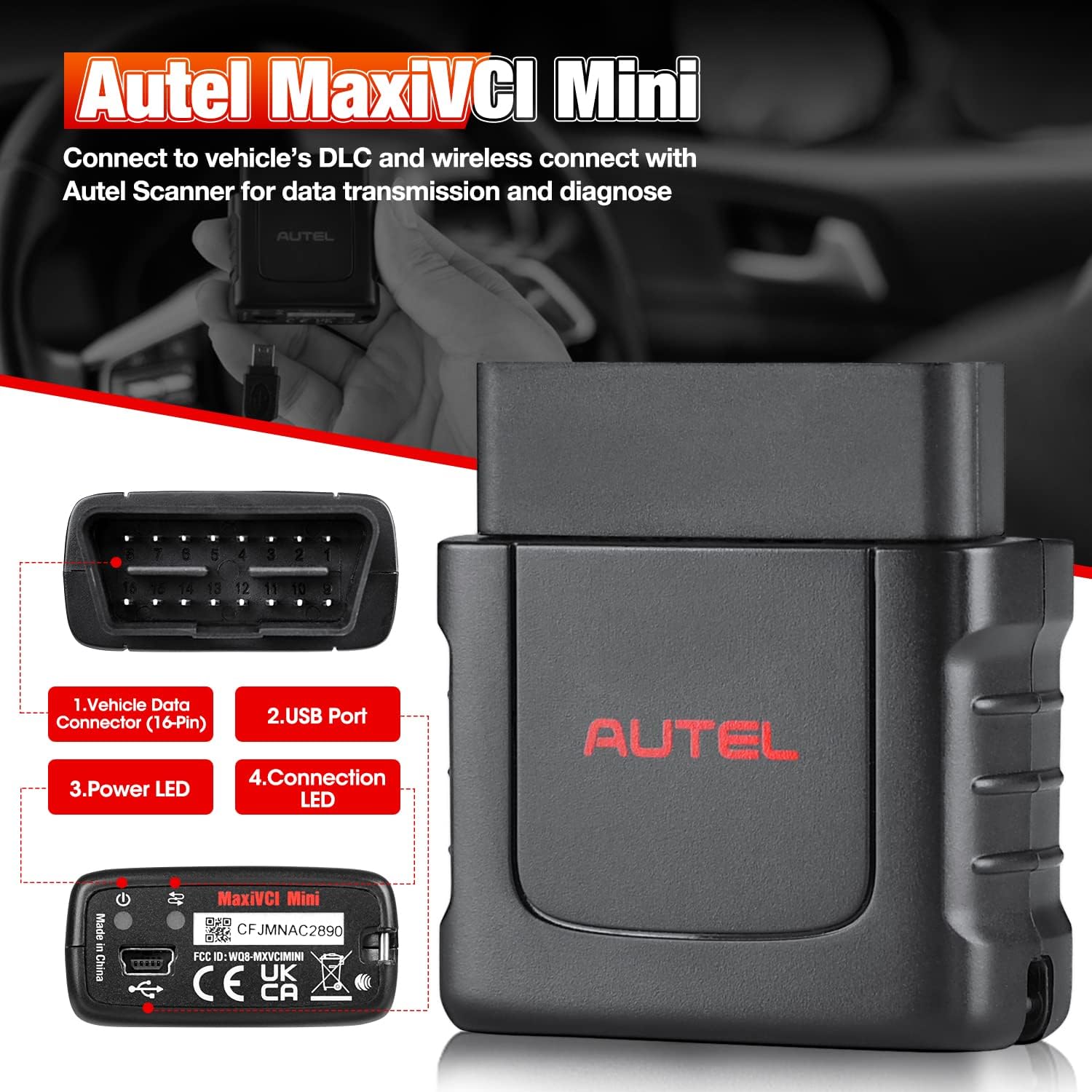

Autel MaxiVCI – Vehicle Communication Interface

The wireless diagnostic interface MaxiVCI Mini is a small vehicle communication interface (VCI) used to connect to a vehicle's data link connector (DLC) and connect wirelessly with the tablet for vehicle data transmission.

1. Vehicle Data Connector (16-Pin) – connects the MaxiVCI Mini to the vehicle's 16-pin DLC directly.

2. Power LED – refer to Table 2- 2 Power LED on the Front Panel

3. Connection LED – refer to Table 2- 3 Connection LED on the Front Panel

4. USB Port – provides the easiest connection between the device and the tablet via a USB cable.

Table 2- 2 Power LED on the Front Panel

LED	Color	Description
Power	Green	Lights solid green when powered on
Power	Red	Blinks red when system failure occurs. Note: The power LED briefly lights red each time the device powers on and then lights green when the device is ready

Table 2- 3 Connection LED on the Front Panel

LED	Colo	Description
Connection	Green	* Lights solid green when the device is successfully connected via the USB cable but is not communicating with the vehicle. * Blinks green when the device is successfully connected via the USB cable and is communicating with the vehicle.
Connection	Blue	* Lights solid blue when the device is successfully connected via BT but is not communicating with the vehicle. * Blinks blue when the device is successfully connected via BT and is communicating with the vehicle

A+2AUTEL VCI MINI

Specification:

Item	Description
Communications	* BT V.2.1 + EDR * USB 2.0
Wireless Frequency	2.4 GHz
Input Voltage Range	12 VDC to 24 VDC
Supply Current	150 mA @ 12 VDC
Operating	0°C to 50°C (ambient)
Storage	-20°C to 70°C (ambient)

Package includes:

1pc x Autel MaxiVCI Mini
