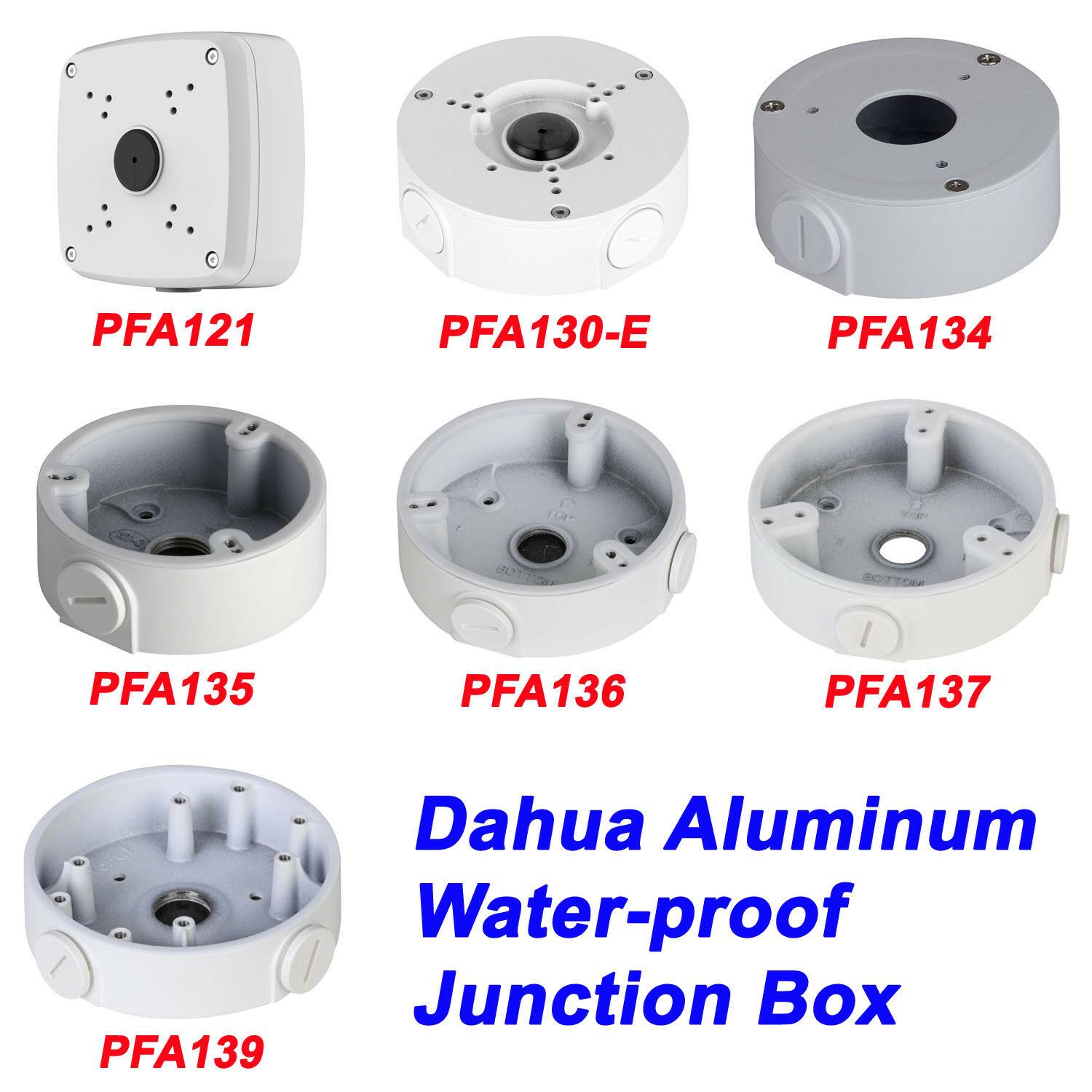

PFA134 PFA135 PFA130-E PFA137 PFA139 PFA121 PFA136 for Camera's Junction box
Description

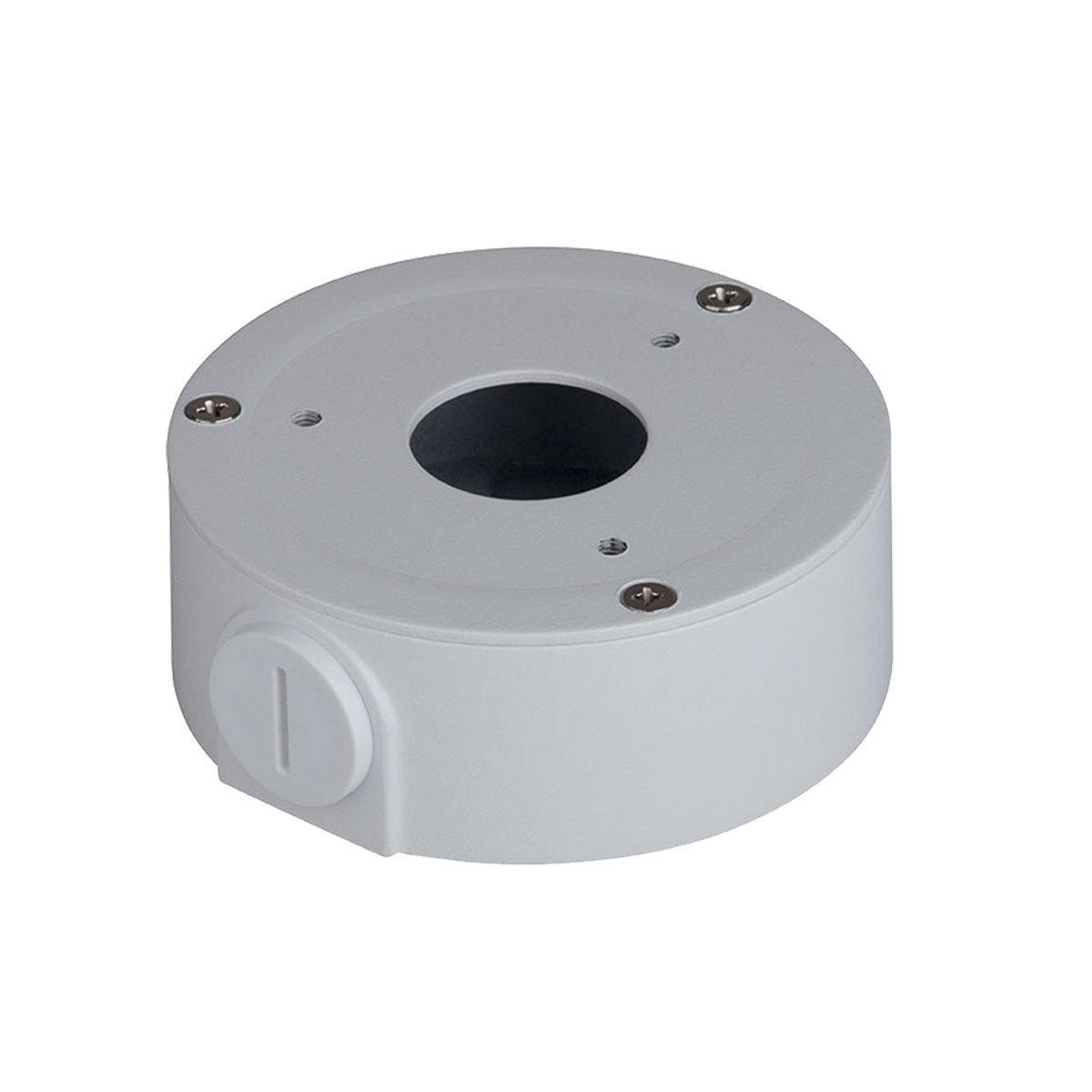

Model
| DH-PFA134
|
General
|
Material
| Aluminum & SECC
|
Dimension
| Φ90.0mmx35.0mm (Φ3.54”x1.38”)
|
Inch Thread
| M20(G1/2”)
|
Load Bearing
| 1.0kg(2.2lb)
|
Weight
| 0.26kg(0.57lb)
|
Color
| White
|
Operating Temperature
| -40ºC~+60ºC(-40℉~+140℉)
|
Humidity
| 0~90% RH
|
Applicable Model
| Please see “Accessory Selection” |

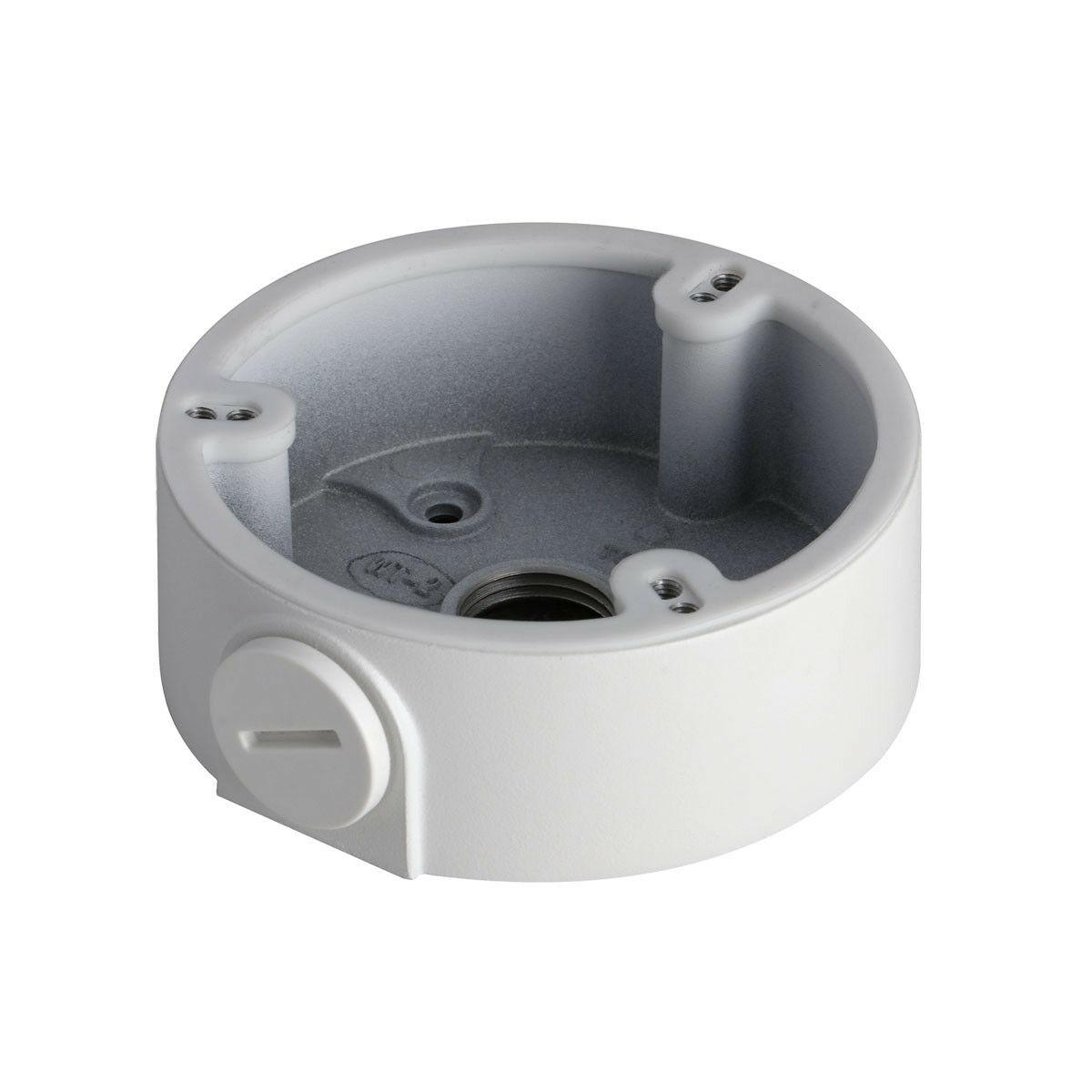

Model
| DH-PFA135
|
General
|
Material
| Aluminum
|
Dimension
| Φ90.0mmx34.1mm (Φ3.54”x1.34”)
|
Inch Thread
| M20(G1/2”)
|
Load Bearing
| 1.0kg(2.2lb)
|
Weight
| 0.16kg(0.35lb)
|
Color
| White
|
Operating Temperature
| -40ºC~+60ºC(-40℉~+140℉)
|
Humidity
| 0~90% RH
|
Applicable Model
| Please see “Accessory Selection”
|
Model
| DH-PFA136
|
General
|
Material
| Aluminum
|
Dimension
| Φ110.0mmx34.0mm (Φ4.33”x1.34”)
|
Inch Thread
| M20(G1/2”)
|
Load Bearing
| 1.0kg(2.2lb)
|
Weight
| 0.19kg(0.42lb)
|
Color
| White
|
Operating Temperature
| -40ºC~+60ºC(-40℉~+140℉)
|
Humidity
| 0~90% RH
|
Applicable Model
| Please see “Accessory Selection” |

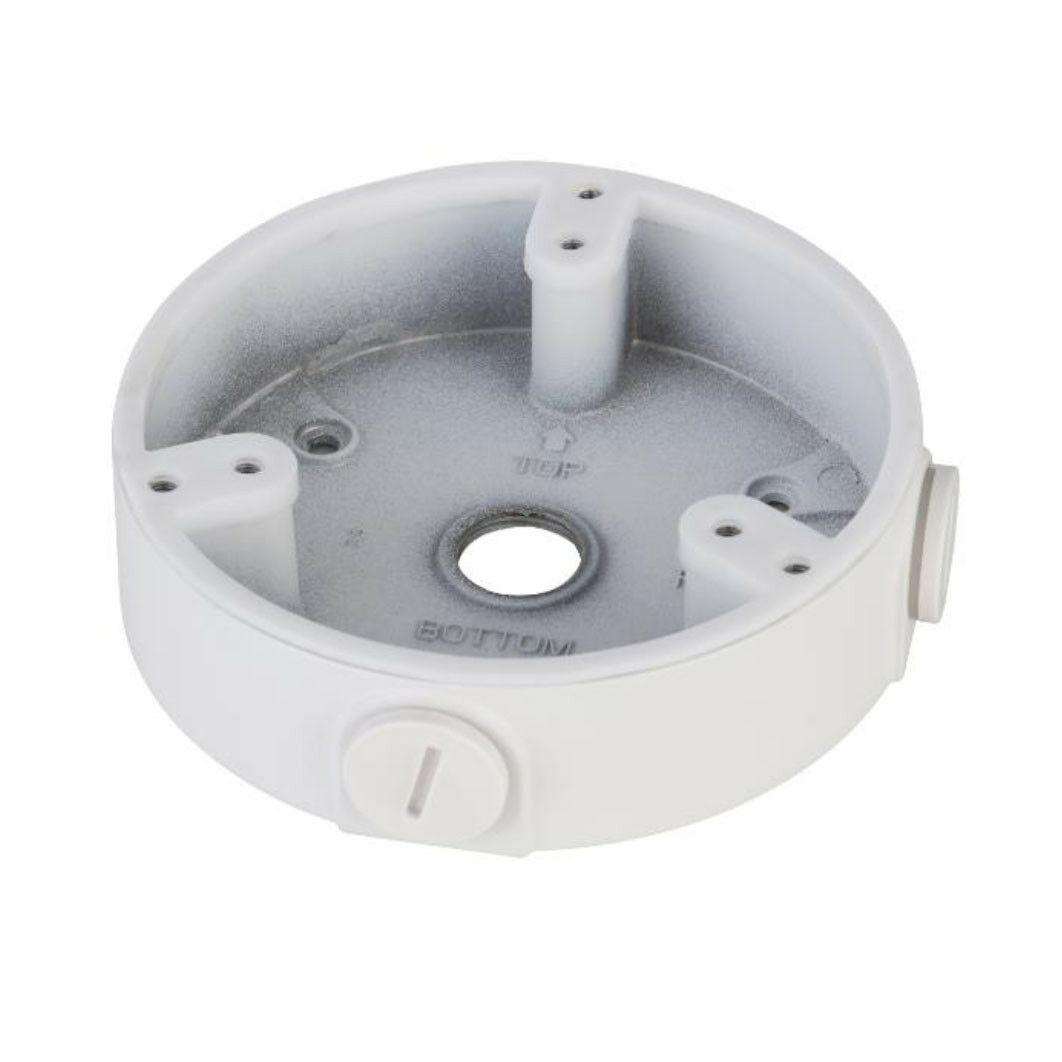

Model
| DH-PFA137
|
General
|
Material
| Aluminum
|
Dimension
| Φ122.0mmx34.2mm (Φ4.80”x1.35”)
|
Inch Thread
| M20(G1/2”)
|
Load Bearing
| 1.0kg(2.2lb)
|
Weight
| 0.24kg(0.53lb)
|
Color
| White
|
Operating Temperature
| -40ºC~+60ºC(-40℉~+140℉)
|
Humidity
| <90% RH
|
Applicable Model
| Please see “Accessory Selection” |
Model
| DH-PFA139
|
General
|
Material
| Aluminum
|
Dimension
| Φ108.0mmx28.5mm (Φ4.25”x1.12”)
|
Inch Thread
| M20(G1/2”)
|
Load Bearing
| 1.0kg(2.2lb)
|
Weight
| 0.16kg(0.35lb)
|
Color
| White
|
Operating Temperature
| -40℃~+60℃ (-40℉~+140℉)
|
Humidity
| <90% RH
|
Applicable Model
| Please see “Accessory Selection” |

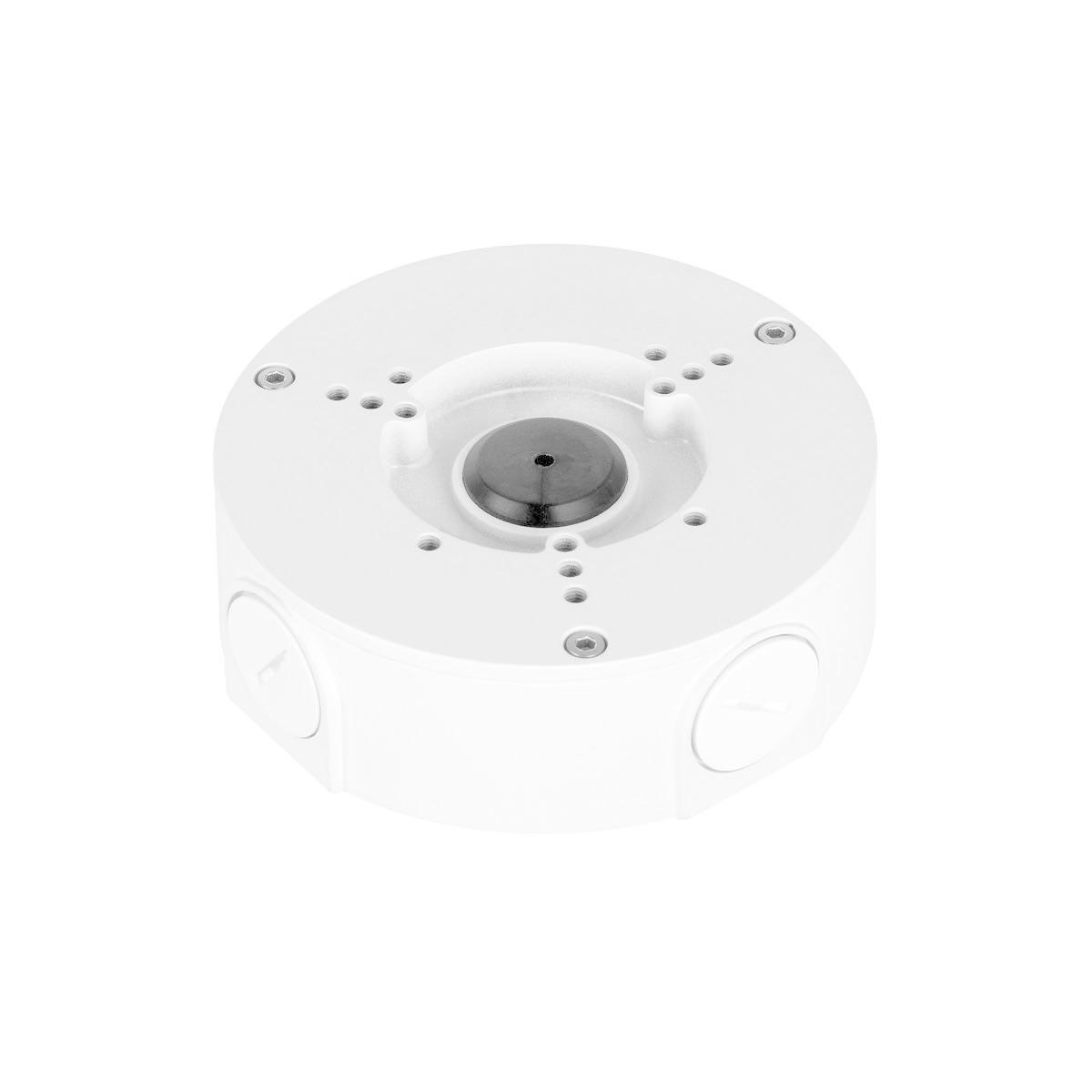

Model
| DH-PFA130-E
|
General
|
Material
| Aluminum
|
Dimension
| Φ124mmx41mm(φ4.88”x1.61”)
|
Pipe thread
| G3/4”
|
Weight
| 0.35kg(0.77lb)
|
Load bearing
| 3.0kg(6.61lb)
|
Color
| White
|
Protection
| IP66
|
Operating temperature
| -40ºC ~60ºC(-40℉~+140℉)
|
Humidity
| <90% RH
|
Applicable model
| Please see “Accessory Selection” |

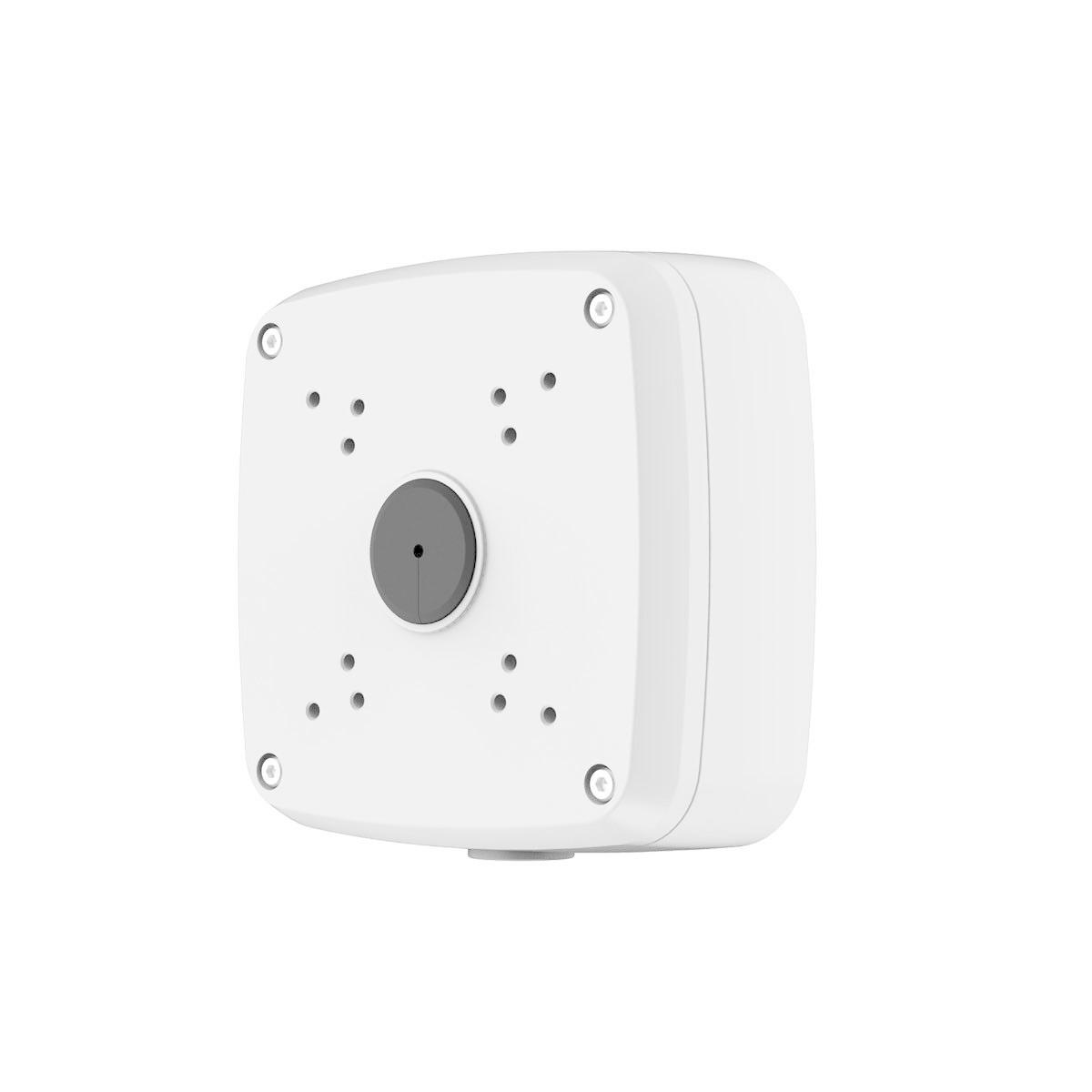

Model
| DH-PFA121
|
General
|
Material
| Aluminum
|
Dimension (WxHxD)
| 134.0mmx133.5mmx56.0mm (5.28”x5.25”x2.20”)
|
Pipe Thread
| G3/4”
|
Weight
| 0.54kg(1.19lb)
|
Load Bearing
| 3.0kg(6.61lb)
|
Color
| White
|
Protection
| IP66
|
Operating Temperature
| -40ºC~+60ºC(-40℉~+140℉)
|
Humidity
| 0~90% RH
|
Applicable Model
| Please see “Accessory Selection” |
