Application

For Toyota Camry L4 2.4L 2002-2009
For Toyota Highlander L4 2.4L FWD 2001-2007
For Toyota Solara L4 2.4L 2004-2006
For Toyota Solara L4 2.4L Manual Trans 2007-2008

Note-1: for Toyota Highlander fit FWD (Front Wheel Drive), not fit AWD(All Wheel Drive)

Note-2: for Toyota Solara 2007-2008 fit Manual Trans, not fit the Automatic Transmission

OE/Part number

66-5245,66-5247,60-5245,60-5247,TO-8051,TO-8053,TO8053,TO8051,4341006221, 4341006231, 4341006460, 4341006570, 4341006580, 434100W061, 434100W071, 434100W081, 434100W091, 4341033290, 4341048070, 4341048071, 4342006221, 4342006231, 4342006460, 4342006490, 4342006500, 4342006600

Specification

Condition: New
Type: CV Axle Assembly
Color: Black
Placement on Vehicle: Front Left,Right
Axle Nut Hex Size: 1.18 in / 30 mm
Axle Nut Thread Size: M22 x 1.5
Surface Finish: Black Coating
Outboard Splines: 26 Teeth
Inboard Spline: 24 Teeth
Output Shaft Connection Style：Spline
Input Shaft Connection Style：Spline
Compressed Length（IN）：26.3125 in (Left) ; 38.0625 in (Right)

Package included

2Pcs CV Axle Assemblies (Front Left+Right)

Feature

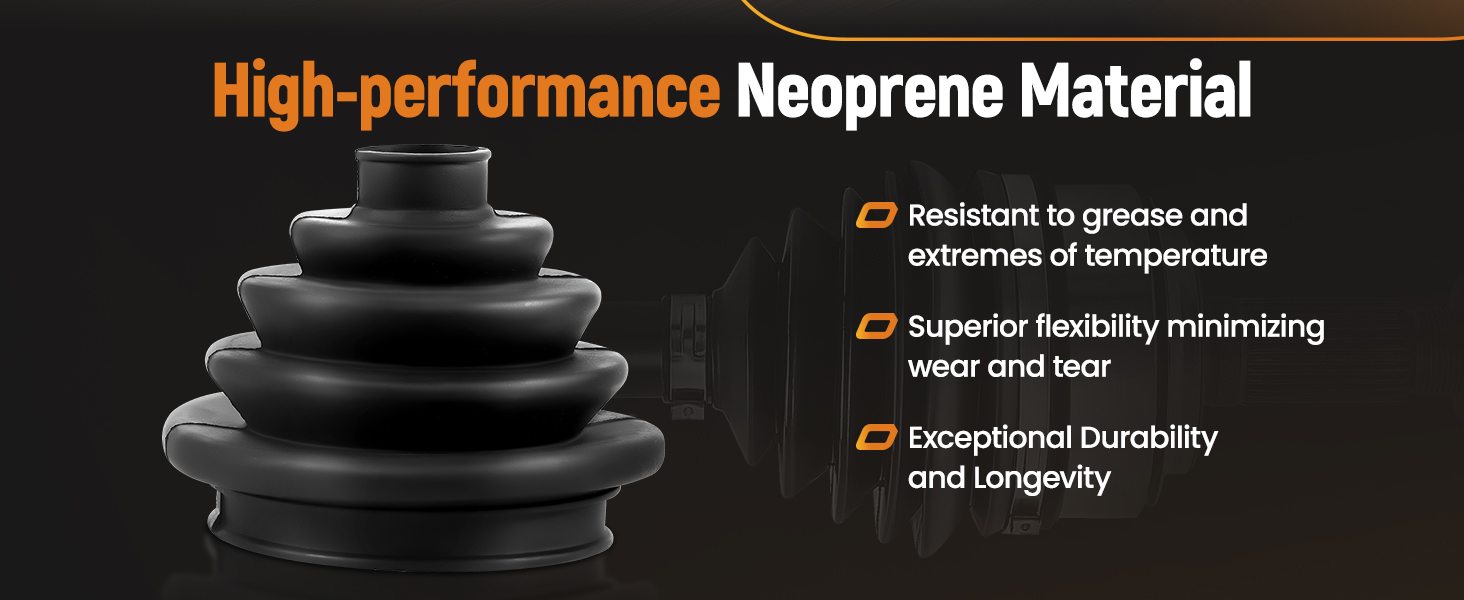

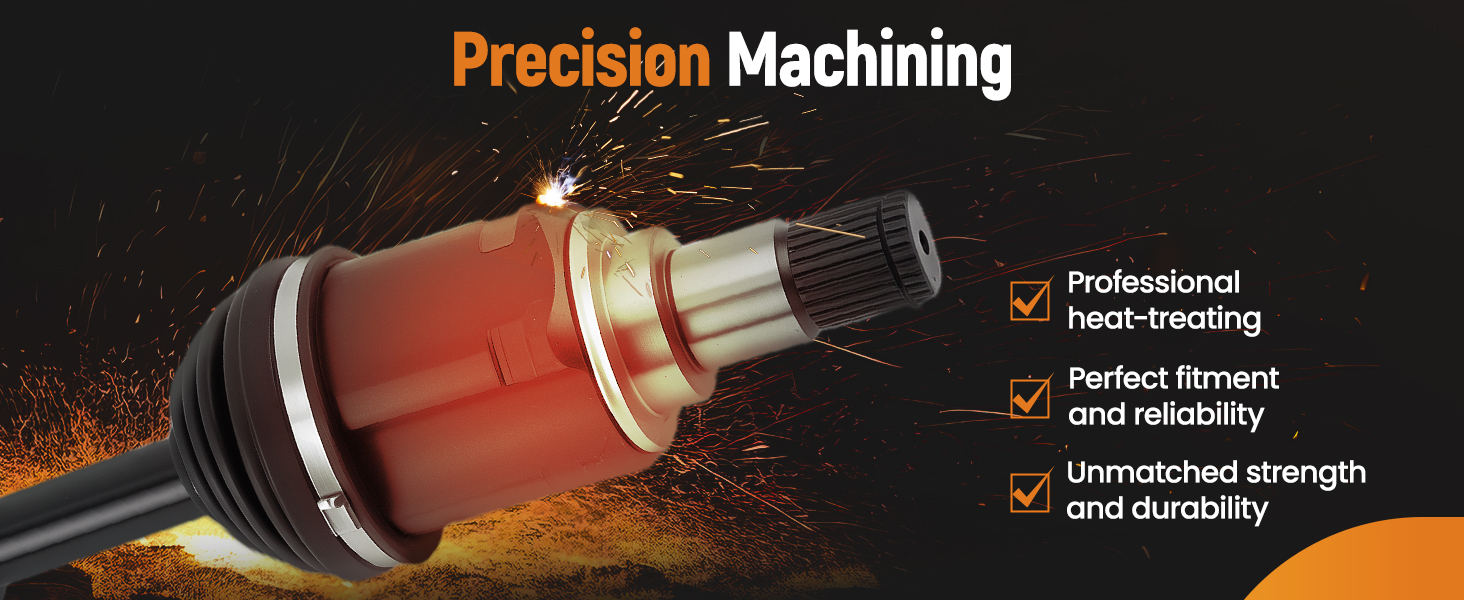

1.Unparalleled Performance:precision Machining,professional heat-treating,high-performance Neoprene Material can resist to grease and extremes of temperature and superior flexibility minimizing wear and tear.It realizes excellent durability and longevity．

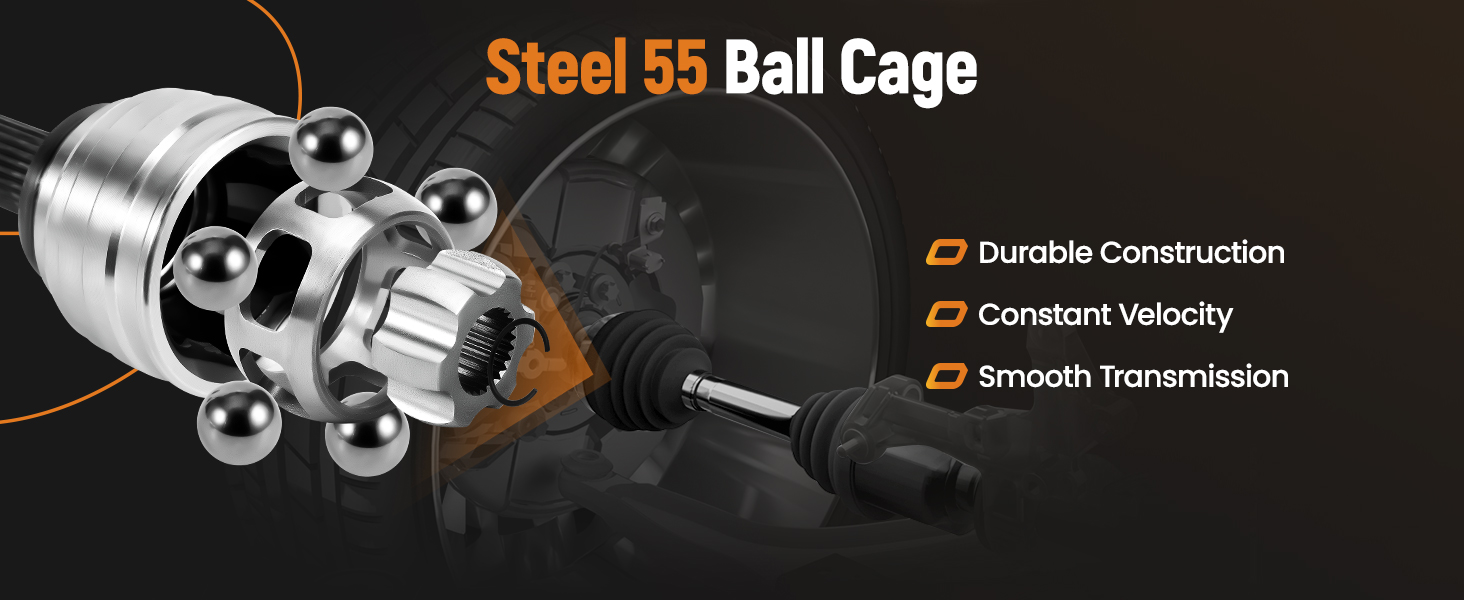

2.Durable structural design：Steel 55 Ball Cage,Constant Velocity,Smooth Transmission.

3.Safe and Pleasing Experience: CV Joint Axle improve stability and comfort for driving.

4.Direct Replacement:Complete set CV alxe assembly easy to install.

5.Superior Package Design：With good cushioning and isolation performance, effectively protect products from damage, environmentally friendly and recyclable.

Note

*Please confirm your vehicle condition and OE number before placing an order!
*Please note that this is an after-sales part, not an original part.
*We suggest that you seek professional installation to avoid unnecessary trouble.
*If you have any questions, please contact us.
