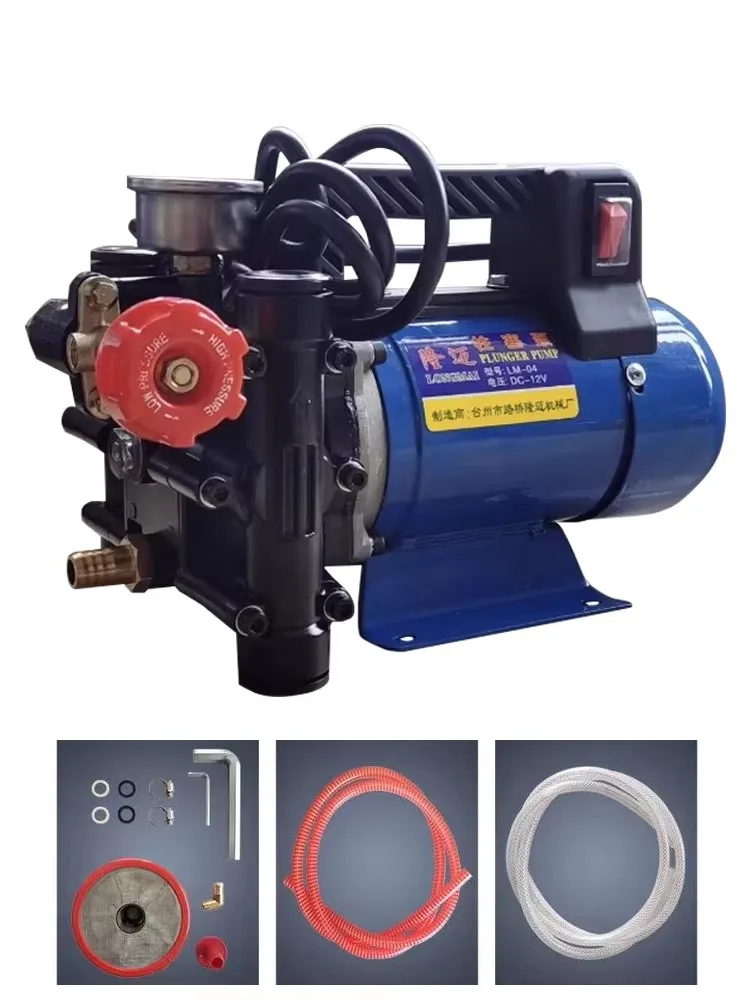

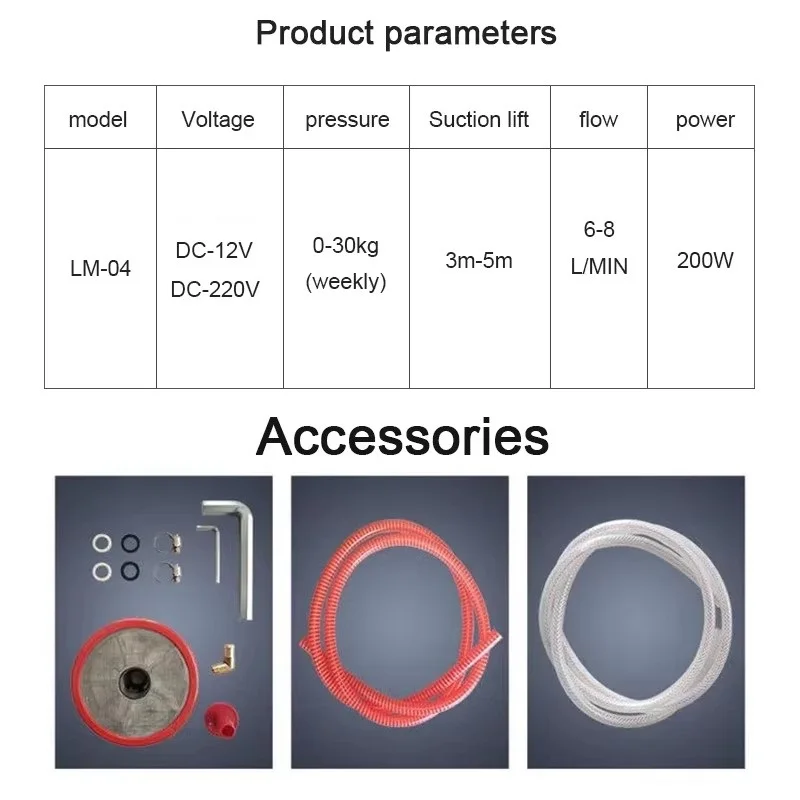

Product Name: Electric High Pressure Pump

Voltage: 12V/220V

Power: 200W

Pressure: 0-30 kg (adjustable)

Suction range: 3-5 meters

Flow rate: 6L/min

This link does not include power supply.

Note:

1. 12V plunger pump is connected with clamps.

2. 12V plunger pump is connected to a 12V power supply.

3. The 220V plunger pump is connected to household electricity and can be directly plugged into the electrical connection board.

installation method:

The first step: pull out each plug, connect the water inlet pipe, and fix it with a clamp;

The second step: connect the filter screen;

The third step: Install the return water connector, and then connect the return water pipe;

The 4th step: load onto outlet pipe;

The fifth step: install the spray gun;

Step 6: Power on and use.
