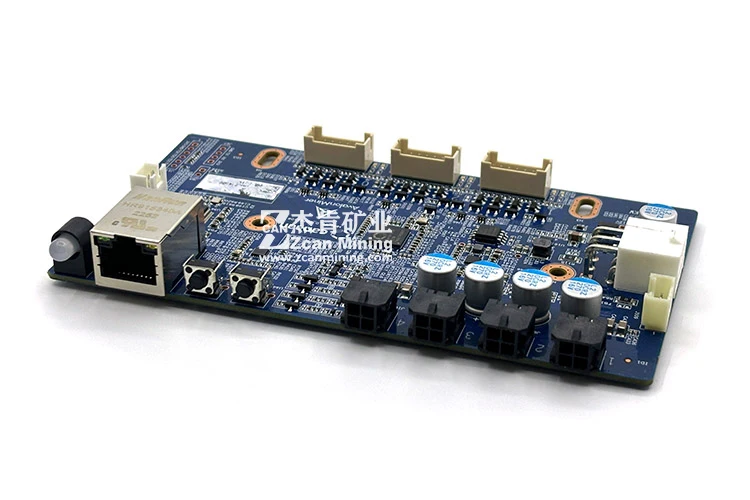

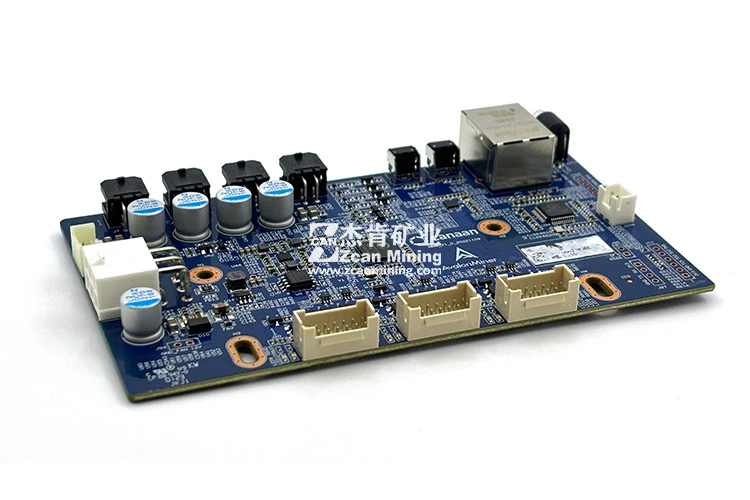

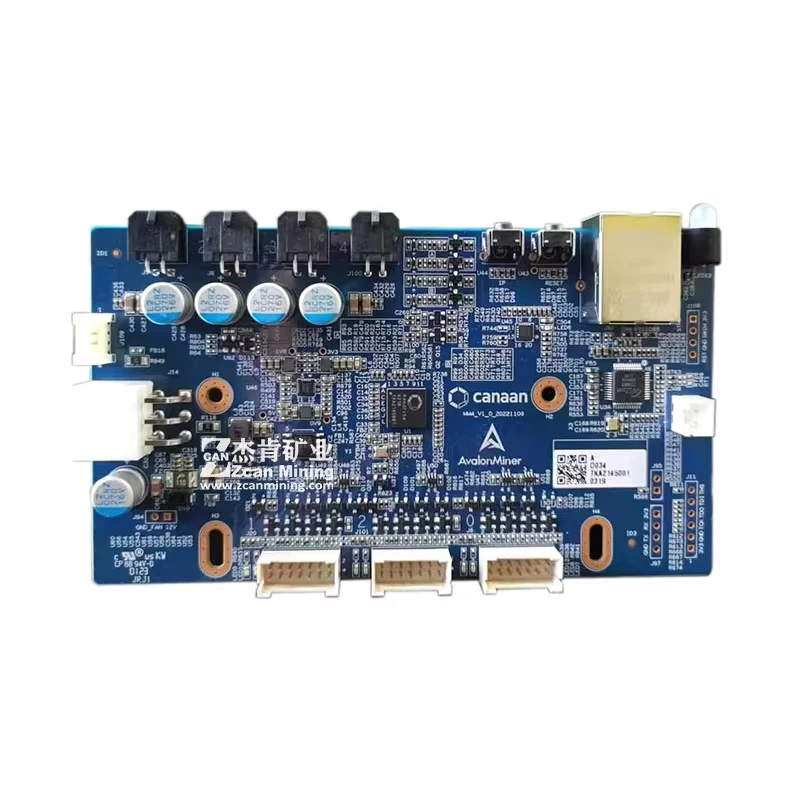

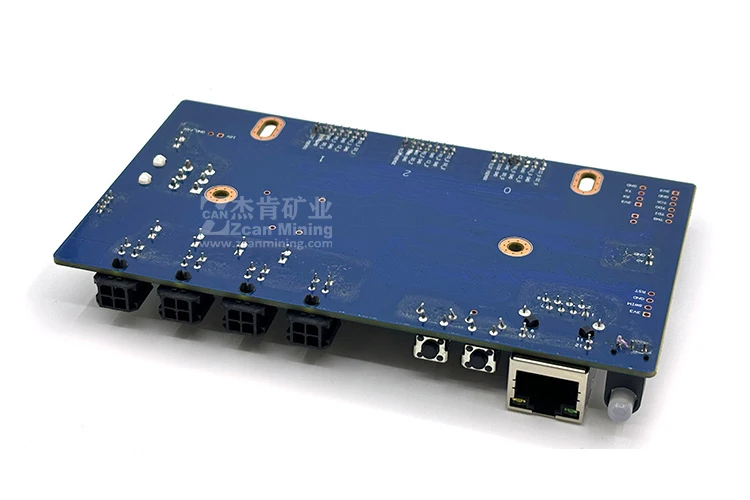

Avalon A13 A14 A15 Series Control Board

The new Avalon A1366 A1346 A1326 A1446 A1466 A1566 control board is used to replace the faulty control board of the miner to help the miner recover quickly.

It is a part of ensuring the normal operation of the miner. It is brand new and original with guaranteed quality.

All control boards have been tested before delivery to ensure that the received control boards can operate normally on the machine.

Welcome to buy with confidence.

Note:

The control boards 1366, 1346, 1326, 1446, 1466 and A1566 are common, but the firmware differs.

Please choose the miner model when you buy the board. Otherwise you need to refresh the firmware by yourself when you get the board.

Making the Avalon 1366 control board as an example, the specific replacement steps are as follows:

1. Remove the faulty control board:

● Power off the miner, remove the protective cover on top of the control board, then unplug all cables connected to the control board.

● After removing the fixing screws of the control board, carefully take out the board.

2. Install and burn the new control board:

● After confirming that the new Avalon 1366 control board is intact, align it with the fixing screw holes and install it securely.

● Reconnect all cables to the new control board according to their original positions.

● After checking that the cable connections are secure, install the protective cover.

● Power on the miner, scan the IP address to enter its backend, then upgrade the corresponding firmware online.

3. Run test:

● Re-power the miner to check if the miner's operating status has been restored to normal.

The control board plays a crucial role in the miner. Once it damaged, the miner's overall performance will be severely affected, and it may even lead to the miner being completely unusable. Therefore, we should maintain a certain number of replacement parts, which is convenient for timely replacement to avoid further losses caused by control board failures.
