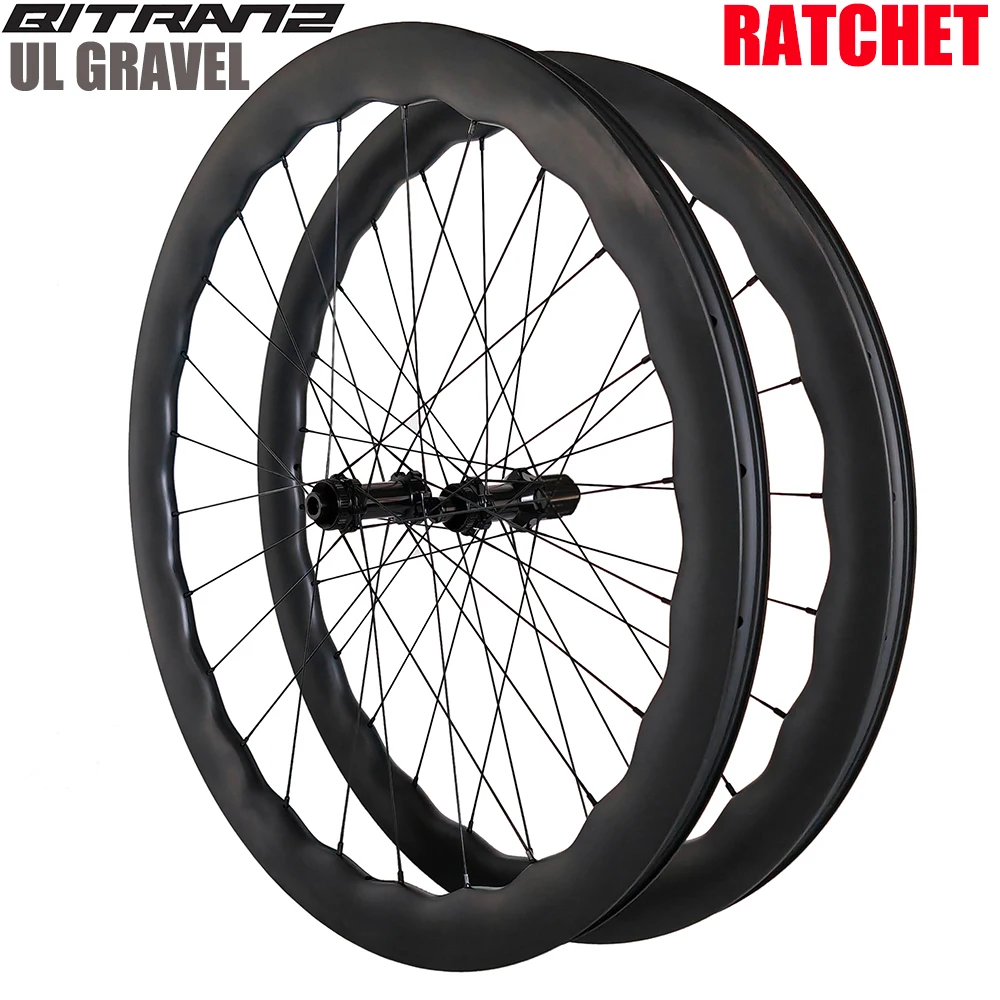

Ratchet Gravel Bike Carbon Wheels 4550 or 5560 Wave 28mm Wide - Customized available
| Size |
700C |
| Type |
clincher hook |

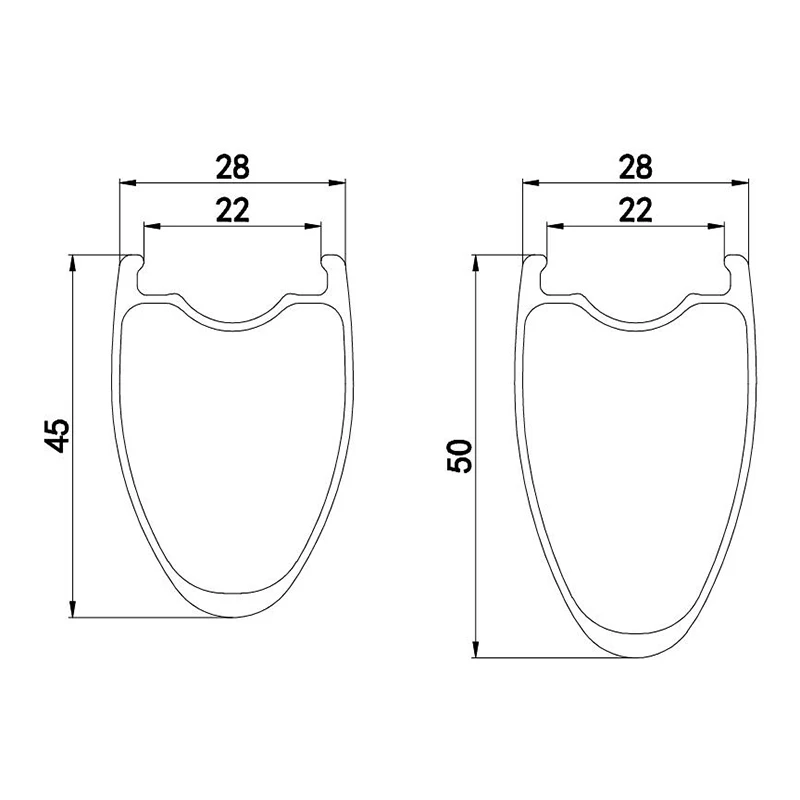

| Depth |
45/50mm |
| Outer width |
28mm |
| Inner width |
22mm |
| Spoke holes |
24 |
| Weave |
UD |
| Finish |
matte/glossy |
| Braking system |
disc brake |
| Nipple position |
external/internal |
| Tubeless |
compatible |
| Rim Material |
Toray T800+T700 |

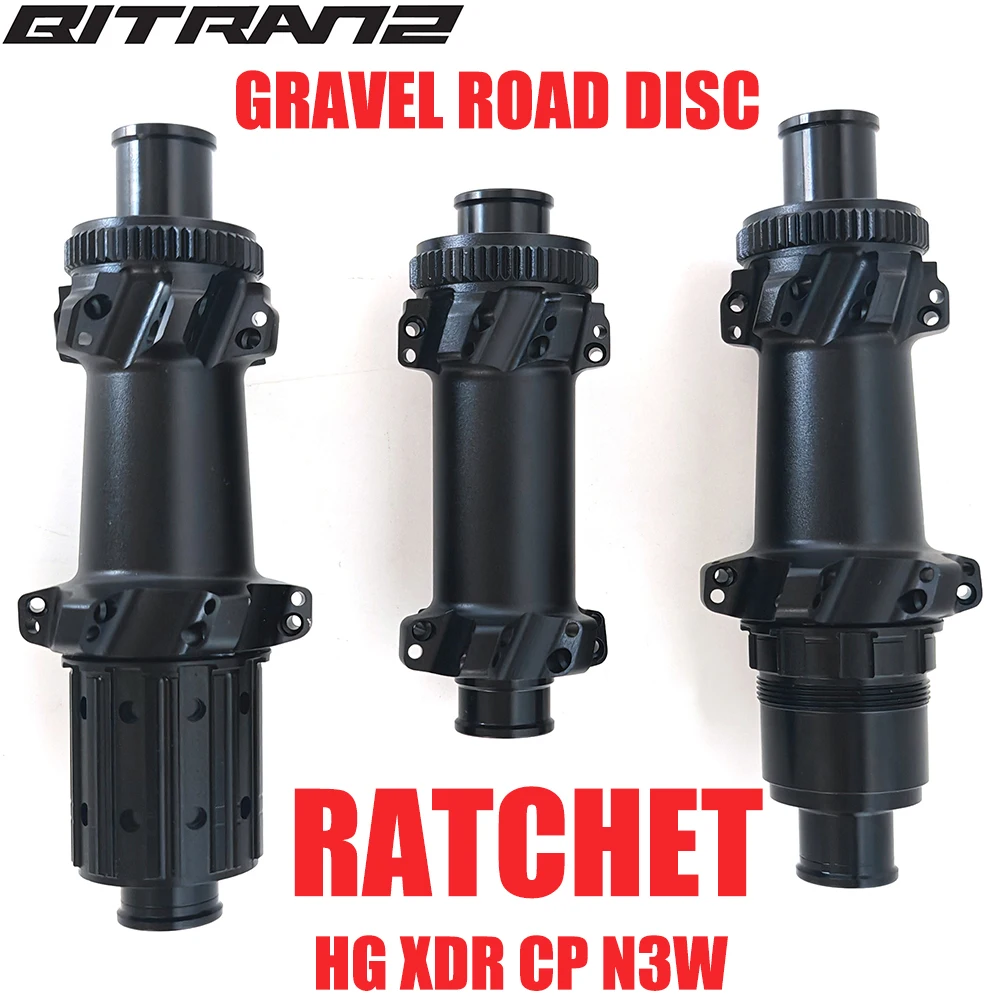

| Hub Front |
G261 center lock, 12x100mm |
| Hub Rear |
G261 center lock, 12x142mm |
| Cassette body |
HG/XDR |
| Spokes |
Pillar TB2015 - black |
| Nipples |
Aluminum alloy - black |
| Weight Front |
600+/-20g |
| Weight Rear |
710+/-20g |
| Application |
Gravel/Road Disc/Cyclocross |
| Max weight limit |
100kg |
| Cycling tyre pressure |
120psi max |
| Max spoke tension |
180KGf |
| Decal |
customize |
| Standard |
EN |
| Warranty |
24 months |
Below options: (Just leave us message when you make order )
1. other surface please contact us to check
2. hook/hookless - if you need hookless, please tell us
2. nipple position: external / internal / Special drilling - no outer holes except valve hole
3. nipples material: aluminum alloy / brass
nipple color: black / red / silver ...
4. Spokes color: black/silver (silver is other spokes )
5. cassette body: HG / XDR/ XD/ MS Micro Spline compatible
6. wheels you want standard normal weight/light weight/ultra-light ... We can customize
other hubs available - welcome to contact us
For more information, you can contact us.
Customized logo decal available. Welcome to contact us and tell us your need.
