000V E-Core Square Epoxy, MSD 8207 MSD Ignition Blaster SS Coil High Voltage -40
- SKU: 8207
- Brand: MSD
- Color: Red
- Condition: New
- MPN: 8207
- Manufacturer Part Number: 8207
- UPC: 085132082070
Overview:

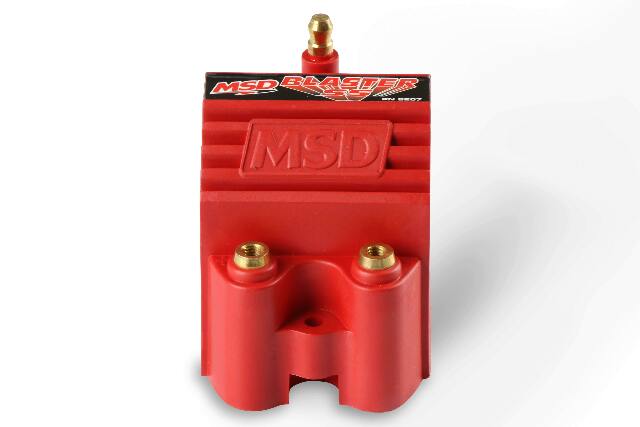

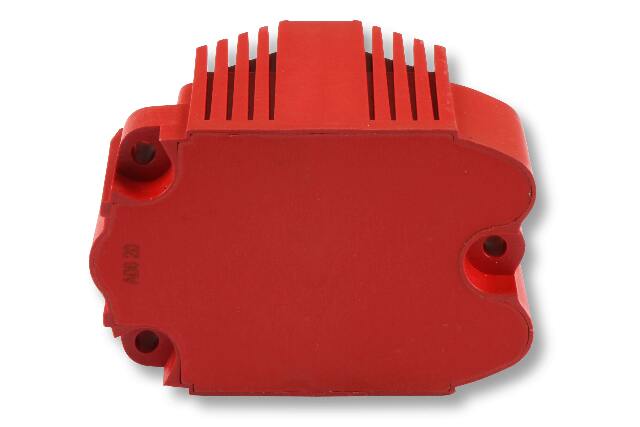

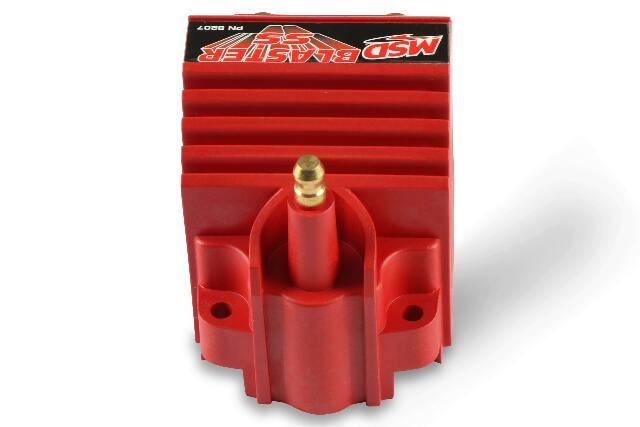

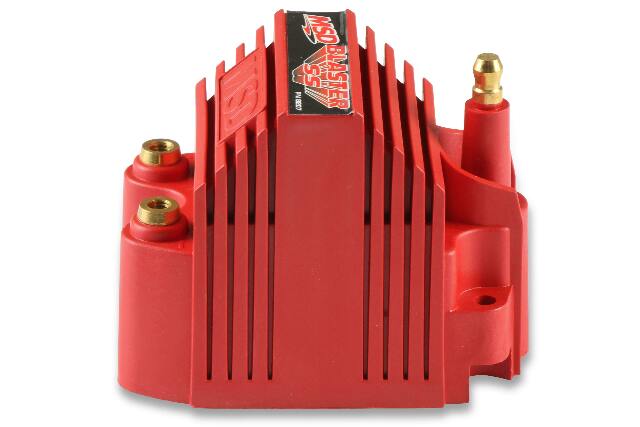

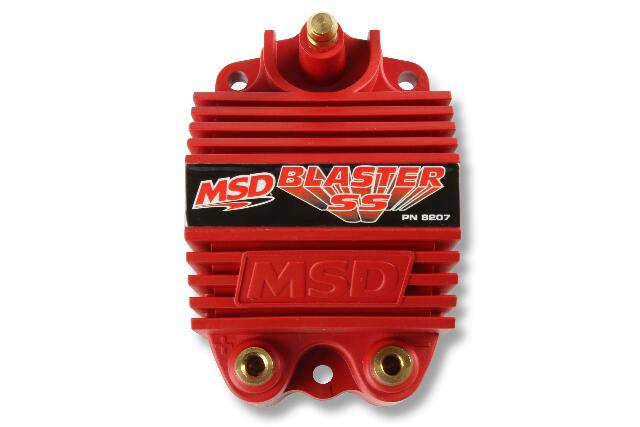

Don't let the compact size of the Blaster SS Coil fool you, because it is packed with performance! The efficient E-core windings are designed to produce high amounts of current without sacrificing the voltage output. In fact, when used with an MSD 6 Series Ignition, the Blaster SS produces 300 milliamps of current and a maximum voltage output of 40,000 volts!
Features:
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| Universal |
Specs:
| Brand | MSD |
|---|---|
| C.A.R.B. EO # | D-40-37 |
| Coil Type | Blaster |
| Color | Red |
| Emission Code | 1 |
| Inductance | 6.9 mH |
| Peak Current | 300 mA |
| Primary Resistance | .355 OHMs |
| Product Type | Coil |
| Secondary Resistance | 4.4K OHMs |
| Spark duration | 220 uS |
| Turns Ratio | 2.91736111111111 |
| Warning | California Proposition 65 |
| Warranty | Limited 1 Year Warranty |
| Weight | 1.08 lbs. |
