Spring impact hammer Spring impactor Impact testing machine Safety regulations electrical enclosure mechanical impact test

basic introduction:
1. It is made according to the corresponding terms of EC8O068-2-75, GB/T2423.55-2006, GB4706.1, GB8898 and GB7000, IEC884 and L1244. The ability of housings such as handles, knobs, indicator lights, etc. to withstand mechanical shock.

shell:
Single gear: aluminum alloy
Six-speed adjustable type: stainless steel

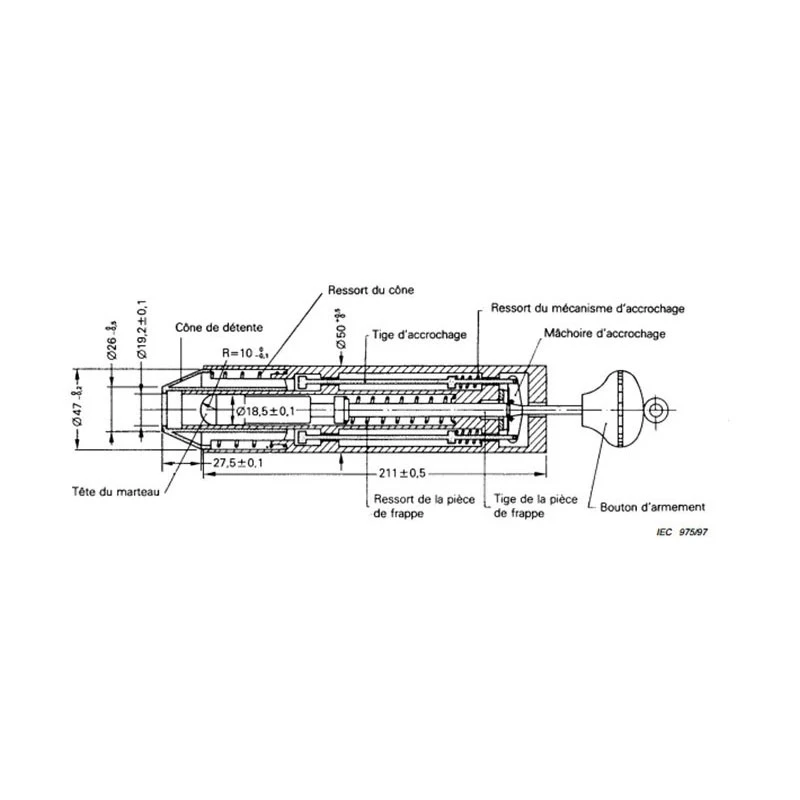

Length: 211mm Weight: 1250g Outer Diameter: 50 mm Hammer Weight: 60g Hammer Radius: 10mm Impact Components: Including the firing handle and the hammer. The weight is 250g,

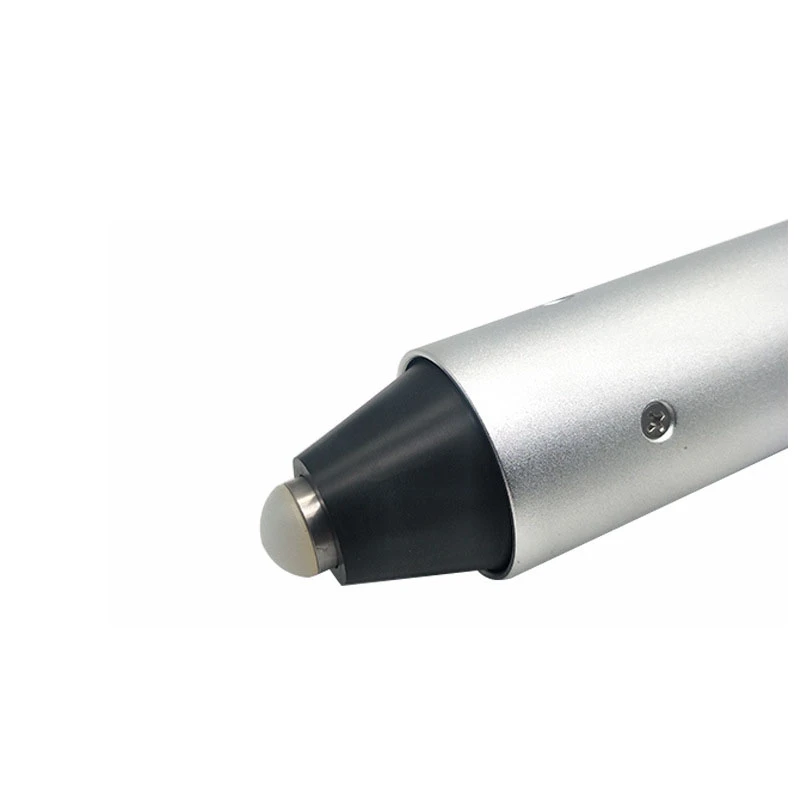

The hammer head is made of white polyimide Impact release force: less than 10N
