FEATURES:

1. A3 steel housing, makes small size, light weight, beautiful appearance and low working vibration.
2.flange connection ensures good strength, easy installation and maintenance.
3.enhanced fiberglass turbine blades with optimized aerodynamic shape design and structural design, can lower start wind speed and higher wind energy utilization.
The blade is coated by gel coat resin and painted to resist corrosion by air and water.

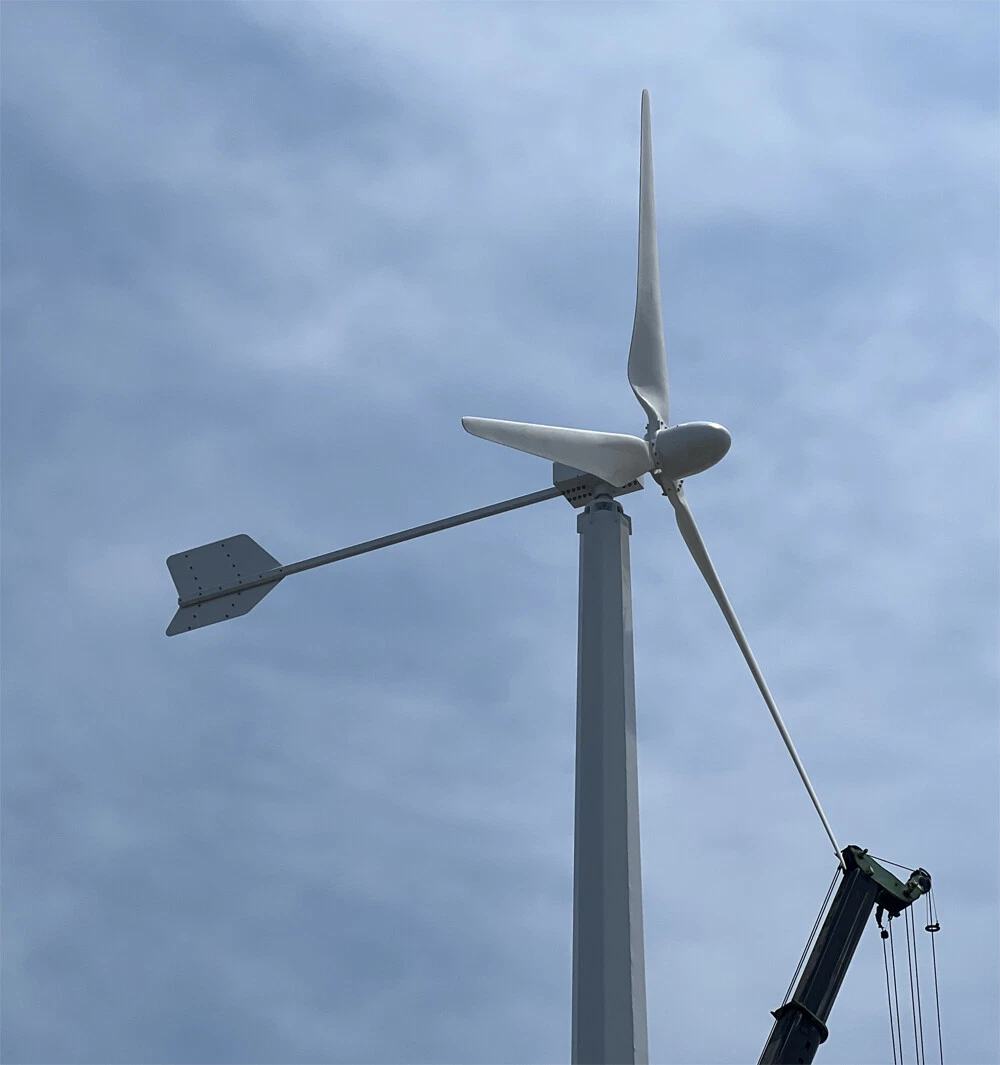

4. the automatic-yaw tail rudder empowers this horizontal swing-tail wind turbine (the tail automatically swings in high wind and automatically return in safe wind)a higher anti-typhoon capacity.
5. permanent magnet external rotor design,reduced the resistance torque and very good heat dissipation performance compared to inner rotor generators.
6. 42NSH magnetic steel piece has stronger magnetism and higher temperature resistance.
7. F-class enameled wire could stand 150 degrees temperature, coil operation safety is ensured.
8. the body shell is dacromet coated and twice anti-corrosion painted, to ensure rust free after a long time operation

Model: WT-FK10KW
Rated power: 10000w
Rated voltage: 96V 220V 380V
Blade length: 260 cm
Top net weight: 180kg
Wind turbine diameter: 5.4 m
Rated wind speed: 10m/s
Start wind speed: 4 m/s
Survival wind speed: 40m/s
Generator: 3-phase permanent magnet AC synchronous generator
Lifespan: More than 20 years
Warehouse: HRB or for your order
Blade Material: Fiberglass
Shell Material: Aluminum Alloy
Permanent Magnet Material: Rare Earth NdFeB
Control system: electromagnet
Lubrication: grease
Working temperature: -40 to 80Packaged included:
1 x Wind Turbine Generator
3 x rotor blades
1 * User Manual



Including mounting accessories

PLEASE NOTE: The mast is not included as the mast height needs to be 4-6 meters. This size exceeds our courier's shipping limit. We therefore recommend that you prepare the mast yourself.

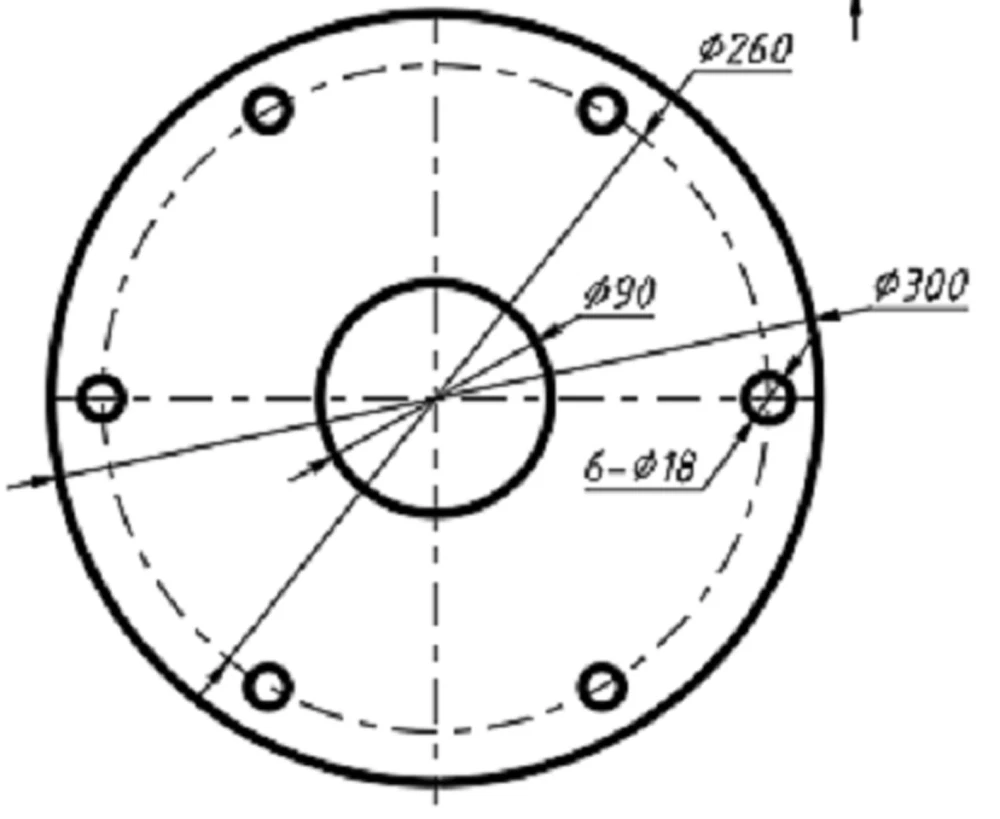

We can provide flange size for reference:



• HIGH-QUALITY BLADES

  The blade material is synthetically injection molded with high-strength FRP material. At the same time, the fashionable spiral blade is also designed with aerodynamics to make the rotor run smoothly, reliably and quietly.Coreless PMG provides lower start torque/wind speed and longer service life.Design service life 10~15 years.

  Maximum RPM protection. No higher than 300RPM, regardless of the wind speed.

  POWERFUL PERFORMANCE

  Designed with three-phase AC PMG, it boasts low torque, high-power tracking intelligent microprocessor that can effectively regulating the current and voltage. It obviously increases wind energy utilization and annual power generation.

  COMPACT & FIXED

  With dual bearings, the fan movement is more stable. Low vibration and low noise. In addition, with its compact shape, it has the lowest starting wind speed and a larger windward area, enabling it to generate electricity at lower wind speeds.

  EASY INSTALLATION

  All things you need for installation are included. You can also get extra installation tool (two wrenches). Humanized and convenient flange design, easy to install and maintain.

  MULTIFUNCTIONAL USE

  It is ideally suited for boats, gazebos, cabins or mobile homes, as well as for green windmills, home, corporate and industrial energy supplem

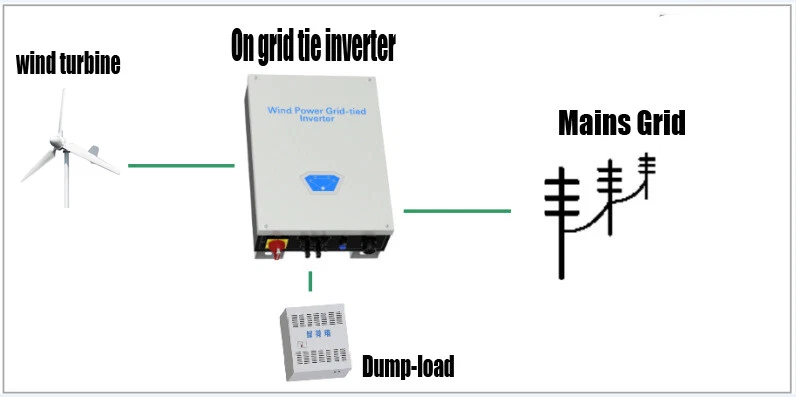

• Wind turbine ON GRID connection diagram (if you need a matching grid-connected inverter, you can get in touch with us, we can give you a preferential price)
•

•

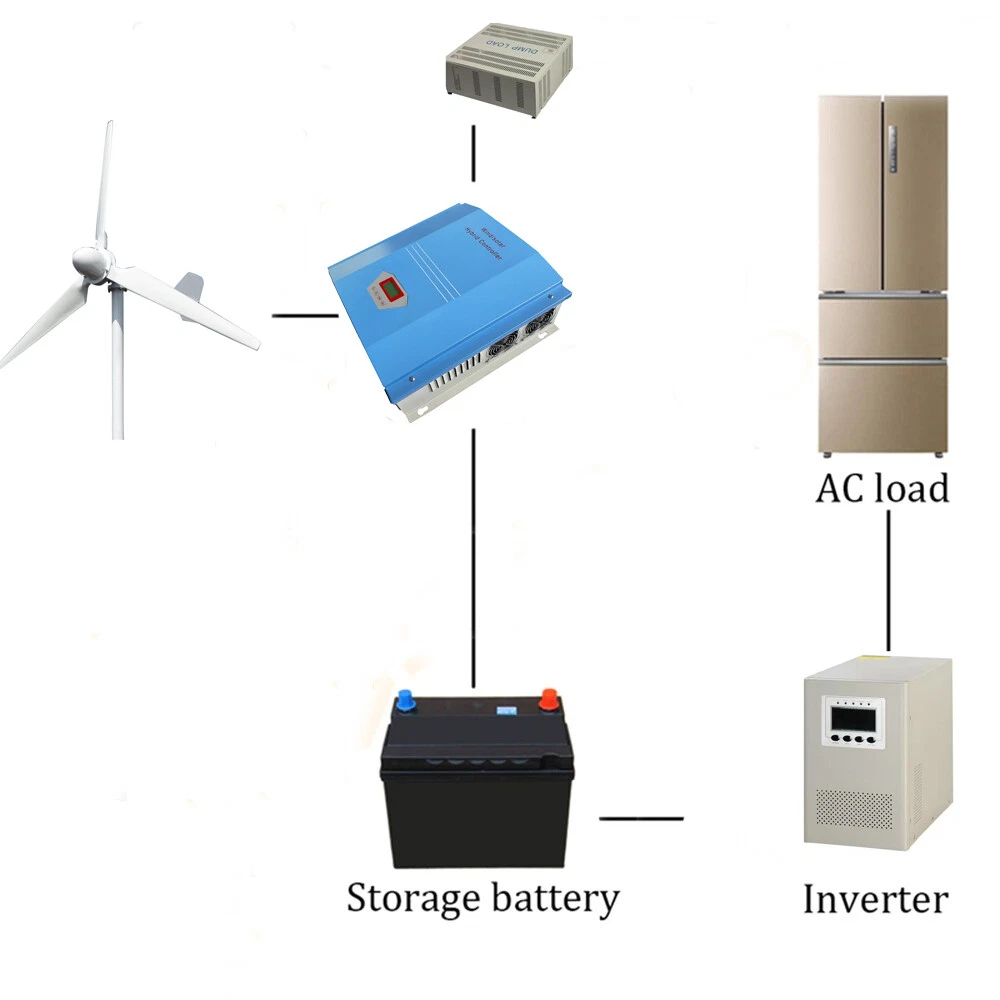

• Wind turbine OFF GRID connection diagram (if you need a matching off grid Charge controller and inverter, you can get in touch with us, we can give you a preferential price)

Introducing our 10000W 3Blades Wind Turbine - the perfect solution for your renewable energy needs! This top-of-the-line windmill is equipped with a 3-phase Wind Power Generator that can connect to an on-grid system at 120V, 220V, or 380V.

This high-capacity Wind Turbine and Kit is an excellent investment for homes, businesses, or even farms with its powerful 3 Blades design. The Wind Turbine is built with high-quality materials that ensure reliability and prolonged use.  With its efficient design, the Turbine utilizes wind energy as a natural and renewable energy source, making it environmentally-friendly and cost-efficient.

This Wind Turbine is easy to install and boasts a compact and lightweight design, perfect for a wide range of locations. Generate electricity and save money today with our powerful Wind Turbine. Don't miss out on this opportunity to save on your energy bill and reduce your carbon footprint today! Order now and experience the power of wind energy for yourself!
