Capacitor size:

Height 90MM*diameter 77MM, board size: length 160MM, width 80MM, board thickness 1.6mm

This price is the price of the finished product after welding, with capacitors: This filter board adopts SBI SPRAGUE36DX series 75V67000UF screw-type capacitor parameters as follows:

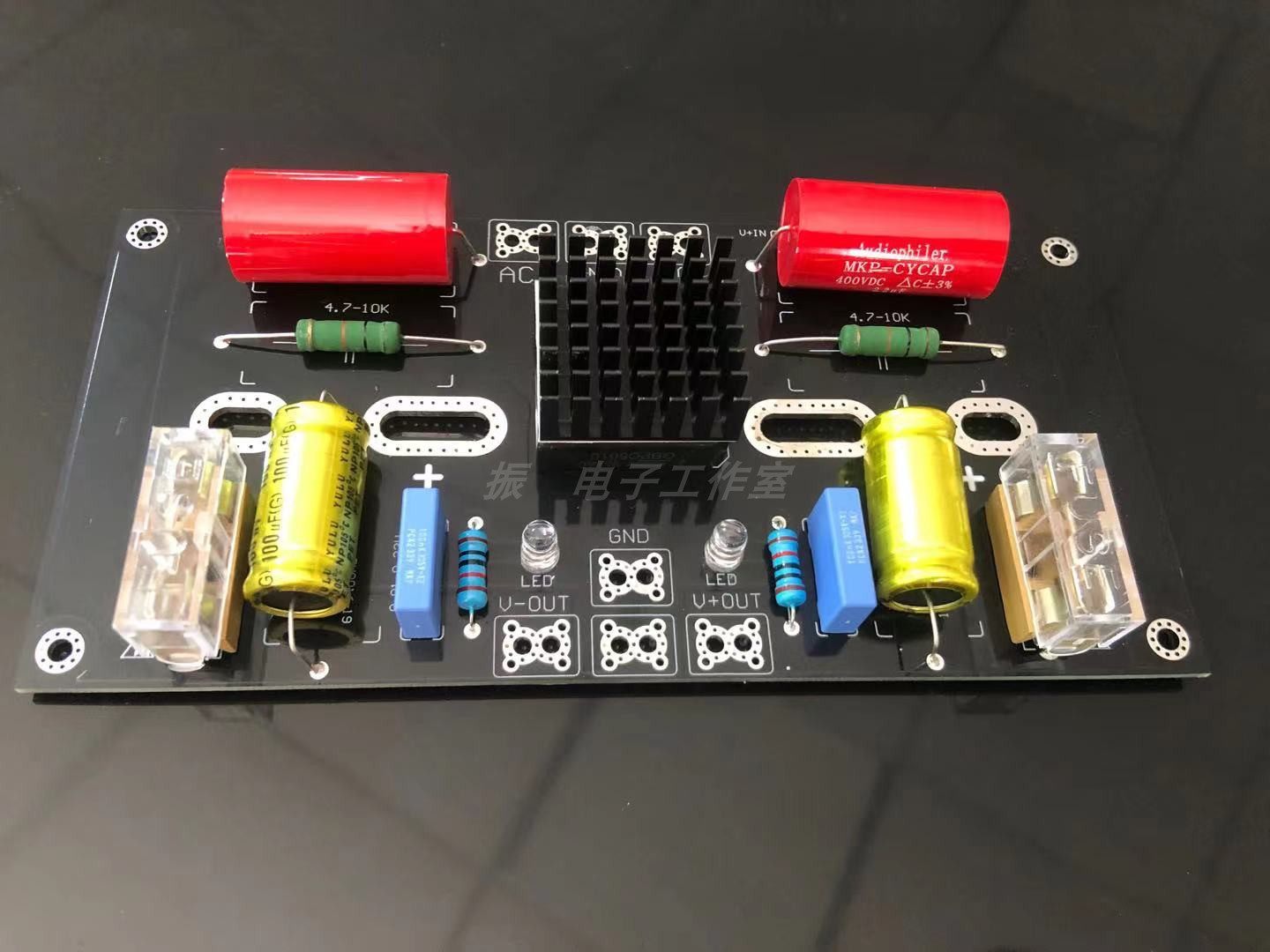

PCB material: double-sided glass fiber, black oil double-sided tin plating process

Input voltage AC: support the use of dual AC within 45V

Input current: within 45A

Output voltage DC: The output DC voltage is about 1.43 times the input voltage (AC voltage*1.43=output DC voltage)

Wiring method: welding or plugging

Weight: (including the components in the picture) the finished board weighs 1.6KG

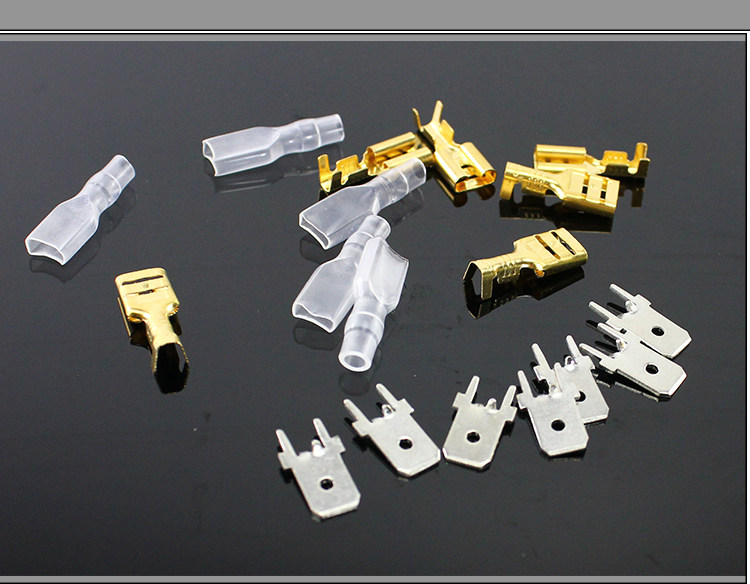

Accessories: accessories 6.3 male and female plug 7 sets, pillars, pillar screws!

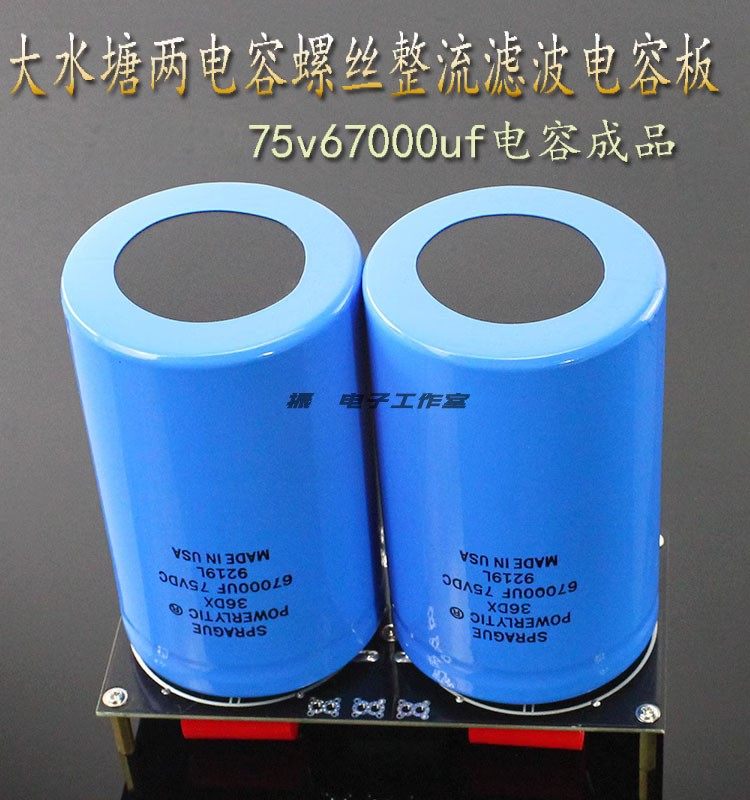

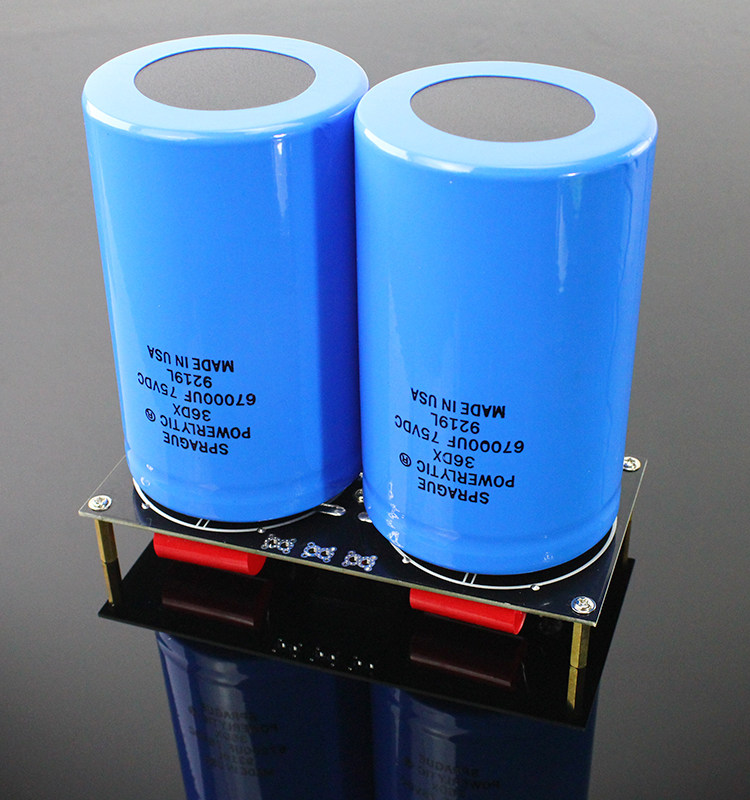

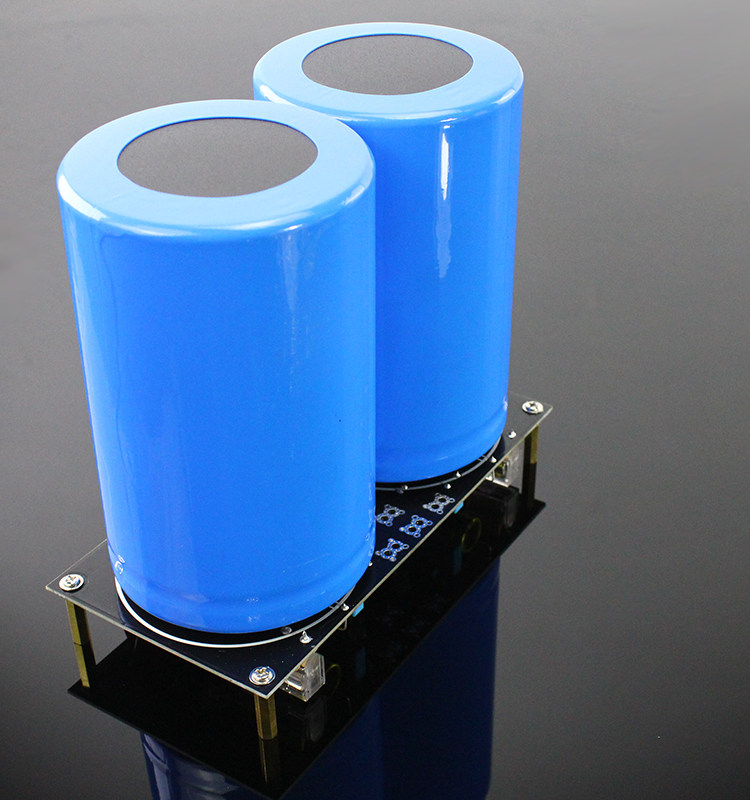

The board sent out now is shown in the figure, capacitor size: height 90mm*diameter 77mm.

Package:
1pc  Finished 75v 67000uf Rectifier Filter power Amplifier Power Board
