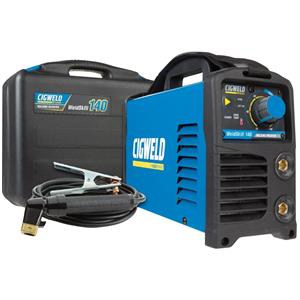

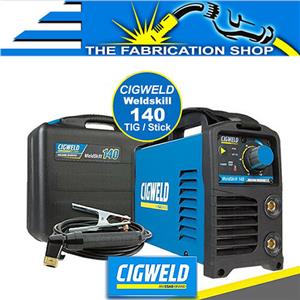

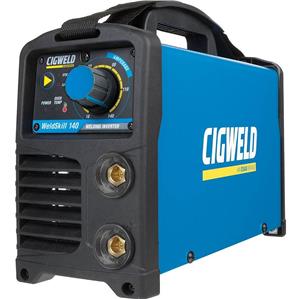

Cigweld Weldskill 140 TIG/STICK Welder
Includes
| - WeldSkill 140 Welder W1008140 |
| - 4m Lead with Twistlock Electrode Holder |
| - 4m Lead with Work Clamp |
| - Shoulder Strap |
| - Toolbox |
| - Operating Manual |
Price: AU $445.00
Buy Now Ask QuestionTechnical Specifications
| Brand: | Tweco |
| MPN: | W1008140 |
| Barcode: | 9310574062436 |
| Certification: | AS 60974.1-2006 / IEC 60974-1 |
| Height: | 200mm |
| Width: | 120mm |
| Diameter: | 315mm |
| Weight: | 4.7kg |
| Cooling: | Fan Cooled |
| Processes: | Lift TIG (GTAW), Stick (MMAW) |
| Number of Phases: | Single Phase |
| Supply Voltage: | 240V AC ± 10% |
| Frequency: | 50/60 Hz |
| Current Range: | 10 - 140A |
| Voltage: | 80V |
| Input Current: | 26.3 Amps |
| Generator: | 6.0 kW (7.5 kVA @ 0.8 PF) |
| Protection Class: | IP21S |
| Open Circuit Voltage: | 75V |
| Supply Plug Lead: | 10 Amps |
| Effective Input Current: | 10 Amps |
| Warranty: | 3 Year |
Product Details
Over Temperature: Over Temperature Cut Out Protection has been fitted to Power Source
Anti Stick: Helps to prevent the stick electrode from sticking to the work piece
Hot Start: Improves the arc start characteristics of stick electrodes
Arc Force: Assists when stick welding in a tight corner or joint fit-up
Range: Current Range for this Power Source is 10A to 140A of DC Welding Output
TIG Function: DC Lift TIG function provides smooth starting and running characteristics across a broad range of applications
Case: Rugged case with carry handle and carry strap
Electrode: 4m Long Electrode Holder & Work Leads
Twistlock Electrode Holder: Allows the electrode to be locked securely in place
