Please leave a message specifying the voltage specifications, otherwise it will default to 24V.

Specification:

Control system: electromagnetism

Starting wind speed: 1.3m(12inch)/s

Switched on wind speed: 2.5m(98inch)/s

Rated wind speed: 11m(433inch)/s

Max. instantaneous wind speed: ≤40m(1575inch)/s

The instantaneous maximum wind speed: ≤45m(1772inch)/s

Blades quantity: 3 (with different colors)

Diameter of the blades: 0.6m/24inch

Height of the blades: 0.8m/31inch

Speed regulation: Automatic

Rated voltage: 12V/24V,48V

Rated power: 2500W

Max power: 3000W

Protection class of the generator: IP67

Working environment temperature: -40-+60 ℃

Product assembly weight: <10kg/22lbs

Protection against overspeed: Electromagnetic brake

Material of the blade: fiberglass

Generator: Magnetic levitation generator

Installation instructions: Not included in the scope of delivery

Features:

Long service life: The wind turbine with the coreless permanent magnet generator and three high-strength fiberglass blades is more durable and has a long service life.

Smooth running:  The spiral blades are aerodynamically designed so that the rotor runs smoothly and reliably, resulting in stable power generation. The double bearing and low vibration ensure more stable operation.

Low noise: Thanks to the design principle of airplane wings and rotation in a horizontal plane, noise can be reduced to a level that cannot be measured in the natural environment.

Generation of electricity at lower wind speeds: Due to its compact shape, low starting wind speed and large wind-facing surface, the wind turbine can generate electricity even at lower wind speeds.

Strong wind resistance: The horizontal rotation brings low wind pressure, so it can withstand a super typhoon.

Protection against maximum speed: When the wind turbine reaches the maximum speed of 300rpm, it will automatically slow down.

Easy to install: Everything you need for installation is included. The wind turbine with a user-friendly and practical flange design is easy to install.

Low starting wind speed: The starting wind speed is lower than other wind turbines, and the rise of power generation is smooth, so it can generate more power than others within a certain range.

Application

It is well suited for boats, pavilions, cabins or mobile houses, and other energy supplies for households, businesses and industry.

Installation

1. check all parts of the wind turbine, which includes a total of 6 brackets and 3 blades.

2. Position the wind turbine vertically.

3. connect the brackets to the blades using the screws. Place the top and bottom cover plates on top. 4.

4. Fasten the screw in the mounting hole (at the end of the bracket) from the outside of the wind turbine.

5. tighten all screws of the blades and the bracket and switch on the blades. There should be no unusual noises or blockages. Tighten the nut (under the top cover plate of the wind turbine) to secure the top cover plate.

6. align the flange hole of the wind turbine with the flange hole of the mast, place washers and lock washers and tighten the nut.

7. professional installation is strongly recommended if you have no experience with installation.

8. you can watch the attached installation video for reference.

9. if you have any problems, please do not hesitate to contact us. We will reply and solve the problem for you as soon as possible.

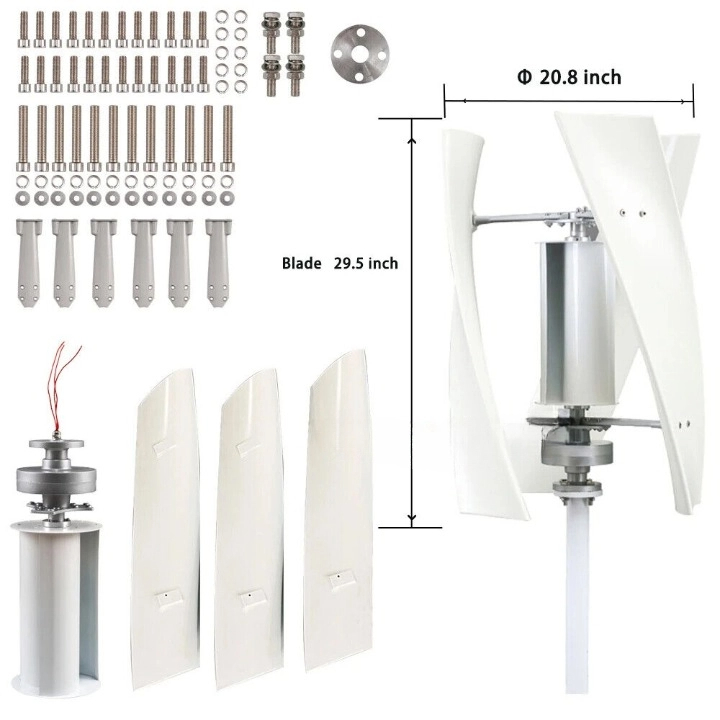

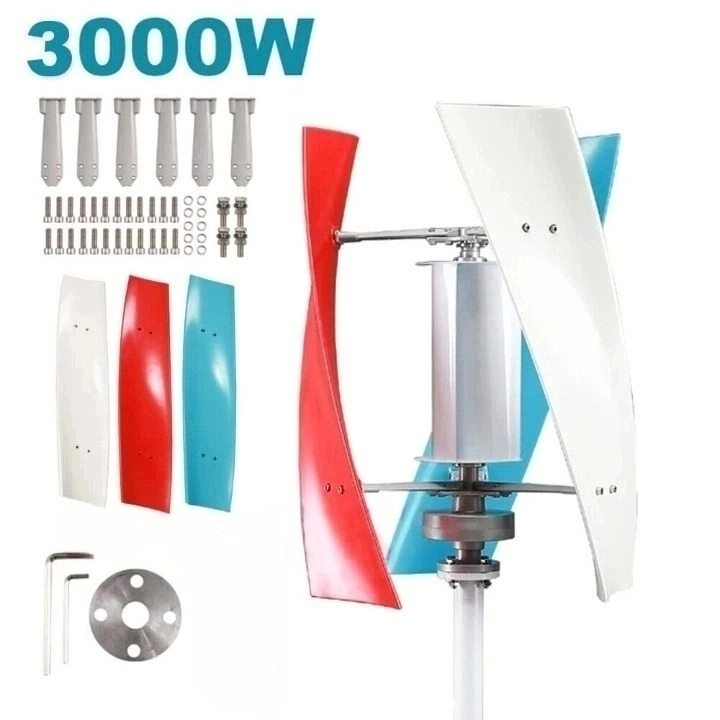

Package included:  （mounting mast is not included）

1 x wind turbine

1 x control unit

3 x blades

1 x bag of screws for connecting the main body

1 x bag of screws for connecting the blades of the bracket

Other accessories for assembly

for 2000W  Bluetooth Hybrid Controller

Product introduction:

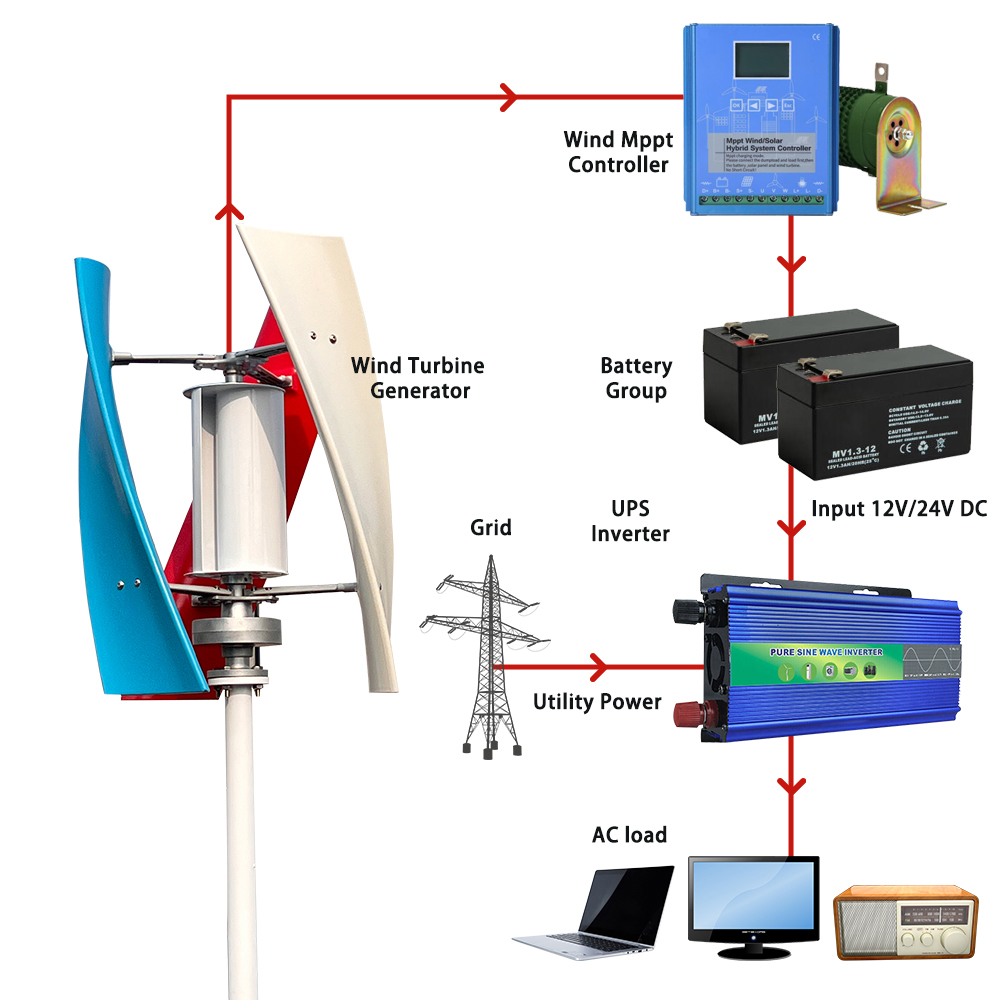

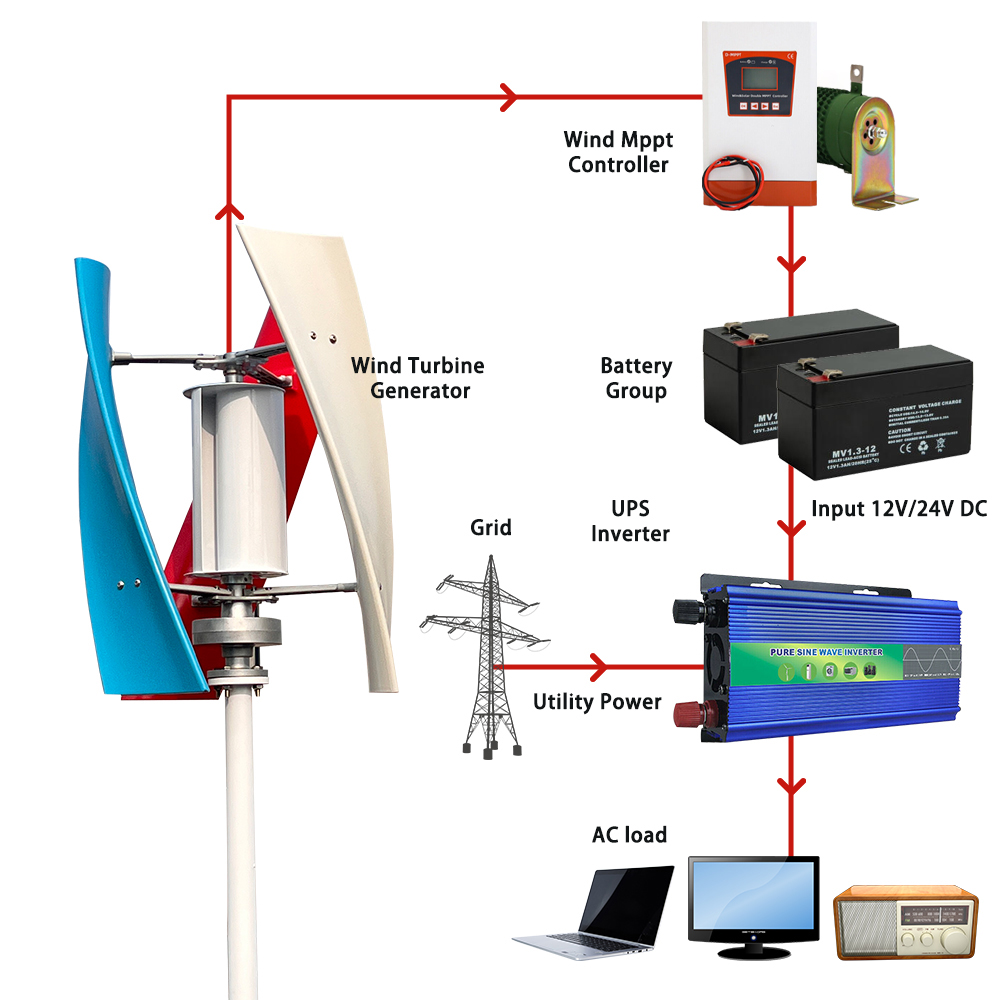

This kind of wind solar hybrid street light controller is a special design for small off-grid devices

where wind generators and solar panels charge batteries safely and efficiently.

Functions:

** Wind generator MPPT boost charging function.

** Wind PWM dump load, external dump load resistor, intelligent solar charge separation.

** Dual power supply function: battery + solar power supply.

** LCD displays parameters such as voltage and current of wind, sun and load. Some parameters can be set by the user.

** DC output with 3 output modes.

** The inner circuit board of the controller is sprayed with protective paint to prevent dust, moisture and static electricity.

Features:

** Wind & Solar MPPT charging method, ensure the power get max input into the battery

and high charging efficiency.

** Can be used for wind turbines with high compatibility.

** Independent Boost Circuit: The charging efficiency of the low-power vertical wind

generator has been solved.

** 12V/24V (12V/24V/48V) system auto-detect function.

** Mini size, easy to install.

** LCD display with visible and intuitive parameters.

** Rated wind power: 3000W

** PV Rated Power: 300W 12v 600W 24v auto/  1200W 48V

Package list:

1 * Wind & Solar hybrid charge controller with dumpload

For 3000W Hybrid Controller
Functions:
** Wind generator MPPT boost charging function.
** Wind PWM dump load, external dump load resistor, intelligent solar charge separation.
** Dual power supply function: battery + solar power supply.
** LCD displays parameters such as voltage and current of wind, sun and load. Some parameters can be set by the user.
** DC output with 3 output modes.
** The inner circuit board of the controller is sprayed with protective paint to prevent dust, moisture and static electricity.
Features:
** Wind & Solar MPPT charging method, ensure the power get max input into the battery and high charging efficiency.
** Can be used for 3000W wind turbines with high compatibility.
** Independent Boost Circuit: The charging efficiency of the low-power vertical wind generator has been solved.
** 12V/24V (12V/24V/48V) system auto-detect function.
** Mini size, easy to install.
** LCD display with visible and intuitive parameters.
** Rated wind power: 3000W
** PV Rated Power: 300W 12v/600w 24v auto
Package list:
1 * Wind&Solar hybrid charge controller with dumpload

Thank you for purchasing our products. This manual is intended for people who need to install and operate the controller. Read this manual before doing any work on the controller and keep it in a safe place. The content of this manual is regularly updated or revised as necessary. However, deviations cannot be ruled out. Please refer to the actual product(s).

General Safety Information:
** Before you receive the product, please check it carefully. Make sure the product has not been damaged in transit. If it is damaged, contact the carrier or our company immediately.
** All installation and electrical work may only be carried out by qualified personnel.
** Do not disassemble or attempt to repair the controller without professional guidance.
** Do not use the controller without batteries.
** Do not disconnect the controller and batteries when the controller works normally.
** Keep children away from the controls.
** Do not allow water to get into the controller.
** Ensure power connections are tight to avoid excessive heating from a loose connection. Make sure the cables are appropriate for the system.

Notes:

1. There are two different types of screws. Please check the correct position of the screws before installation.

2) The top cover plate of the wind turbine does not need to be tightened, and the blades can be properly adjusted up or down during installation.

3) When installing the wind turbine vertically, please prevent the bottom flange from crushing the output cable.

4.Please allow the slight color difference caused by shooting light and 1-3 cm error due to manual measurement, and make sure you don't mind before you order.

5.Please leave a message specifying the voltage specifications, otherwise it will default to 24V.
