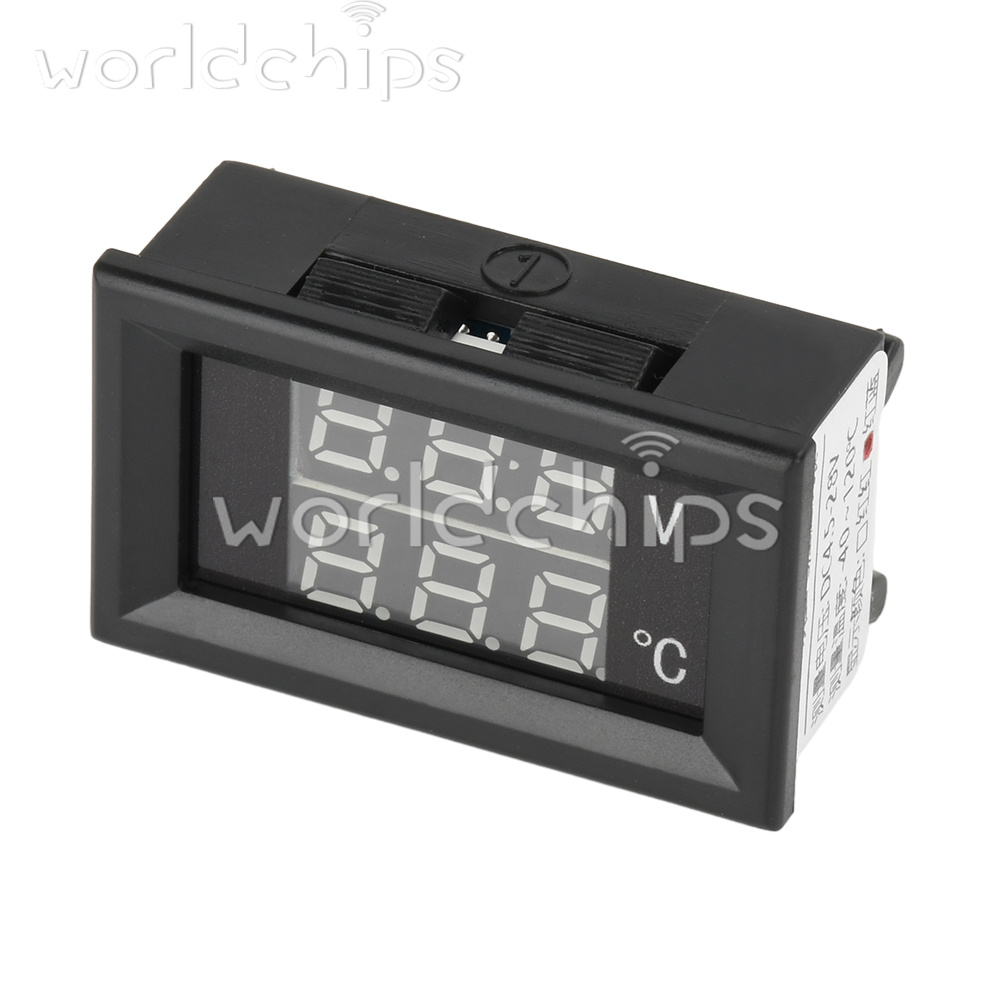

Features:

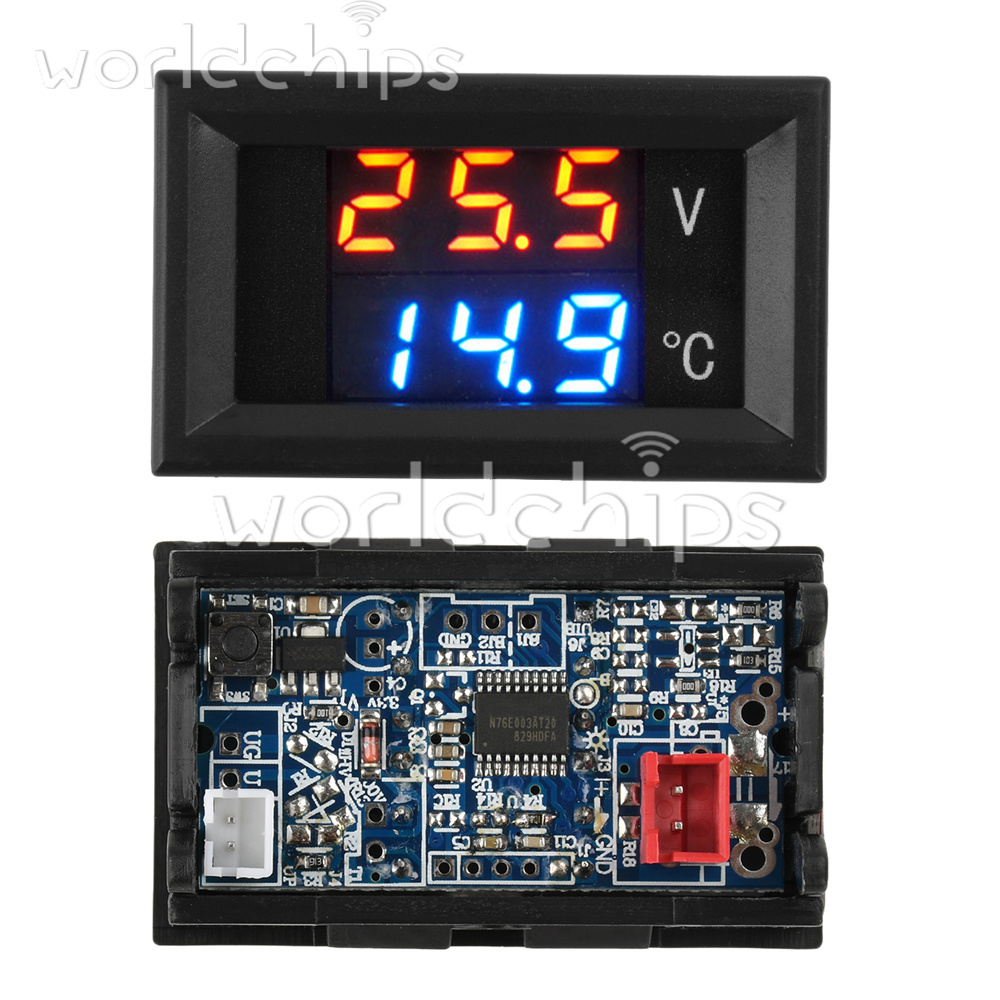

1. Double display DC voltage temperature meter, integrated voltage and temperature display as a whole.

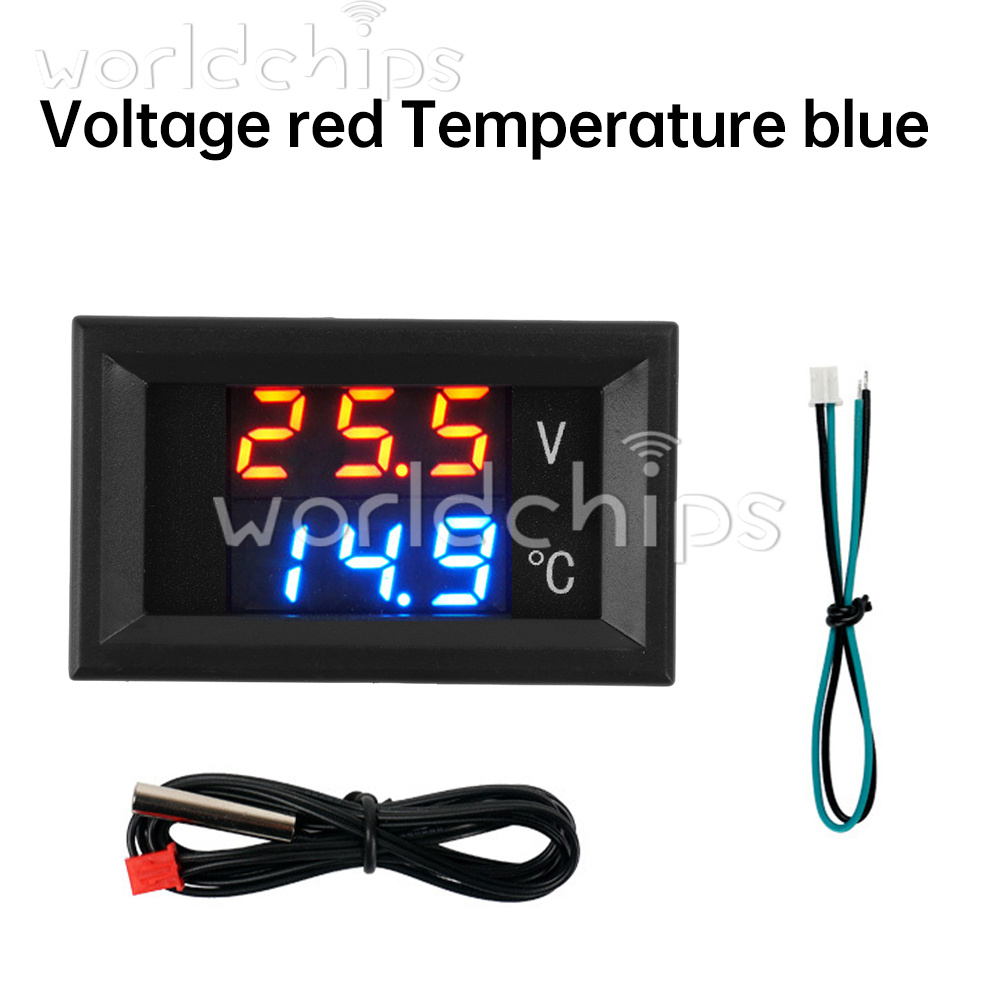

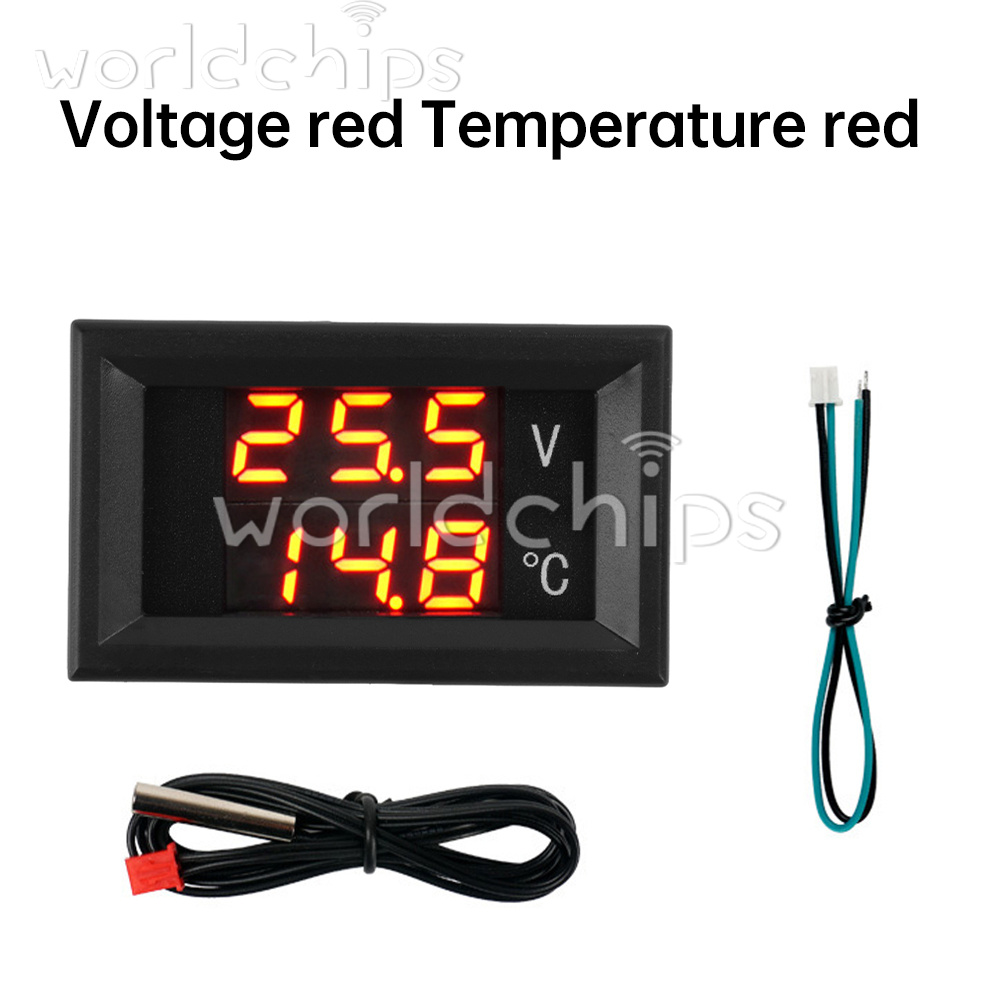

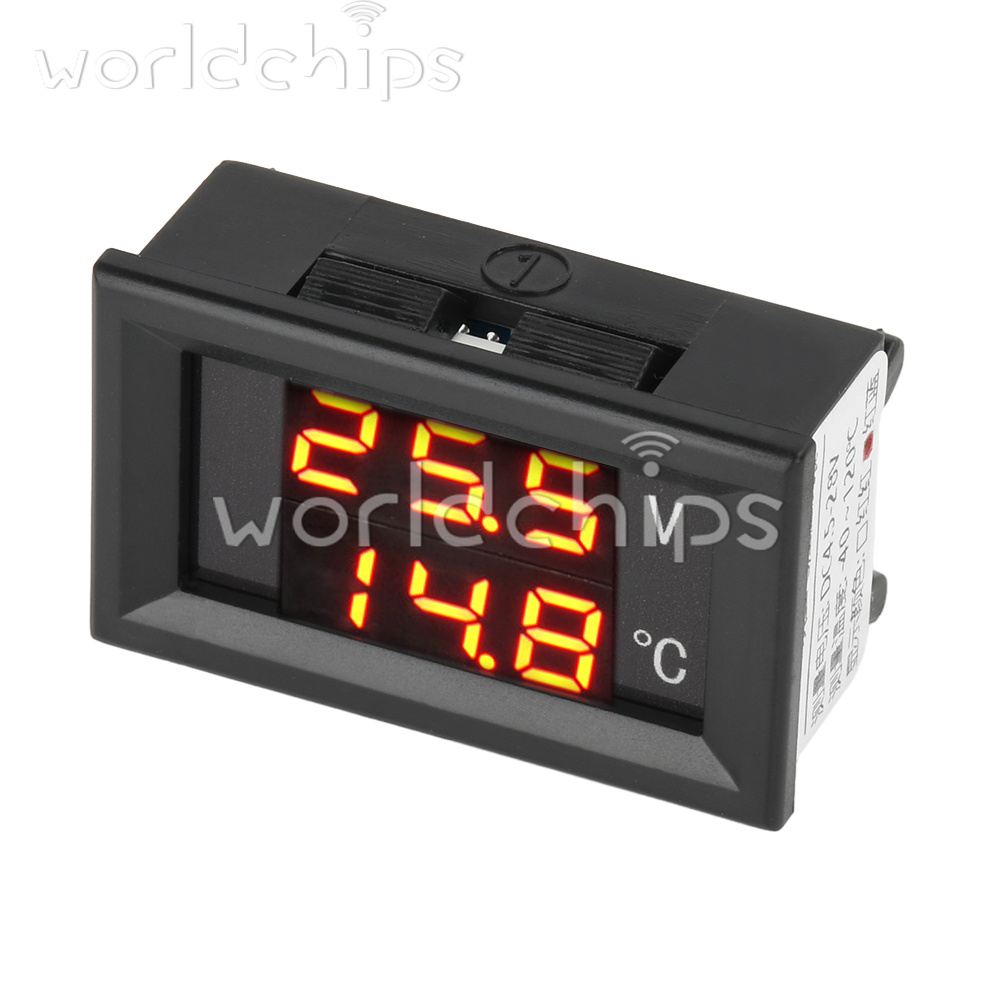

2. The upper group displays the voltage value, and the lower group displays the actual temperature value.
3. Using high brightness LED digital tube, high precision temperature control probe, high efficiency and stable performance.
4. With reverse connection protection, even if the wire is connected in reverse, it will not be damaged.
5. Suitable for battery cars, motorcycles, automobiles and other products to measure the voltage value and temperature value.
1. Double display DC voltage temperature meter, integrated voltage and temperature display as a whole.
2. The upper group displays the voltage value, and the lower group displays the actual temperature value.
3. Using high brightness LED digital tube, high precision temperature control probe, high efficiency and stable performance.
4. With reverse connection protection, even if the wire is connected in reverse, it will not be damaged.
5. Suitable for battery cars, motorcycles, automobiles and other products to measure the voltage value and temperature value.
Product parameters:
Voltage: DC 4-28V
Measuring temperature: -40~120℃
Temperature control accuracy: 0.1℃
Working current: <15mA
Refresh rate: ≥500mS/time
Working temperature: -10~65℃
Working humidity: 10~80%RH
Working air pressure: 80~106kPa
Display mode: dual triple 0.28-inch LED digital tube
Probe type: NTC10K waterproof temperature probe

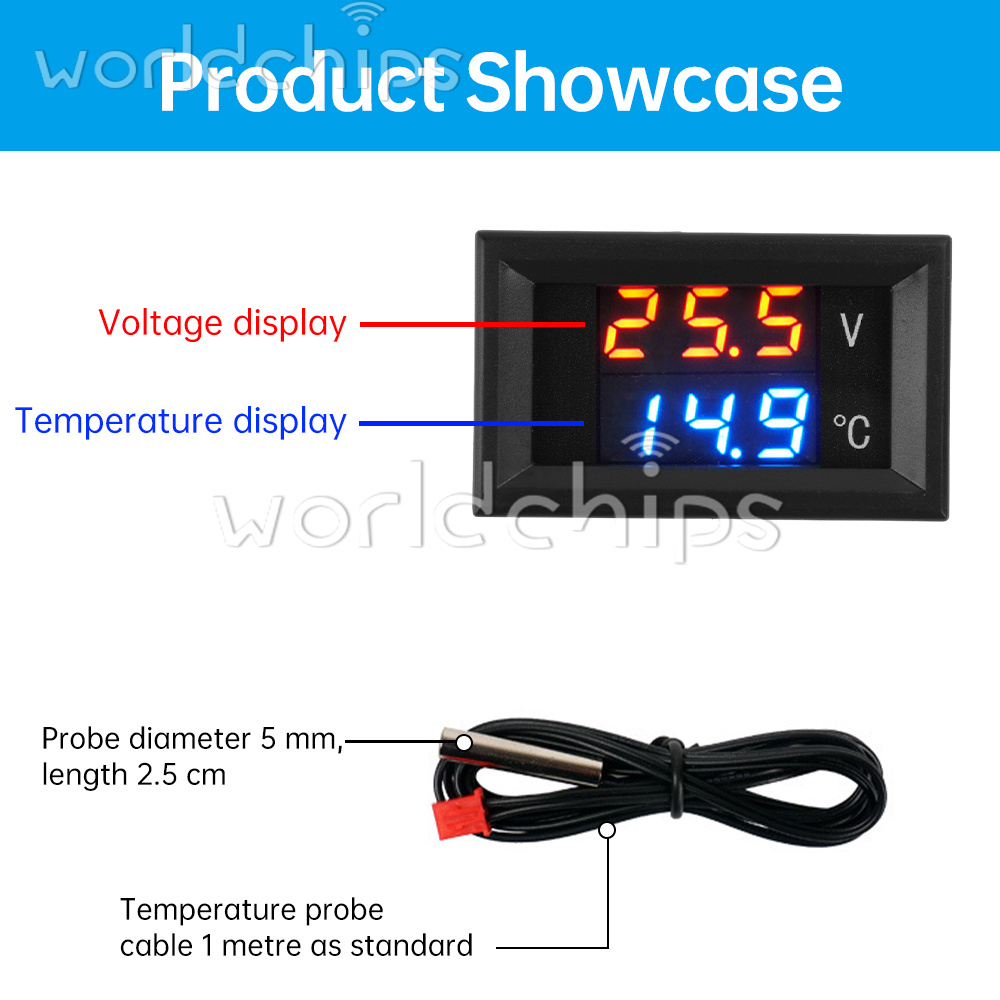

Probe lead: standard probe diameter 5mm, lead length 1 meter

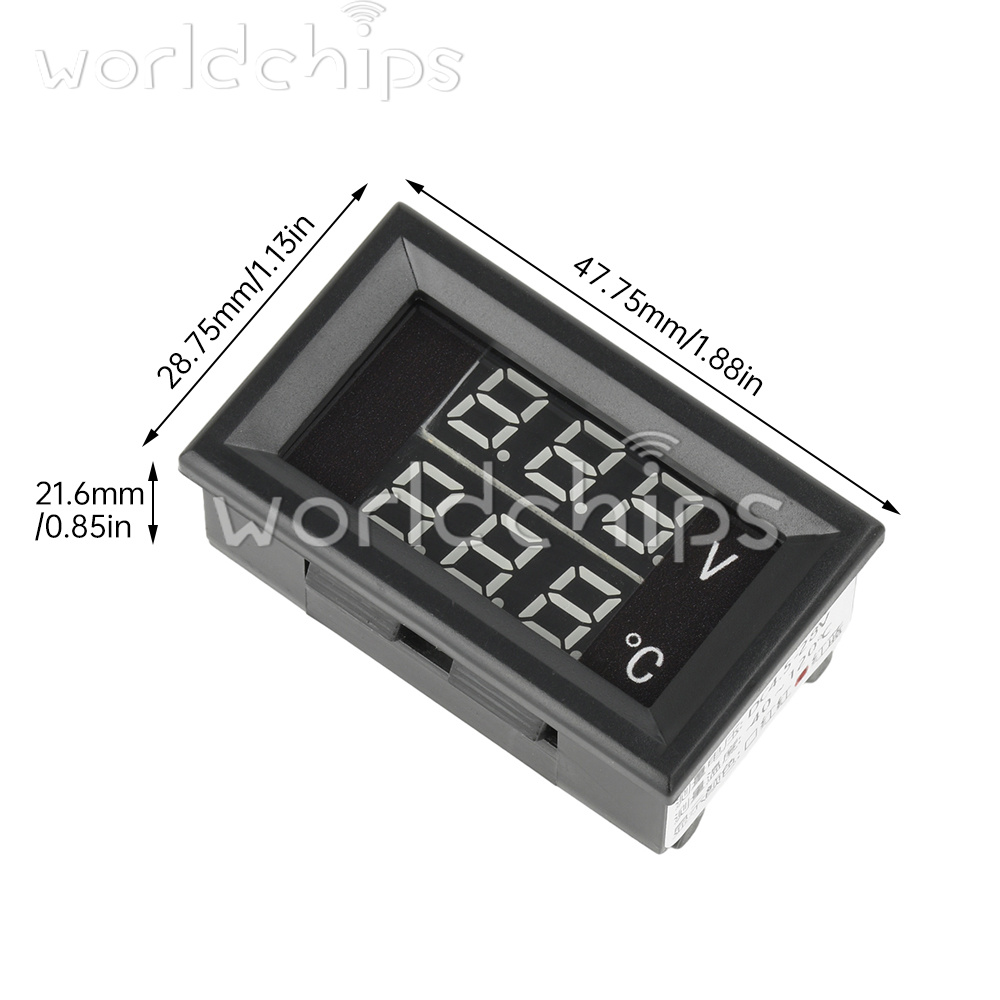

Product size: 48*29*22mm
Hole size: 46*27mm

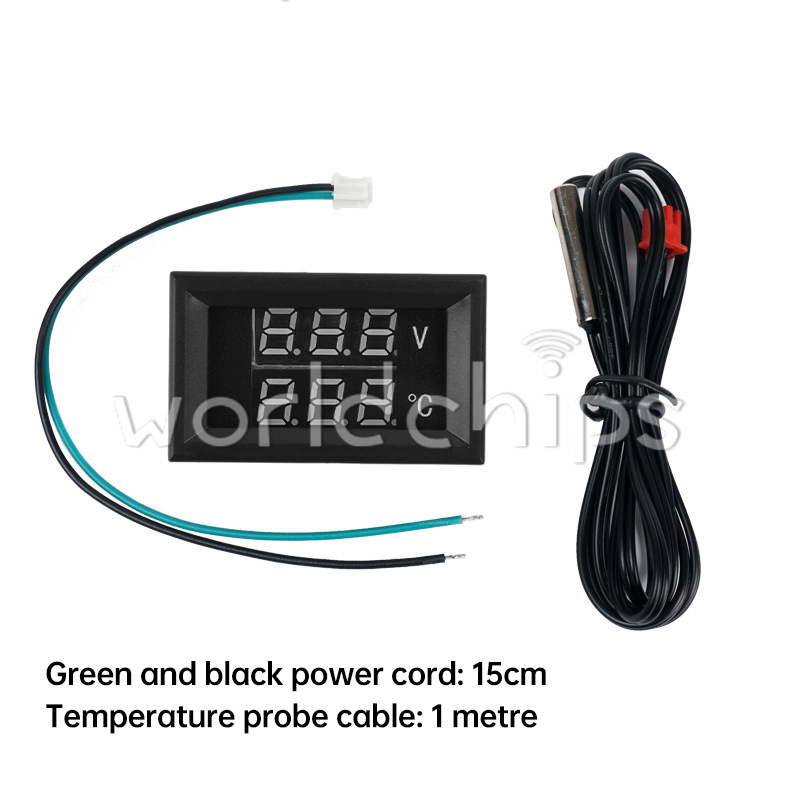

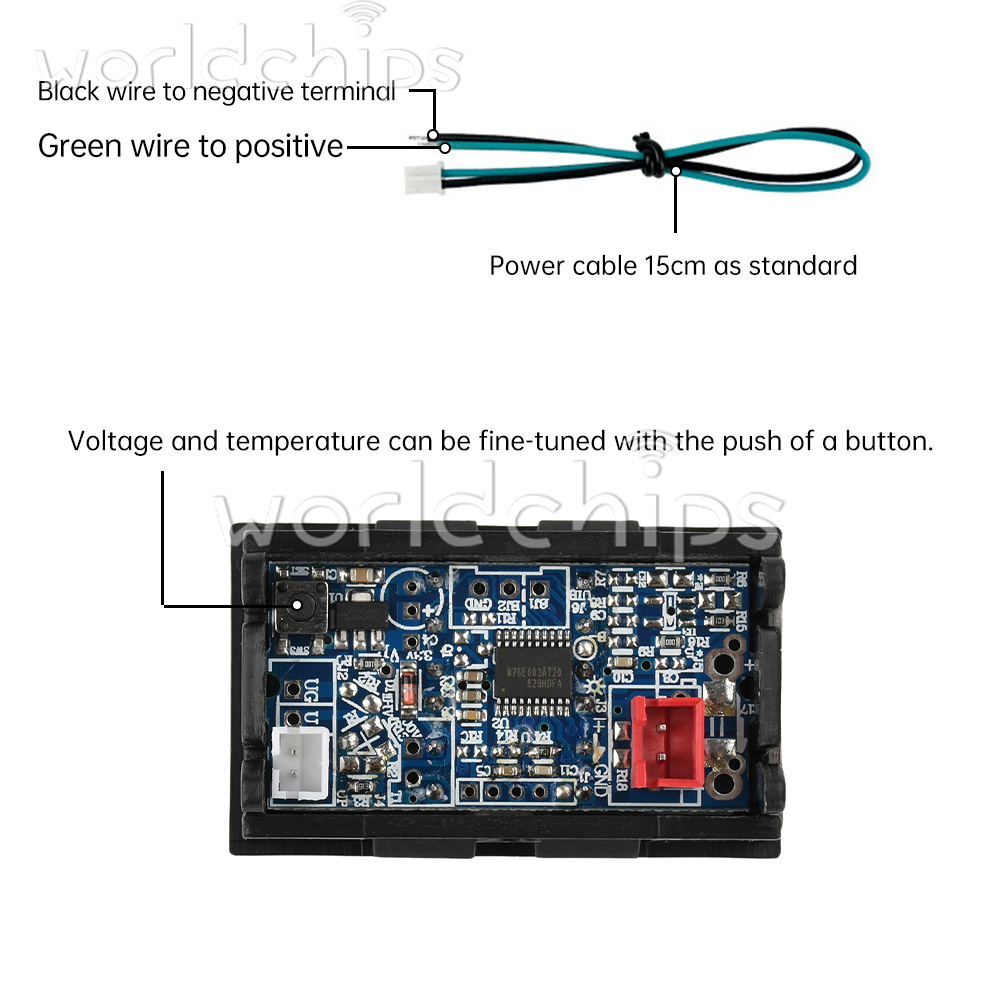

Power supply line length: 150mm
Voltage: DC 4-28V
Measuring temperature: -40~120℃
Temperature control accuracy: 0.1℃
Working current: <15mA
Refresh rate: ≥500mS/time
Working temperature: -10~65℃
Working humidity: 10~80%RH
Working air pressure: 80~106kPa
Display mode: dual triple 0.28-inch LED digital tube
Probe type: NTC10K waterproof temperature probe
Probe lead: standard probe diameter 5mm, lead length 1 meter
Product size: 48*29*22mm
Hole size: 46*27mm
Power supply line length: 150mm
Packing list:

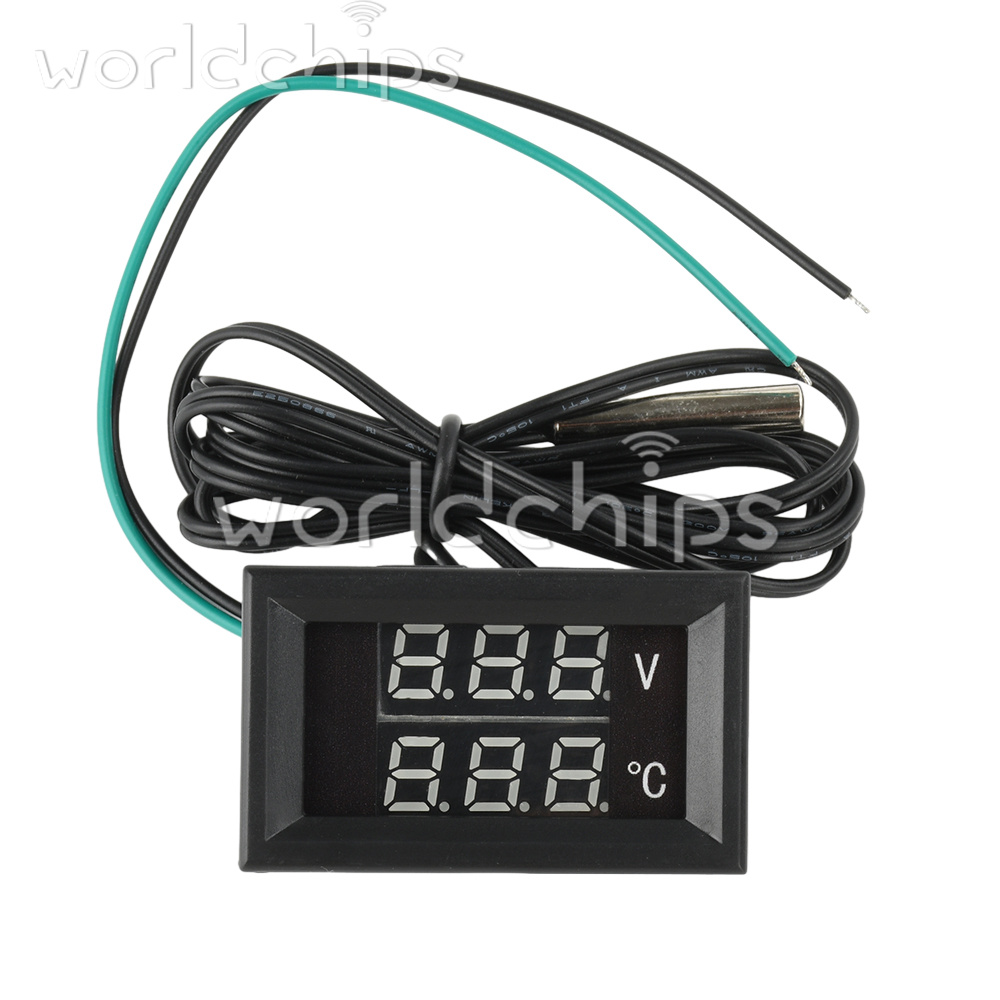

Meter head*1
Temperature probe cable *1
Power supply cable *1
Meter head*1
Temperature probe cable *1
Power supply cable *1
-
