Product Features
This product is suitable for snow bike fat tire bike.
This product can easily convert your ordinary bike into an electric bike.It's hundreds of doller cheaper than buying a new electric bike.

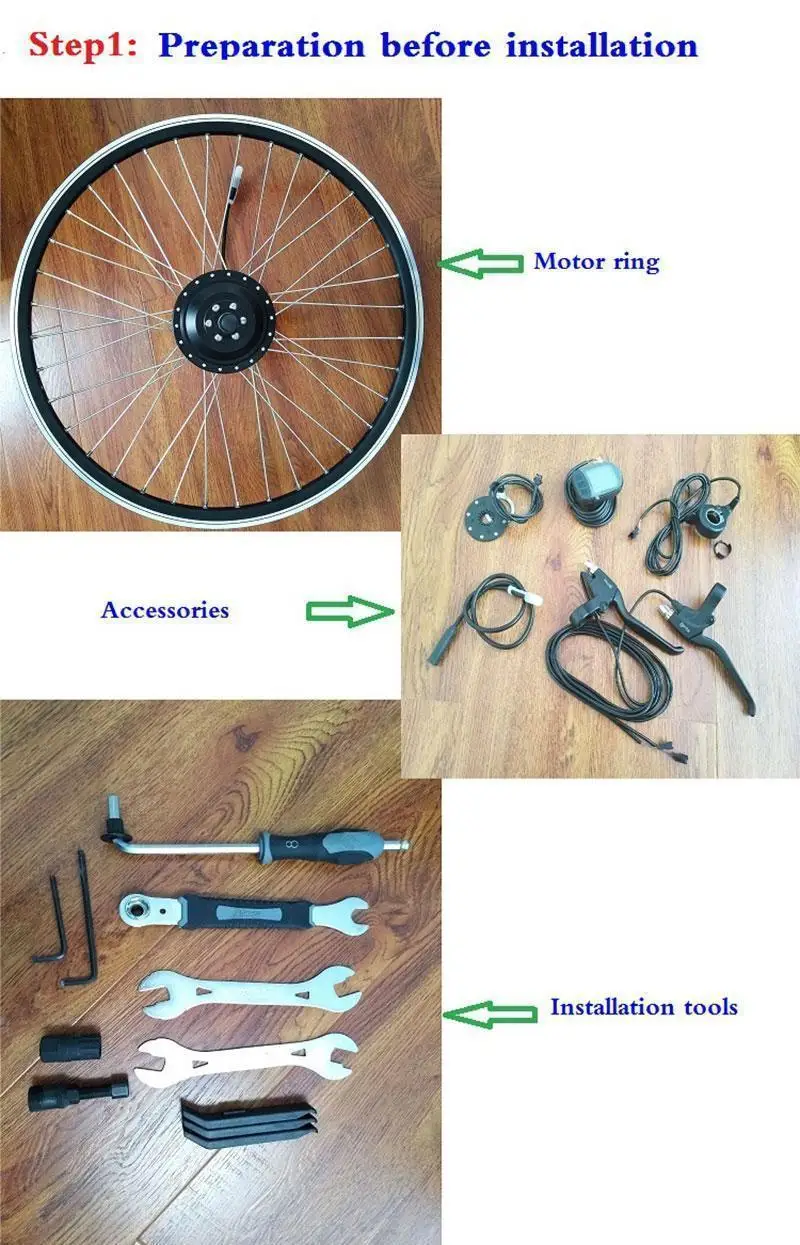

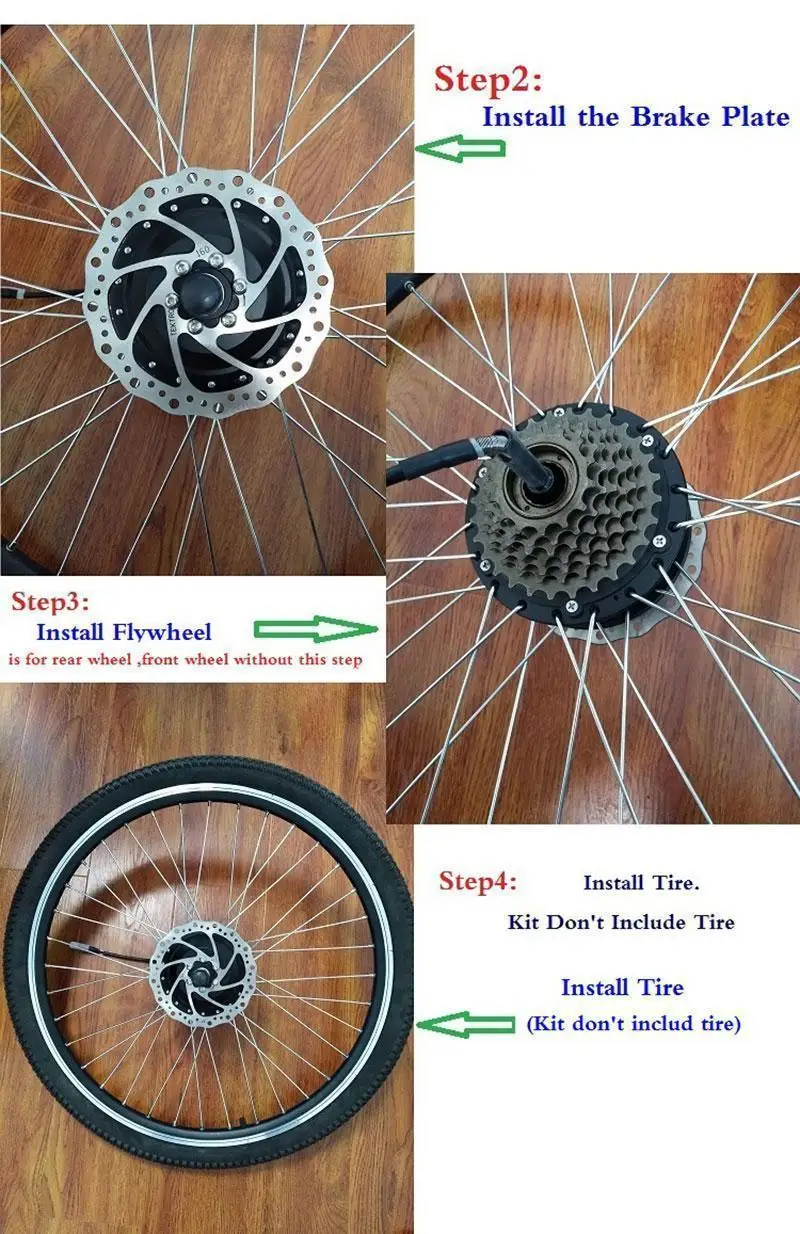

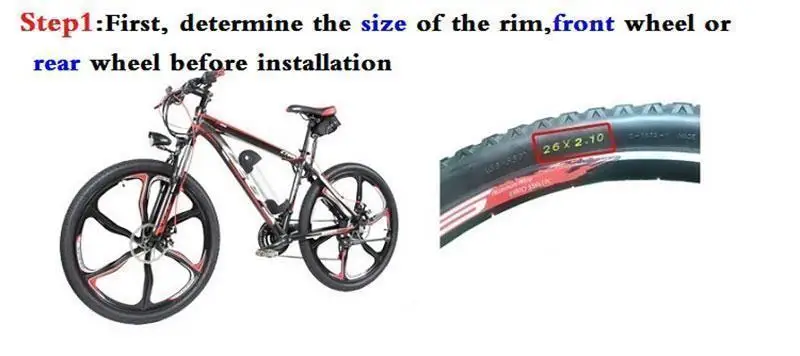

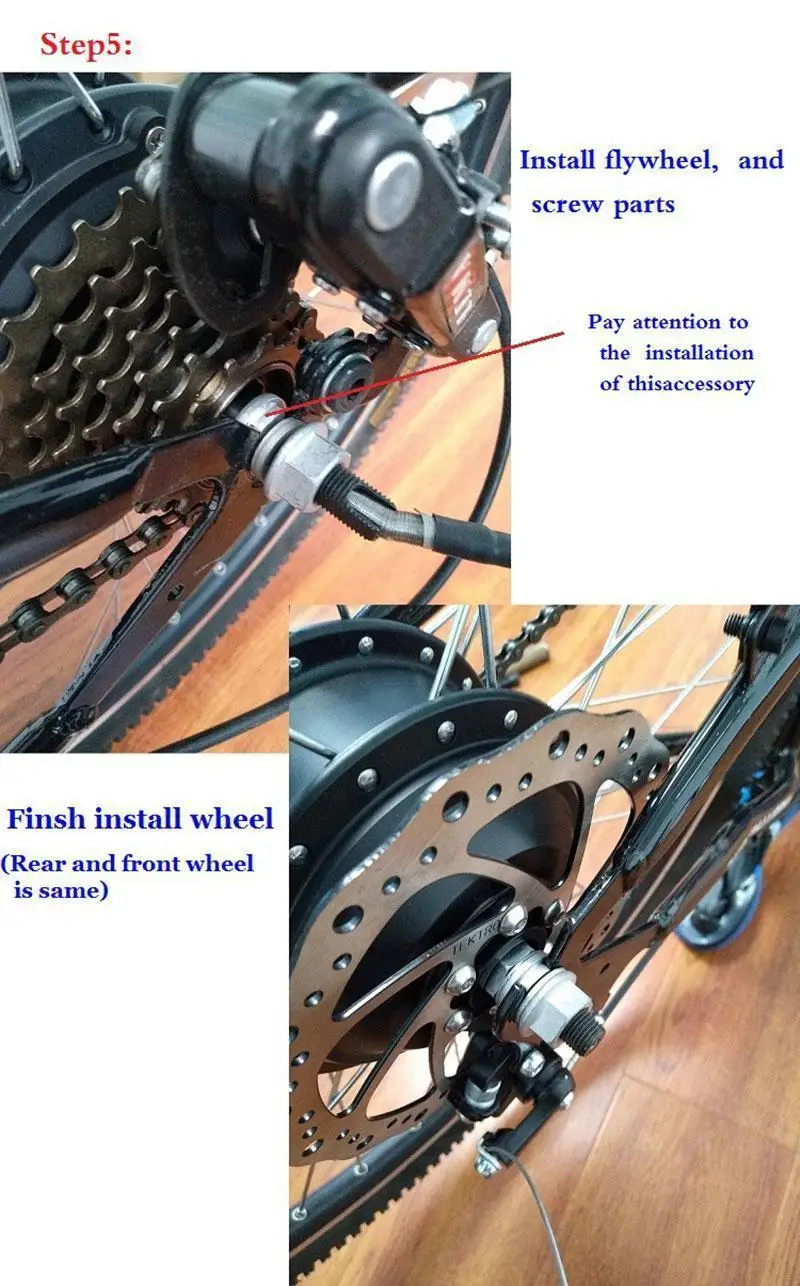

It takes one person 1-2 hours to successfully convert it.We will put the installation manual in the box.
I am the source manufacturer, if there is after-sale, you will contact the factory directly, it is very convenient.
We work hard to ensure that you are satisfied with our services and products.

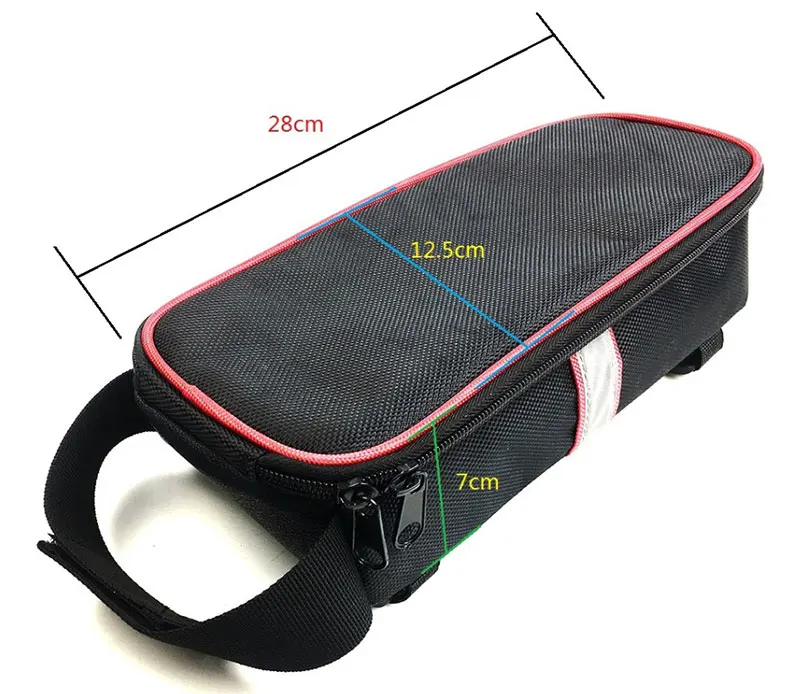

And we will give you a controller bag as a gift !!!

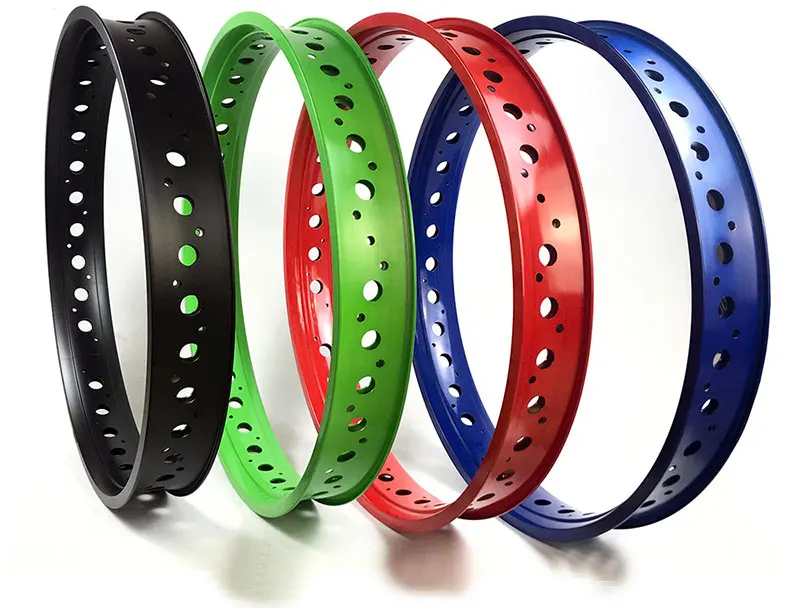

The color of the rim can be selected at the time of purchase!(Black and Red)
E-bike Conversion Kit Paramater
Motor：
1. Brushless gearless hub motor

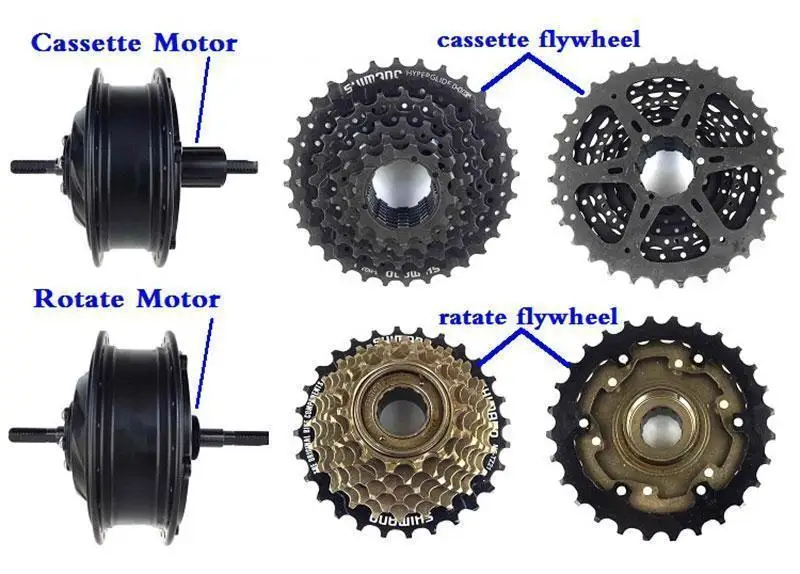

2. Installation location:rear rotate wheel
3. Spoked with double-wall Aluminum alloy rim with36 eyelets,stainless steel spokes
4. Disc brake available
5. Rated speed=75KM/H.
6. Load≤200KG
7. Motor cable length=800mm
8. Wheel size: 20 inch wheel

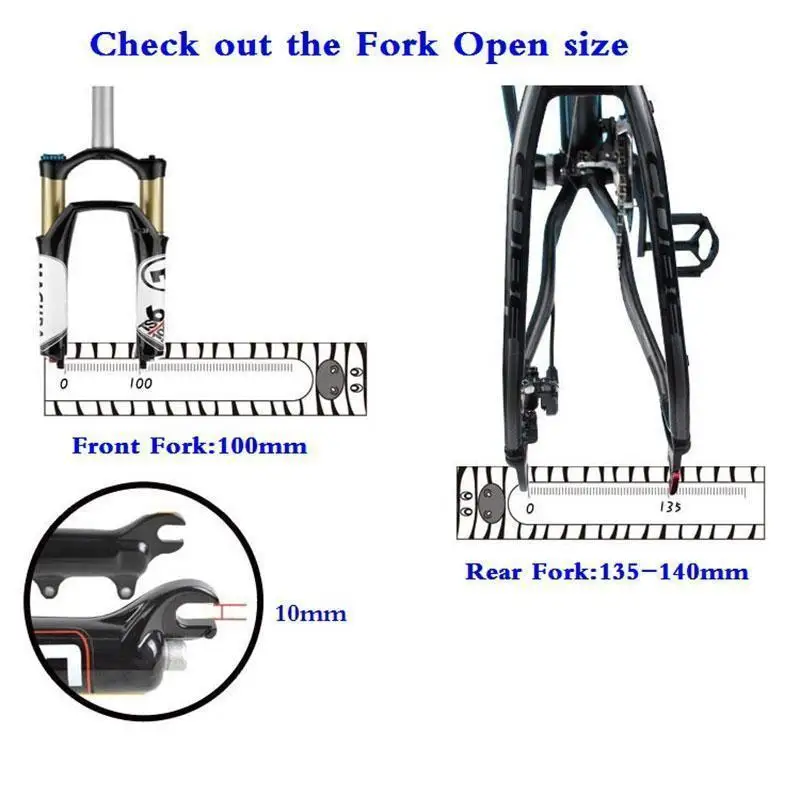

9.Rear fork: 170/190mm

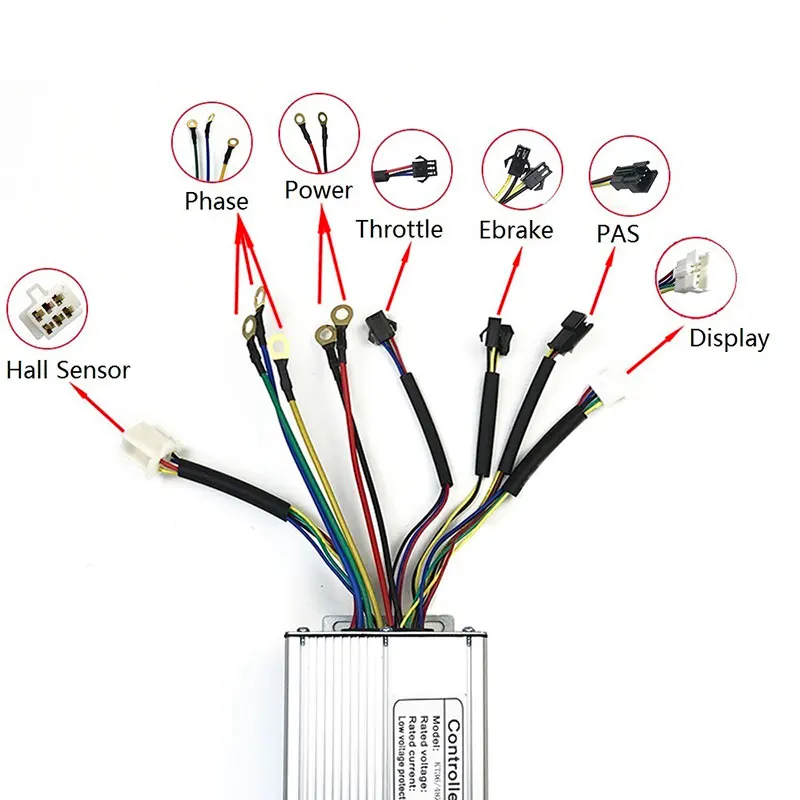

Controller dimension
Size: 236 * 88 * 42 mm
Weight: 650g
Cable length :all about 13-15cm
18 mosfets
Maximum current: 50±1A
Rated voltage:DC56V-90V
Speed set:1-4.2V
Rated current:25A
Brake input :Low-Level
Low voltage protection: DC56±0.5V

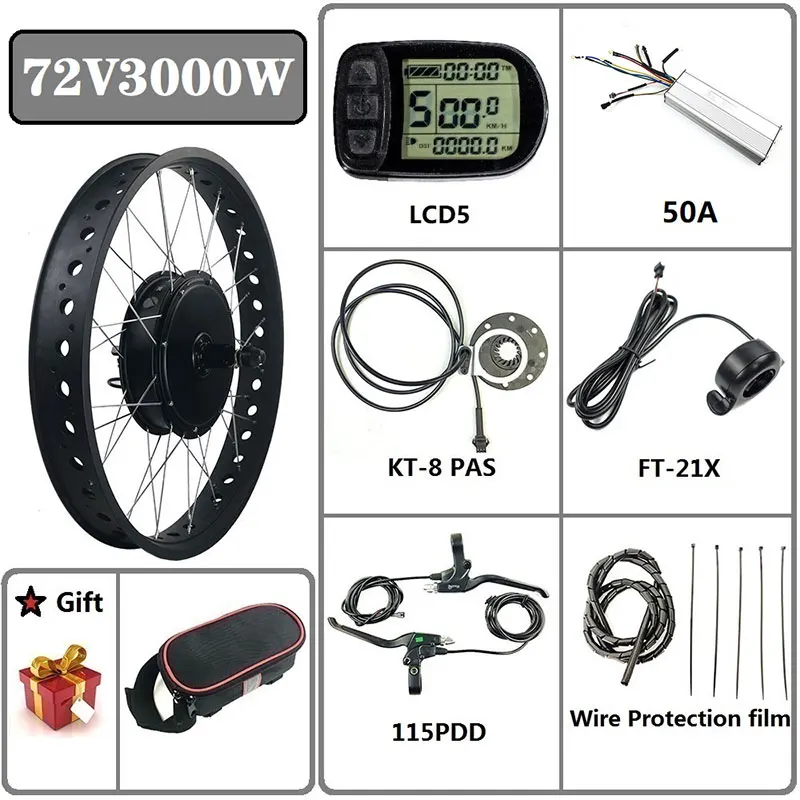

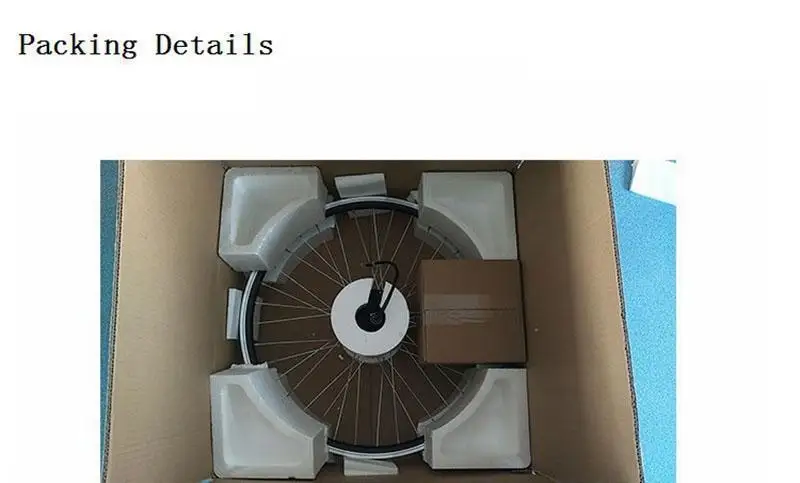

Packing Listing:
1 * Rear motor wheel
1 * DC Controller
1 * Controller Bag

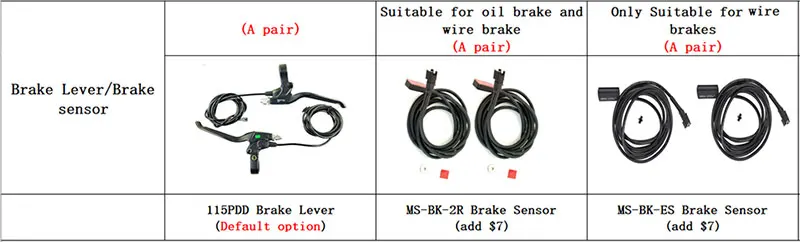

1 pair * Power cut-off Brake lever

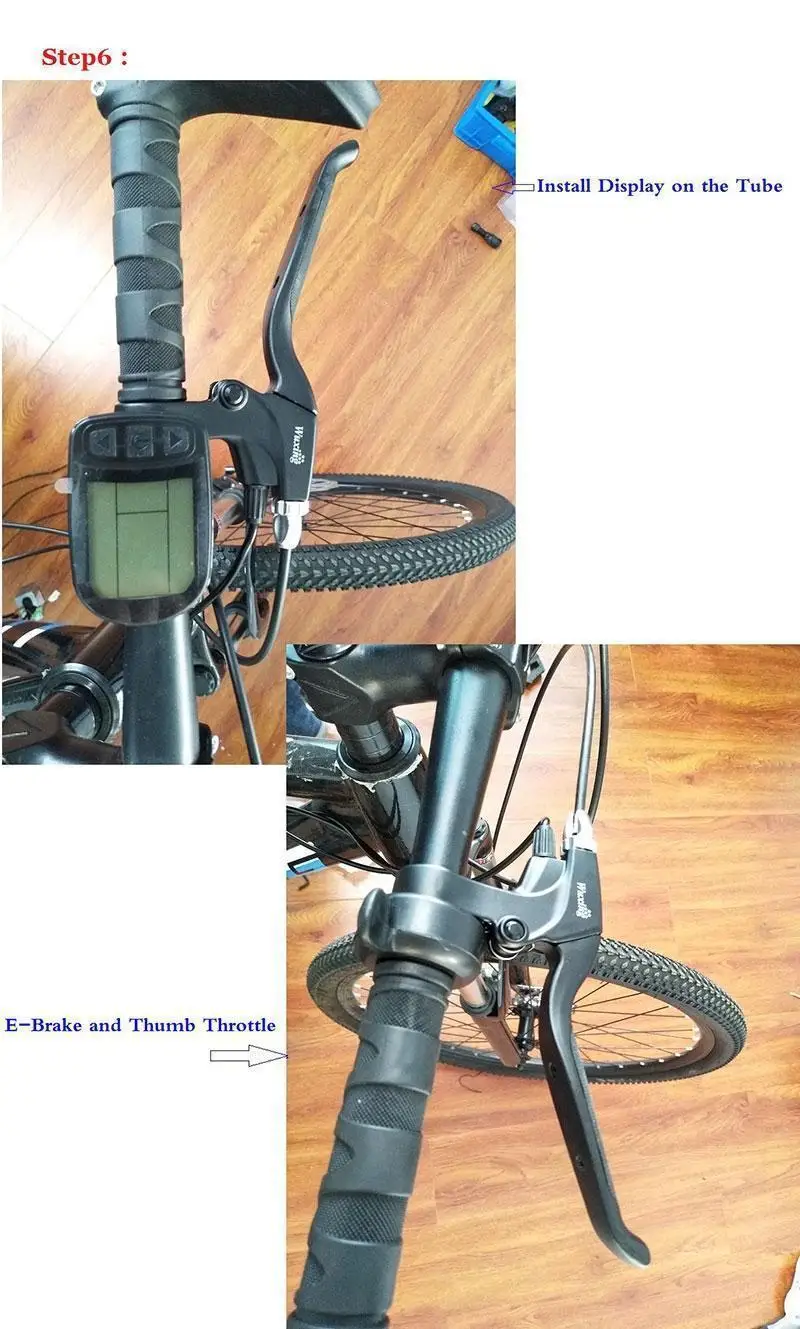

1 * Display

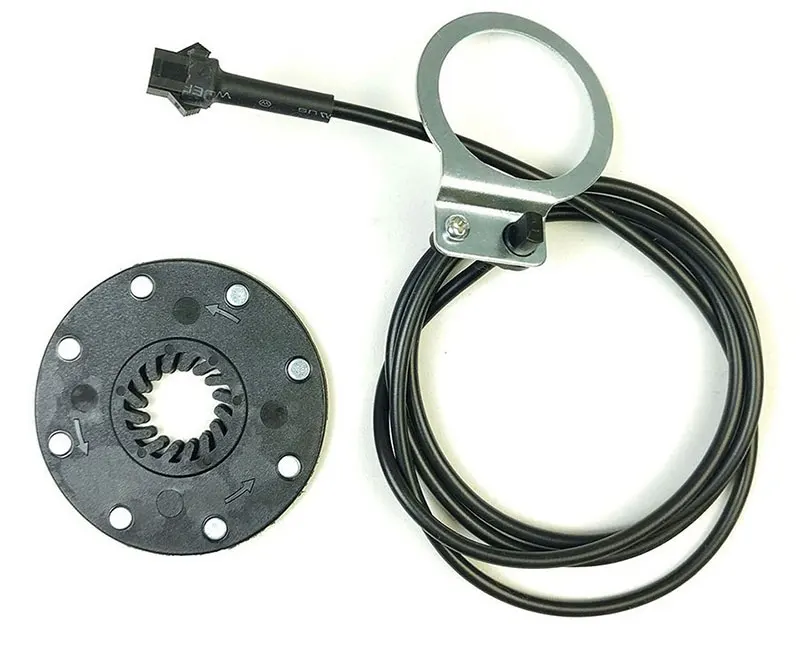

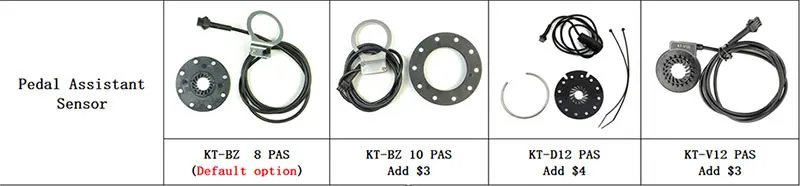

1 * 8 Magnet Pedal Assistant Sensor

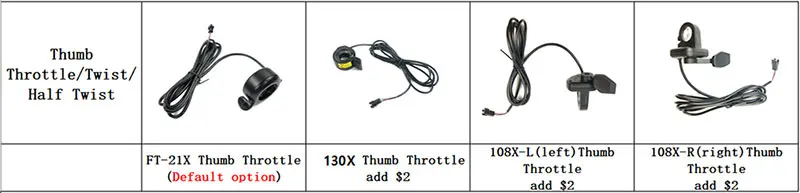

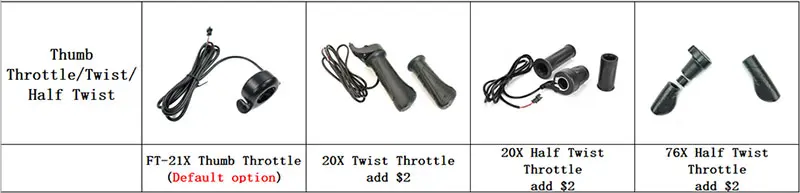

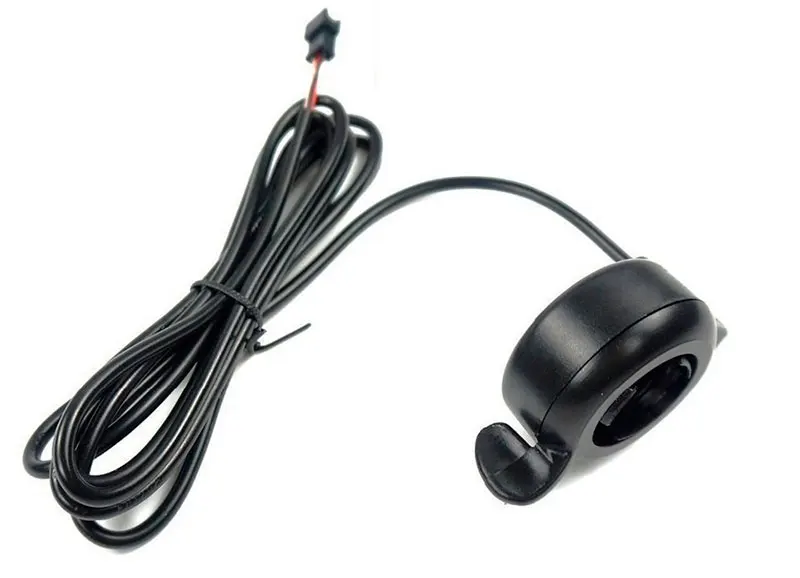

1 set * Throttle
(Note:if your order is "only motor",then others are not included)
