■ If you need wheel,Freewheel,Disc brake, Torque Arm Amplifier, there is a link to make up the difference at the bottom of the details page, or please contact us;

■ PAS, Throttle, and E-brake in the kit are optional. If you need to replace it, please see the link to make up the difference at the bottom of the details page, or please contact us.

■ Please refer to the list form for packaging products.

【Product Features】

This product can easily convert your ordinary bike into an electric bike.It's hundreds of doller cheaper than buying a new electric bike.It takes one person 1-2 hours to successfully convert it.We will put the installation manual in the box.And we will give you a controller bag as a gift !!!

【E-bike Conversion Kit Paramater】

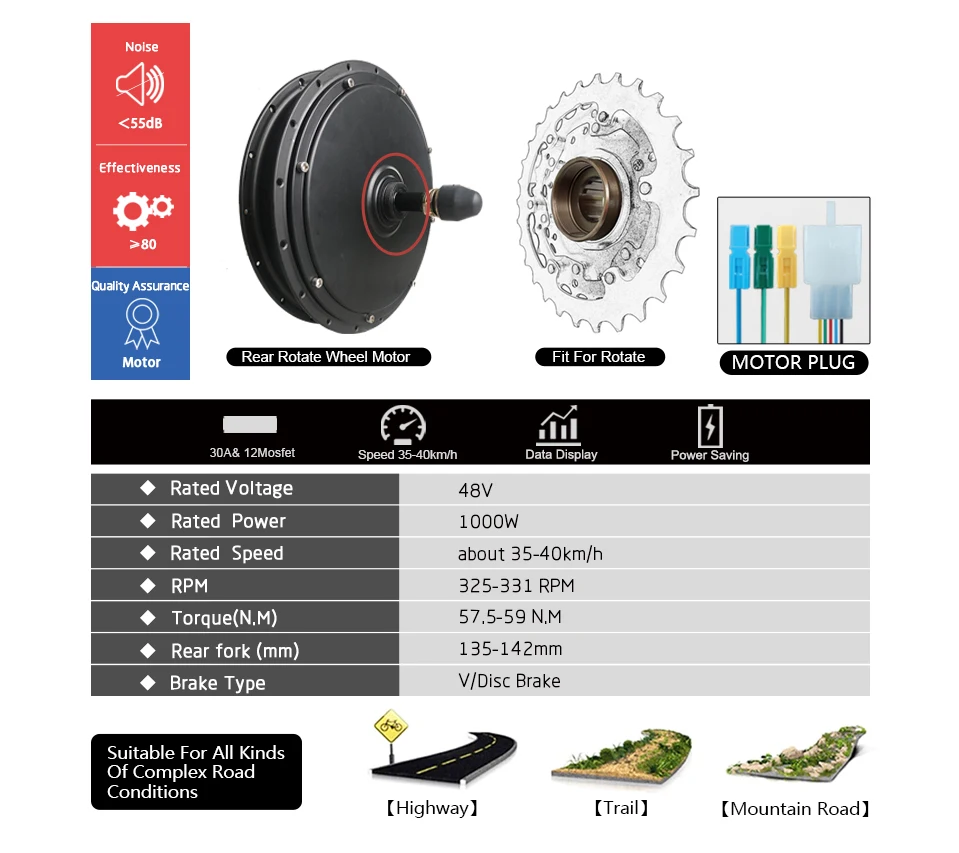

Motor：

●Rated Voltage：48V

●Rated Power：1000W

●Rated Speed：about 35-40km/h

●RPM：325-331 RPM

●Torque(N.M)：57.5-59 N.M

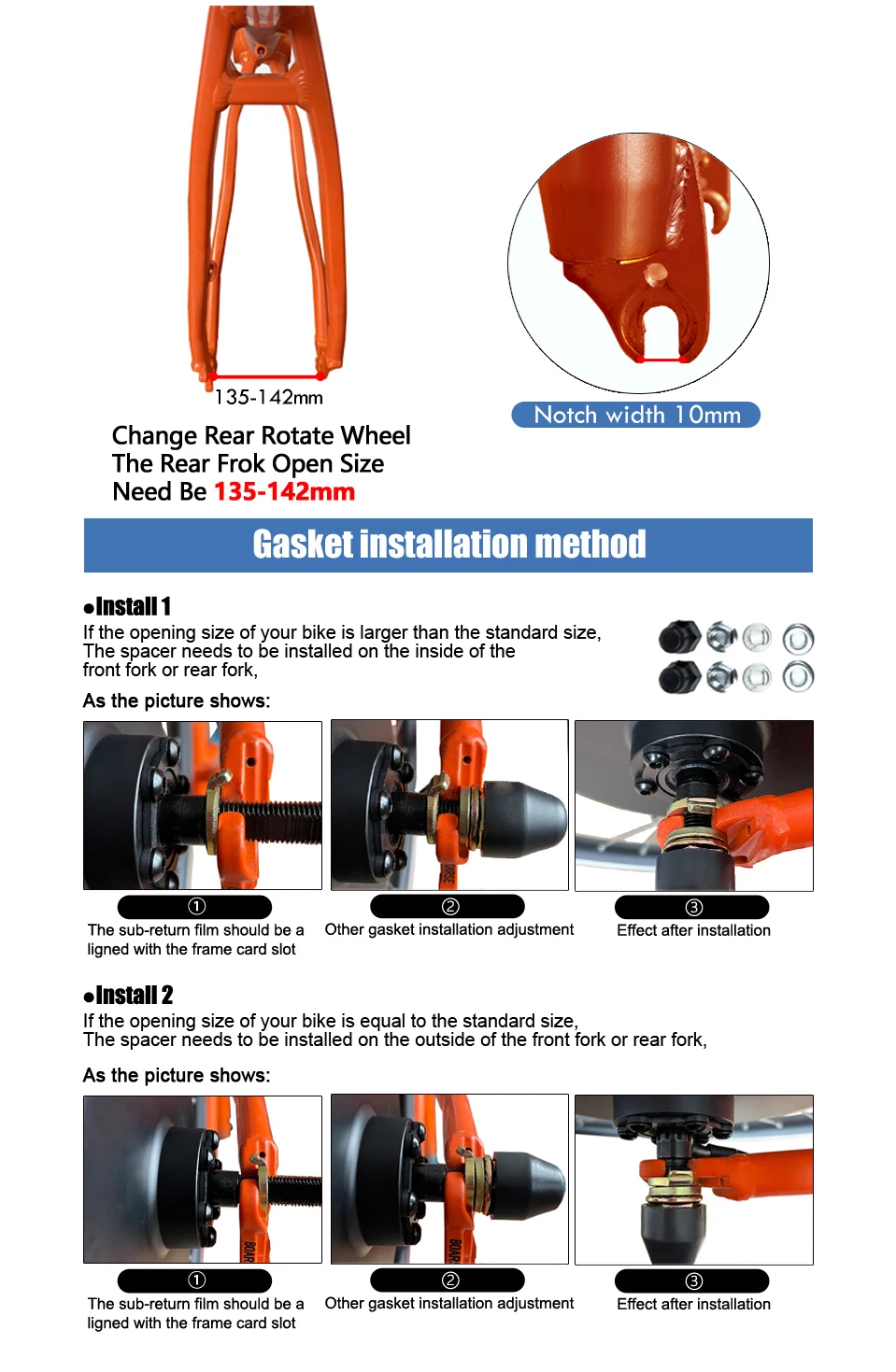

●Rear Fork(mm)：135-142mm

●Brake Type：V/Disc Brake

●Type：Brushless gearless hub motor

●Installation location:Rear wheel

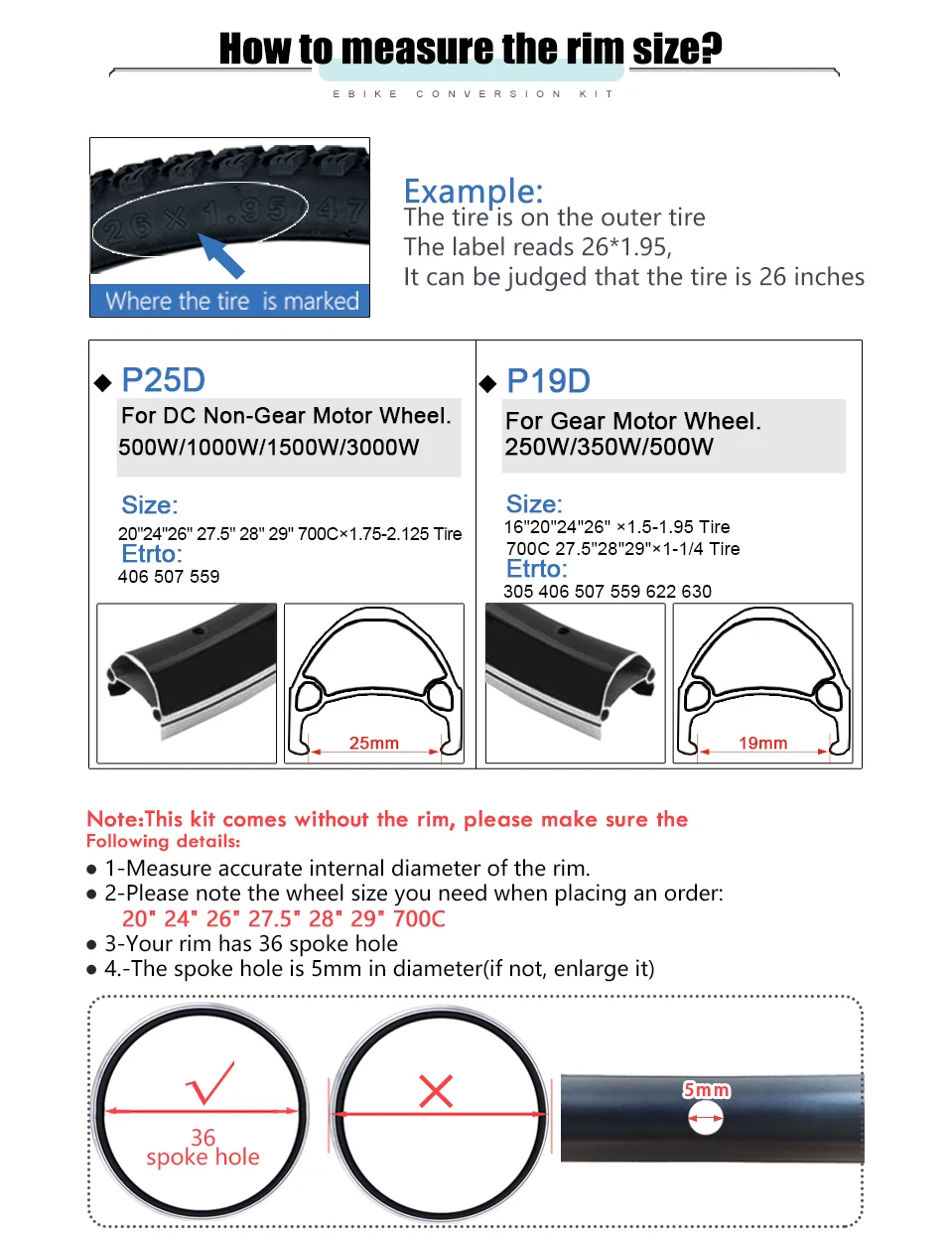

●Spokedwith double-wall Aluminum alloy rim with 36 eyelets,stainless steel spokes

●Load≤200KG

●Motor cable length：200mm

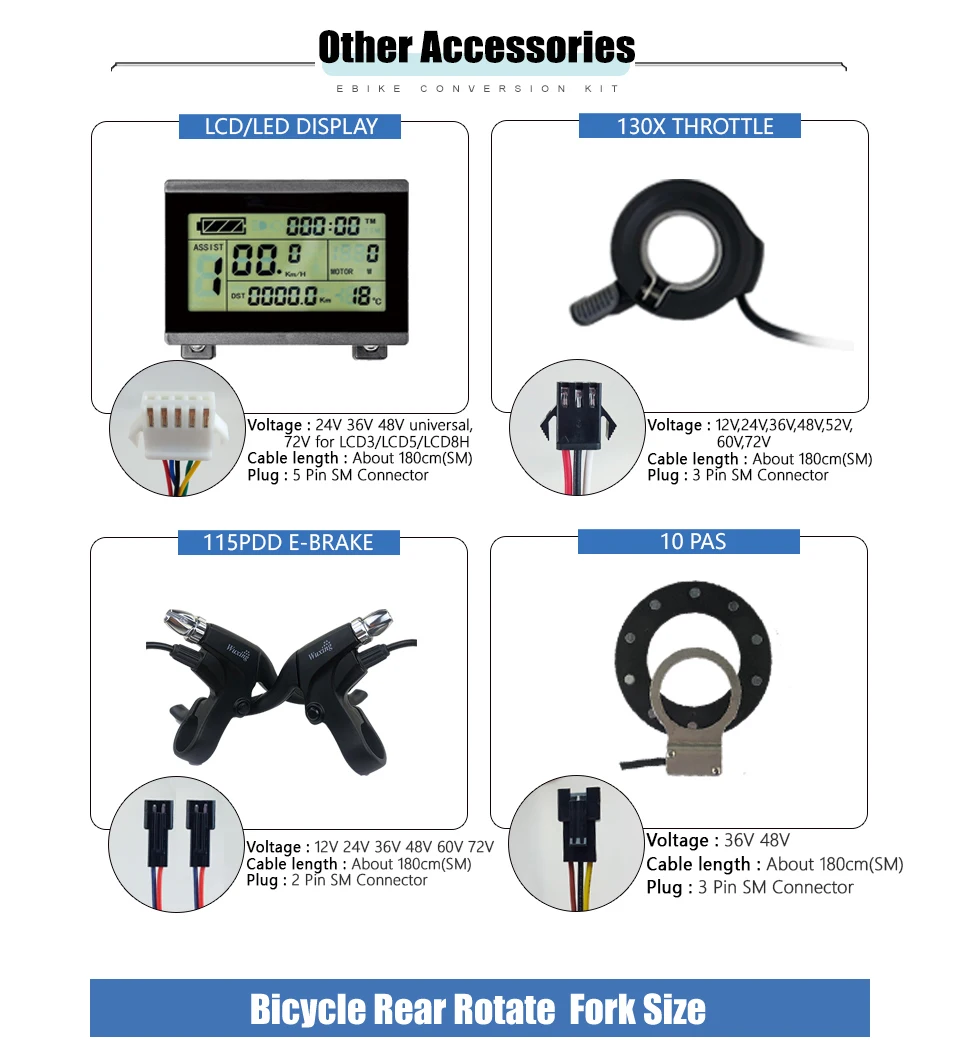

Display（Opition):

●Type :KT LCD/LED/Colourful Display

●Color :Black

●Voltage :36V 48V universal

●Cable length :About 180cm(SM)

●Plug :5 Pin SM plug

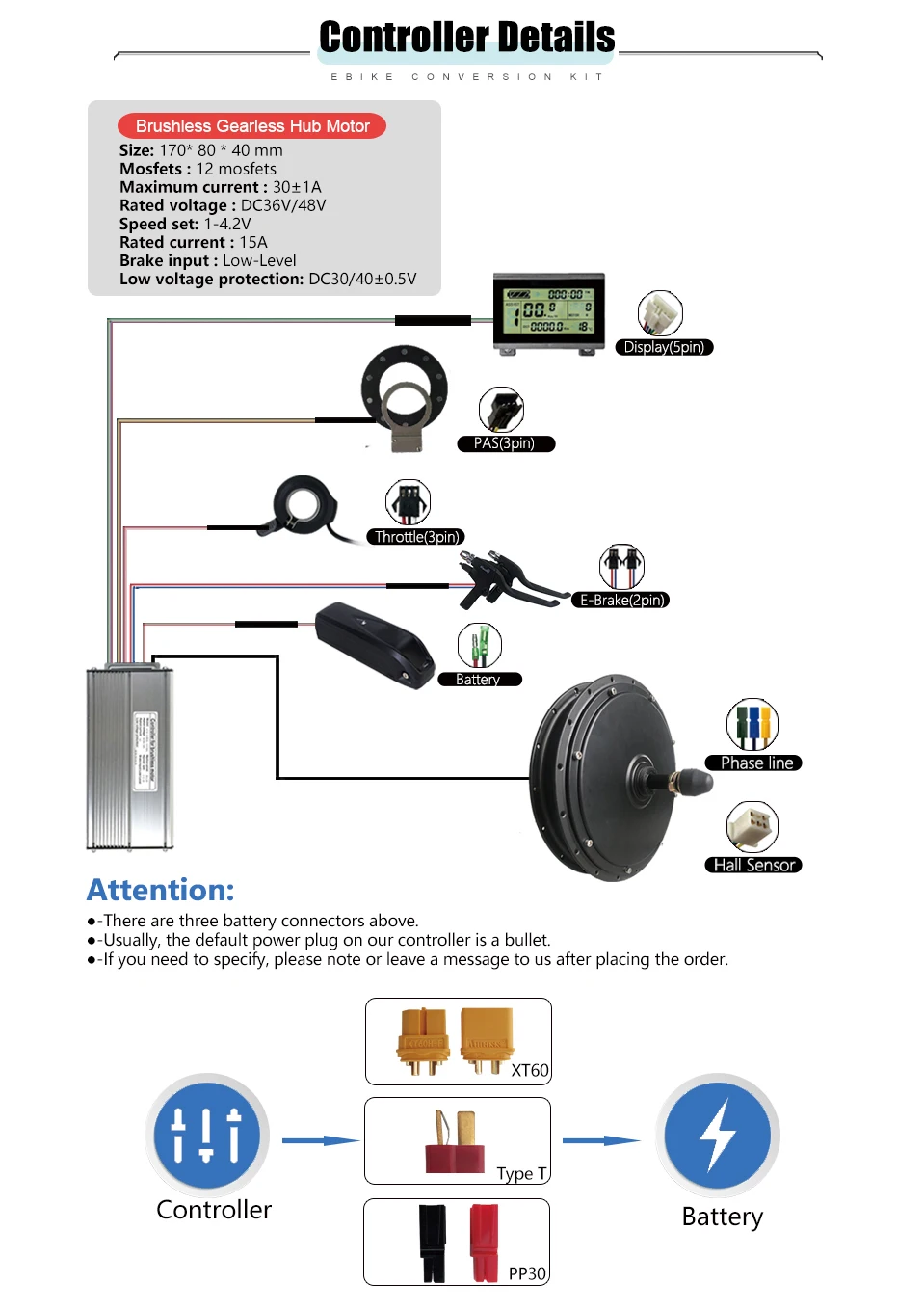

Controller:

●Dimension :170 * 80 * 40 mm

●Weight :550g

●Cable length :all about 13-15cm

●Mosfets:12 mosfets

●Maximum current :30±1A

●Rated voltage :DC36V/48V

●Speed set :1-4.2V

●Rated current :15A

●Brake input :Low-Level

●Low voltage protection :DC30/40±0.5V

130X Throttle (Default):

●Type:130X Thumb Throttle

●Voltage:12V 24V 36V 48V 52V 60V 72V

●Wire length:180cm(SM)

●Weight :100g

●Waterproof :IP76

●Plug Type:3 Pin SM plug

●Color :Black

●Installation:Right

●Apply to:E-bike, E-Scooter, Ebike Conversion Kit

●Function:E-bike accelerator Finger Thumb Throttle

115PDD E-Brake (Default):

●Type:115PDD E-brake Cut Off Power

●Voltage:12V 24V 36V 48V 60V 72V

●Cable Length:180cm (SM)

●Weight :300g

●Waterproof :IP76

●Material:Aluminum Alloy

●Installation:Left/Right

●Size:L156mm W105mm H34mm

●Plug :2 pin SM plug

PAS KT-BZ-10C(Default):

●Type:KT-BZ-10C Pulse assist sensor

●Voltage:36V/48V

●Cable Length:80cm including the connector

●Magnet :10 Magnets

●Weight :100 g

●Plug Type:3 Pin SM plug

●Color :As pictures shown

●Material:Plastic

●Installation:Left

●Adaptation:Ebike Electric Bike Bicycle

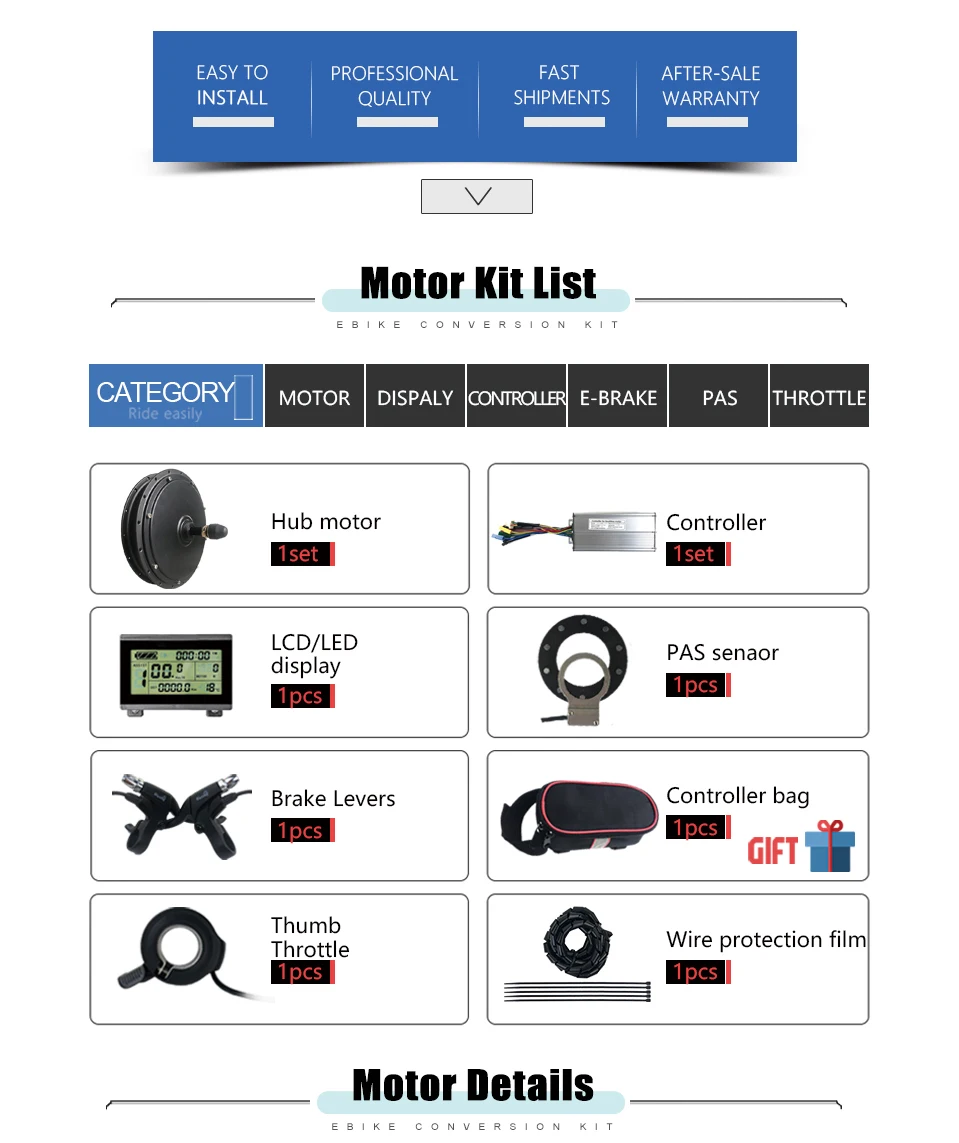

【Packing List】

①1000W Rotate motor x1（No wheel）

②30A controller x1

③Display and manual x1

④Throttle x1

⑤Power Cut-off Brake Levers x1

⑥PAS sensor x1

⑦Zip ties and Protection line x1

⑧Motor extension cable x1

⑨Gift!Controller bag x1
