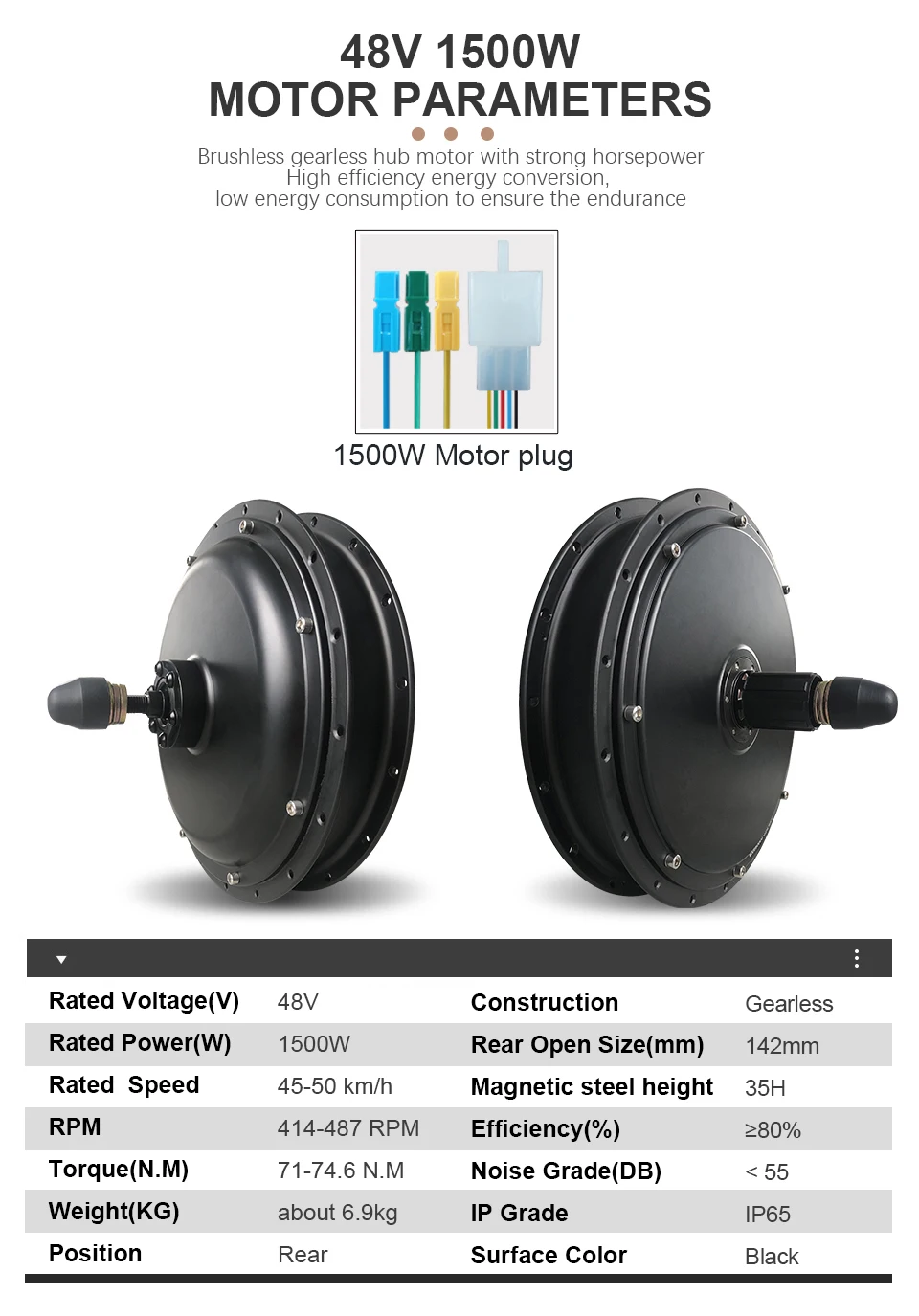

48V 1500W Rear Hub Motor:

●Construction:Gearless drive

●Speed (KM/H):45-50km/h

●Speed (Rpm):414-487Rpm

●Torque (N.M):71-74.6N.M

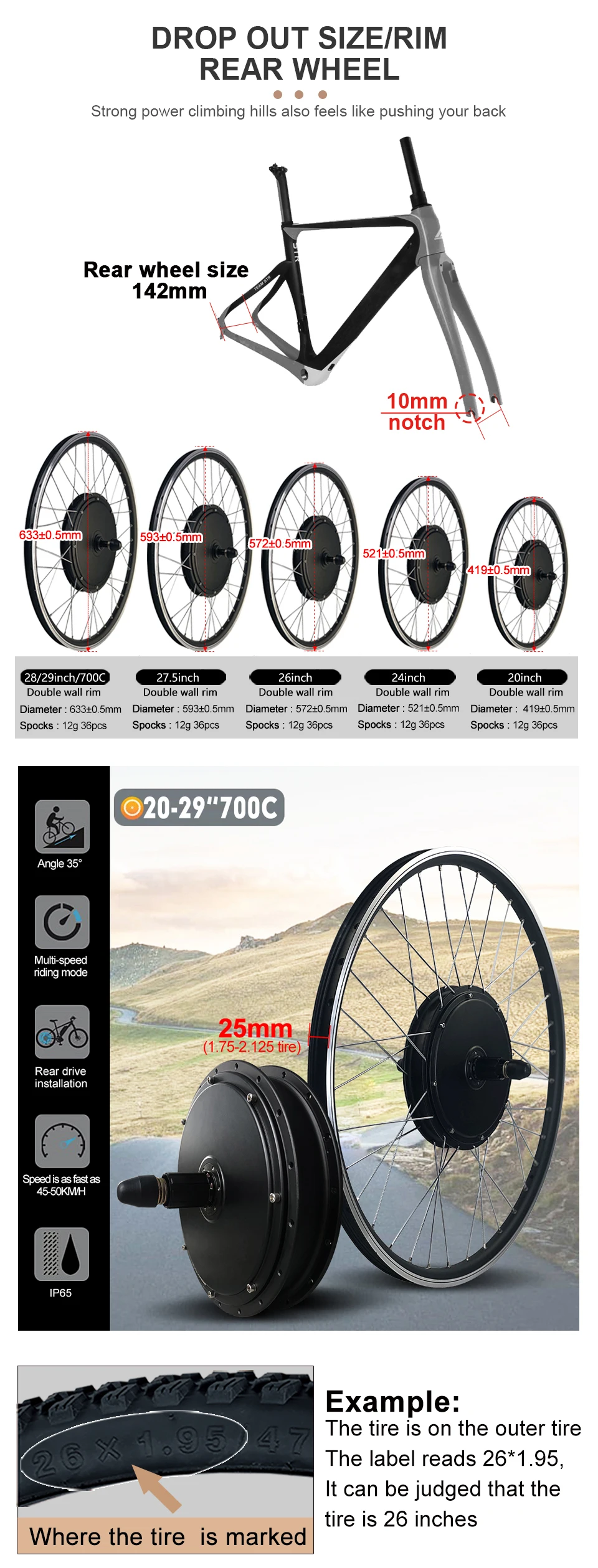

●Rear drive open size (mm):142mm

●Magnet height (48V):35H

●Number of magnet poles:46

●Efficiency (%)≥ 83

●Weight (kg):6.9kg

●Noise Grade (dB)< 55

●Operating Temperature:-20-45℃

●Rim:Double-wall Aluminium Alloy Rim

●Wheel Diameter (Inch):20"/24"/26"/27.5"/28"/29"/700C---Optional


  35A Controller details

●Dimension :170*88*42 mm

●Mosfet :12 Mosfets

●Maximum current :35±1A

●Rated current :17A

●Rated voltage :DC36V/48V

●Speed set :1-4.2V

●Brake input :Low-Level

●Low voltage protection :DC30/40±0.5V

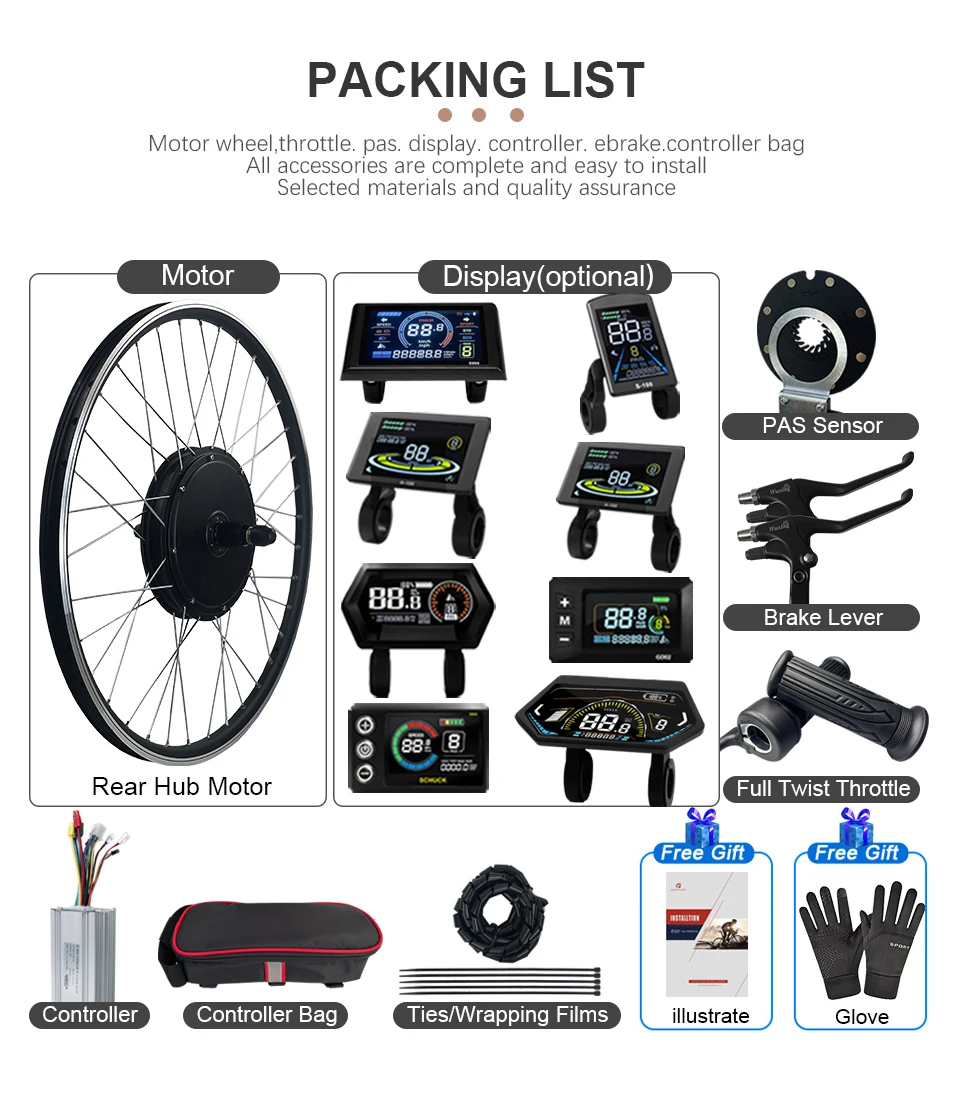

  Packing List
Conversion Kit not include Battery

1 PCS * Rear Hub Motor with Rim and Spokes

1 PCS * Motor Controller

1 PCS * Controller Bag(not battery)

1 PCS * Display(option)

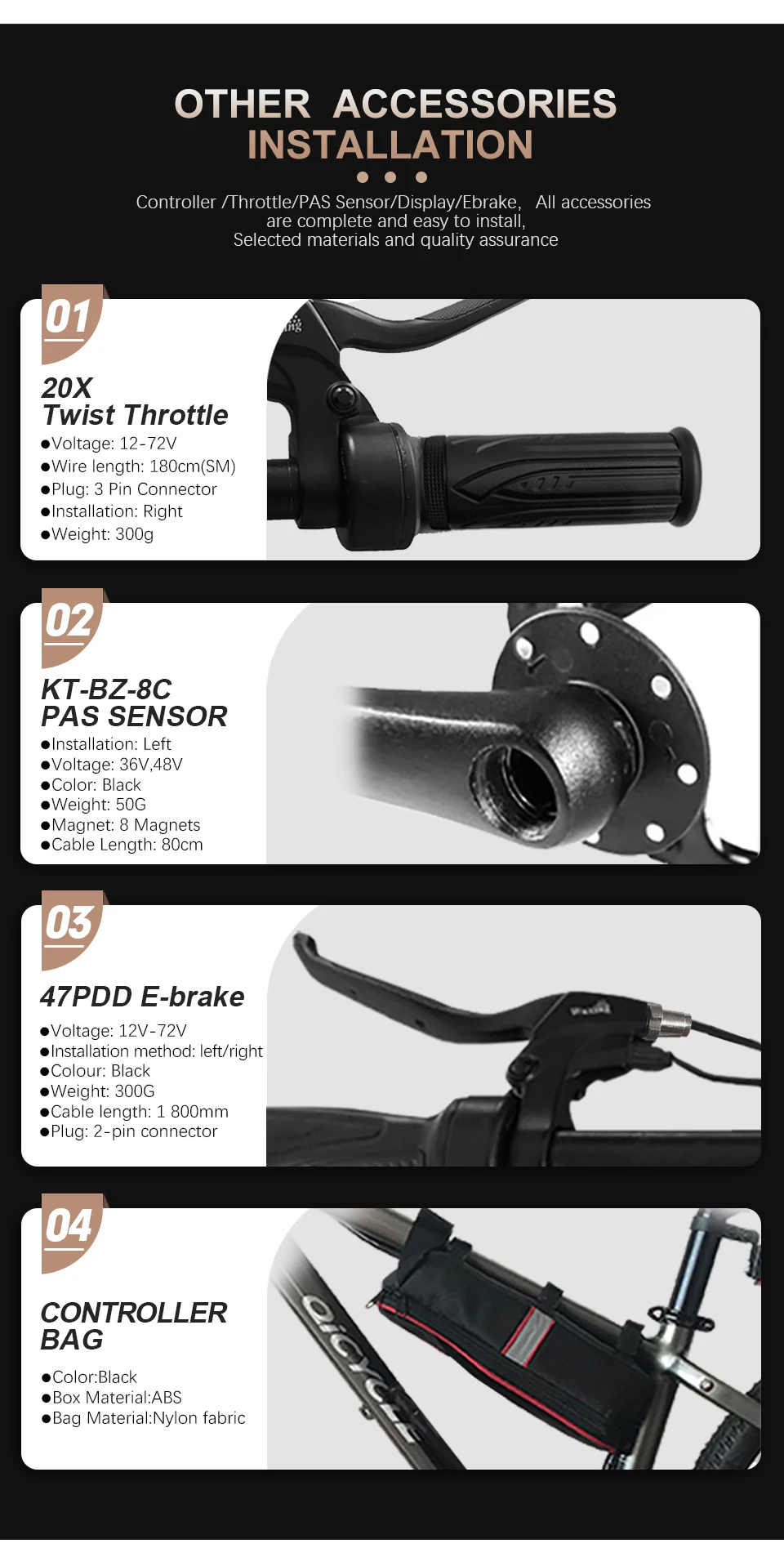

1 PCS * Throttle

1 PCS * PAS Sensor

1 Pair * Brake Levers

Gifts: 1*Controller Bag( not battery) + 5*Install cable ties + 1*stretch film+ 1*Installation Manual
TIPS:
Different kits have different specifications of accessories.Specification information is in the main picture.
