Overview

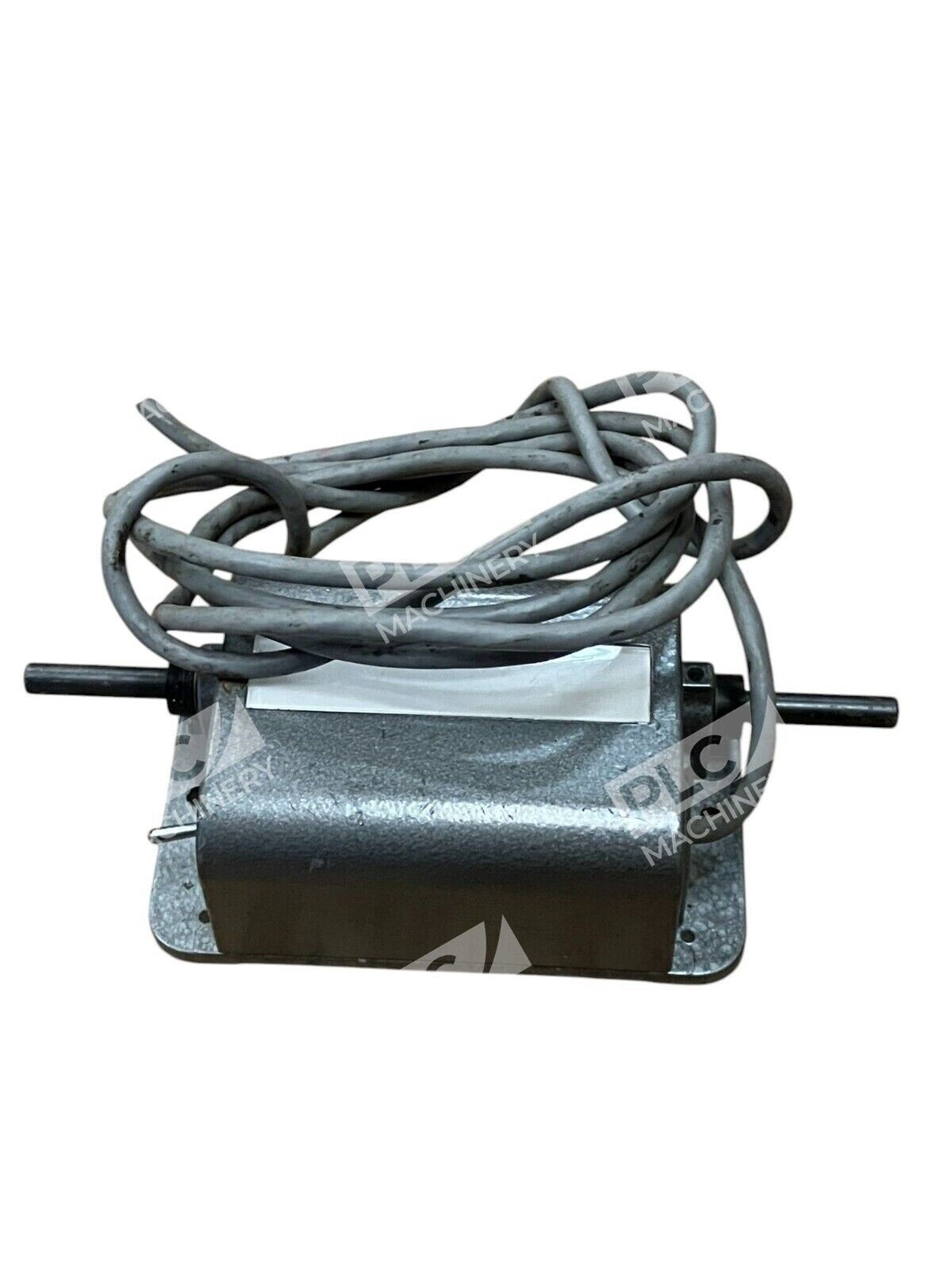

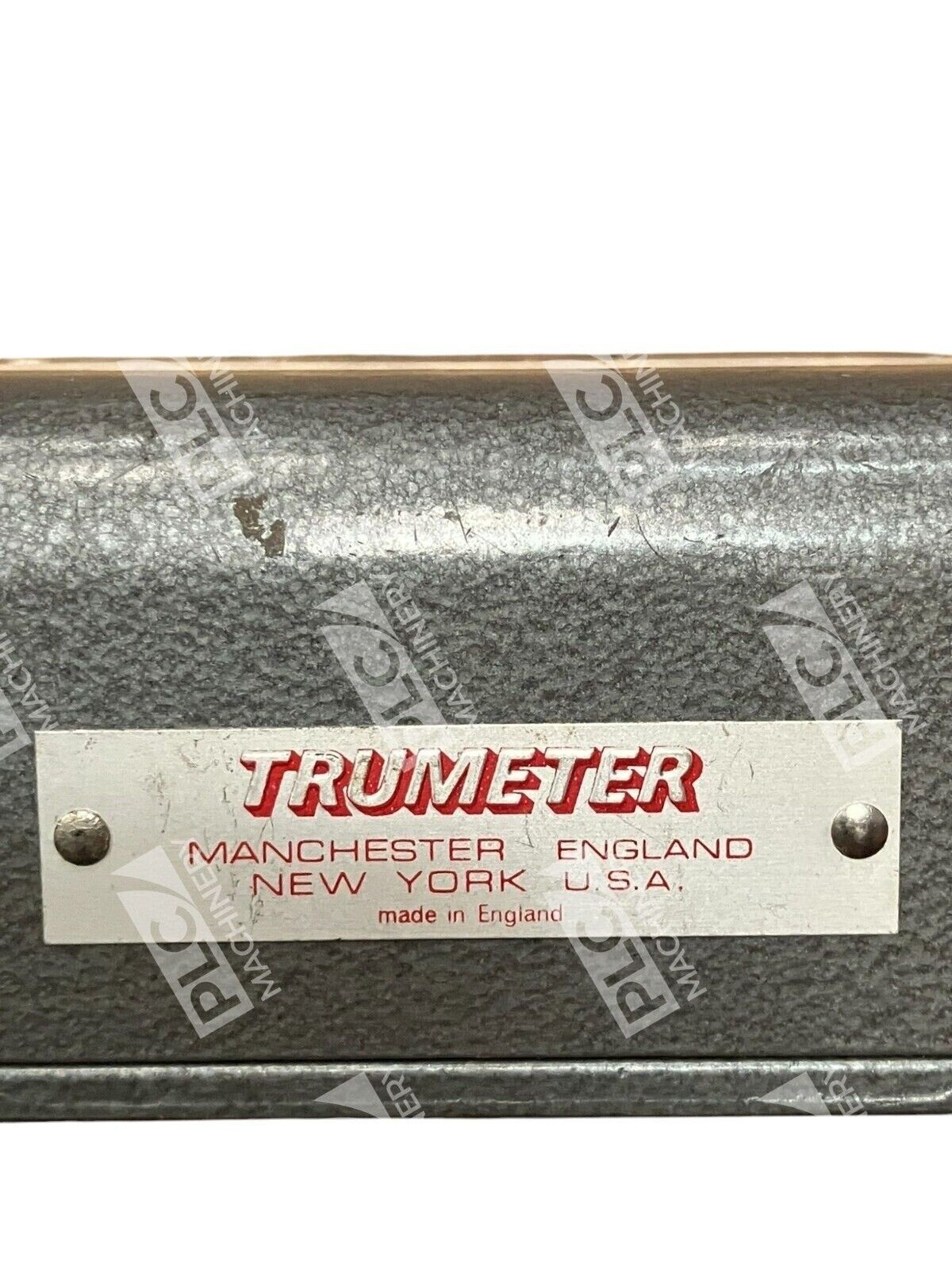

The Trumeter 3602-111TG mechanical totalizing counter delivers robust, maintenance-free operation in demanding industrial environments. Part of Trumeter's proven 3602 Series, this unit is specifically configured for top-going drive direction with feet and inches measurement capability and 1:1 gear ratio. It records rotating or reciprocating movement on power winding, measuring, and production machinery throughout continuous manufacturing cycles.

Key Features

• 6-digit mechanical readout — front-facing display for easy viewing at operational speeds
• Top-going drive direction — shaft rotates away from operator for proper tracking when material moves toward the operator
• Bidirectional counting — adds in one direction, subtracts in reverse for accurate net measurement
• Quick reset mechanism — rapid zeroing without stopping production
• High-speed capability — operates reliably at up to 3000 counts per minute with 1:1 gearing
• Dual oil-impregnated bearings — ensures long-term trouble-free operation and minimal maintenance

Technical Specifications

• Display: 6-digit mechanical counter with one decimal place
• Measurement Units: Feet and Inches
• Gear Ratio: 1:1
• Drive Direction: Top Going
• Maximum Count Speed: 3000 counts per minute (1:1 ratio)
• Construction: ABS plastic with double oil-impregnated main shaft bearings
• Counting Direction: Bidirectional (forward and reverse)
• Reset Type: Mechanical quick reset

Typical Applications

• Power winding and yarn measurement systems
• Fabric and film production length tracking
• Conveyor and material handling equipment monitoring
• Cable and wire dispensing machines
• Continuous manufacturing lines requiring precise length recording
• Textile, packaging, and print production facilities

Compatibility & Replacements

Compatible With

• Any dual-shaft mechanical drive system with top-going rotation requirement
• Power winding and measuring machine assemblies
• Production equipment requiring feet/inches length measurement
• Direct-drive and geared shaft applications at 3000 CPM maximum

Replaces / Drop-In Replacement For

• Earlier Trumeter 3602-111TG units
• Other mechanical counters with equivalent feet/inches 1:1 configuration
• Units used in 2300/2400/2700 Series assembly applications

Works With

• No electronic controls or software required — purely mechanical operation
• Mechanical shaft couplings and direct drive arrangements
• Pulley and belt-drive systems (verify torque limitations with Trumeter)
• Production line control systems that read mechanical counter displays
