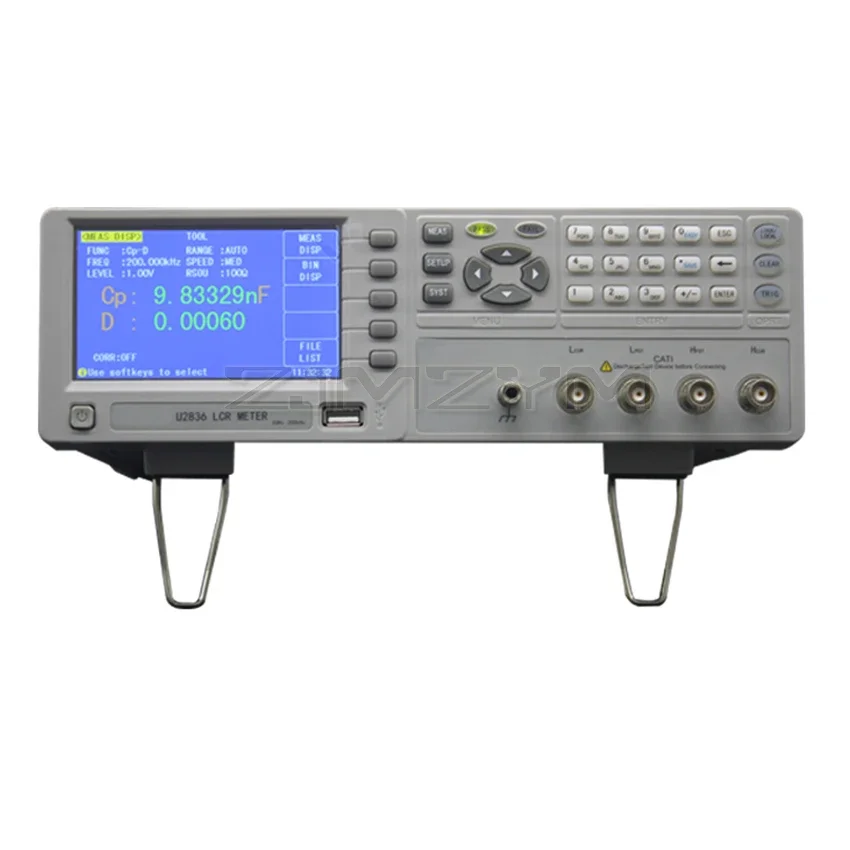

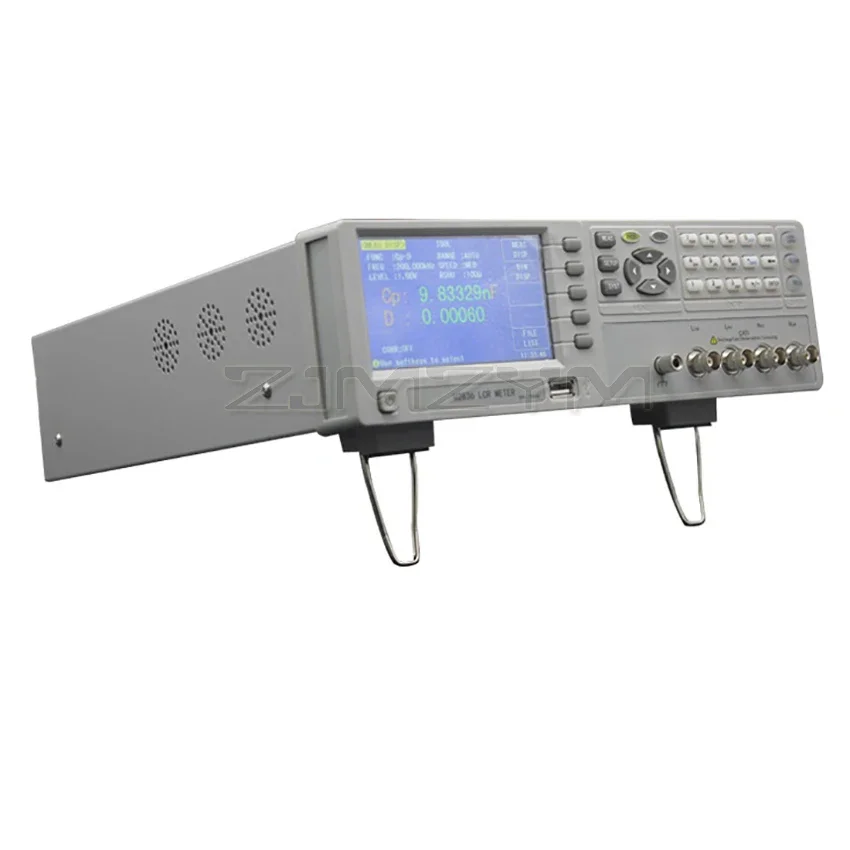

Name: LCR Digital Bridge Tester

Model: U2836

Supply Voltage: 99V - 242V

Test Frequency: 50Hz -200kHz (10mHz step)

Accuracy: 0.05%

Test level: 10mV - 2.0V (resolution 10mV)

Output Impedance: 30Ω, 50Ω, 100Ω

Measurement parameters: |Z|,C,L,R, X, |Y|,B,G,ESR,D,Q,θ

Test resolution: 6 bits

Test speed: 40 times/second at the fastest

Display: 480*272, 4.3-inch TFT color screen

Storage capacity: internal 100 groups

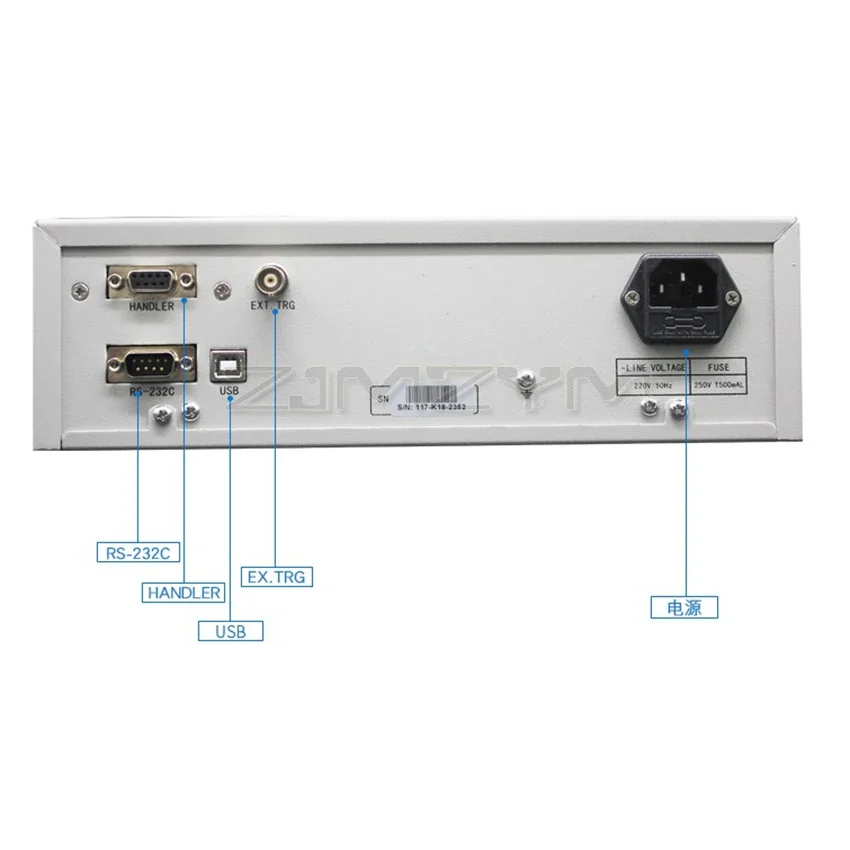

RS232C: With

USB HOST: With

HANDLER: With

Temperature & Humidity: 0- 40℃, ≤90%RH

Weight: about 2.5kg

Machine size: 280*88*320mm

Package Included:

U2836 LCR Digital Bridge Tester*1

Instructions:

U2836 series is a new general-purpose high-performance LCR meter,

easy to operate, the product provides stable 6-bit test resolution,

50Hz-200kHz frequency range, 10mV-2.0V signal level, up to 40 times/sec,

can meet all the measurement requirements of components and materials

for production line quality assurance, incoming goods inspection and

high precision measurement in the laboratory
