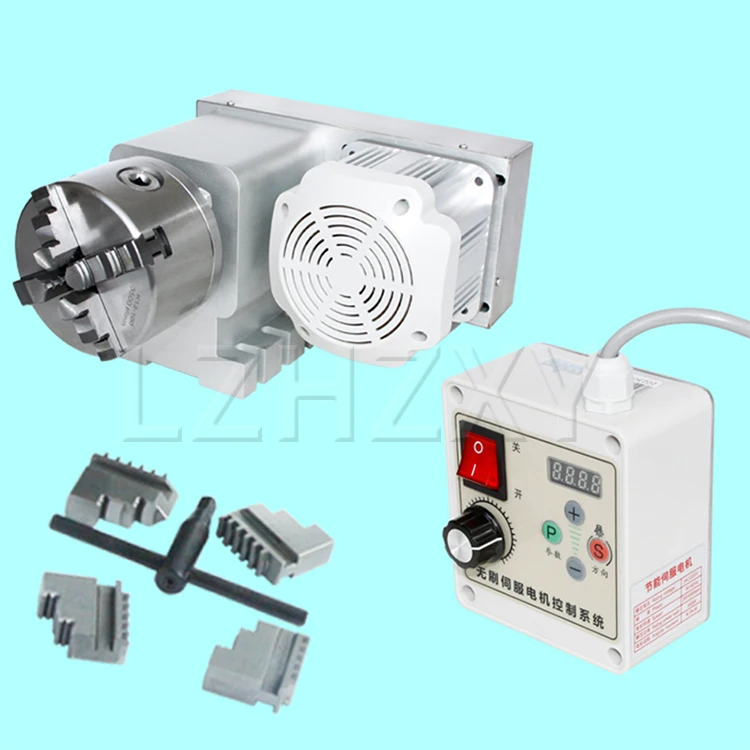

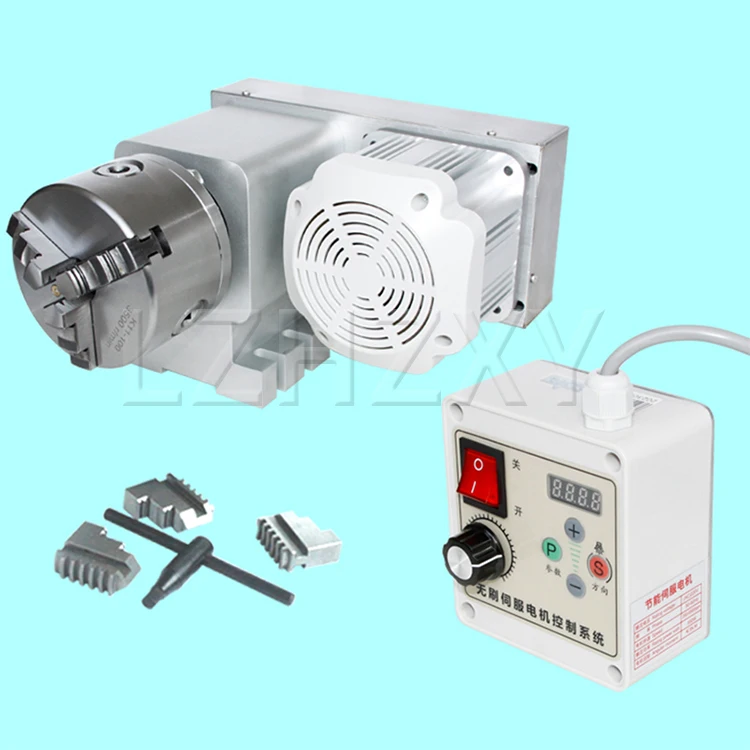

Speed-adjustable indexing head, adjustable speed, fourth axis (A axis, rotary axis, CNC indexing head), 100MM chuck (hollow shaft)

Name: Speed-regulating dividing head

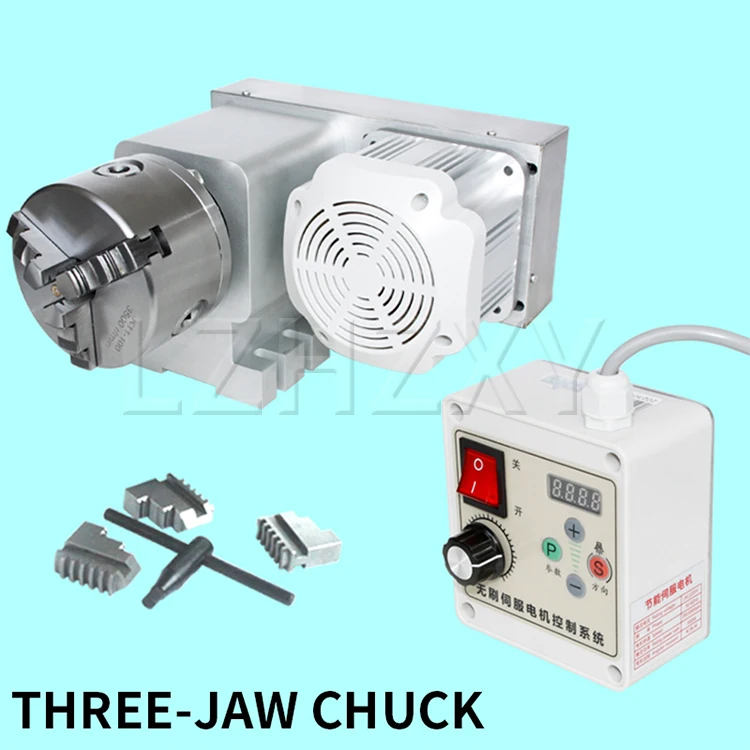

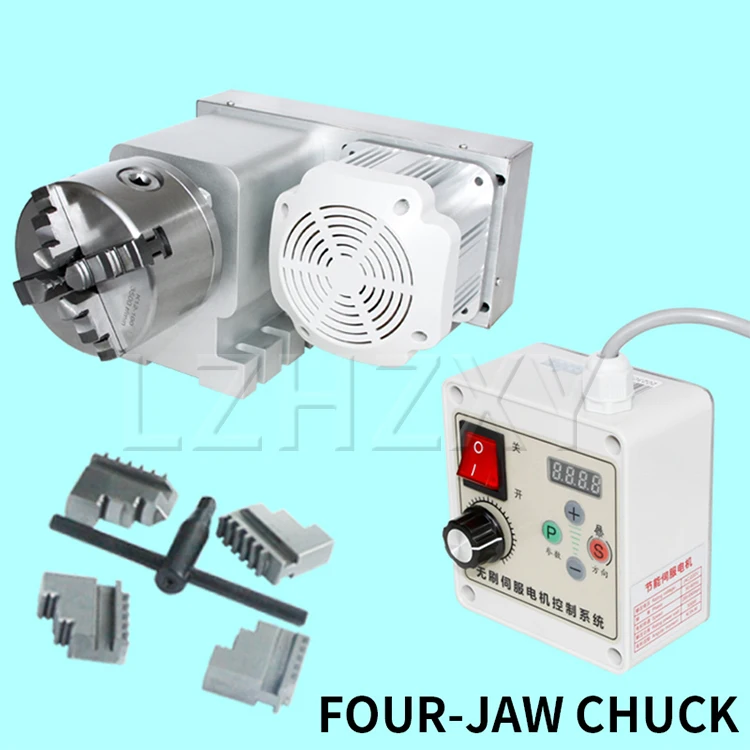

Model: T5M-3-100A (three-jaw centering chuck)/T5M-3-100B (four-jaw centering chuck)
Chuck: K11-100/K12-100 (Note: K11-100 is a three-jaw centering chuck with a diameter of 100MM, and K12-100 is a four-jaw centering chuck with a diameter of 100MM)
Center height: 100MM

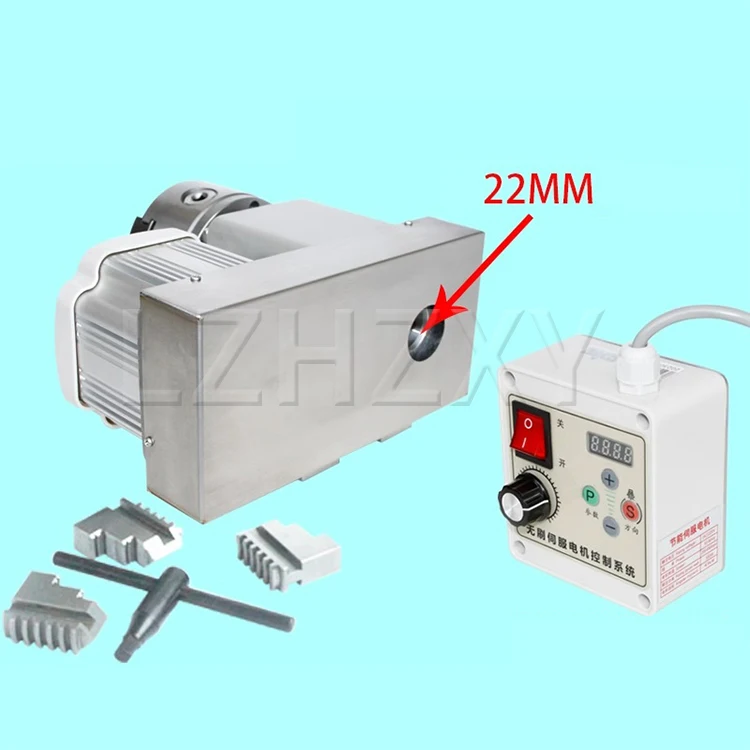

Hollow shaft diameter: 22MM
Speed: 3000RPM for motor, 1000RPM after deceleration
Motor: AC 220V 550W
Accessories: one pair of total counter jaws and wrench

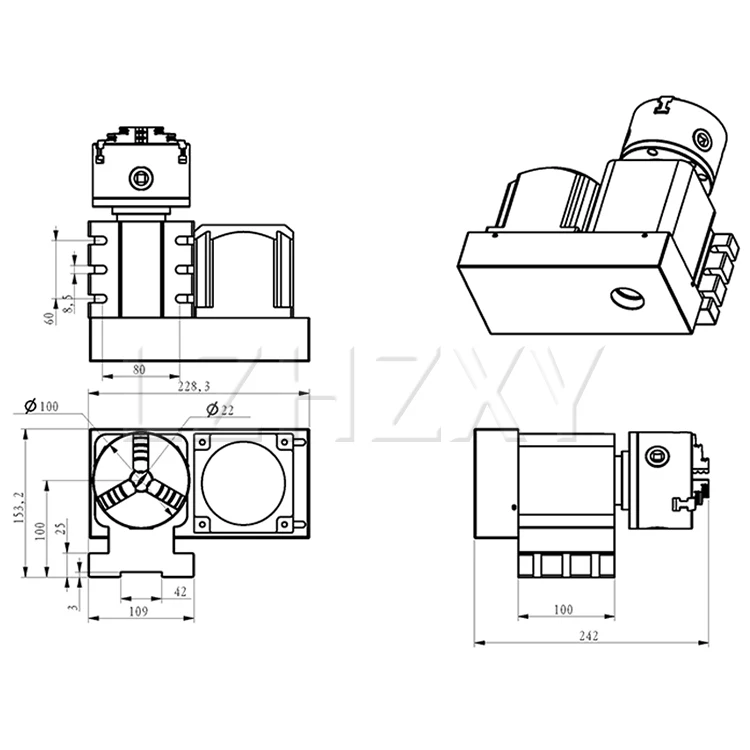

Dimensions: 240*220*155MM
Weight: 10.5KG (three-jaw chuck)
