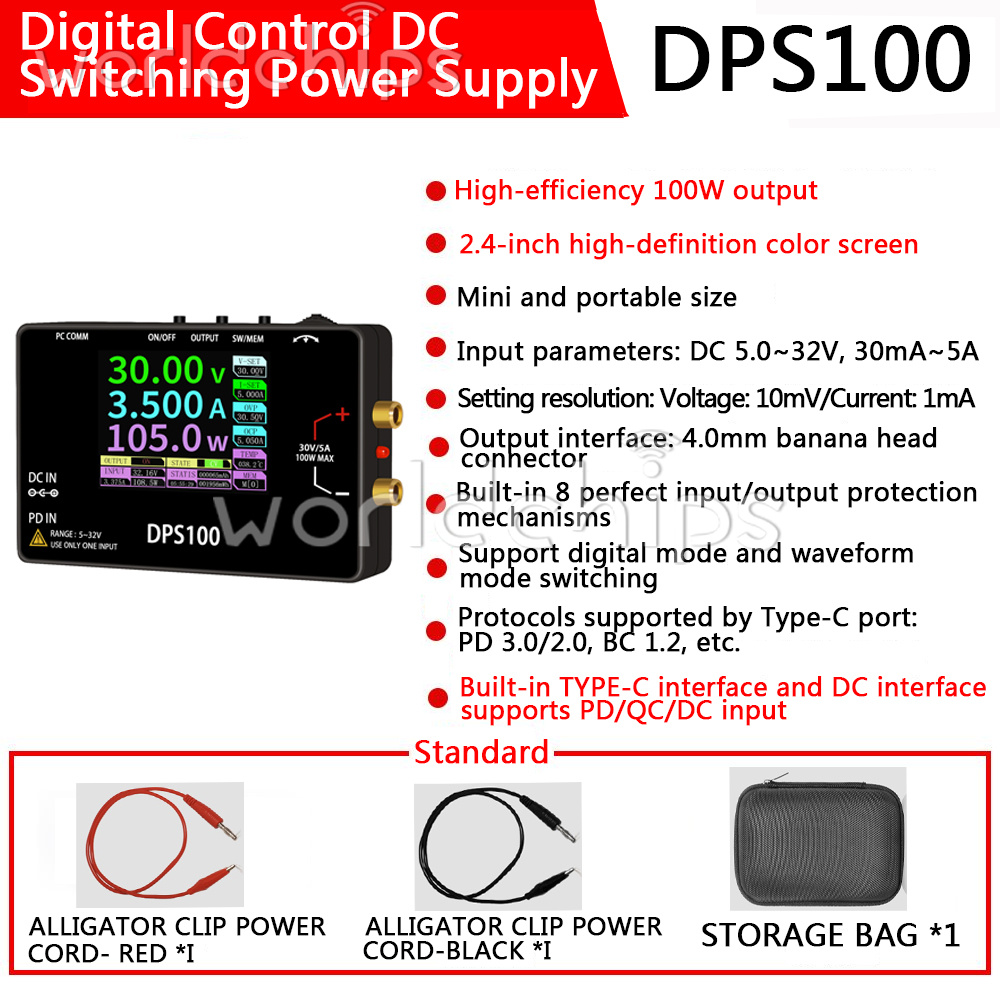

Features:
1. The output supports over-voltage, over-current, overload, overheat, reverse polarity and other protection functions.

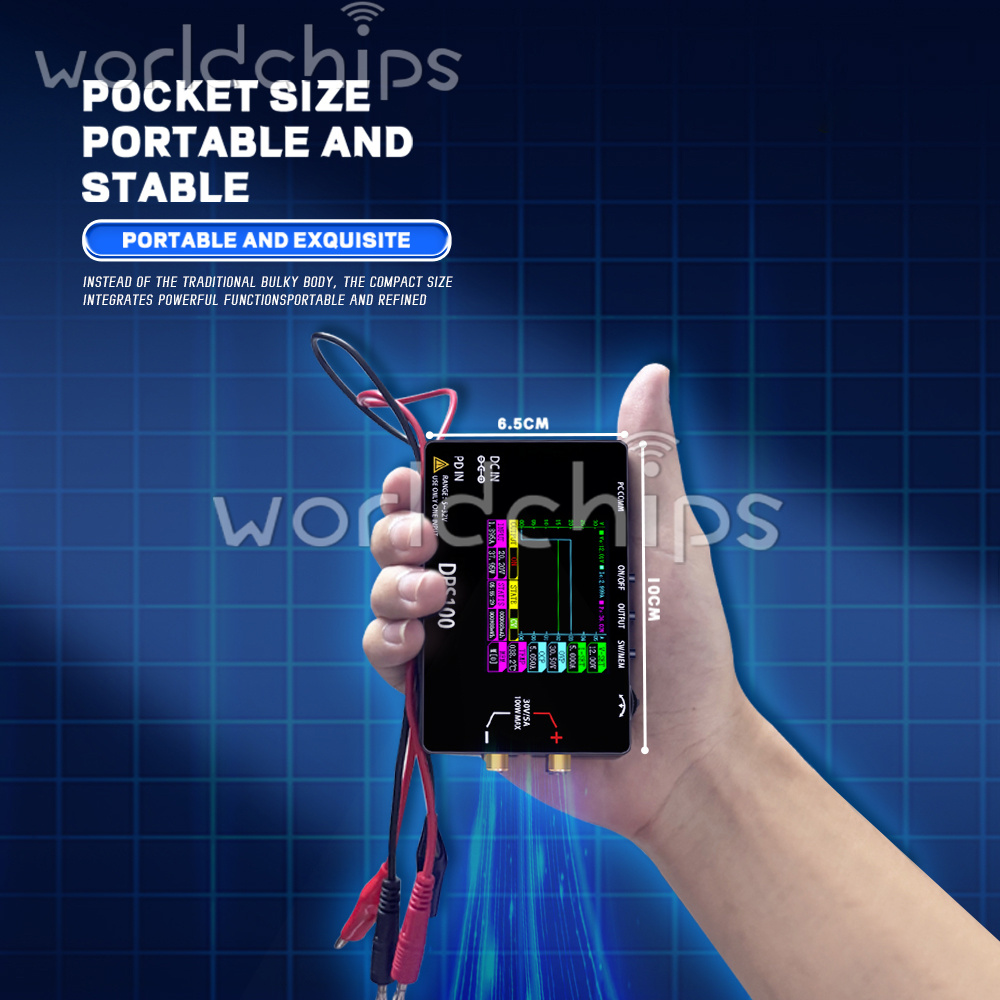

2. Multiple buttons, easy to operate, small size and portable
3. High-resolution screen (320x240), rich and comprehensive display content

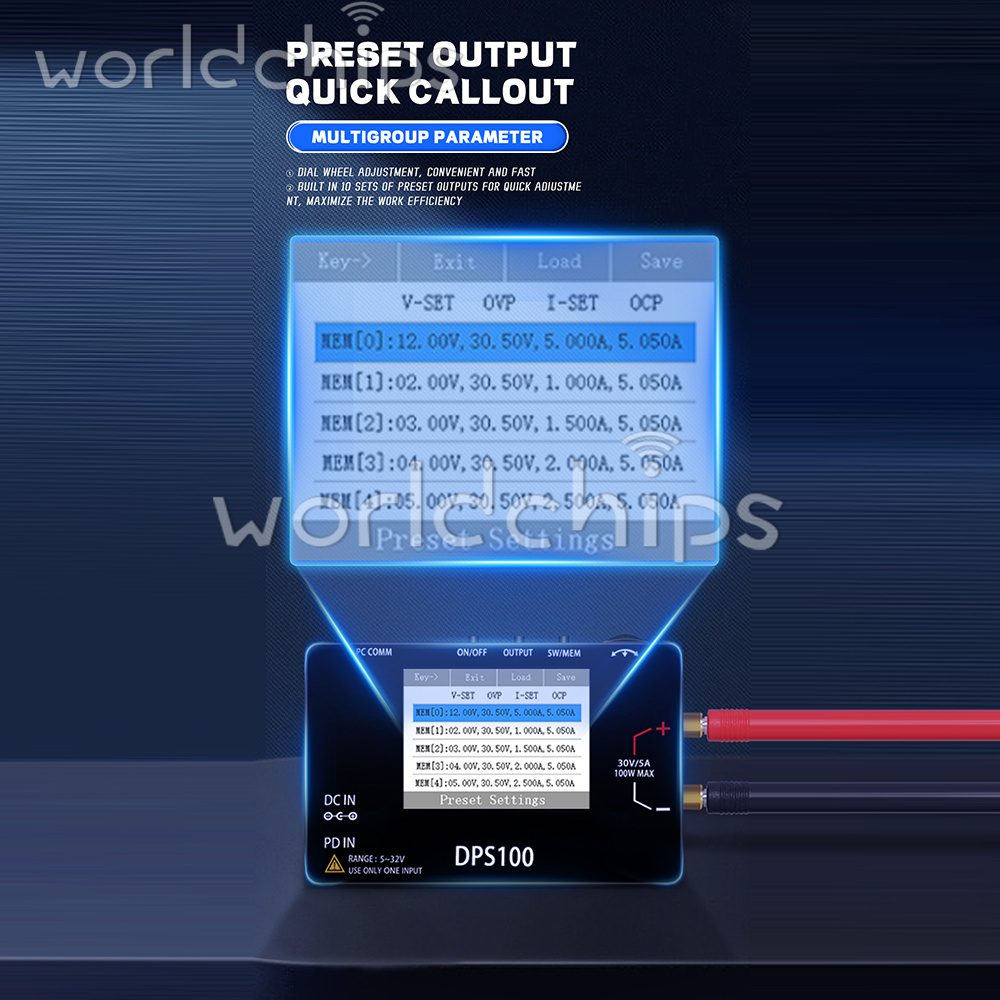

4. Input support undervoltage protection and reverse connection protection, support for 10 groups of preset outputs, can be directly called, very convenient

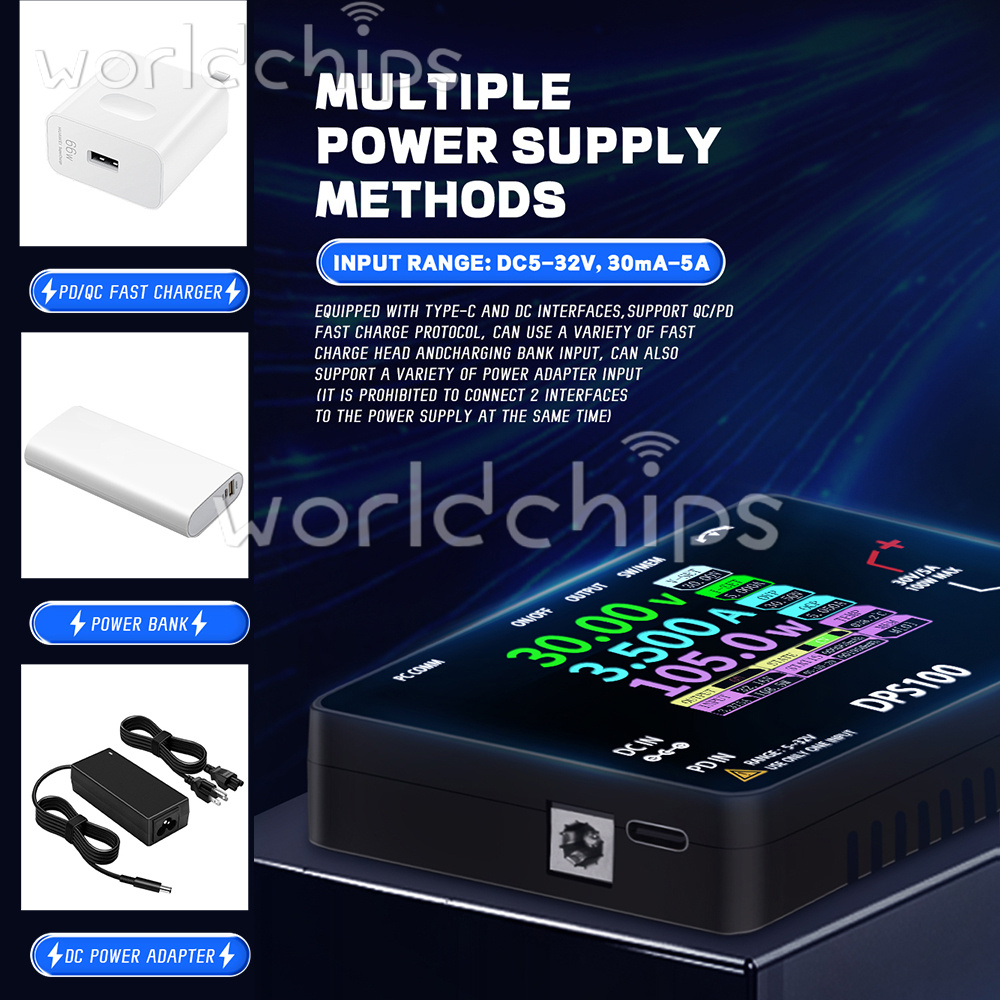

5.Type-C and DC input ports support DC5~32V wide range power supply, low ripple and high efficiency.

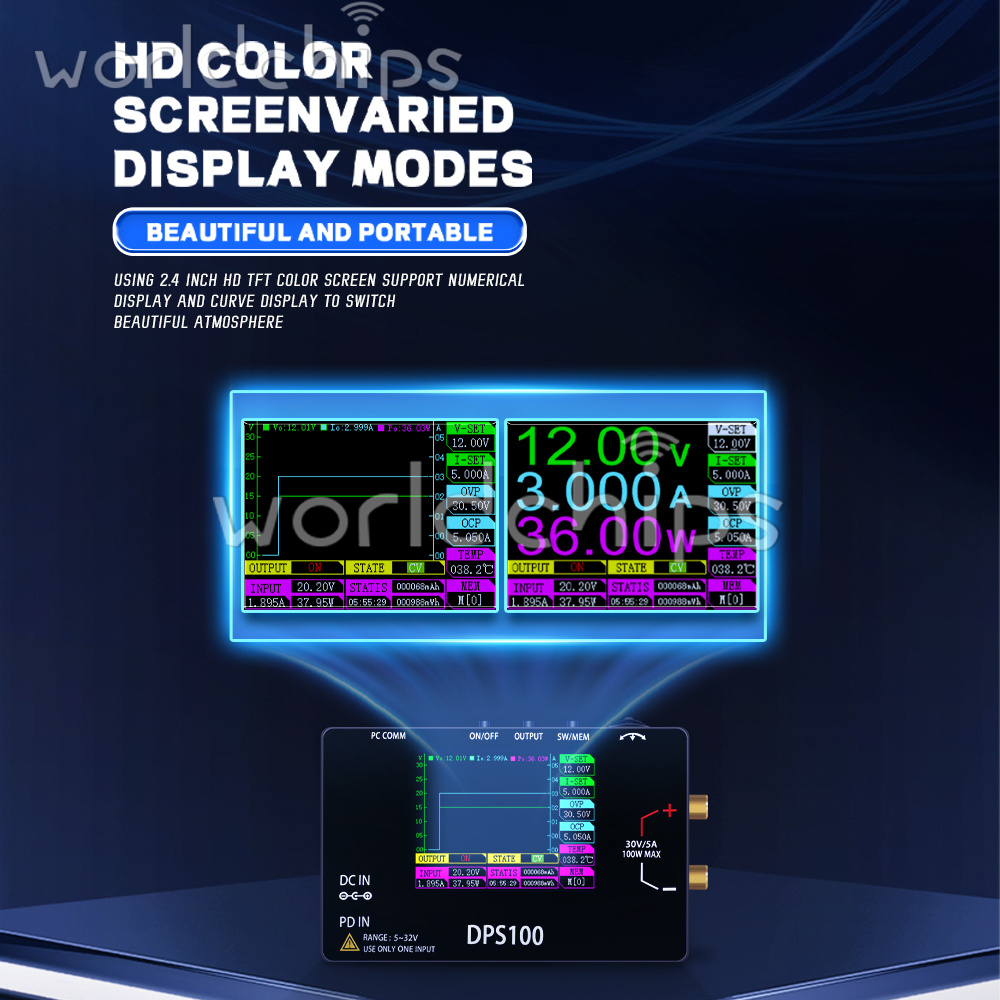

6. 2.4-inch high-definition TFT color screen, support for numerical display and curve display switching, beautiful atmosphere and portable!
Parameters:
Input parameters: DC5.0~32V,30mA~5A
Setting resolution: output voltage: 10mV, output current: 1mA

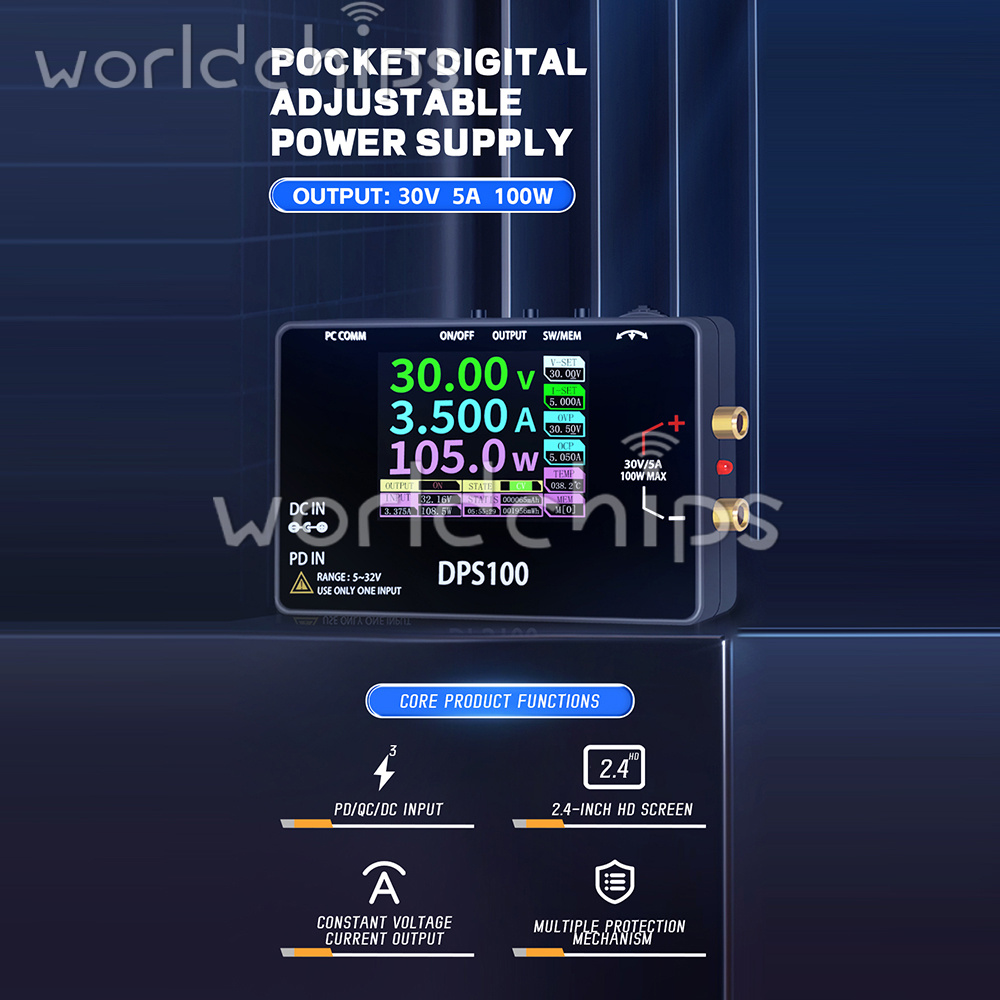

Output range: output voltage: 0~30V, output current: 0~5A, output power: 100W(MAX)
Type-C port support protocol: PD3.0/2.0, BC1.2 and other fast charging protocols
Output connector: 4.0MM banana head connector

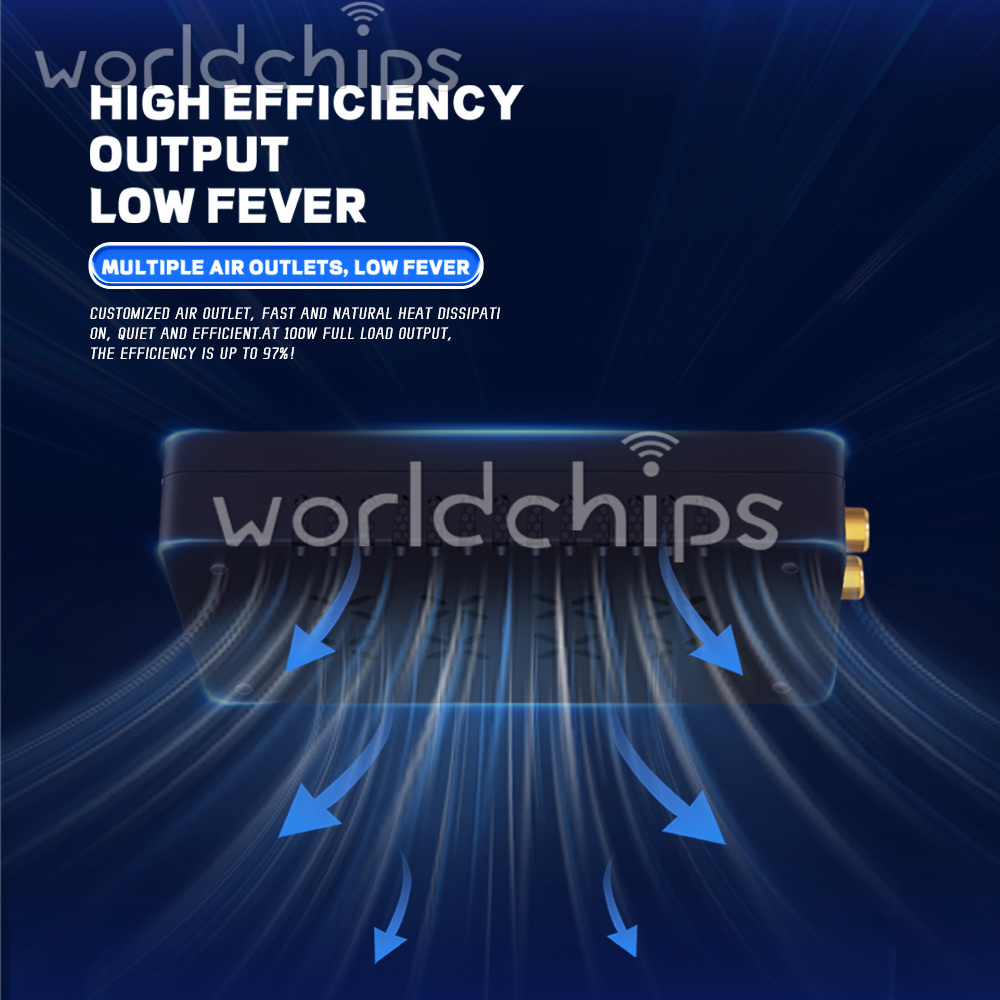

Full load efficiency: ≥97% @100W(30V,3.334A)
Setting Accuracy: Output Voltage:≤0.1%±5mV, Output Current:≤0.1%±3mA
Load Adjustment Rate: Output Voltage:≤0.05%±5mV, Output Current:≤0.1%±3mA
Readback Resolution: Input Voltage:10mV,Input Current:1mA,Output Voltage:10mV,Output Current:1mA
Readback accuracy: input voltage: ≤0.2%±10mV, input current: ≤0.1%±5mA, output voltage: ≤0.1%±10mV, output current: ≤0.1%±5mA

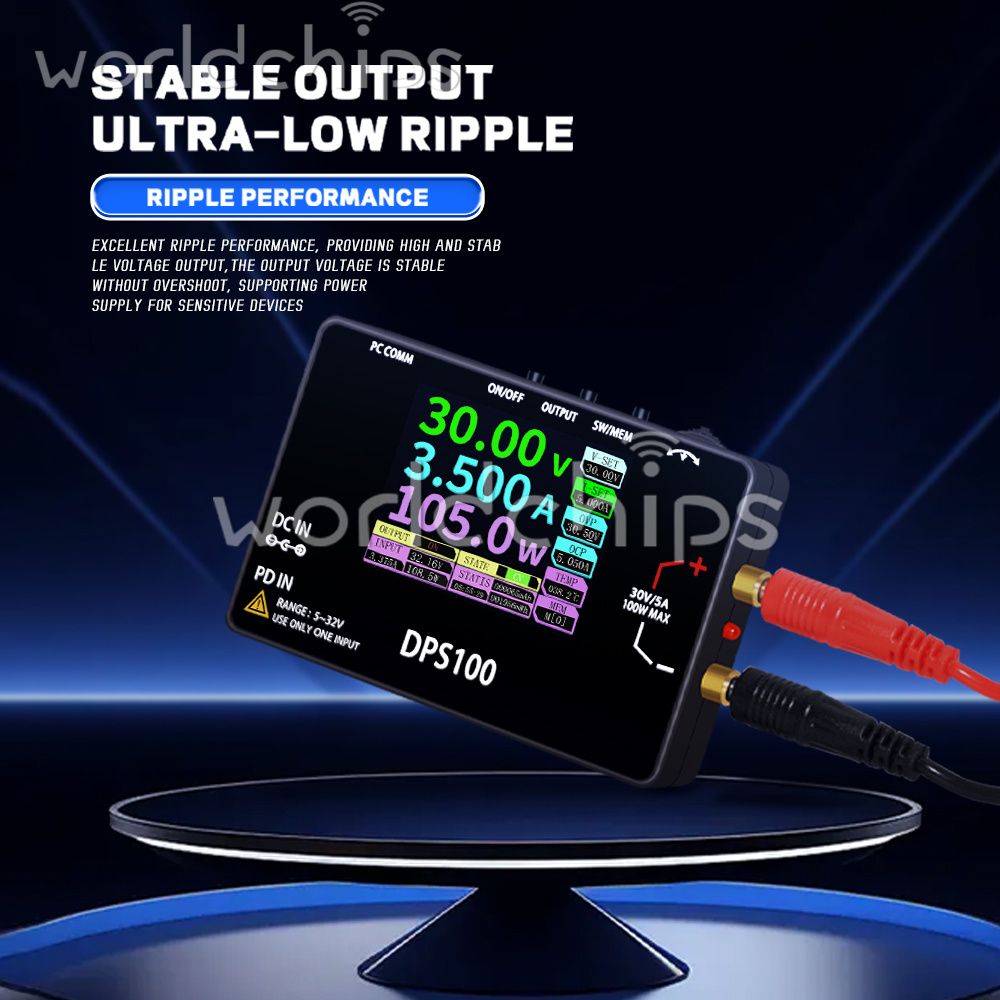

Ripple and noise voltage: voltage: ≤2mVrms,10mVp-p, current: ≤ lmArms,3mAp-p
Power supply regulation rate: voltage: ≤0.05%±5mV, current: ≤0.1%±3mA
Output temperature coefficient: voltage: ≤200ppm, current: ≤200ppm
Working environment:0℃~40℃,0~75%RH

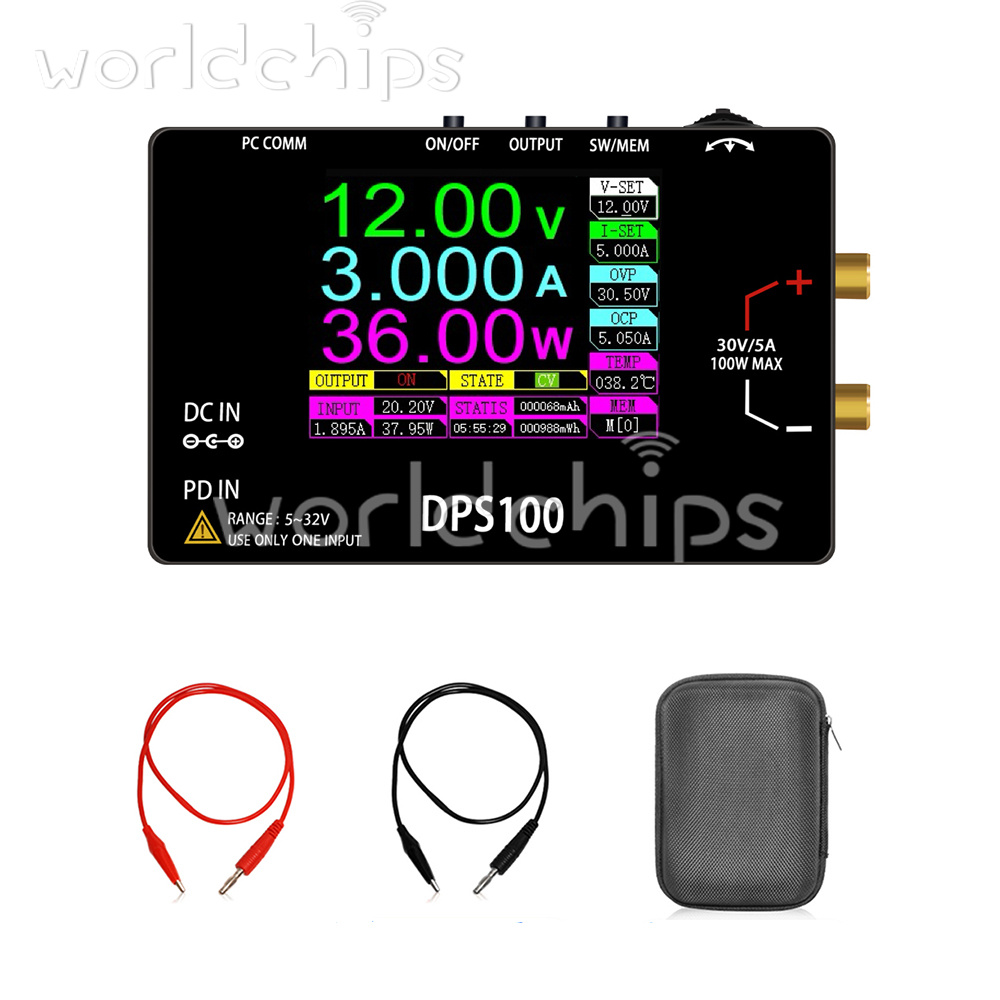

Package Includes:
Voltage stabilized power supply *1
Storage bag *1
Red and black alligator clip power cord *1
1. The output supports over-voltage, over-current, overload, overheat, reverse polarity and other protection functions.
2. Multiple buttons, easy to operate, small size and portable
3. High-resolution screen (320x240), rich and comprehensive display content
4. Input support undervoltage protection and reverse connection protection, support for 10 groups of preset outputs, can be directly called, very convenient
5.Type-C and DC input ports support DC5~32V wide range power supply, low ripple and high efficiency.
6. 2.4-inch high-definition TFT color screen, support for numerical display and curve display switching, beautiful atmosphere and portable!
Parameters:
Input parameters: DC5.0~32V,30mA~5A
Setting resolution: output voltage: 10mV, output current: 1mA
Output range: output voltage: 0~30V, output current: 0~5A, output power: 100W(MAX)
Type-C port support protocol: PD3.0/2.0, BC1.2 and other fast charging protocols
Output connector: 4.0MM banana head connector
Full load efficiency: ≥97% @100W(30V,3.334A)
Setting Accuracy: Output Voltage:≤0.1%±5mV, Output Current:≤0.1%±3mA
Load Adjustment Rate: Output Voltage:≤0.05%±5mV, Output Current:≤0.1%±3mA
Readback Resolution: Input Voltage:10mV,Input Current:1mA,Output Voltage:10mV,Output Current:1mA
Readback accuracy: input voltage: ≤0.2%±10mV, input current: ≤0.1%±5mA, output voltage: ≤0.1%±10mV, output current: ≤0.1%±5mA
Ripple and noise voltage: voltage: ≤2mVrms,10mVp-p, current: ≤ lmArms,3mAp-p
Power supply regulation rate: voltage: ≤0.05%±5mV, current: ≤0.1%±3mA
Output temperature coefficient: voltage: ≤200ppm, current: ≤200ppm
Working environment:0℃~40℃,0~75%RH
Package Includes:
Voltage stabilized power supply *1
Storage bag *1
Red and black alligator clip power cord *1
-
