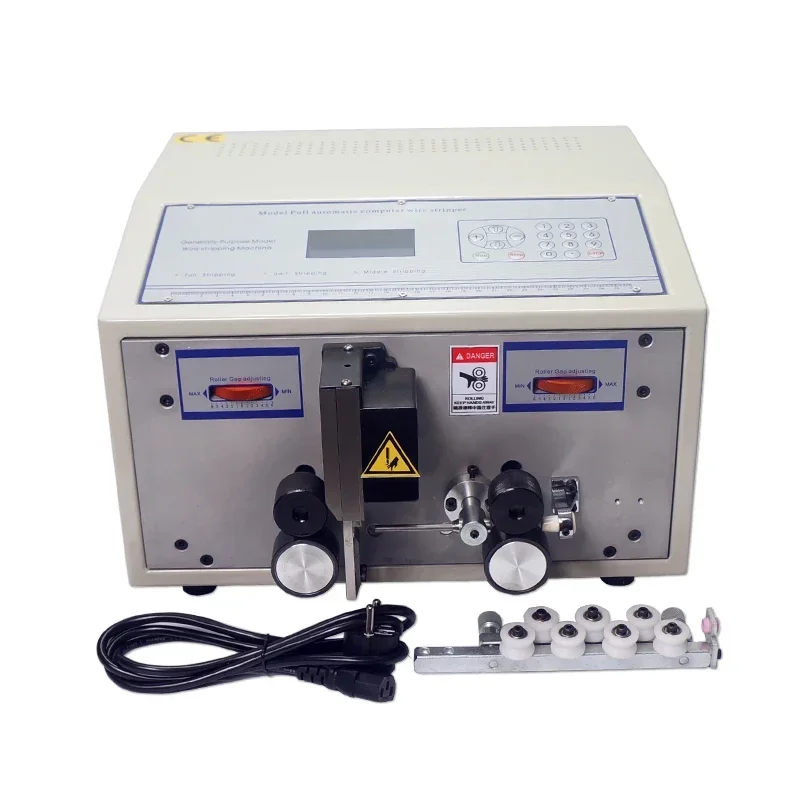

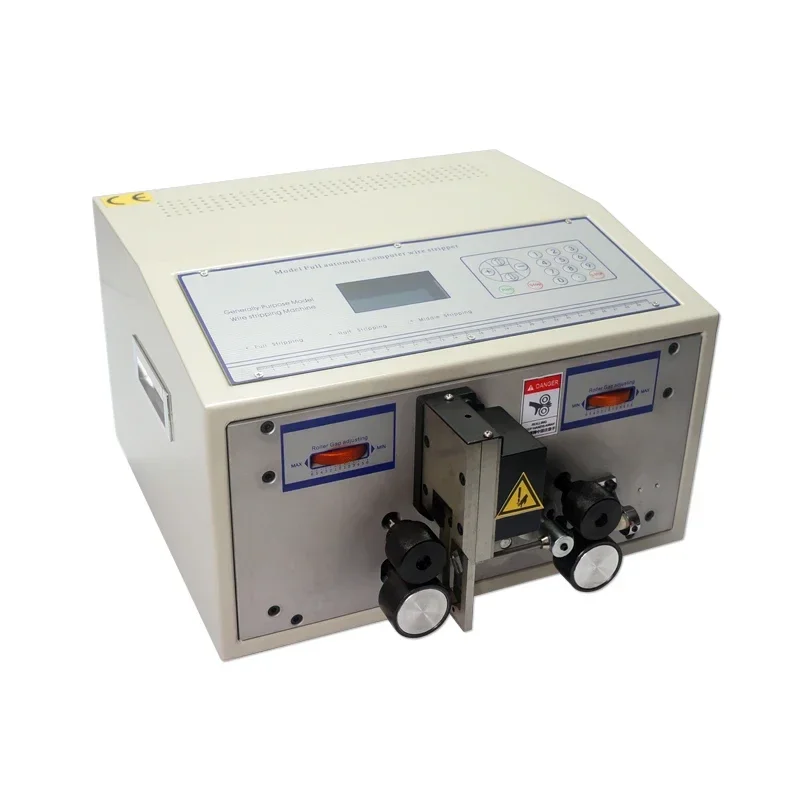

--The working video is only for reference, the 508c can only strip the cable with single core--

--It can strip wire and cut wire, you can use it for cutting wire or stripping wire only--

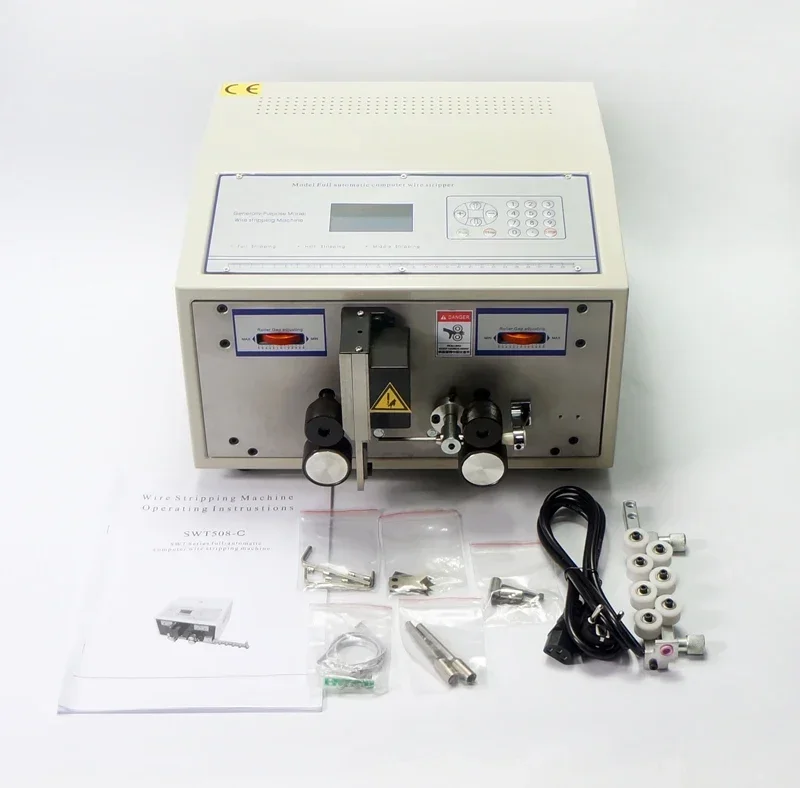

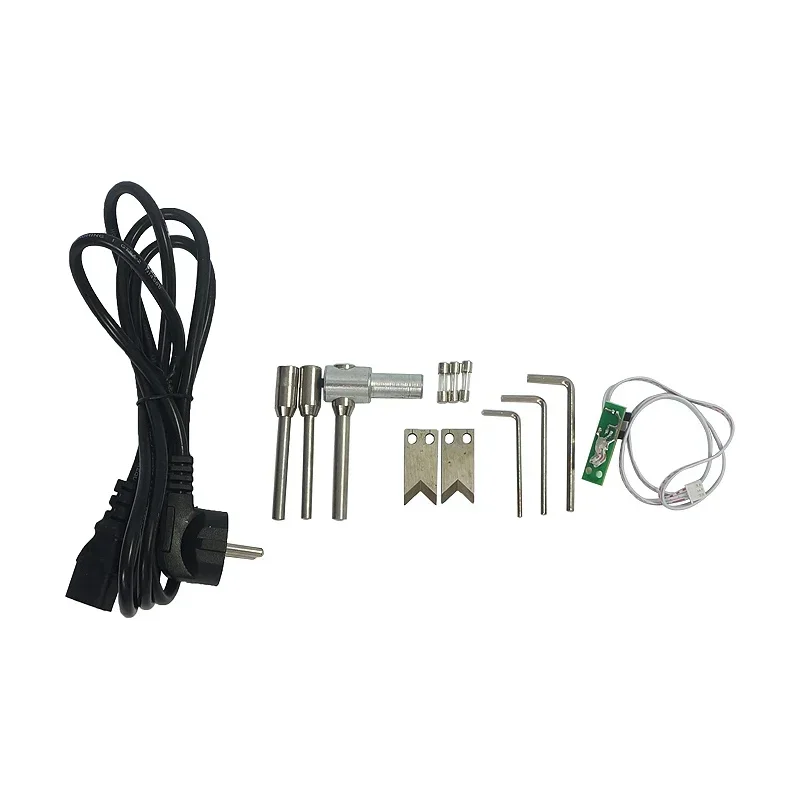

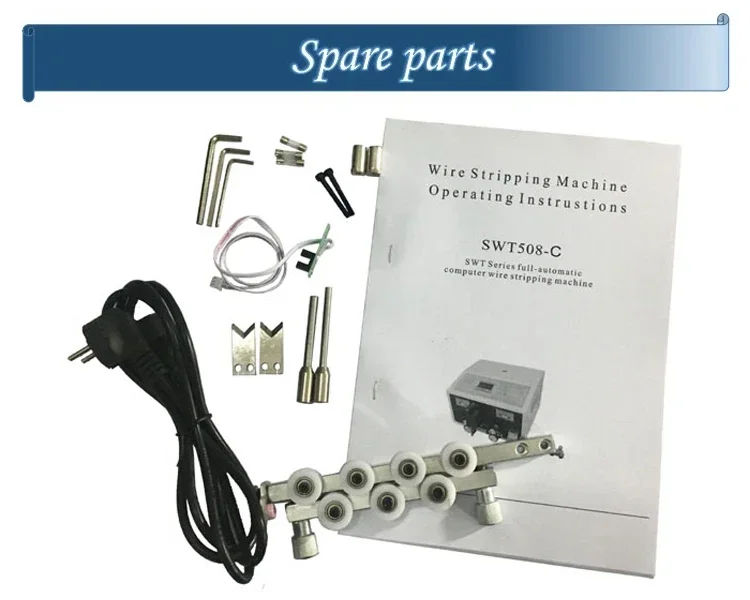

--If you need some additional accessories, pls contact us--

Features:

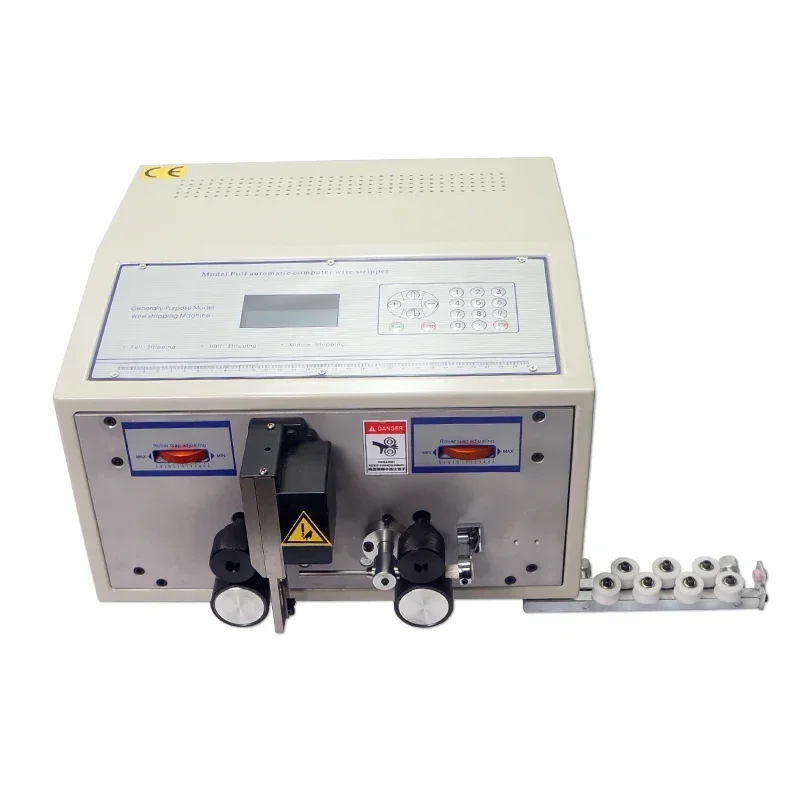

1. The SWT508C machine can strip wire PVC, for teflon, glass wire,coaxial cable, etc.

2. Collection and integration, the microcomputer automatic computer for the wire strip machine is a kind of introduced in Japan, Taiwan, and other advanced automation technology of all of the numerical control equipment.

3. The SWT508C wire stripping machine is widely used in the electronics industry, the city ahs, electrical appliances, motor, lamps and lanterns, toys, and other various products of wire processing.

4. The SWT508C wire stripping machine use LCD screen man-machine dialogue mode, with nice appearance, simple operation, convenient maintenance, stable performance, speed, precision higher main features.

5. Wire length can set arbitrary, thrum and the line end parameters can also according to the customer request to change, different degree of finish stripping wires, also has the high tension line of line, casing of the shear etc. function

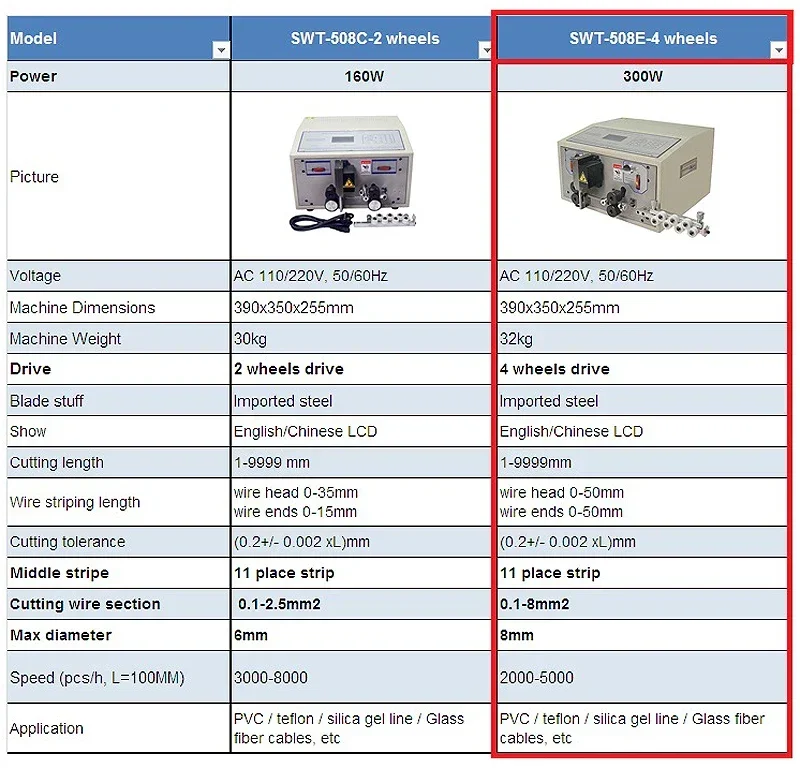

Parameters:

The model	SWT508C	SWT508E  /   ES
Power	220V	AC 110V/220V/50/60 Hz
POWER	160W	300(W)
Cutting length	1-9999 mm	1-9999mm
Cutting tolerance	(0.2+/- 0.002 by L) mm	(0.2±0.002×L)mm
Cut off the error	can be modified	correction
Stripping length	thrum 0-35, wire ends 0-15 mm	head 0-50mm, end 0-50mm
Middle strip cut	eleven place strip	eleven place strip

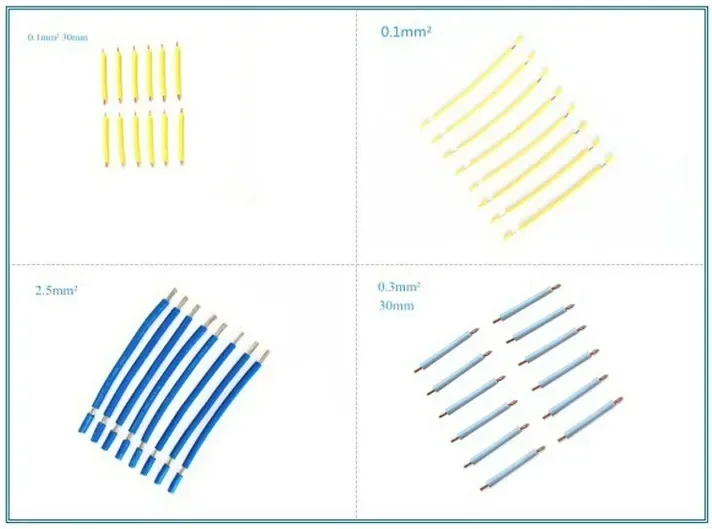

Cutting wire core section	0.1-2.5mm2 was the (AWG16 #-AWG32 #)	0.1～8mm2(AWG28 – AWG8)
The biggest diameter ducts	￠6	￠10
Optimal stripped wire	PVC/teflon/silica gel line /. Glass fiber cables, etc	PVC/PTFE/silicone cable/fiber glass wire
The blade material	hard tungsten steel (import BaiGang optional)	rigid steel
Peel linear velocity (a/hour)	L = 100 mm, 3000- 8000 PCS/h (high yield)	L = 100 mm, 3000- 8000 PCS/h (high yield)
Driving way	two wheel drive	four wheel drive
Envelop dimensions	390 x350x255	537x507x400mm
weight	25KG	27(KG)
Showing the way	LCD liquid crystal display in Chinese and English interface	LCD liquid crystal display in Chinese and English interface

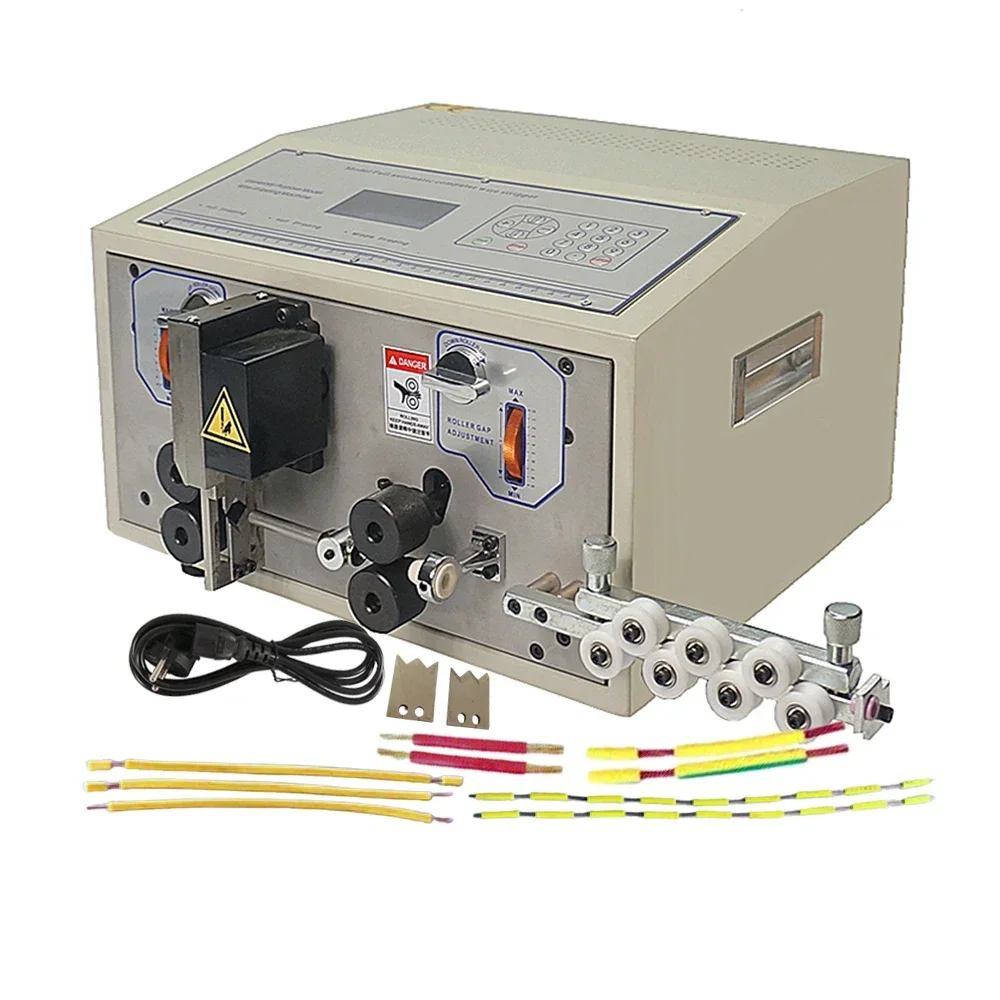

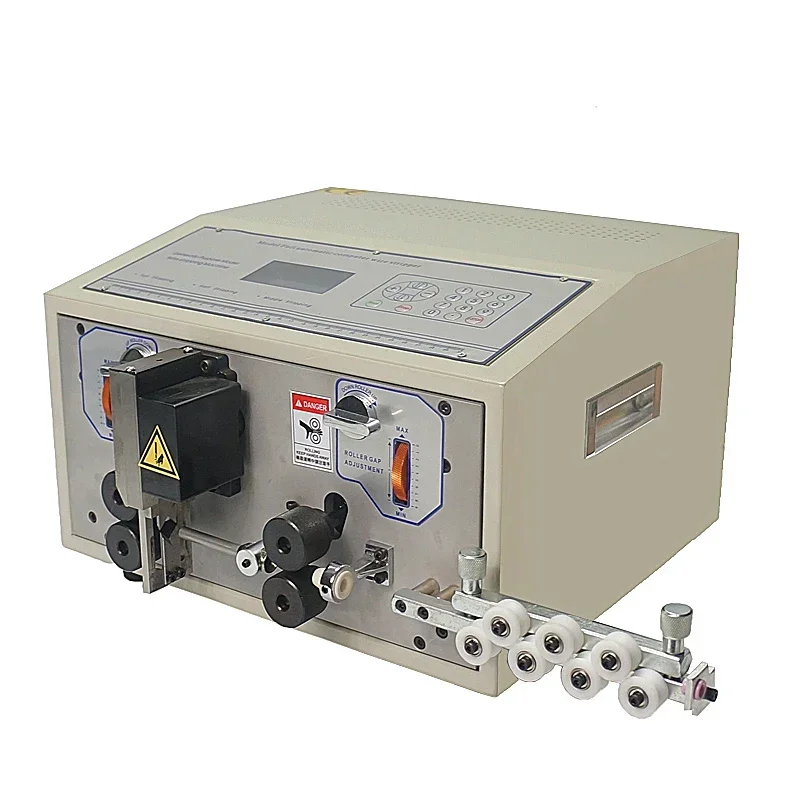

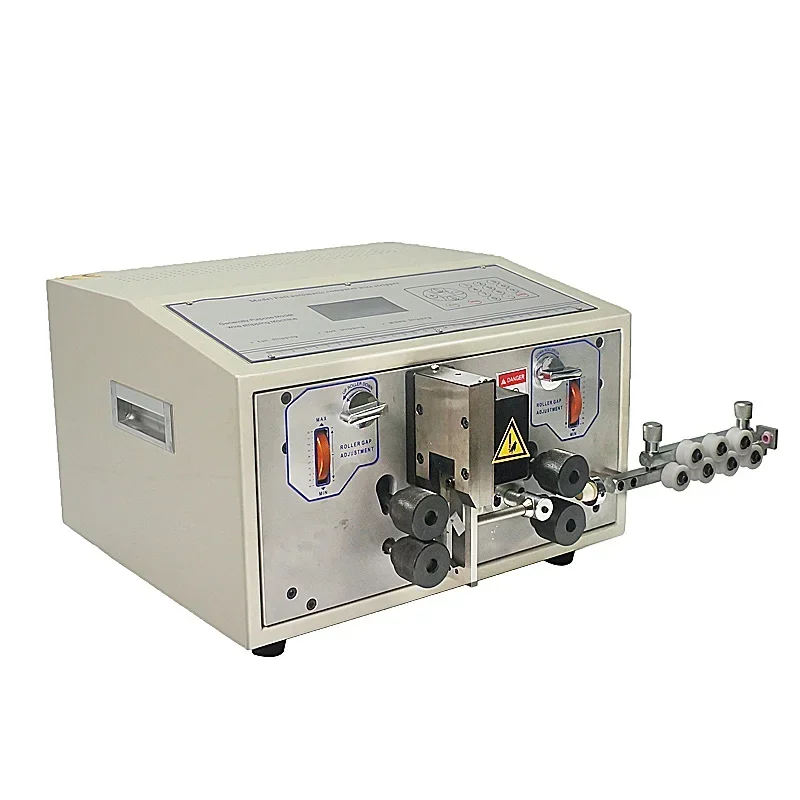

-----------------SWT 508E model----------------------------
