Portable Anchor Bolt Pull Out Tester For Steel Rod Expansion Bolt Pressure Gauge

Introduction:

• It’s a portable anchor bolt pull out tester which can be used to test the anchoring force of anchoring rods, steel rod, expansion bolts and other anchoring device.

Features:

• LCD display with backlight
• Peak maintain
• Can store up to 200 units data
• Overload protection device guarantee no damage to oil cylinder when no load.

Specifications：

Oil cylinder center hole	18mm
Oil cylinder stroke	50mm
Measuring range	0-10kn, 0-20kn, 0-50kn
Load min readout	0.001kn
Weight	Manual pump 2kg, oil cylinder 2kg, total weight 7kg
Common anchorage device	Φ6-12
Test accuracy	±1%

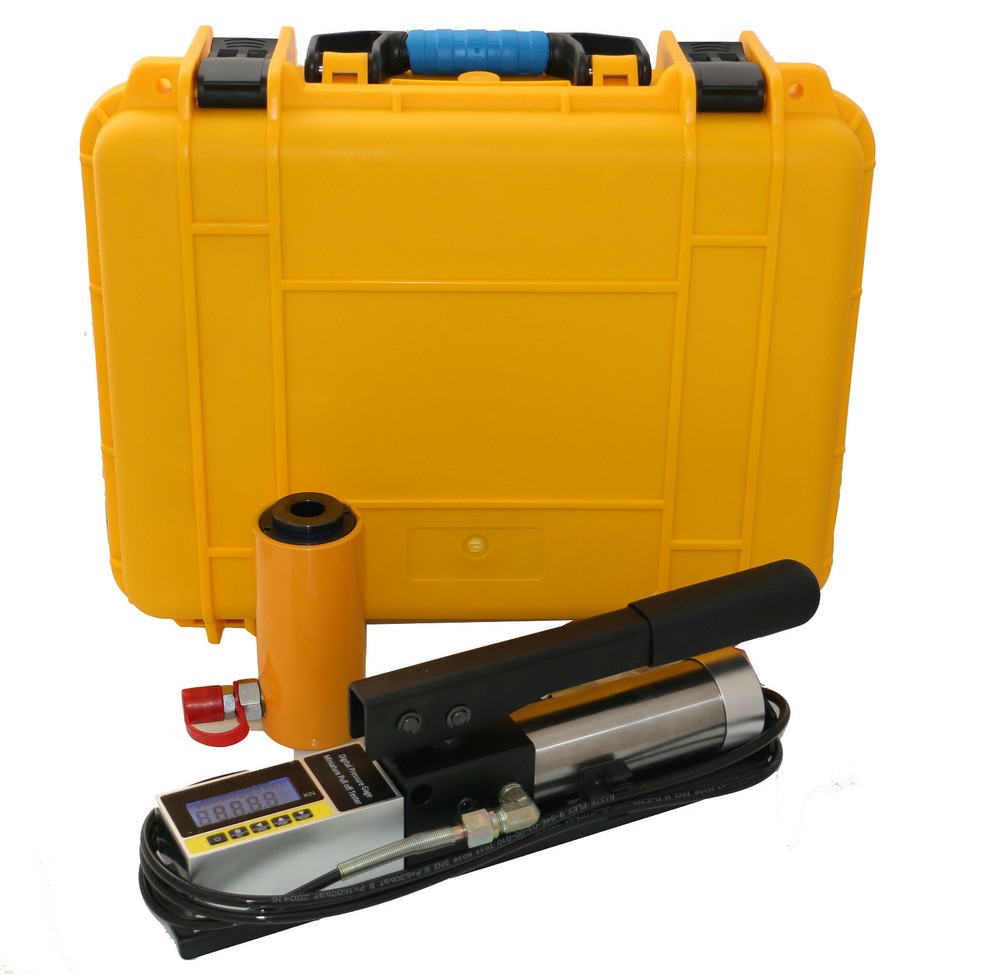

Standard configuration:

• Manual pump
• Oil cylinder
• Anchorage device Ø6- Ø8
• Pull Rod
• USB cable
• Aluminum case
