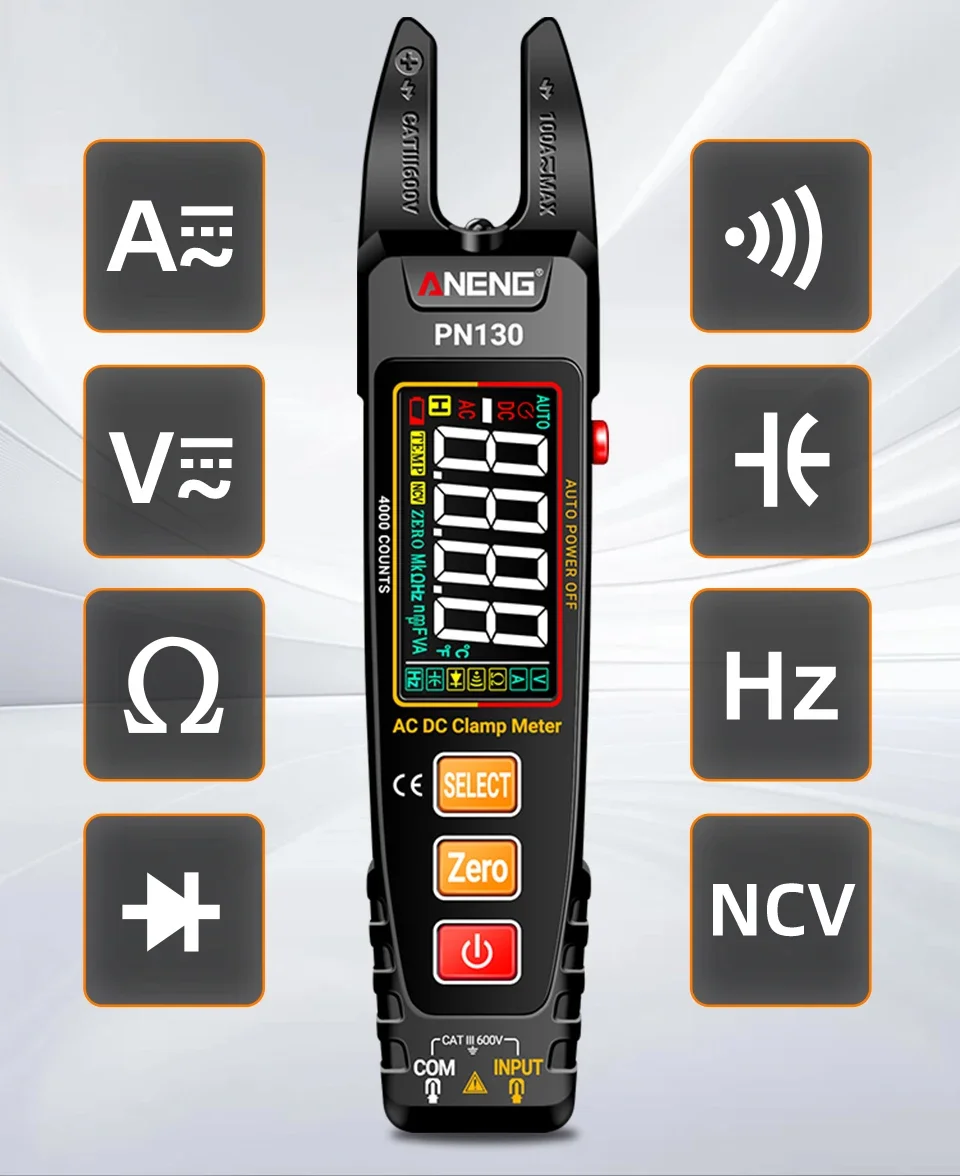

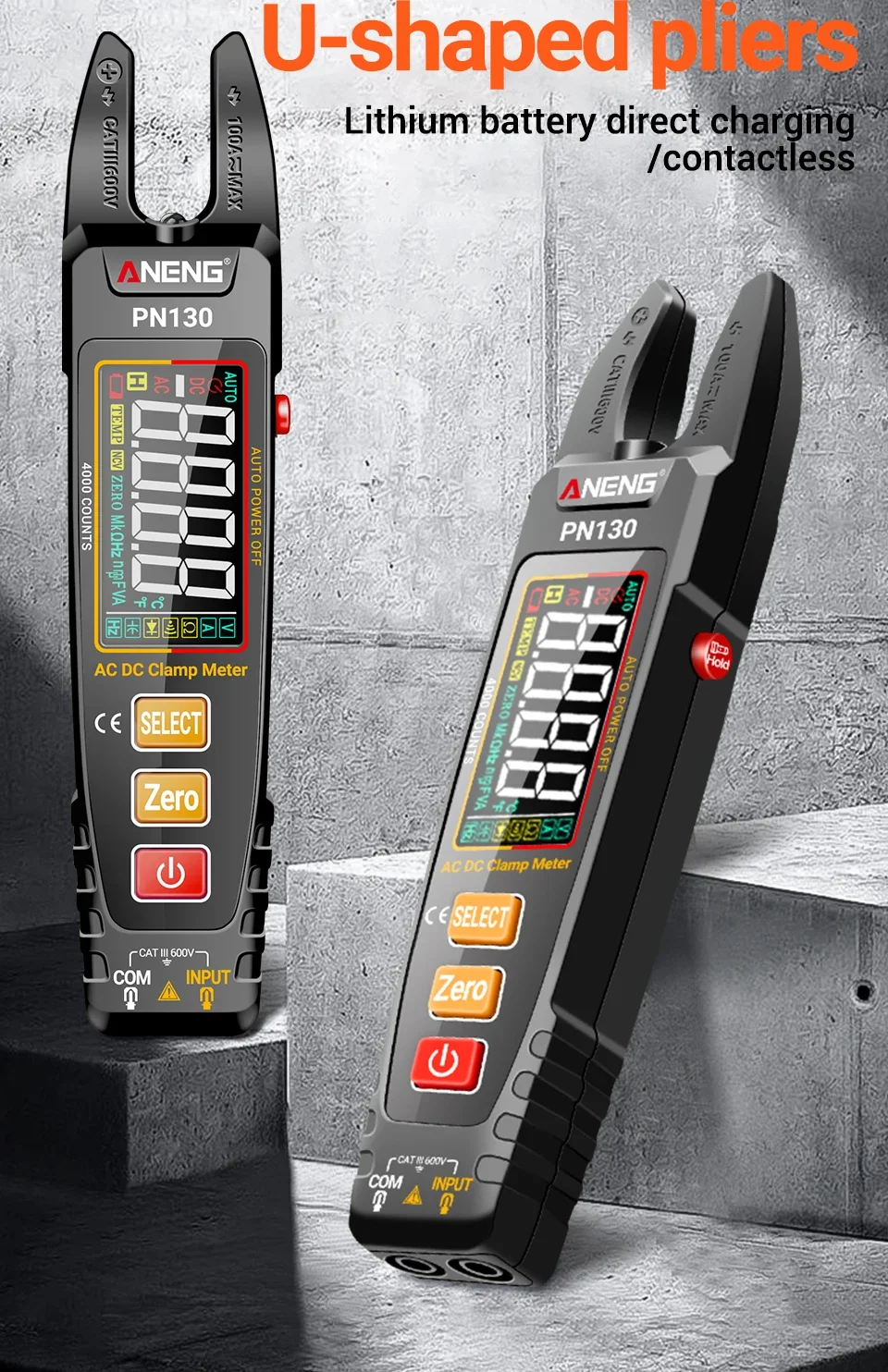

ANENG PN130 Digital Clamp Meter, AC/DC Voltage & Current Tester
ANENG PN130 Mini Clamp Meter AC/DC 100A Current Voltage 4000 Counts Protable Multimeter Capacitance Resistance Testers

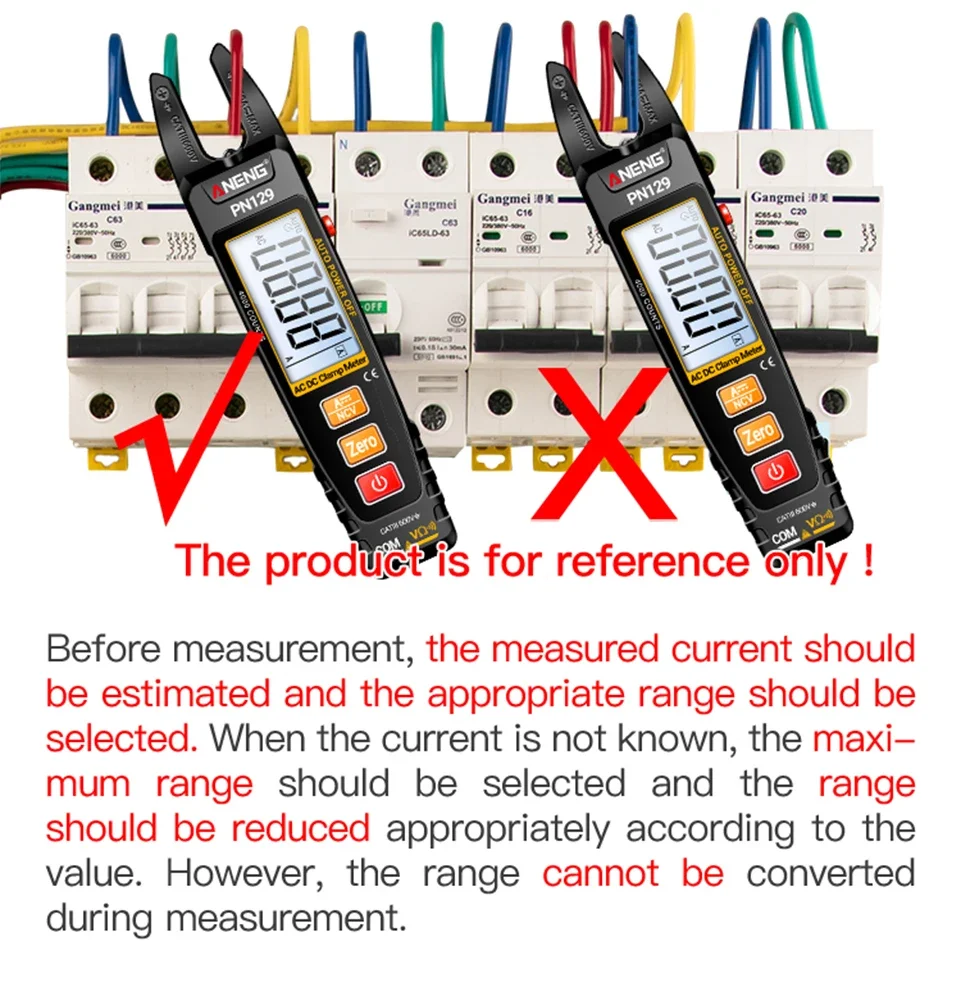

Note: PN129 Don't have capacitor,Hz frequency and Diode.PN129 is an LCD screen.

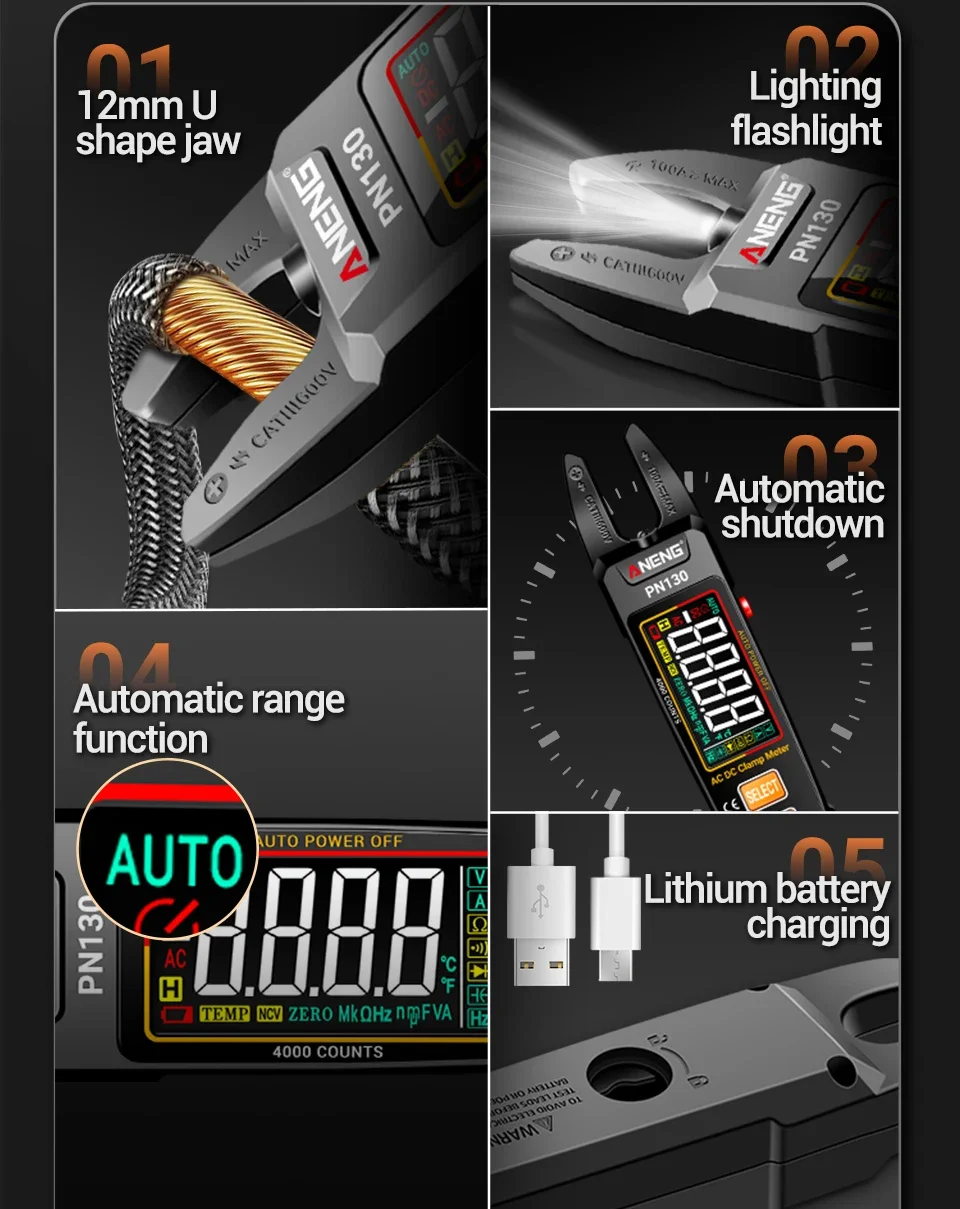

Features:
LCD display: 4000 counts
Polarity indication: DC voltage automatically displays a "-" sign, positive polarity defaults
Overload indicator: Only display "OL"

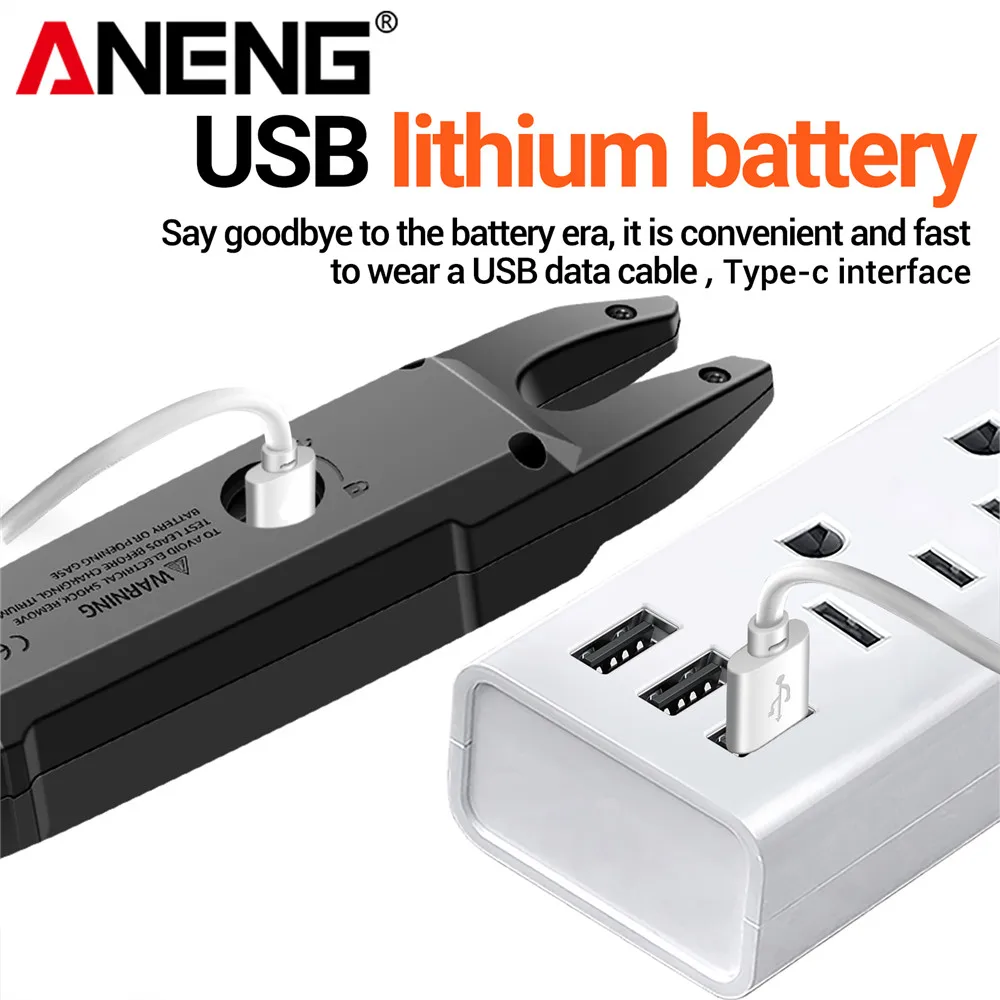

Power requirement: Built in lithium battery
Range selection: automatic
Operating temperature: 0~40 ℃, humidity less than 80%
Storage temperature: -10~50 ℃, humidity less than 85%

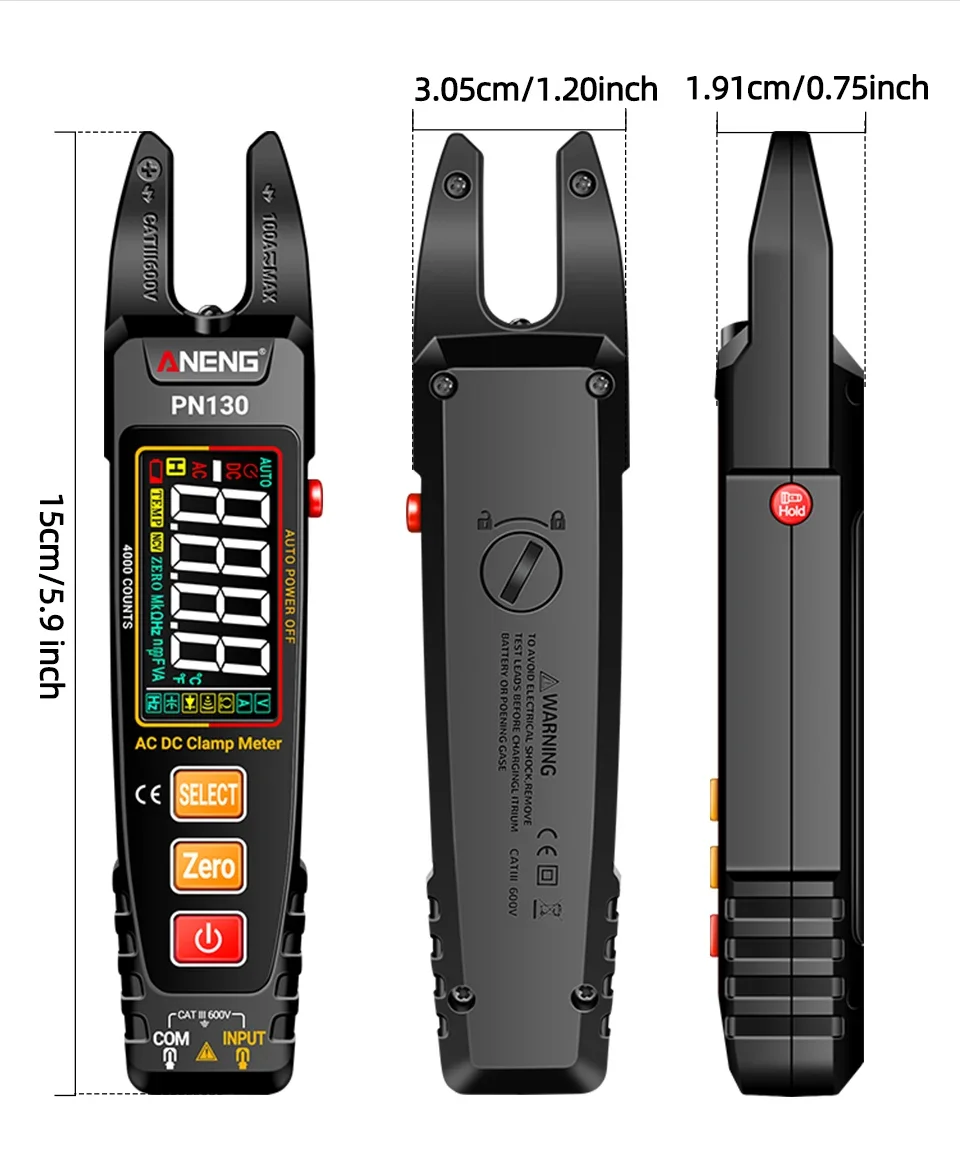

Product dimensions: length 160 x width 37 x thickness 26mm
Product weight: approximately 76g
Specifications:

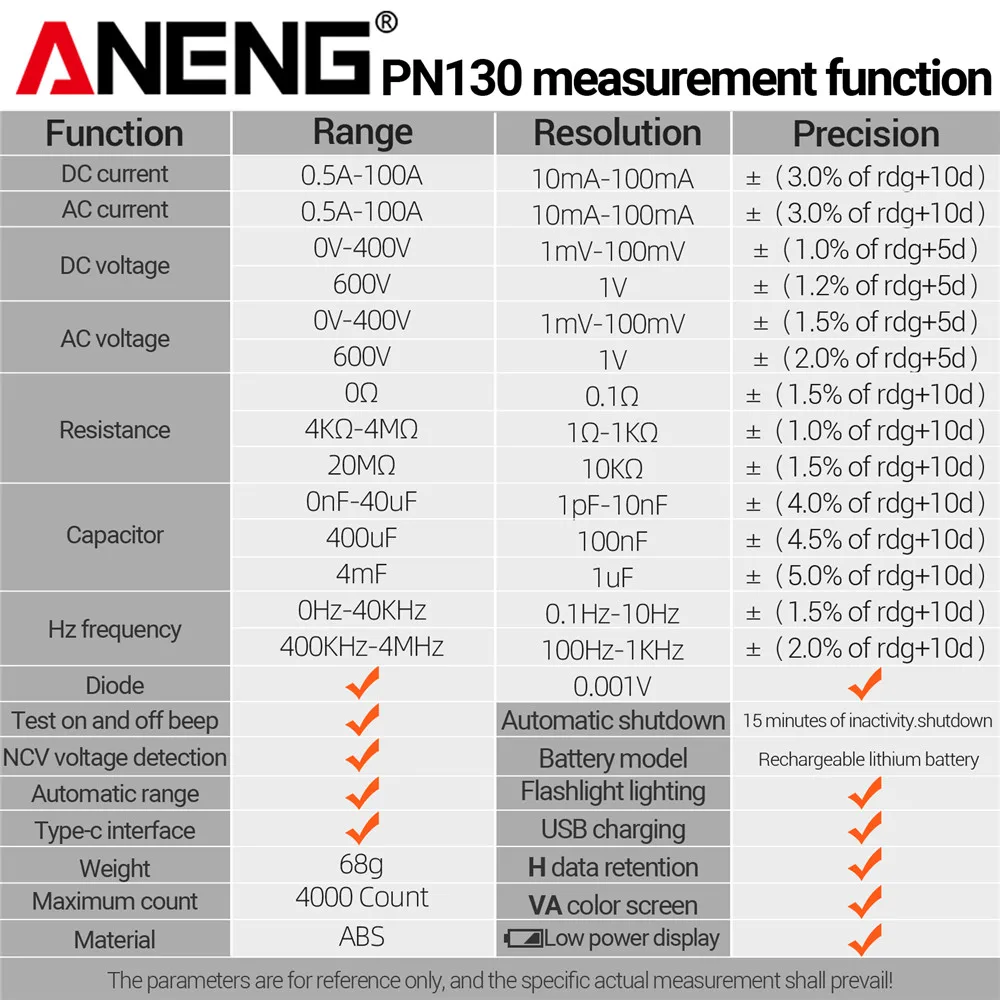

Function | Range | Resolution | Precision |

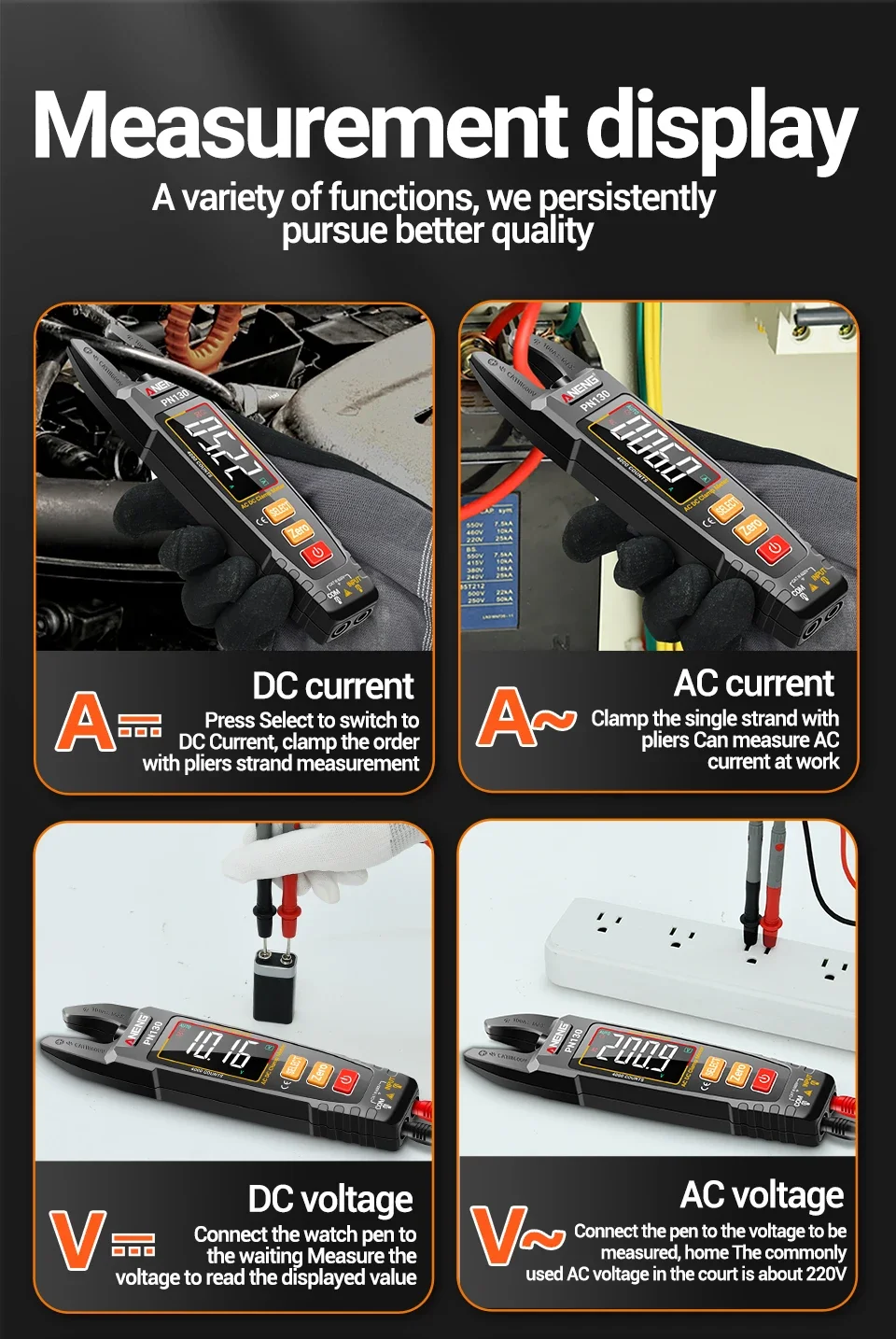

DC current | 0.5A-100A | 10mA-100mA | ±(3.0% of rdg+10d) |

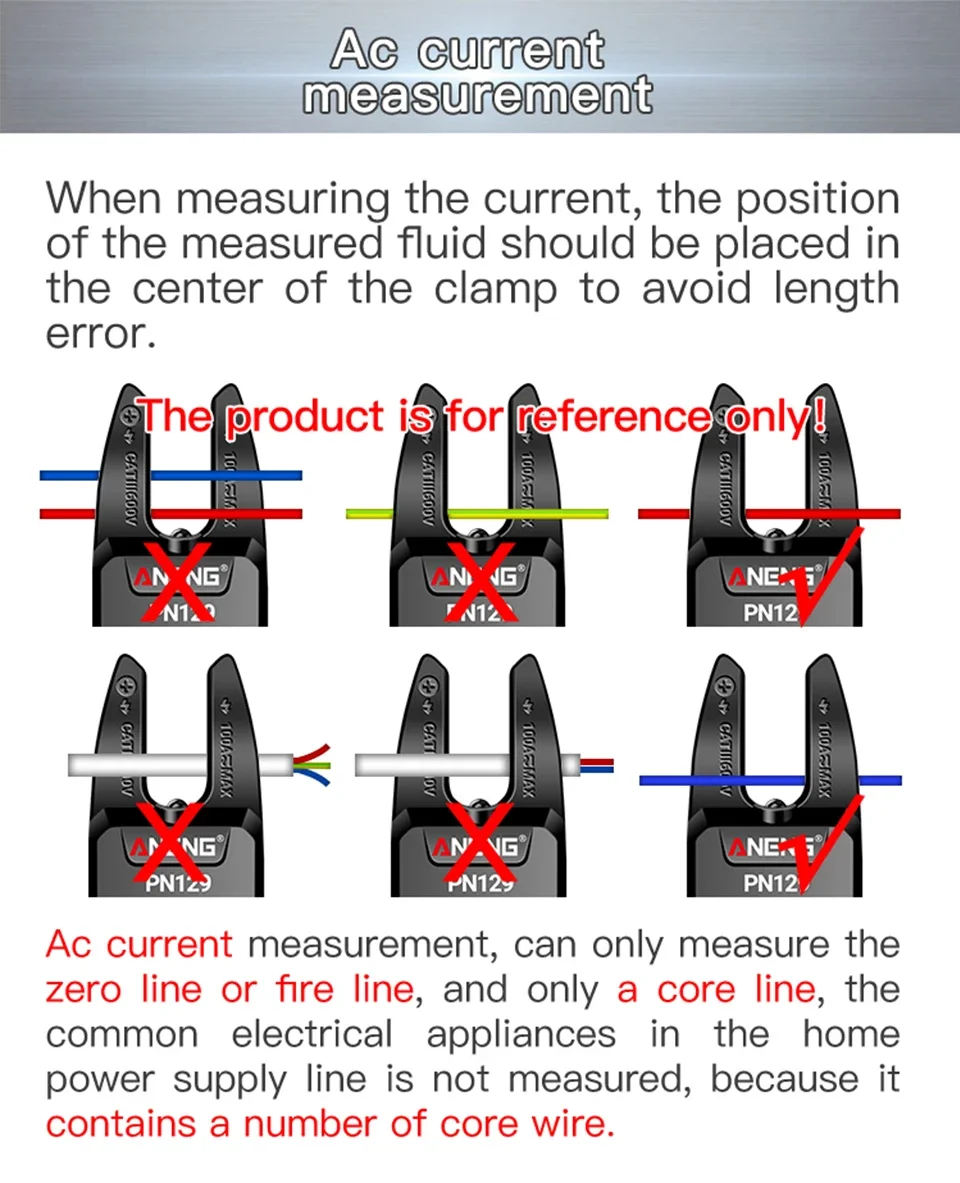

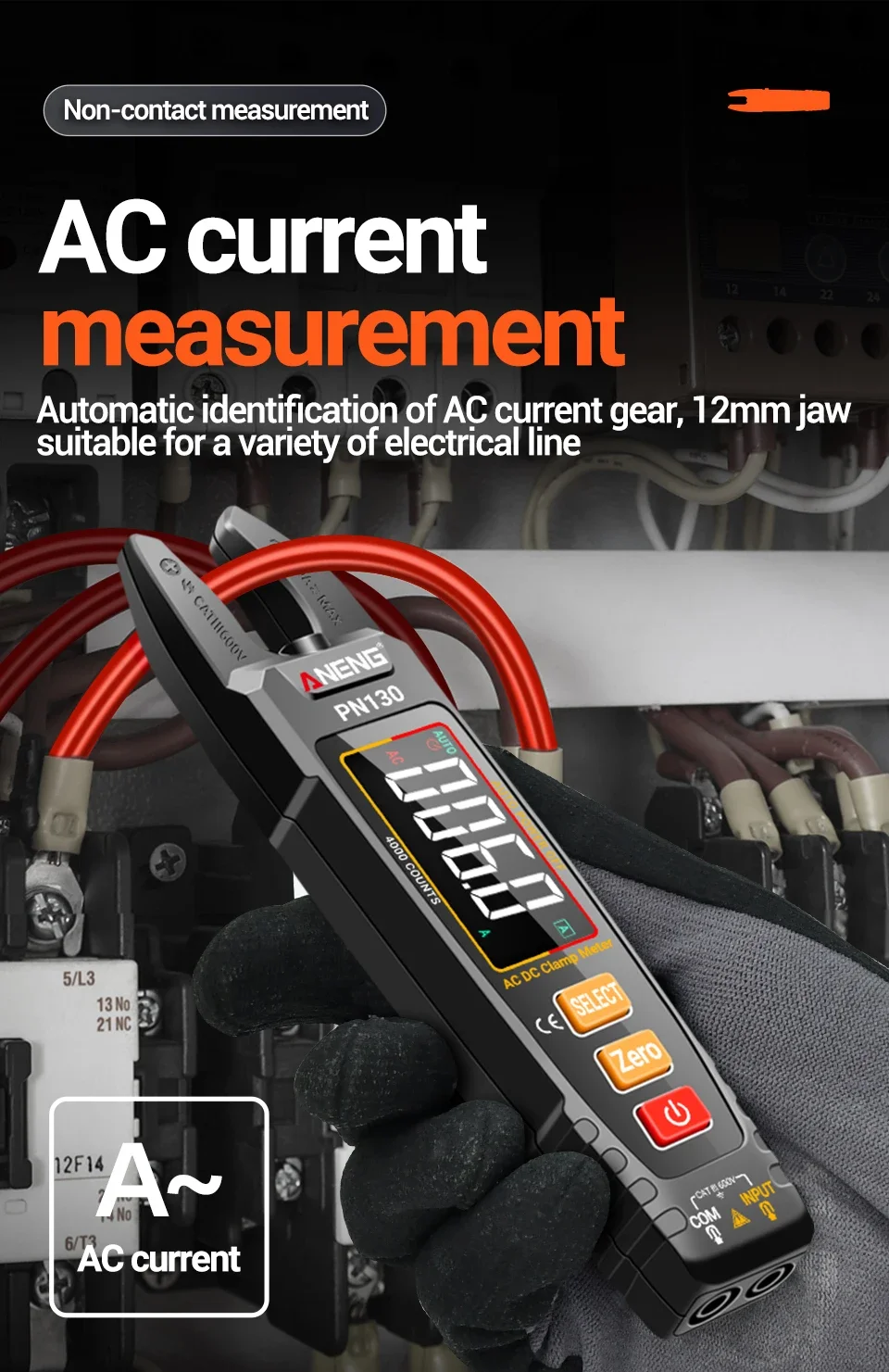

AC current | 0.5A-100A | 10mA-100mA | ±(3.0% of rdg+10d) |
DC voltage | 0V-400V | 1mV-100mV | ±(1.0% of rdg+5d) |
600V | 1V | ±(1.2% of rdg+5d ) | |
AC voltage | 0V-400V | 1mV-100mV | ±(1.5% of rdg+5d) |
600V | 1V | ±(2.0% of rdg+5d) | |

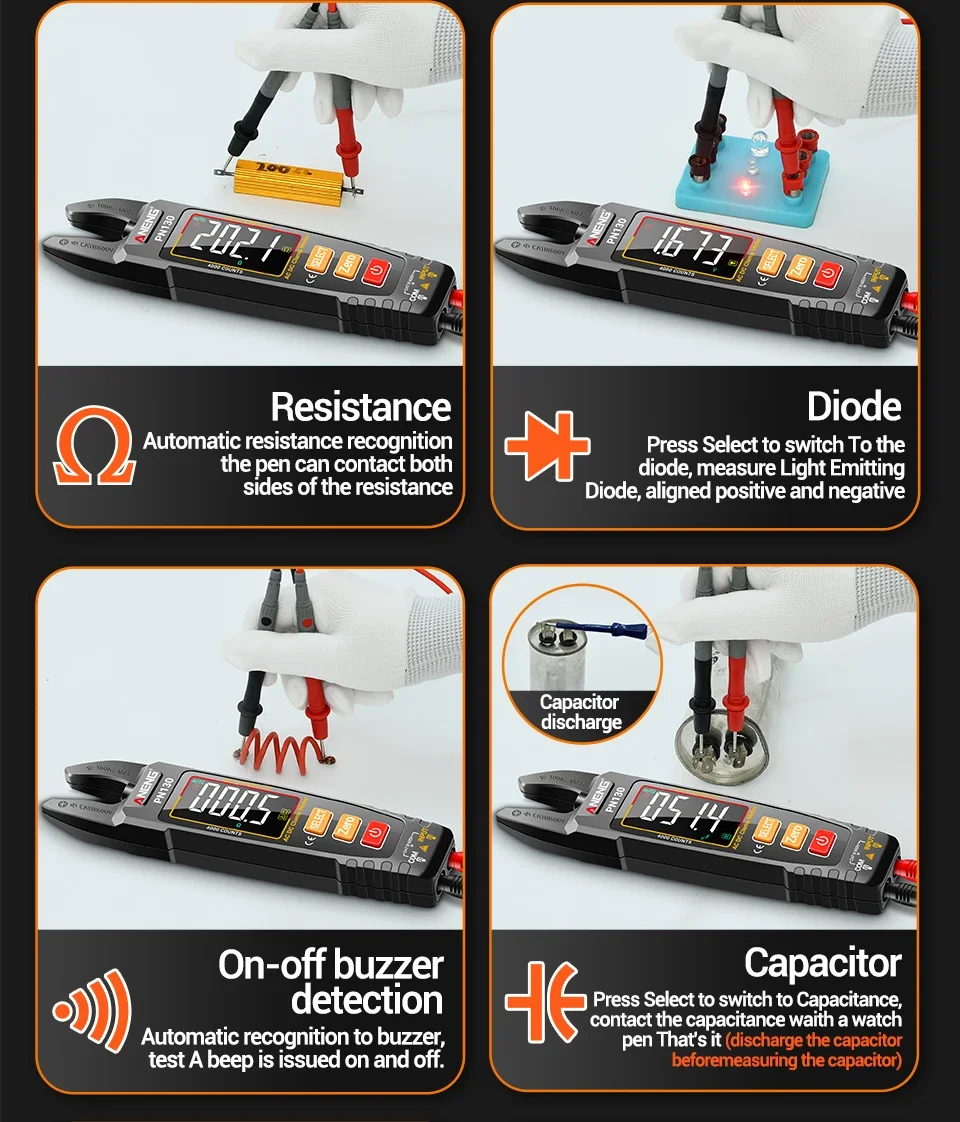

Resistance | 0Ω | 0.1Ω | ±(1.5% of rdg+10d) |
4KΩ-4MΩ | 1Ω-1KΩ | ±(1.0% of rdg+10d) | |
20MΩ | 10KΩ | ±(1.5% of rdg+10d) | |
Capacitor （PN129 don't this function） | 0nF-40uF | 1pF-10nF | ±(4.0% of rdg+10d) |
400uF | 100nF | ±(4.5% of rdg+10d) | |
4mF | 1uF | ±(5.0% of rdg+10d) | |

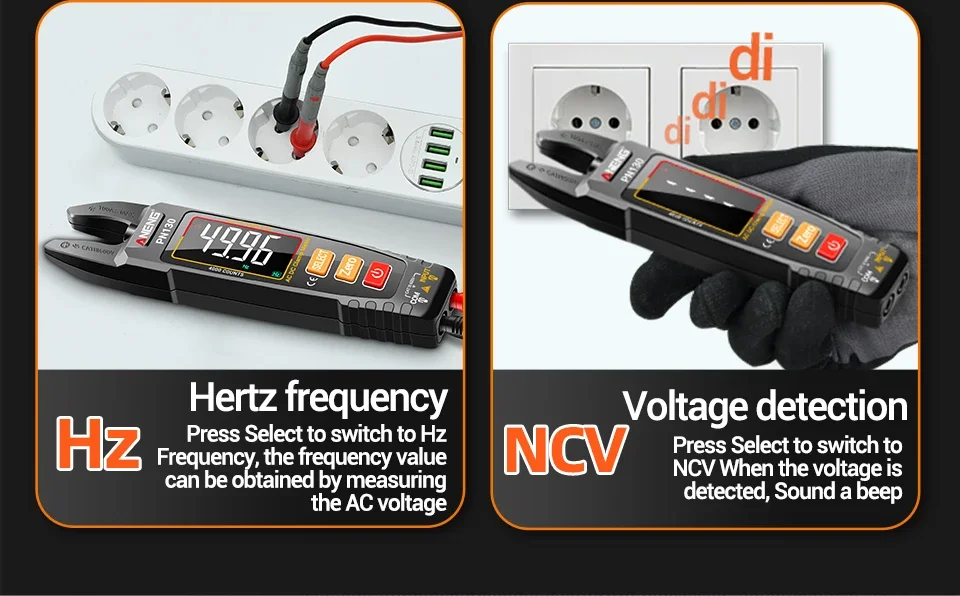

Hz frequency （PN129 don't this function） | 0HZ-40KHZ | 0.1HZ-10HZ | ±(1.5% of rdg+10d) |
400KHZ-4MHZ | 100Hz-1KHZ | ±(2.0% of rdg+10d) | |
Diode （PN129 don't this function | √ | PN130 Battery model | lithium battery |
Test on and off beep | √ | Automatic shutdown | 15 minutes of inactivity.shutdown |

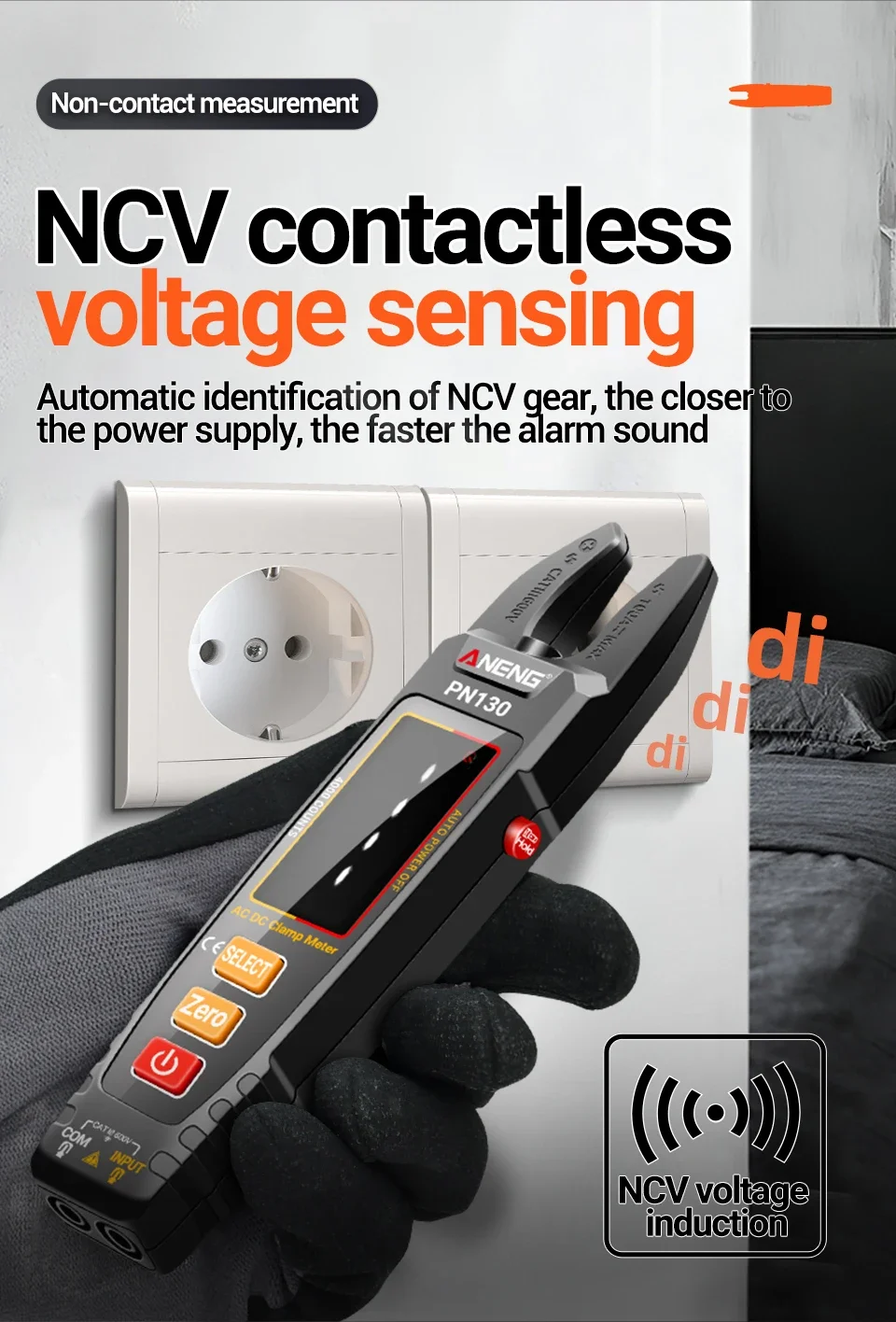

NCV voltage detection | √ | PN129Battery model | AAA*2（not include battery） |

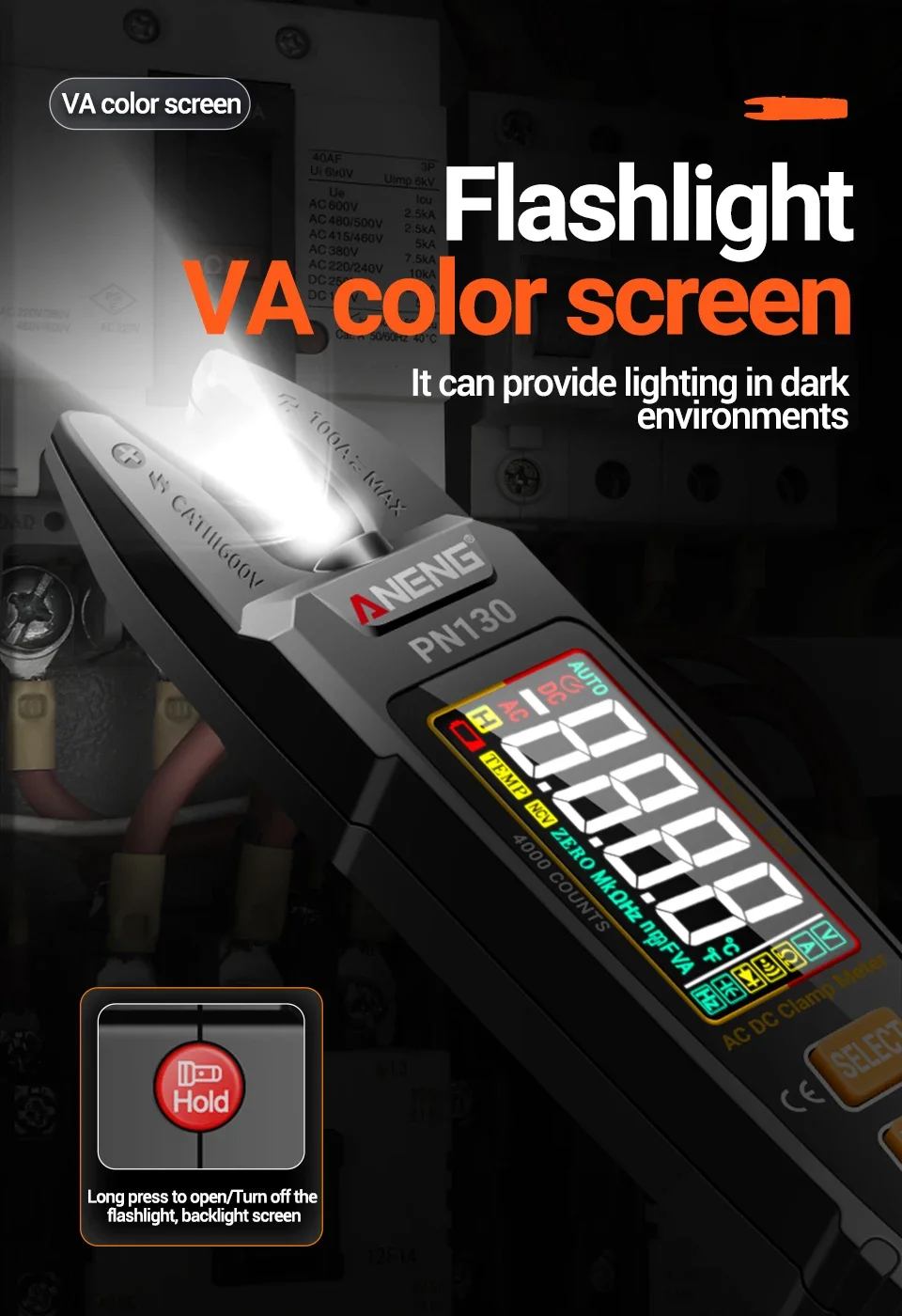

Automatic range | √ | Flashlight lighting | √ |
Weight | 68g | H data retention | √ |

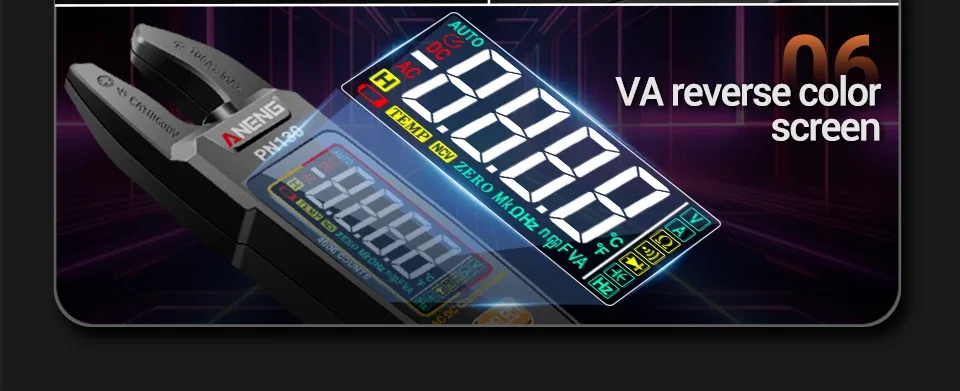

Maximum count | 4000 Count | PN129 LCD screen | PN130 VA color screen |
Material | ABS | Low power display | √ |

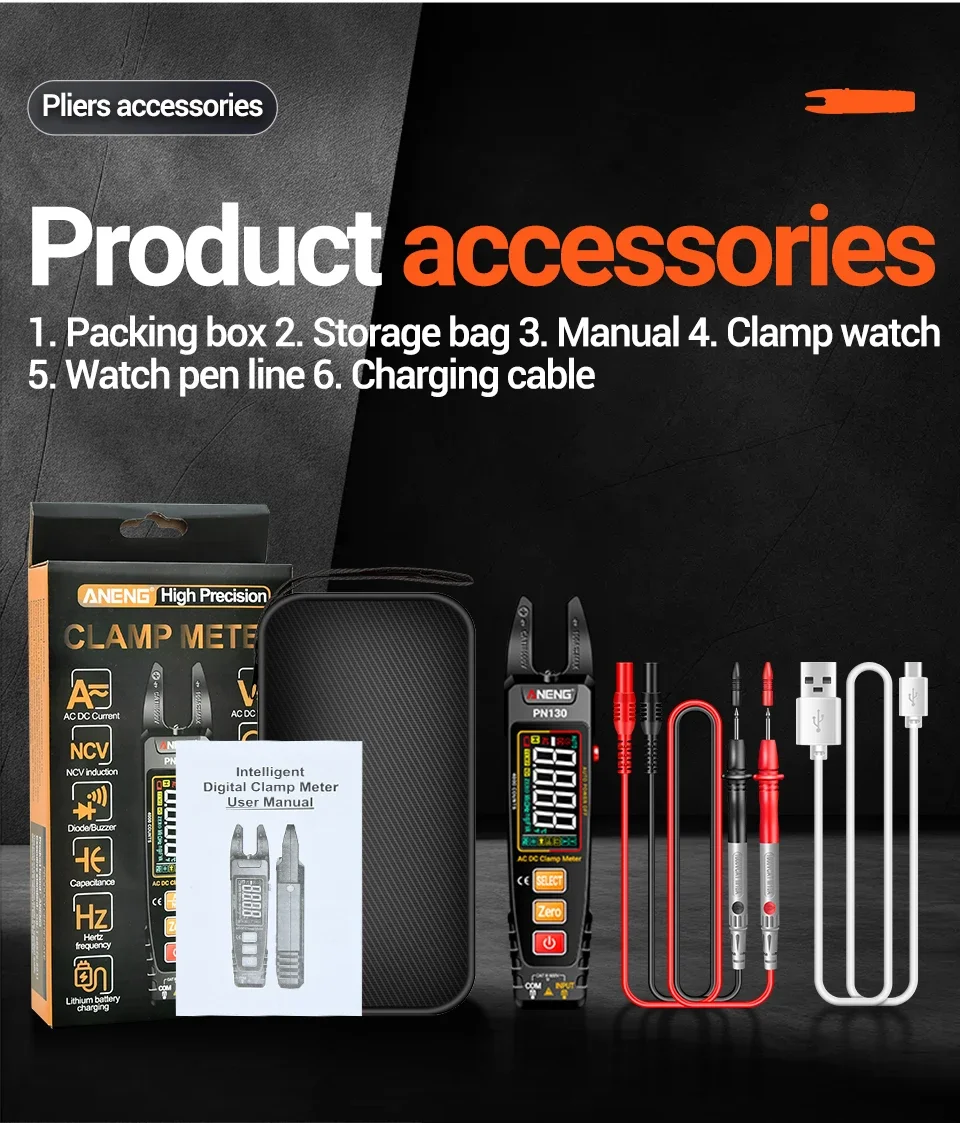

Package List:
1 * Packing box
1 * Storage bag
1 * Manual
1 * Clamp Meter
1 * Multimeter probe
1 * Charging cable(according your choice)
16 in 1 Combination Line(according your choice)
