Product Parameters:
USB/Type-C/USB+Type-C DC 4.5~36V 0-8A
Voltage measurement range: DC 4.5~36V
Current measurement range: 0-5A/0-8A
Capacity totalization range: 0-99999mAh
Power Accumulation Range: 0-99999mWh
Power measurement range: 0-150W
Impedance measurement range: 1-999.9Ω
Temperature measurement range: 0-80℃
Timing time: 999 hours and 59 minutes

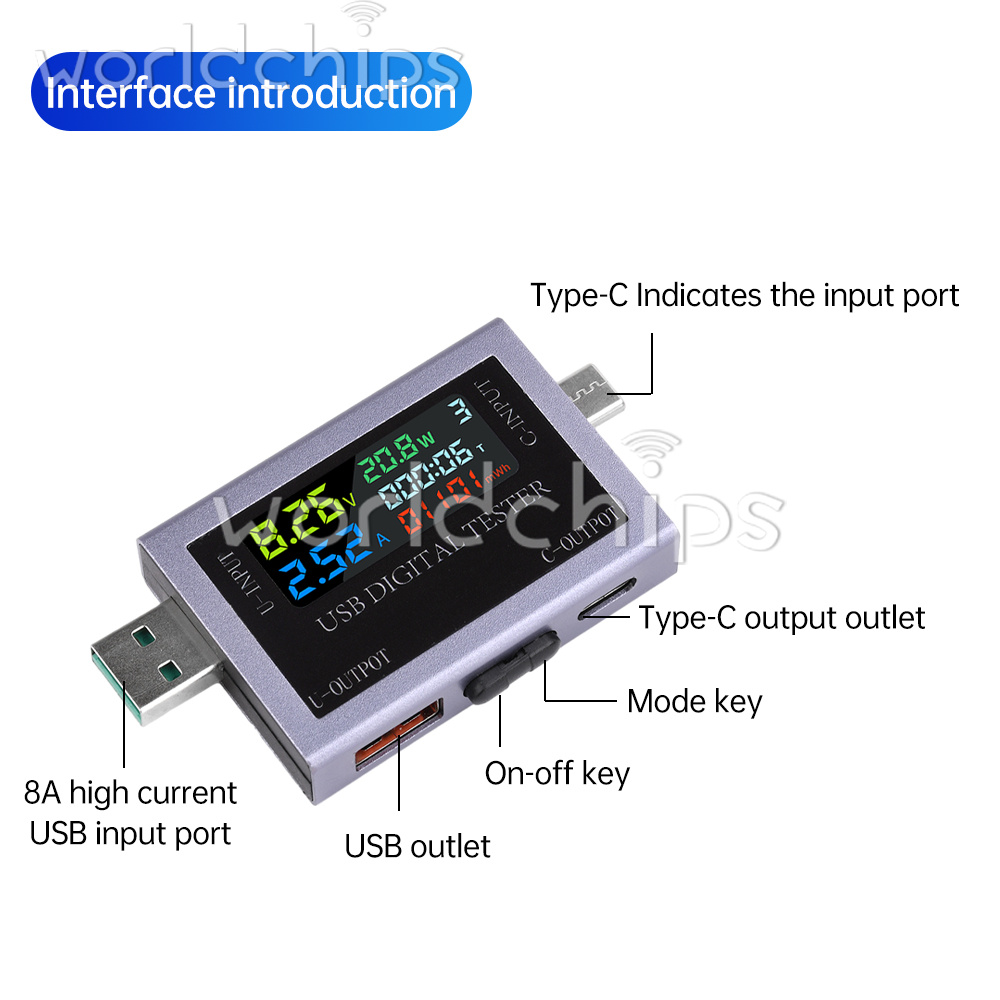

Input interface: 5A high current USB interface/Type-C interface
Output Interface: USB/Type-C
USB D+ voltage range: 0~2.99V
USB D-voltage range: 0~2.99V
Refresh Time: >500mS/times >500mS/times
Measurement rate: about 0.5 times/second
Display: IPS true color digital LCD screen
Self-consumption current: <0.02A
Operating Temperature: -10~60°C
Working humidity: 10~80%RH (no condensation)
Working air pressure: 80~106kPa

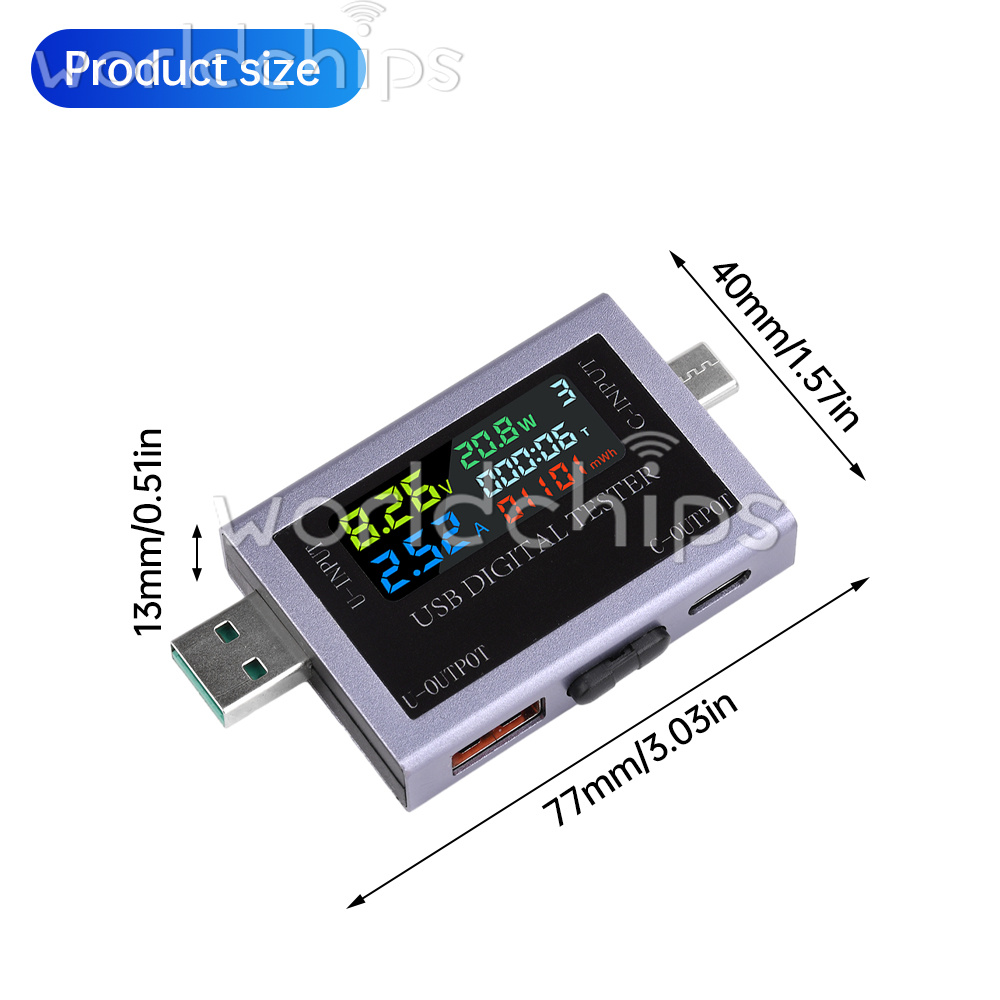

Product Dimension:
USB: 77.6*27*11mm
Type-C: 73.6*27*11mm
USB+Type-C: 76.9*38*11mm

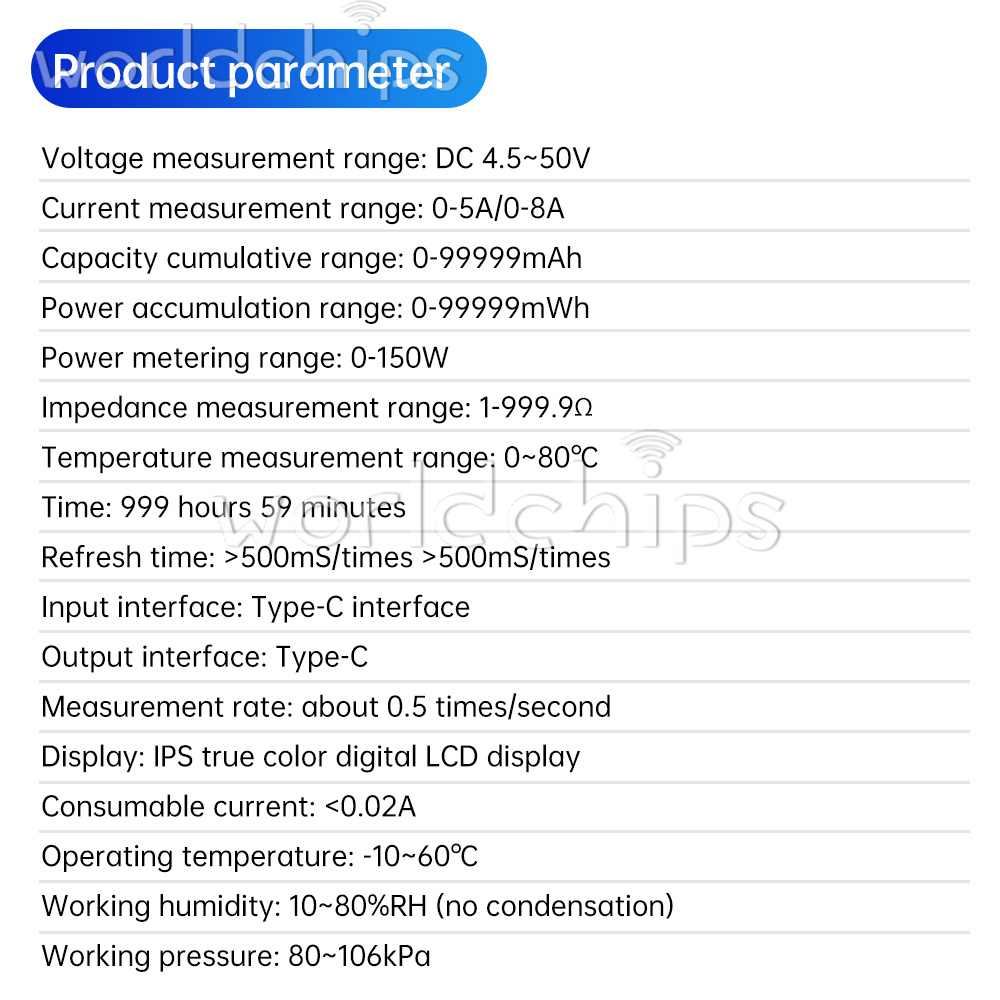

Type-C DC4.5~50V 0-8A
Voltage measurement range: DC 4.5~50V
Current measurement range: 0-5A/0-8A (generally display 0-5A, maximum can display 8A)
Capacity totalization range: 0-99999mAh
Power accumulation range: 0-99999mWh
Power measurement range: 0-150W
Impedance measurement range: 1-999.9Ω
Temperature measurement range: 0-80℃
Timing time: 999 hours and 59 minutes
Input interface: Type-C interface
Output Interface: Type-C
Refresh time: >500mS/times >500mS/times
Measurement rate: about 0.5 times/second
Display: IPS true color digital LCD screen
Self-consumption current: <0.02A
Operating Temperature: -10~60°C
Working humidity: 10~80%RH (no condensation)
Working air pressure: 80~106kPa
Product size: 74*28*13mm
USB+TYPE-C DC4.5~50V 0-8A
Voltage measurement range: DC 4.5~50V
Current measurement range: 0-5A/0-8A (generally display 0-5A, maximum can display 8A)
Capacity totalization range: 0-99999mAh
Power accumulation range: 0-99999mWh
Power measurement range: 0-150W
Impedance measurement range: 1-999.9Ω
Temperature measurement range: 0-80℃
Timing time: 999 hours and 59 minutes
Input interface: USB+Type-C interface
Output Interface: USB+Type-C
Refresh time: >500mS/times >500mS/times
Measurement rate: about 0.5 times/second
Display: IPS true color digital LCD screen
Self-consumption current: <0.02A
Operating Temperature: -10~60°C
Working humidity: 10~80%RH (no condensation)
Working air pressure: 80~106kPa
Product size: 77*40*13mm
Package include:
Voltmeter Ammeterx1
-
