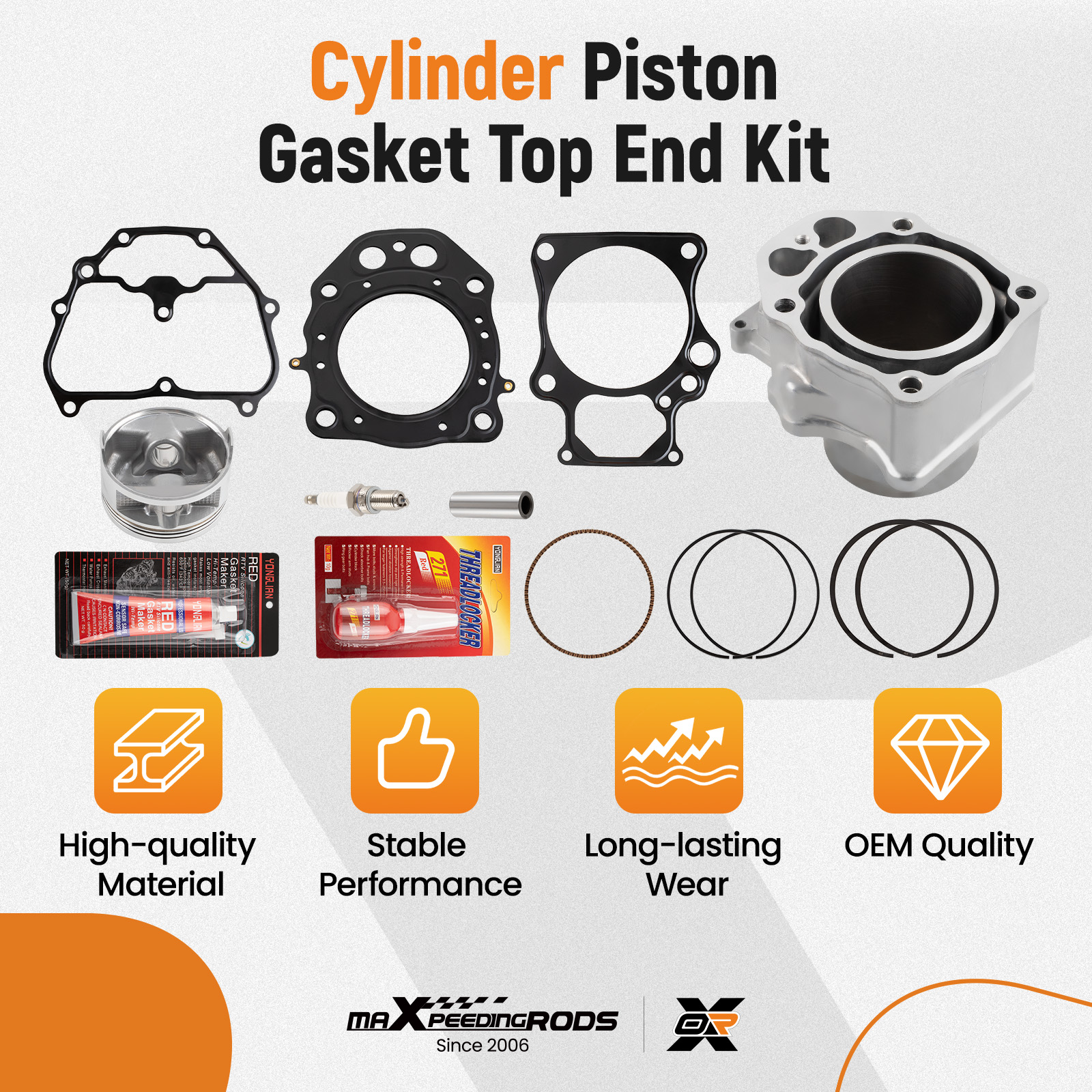

Cylinder Piston Rings Gasket Kit for Honda Rancher TRX420 FE TE FM TM 2007-2018

Note

*Please follow the steps below to confirm that the product is suitable for your vehicle.
*If you are not sure, please contact us, Please have your vehicle VIN number, year, and car model ready when contacting us.
*The VIN code is a 17-digit number composed of letters and numbers. It is usually behind the car's windshield or on the car's nameplate.
*No Instruction Included, professional installation is highly recommended.

Application

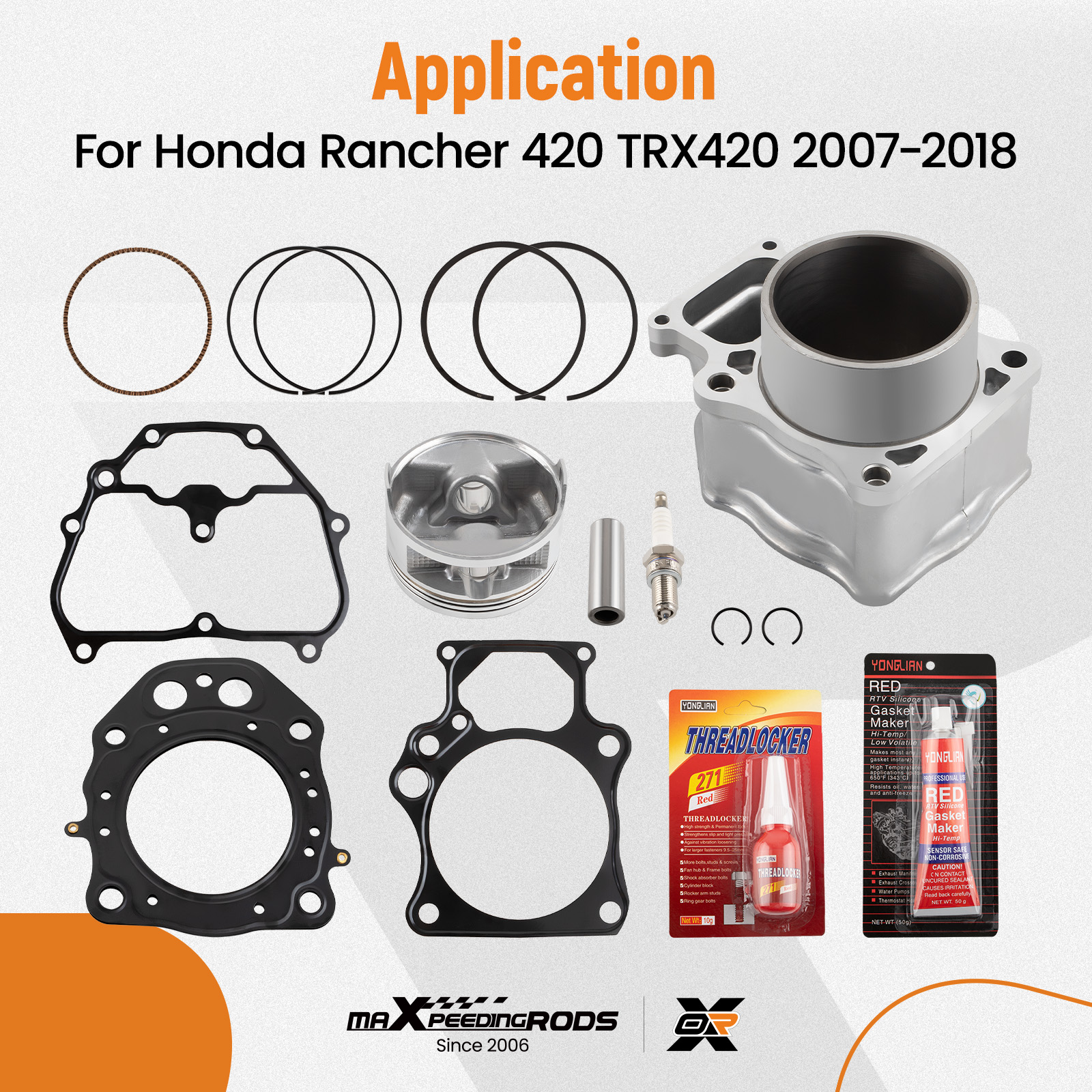

for Honda TRX420 Rancher 420 2007-2023

OE/Part number

Base Gasket: 12191-HP5-601
Circlips: 13112-MAT-000
Cylinder: 12100-HP7-A00, 12100-HP5-600
Head Cover Gasket: 12315-HP5-601
Piston: 13101-HP5-600
Head Gasket: 12251-HP5-601, 12251-HP7-A01
Piston Rings: 13010-HP5-600
Wristpin: 13111-HP5-600

12100-HP7-A00, 12100-HP5-600, 13101-HP5-600, 13010-HP5-600
13111-HP5-600, 13112-MAT-000, 12191-HP5-601, 12251-HP7-A01
12251-HP5-601, 12315-HP5-601, 12100HP7A00, 12100HP5600
13101HP5600, 13010HP5600, 13111HP5600, 13112MAT000
12191HP5601, 12251HP7A01, 12251HP5601, 12315HP5601

Feature

- Direct replacement, easier to install.
- Made of high quality Aluminum, impact-resistant, corrosion and wear resistance.
- Wear resistance and heat resistance, long service life.
- The Gaskets with great sealing performance, leakage prevention.
- Cylinder Piston Kit bore size - 86.5mm

Specification

Condition	New
Fitment Type	Direct Replacement
Type	Cylinder Piston Top End Rebuild Kit
Bore Size	86.5mm
Compression	9.9:1
Engine Type	4-Stroke
Height of the Cylinder:	119mm
Internal Cylinder Coating	No
Piston	Cast Piston
Piston Size	86.5mm
Manufacturer Warranty	2 Years

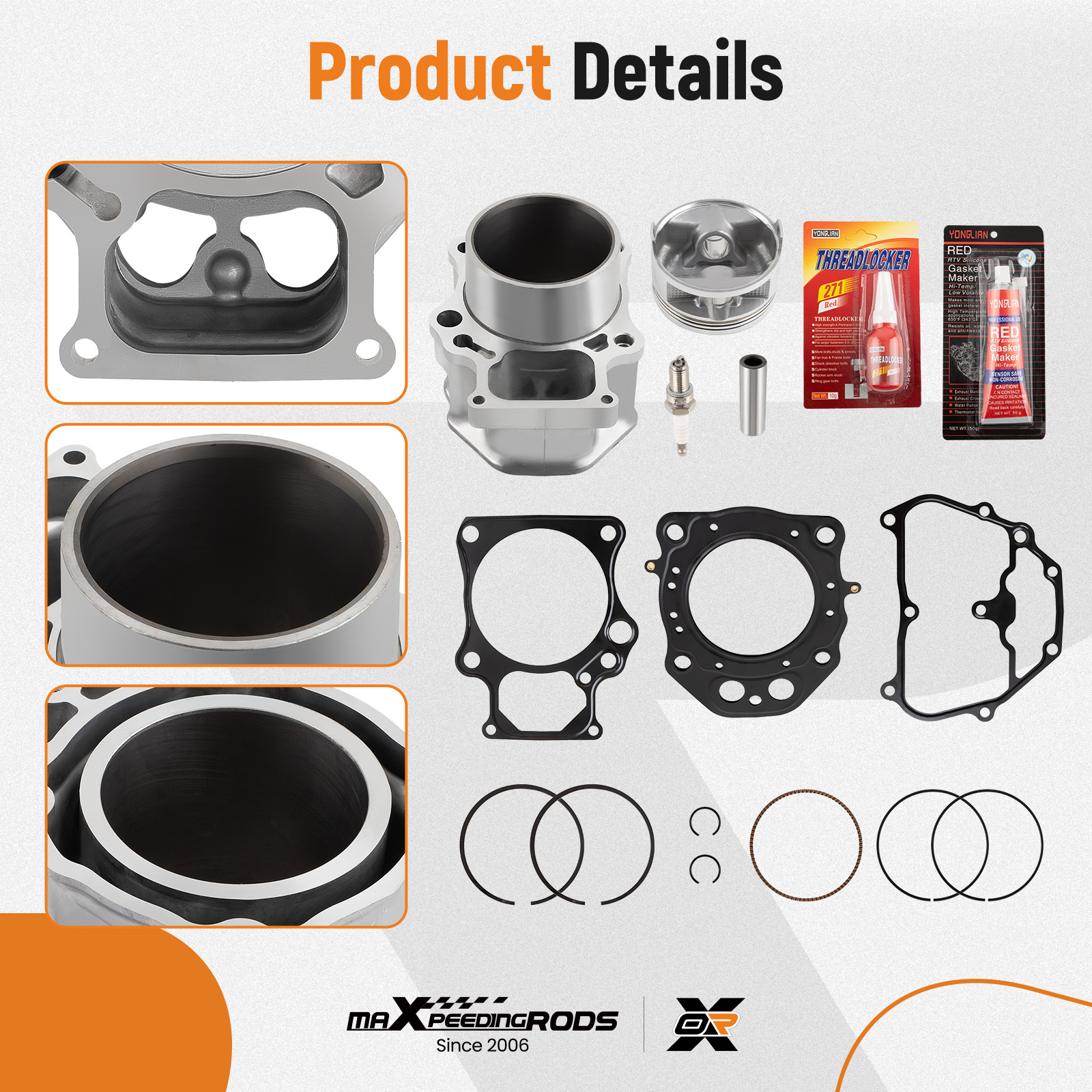

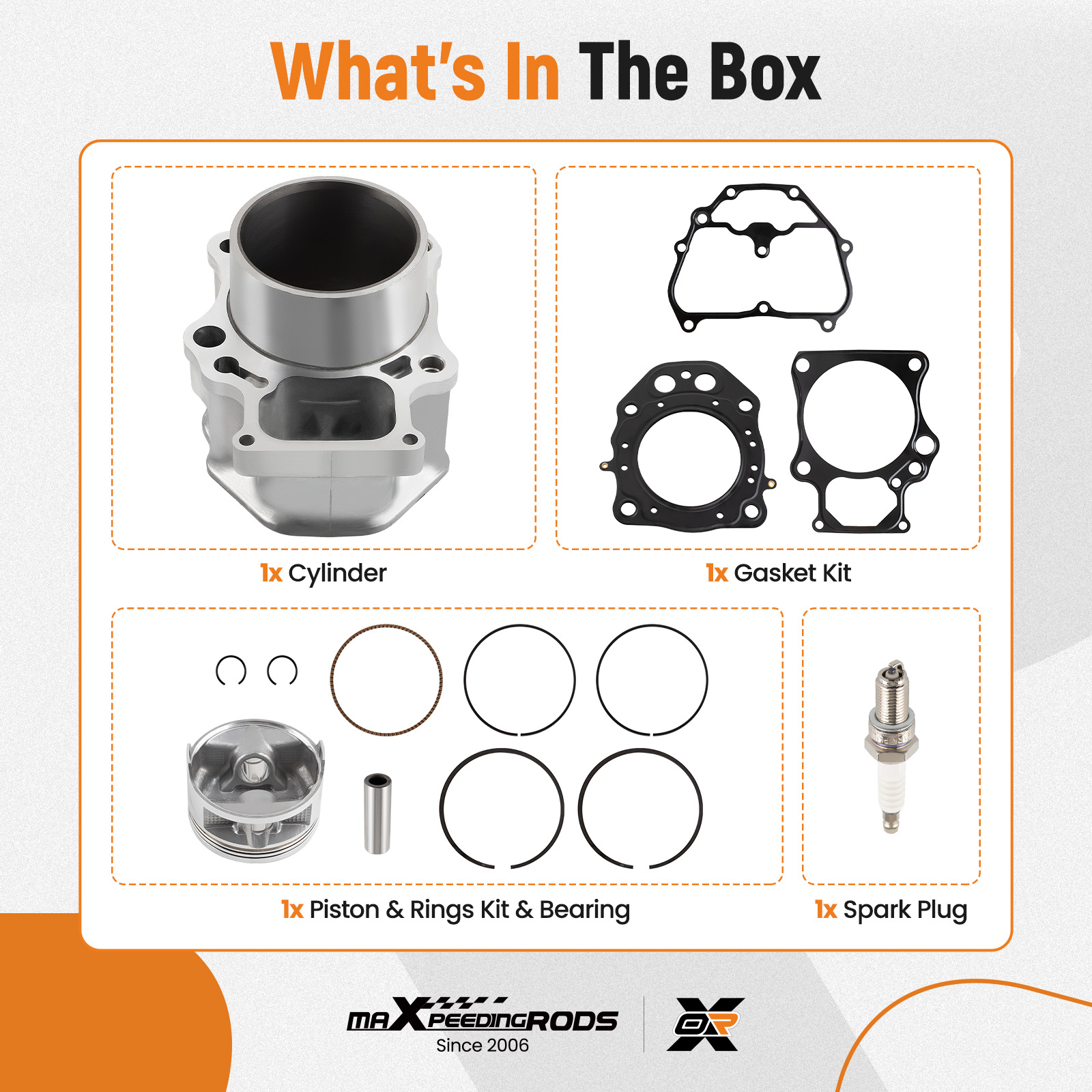

Package Includes	1x Cylinder 1x Piston 1x Wristpin 2x Circlips 1x Piston Rings 1x Head Gasket 1x Base Gasket 1x Head Cover Gasket 1x Spark Plug

	See Details	See Details
Application	for Honda TRX420 Rancher 420 2007-2018	for Honda TRX420 2009-2024

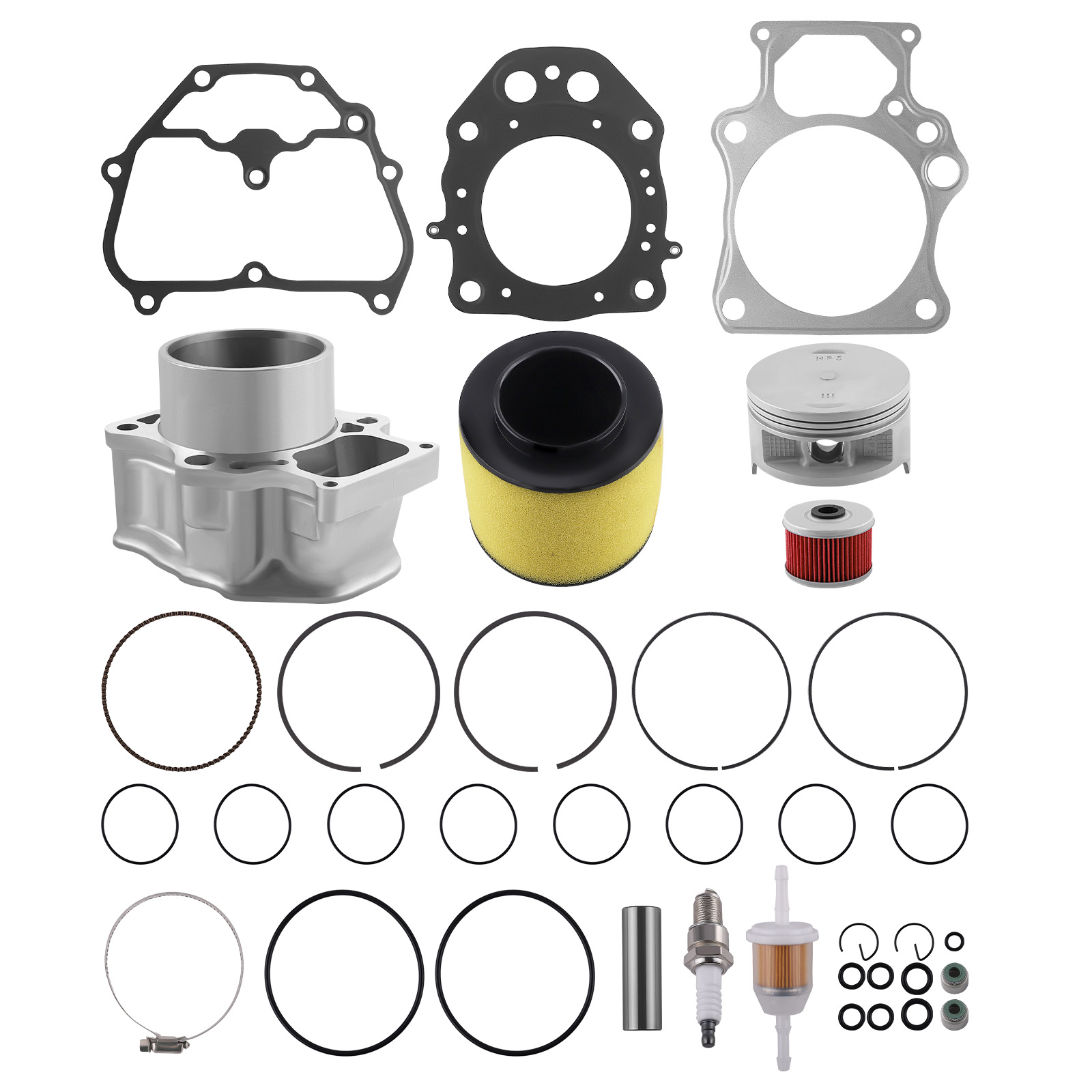

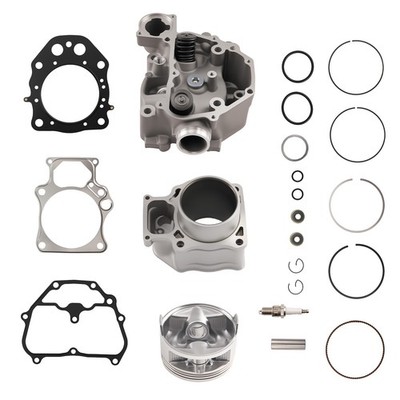

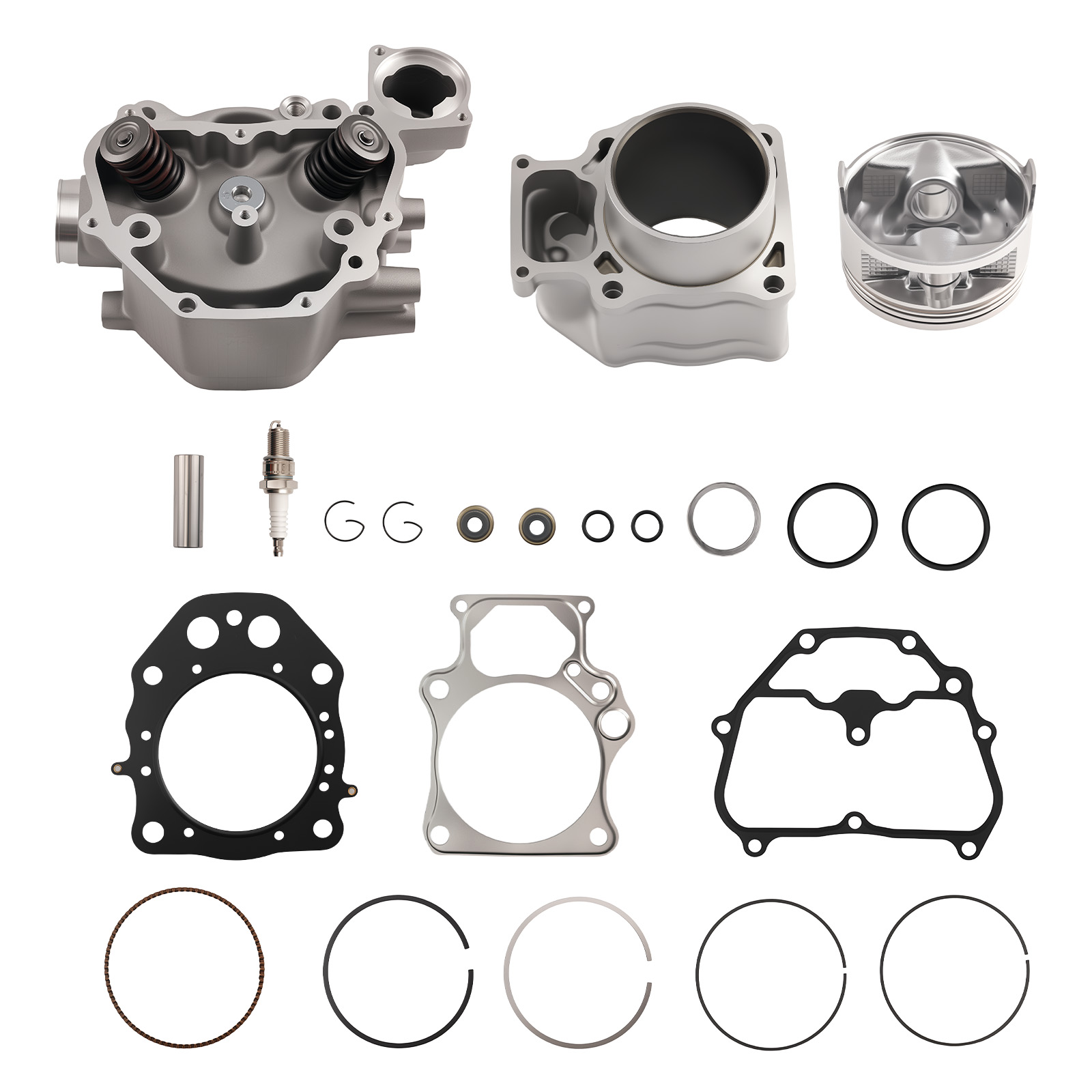

Package Includes	1x Cylinder, 1x Piston Ring Kit, 1x Head Gasket, 1x Base Gasket, 1x Head Cover Gasket, 1x Air Filter, 1x Oil Filter, 1x Spark Plug	1x Cylinder, 1x Cylinder Head, 1x Piston, 1x intermediate repair kit
Bore Size	86.5mm	86.5mm
