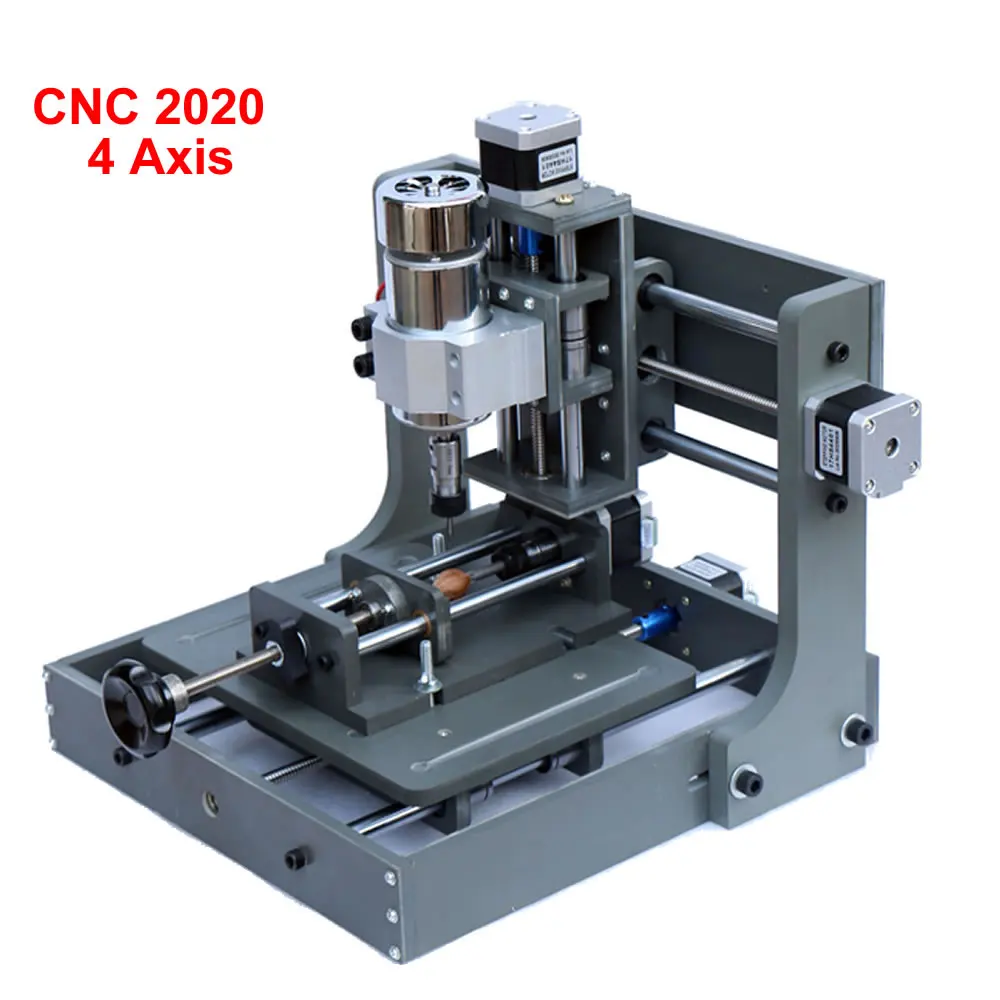

Technical Parameters

Effective travel: 220*200*60 mm;

Stepper motor: 42mm 1.5A;

Spindle motor: 300W high-speed,

Spindle clamp: 52mm

Power supply: 48V 360W

Collet chuck: ER11-3.175mm

Rail type:

X axis is a 12 mm diameter hard axis,

Y axis is a 16 mm diameter hard axis,

Z axis is a 12 mm diameter hard axis;

XYZ axis are T8 stainless steel screw, with double nut back to poor organization

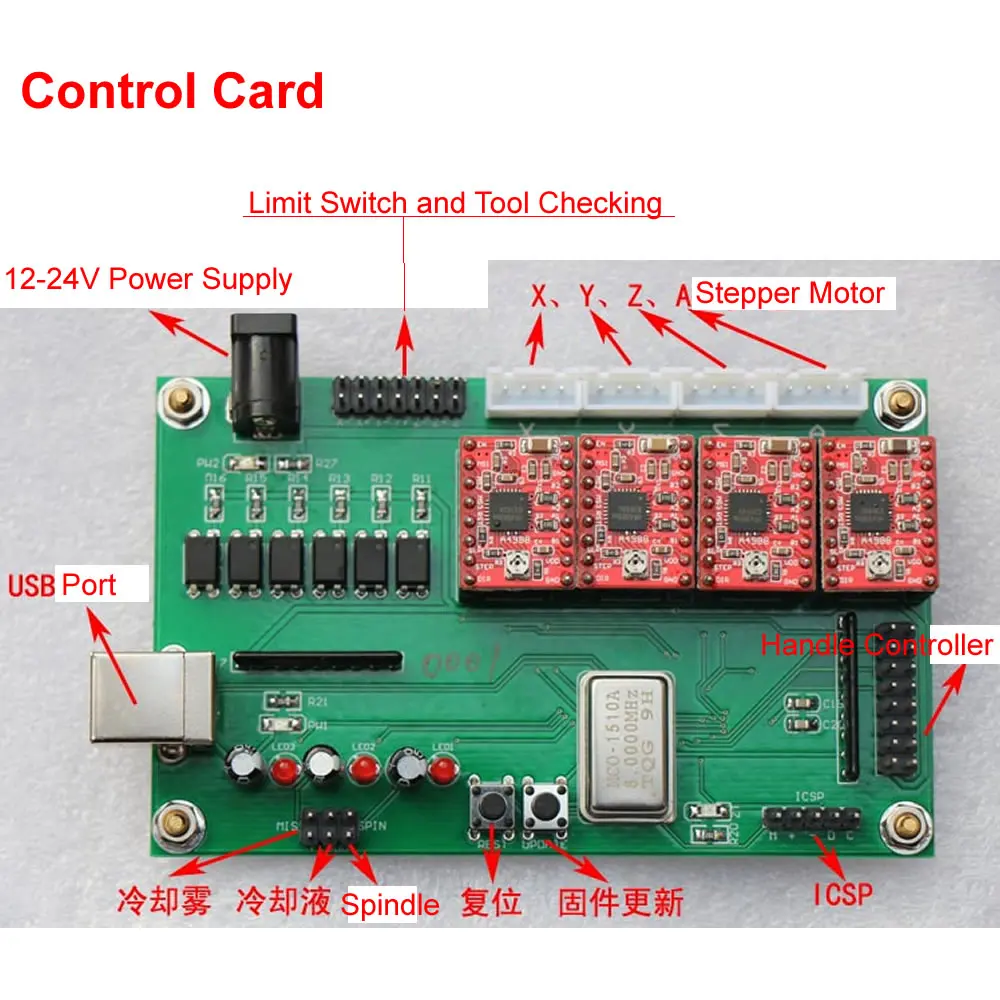

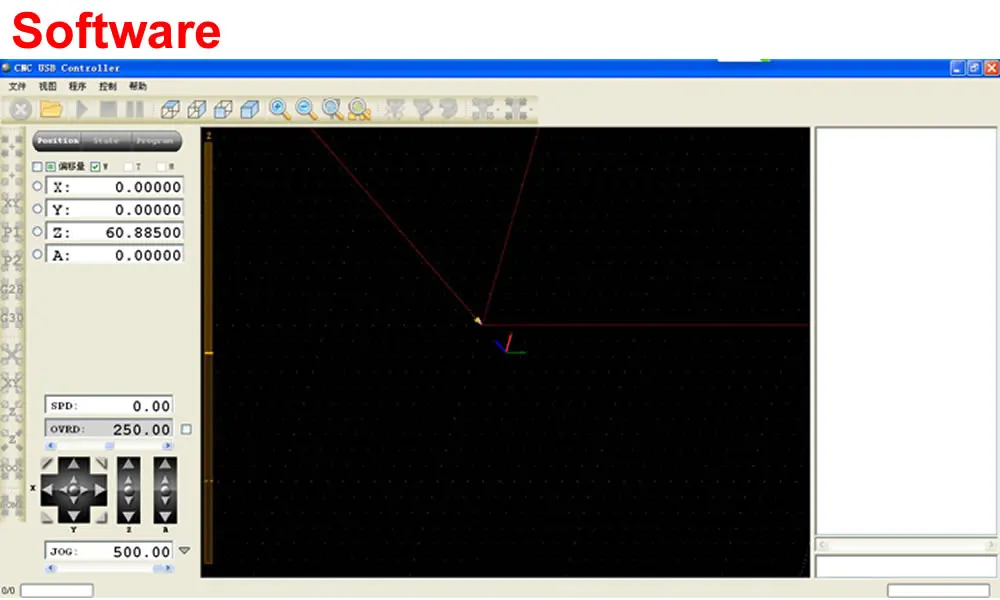

Software: 4 axis-CNCUSBController; 3 axis-GRBL

Interface: USB port (Windows 7, 8, 10)

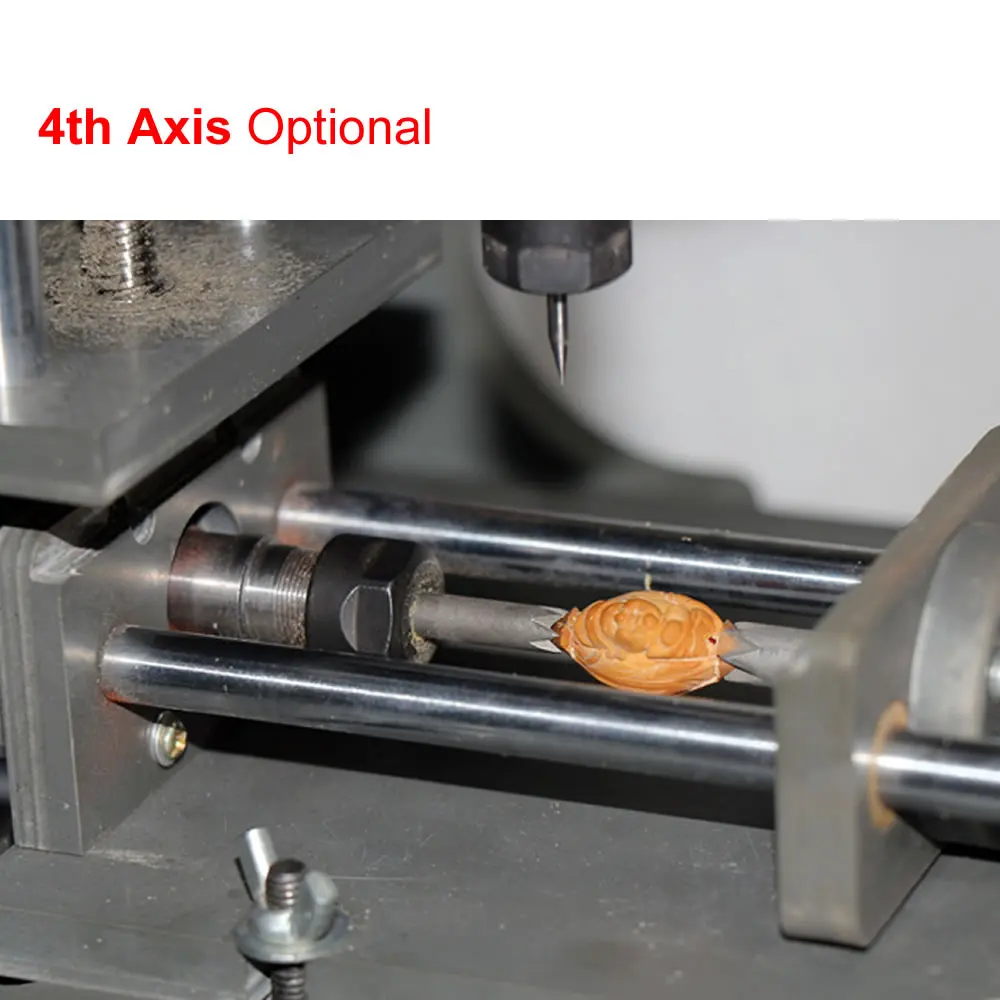

4th Axis:

It can clamp both flat engraving workpieces and round engraving workpieces.

1. Flat engraving

Jaw width: Max 78mm.

Jaw opening: Max 140mm.

2. Round engraving

Maximum diameter: 42mm.

Maximum length: 60mm.
