42XA775YSY 42mm Micro DC 12V 24V Planetary Gearmotors 35W Gear Box Motor
Full Metal Gear, Silent & High Torque, 10/15/20/30/50/100/200/300/500RPM
Full Metal Gear, Silent & High Torque, 10/15/20/30/50/100/200/300/500RPM
High-quality materials, environmentally friendly, safe and reliable, durable and long life. Excellent craftsmanship, quick installation and simple use.
Small size, High torque, High efficiency, Low noise, Stable performance. Adjustable speed，Reversible.
All gears are made of metal gears, which are wear-resistant, stable in transmission and large torque.
The use of pure copper coil wound rotor is not easy to heat, and the service life is longer.
Notice: The lower speed, the larger torque.
Model: Planetary Gearmotor Gearbox Motor 42XA775YSY
Rated Voltage: DC 12V, DC 24V
No-load Speed: 10RPM, 15RPM, 20RPM, 30RPM, 50RPM, 100RPM, 200RPM, 300RPM, 500RPM
Power: 35W
Motor Diameter: 42 mm
Motor Length: 66 mm + Gearbox Length（L） [The slower the speed, the longer the gearbox length.]
"D" Profile Shaft
Output Shaft Diameter: 8 mm
Output Shaft Length: 23 mm
Model: Planetary Gearmotor Gearbox Motor 42XA775YSY
Rated Voltage: DC 12V, DC 24V
No-load Speed: 10RPM, 15RPM, 20RPM, 30RPM, 50RPM, 100RPM, 200RPM, 300RPM, 500RPM
Power: 35W
Motor Diameter: 42 mm
Motor Length: 66 mm + Gearbox Length（L） [The slower the speed, the longer the gearbox length.]
"D" Profile Shaft
Output Shaft Diameter: 8 mm
Output Shaft Length: 23 mm

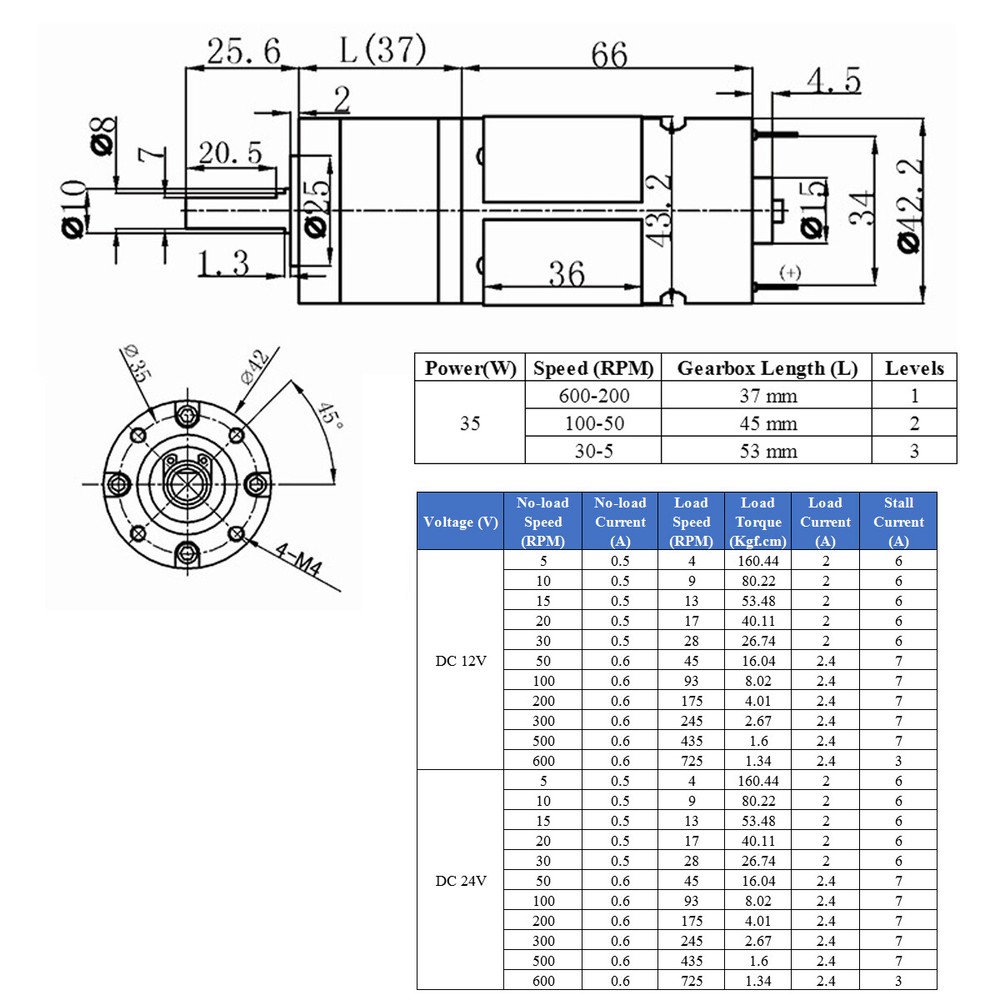

Exact dimensions can also be viewed in the photo gallery.
You can find more products in different material, type, color , sizes and shapes in our shop！ If you have special needs, please contact us, we can customize according to your needs!
Note:
- Please allow minor errors due to manual measurement. Thank you for your comprehension.
- Monitors are not calibrated, the element color shown in the photos may differ slightly from the real object. Please take the real one as standard.
- Please allow minor errors due to manual measurement. Thank you for your comprehension.
- Monitors are not calibrated, the element color shown in the photos may differ slightly from the real object. Please take the real one as standard.
Package included : 1pcs Micro Planetary Gearbox Motor
According to your choice
According to your choice
