Handheld agriculture soil testing kit smart agriculture sensors soil moisture datalogger soil analyzer for npk
FEATURES: soil analyzer soil analyzer
1. The measurement results can be displayed directly, which is simple and convenient, with low measurement cost and fast
measurement speed.
2. A variety of recording methods are optional.
3. Large-size color display screen, large-capacity storage.

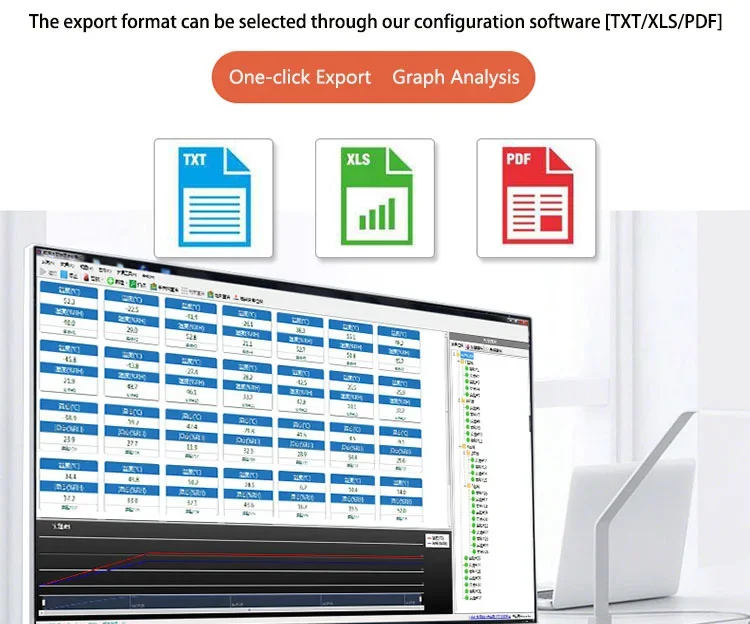

4. One-key export of data, convenient and quick.

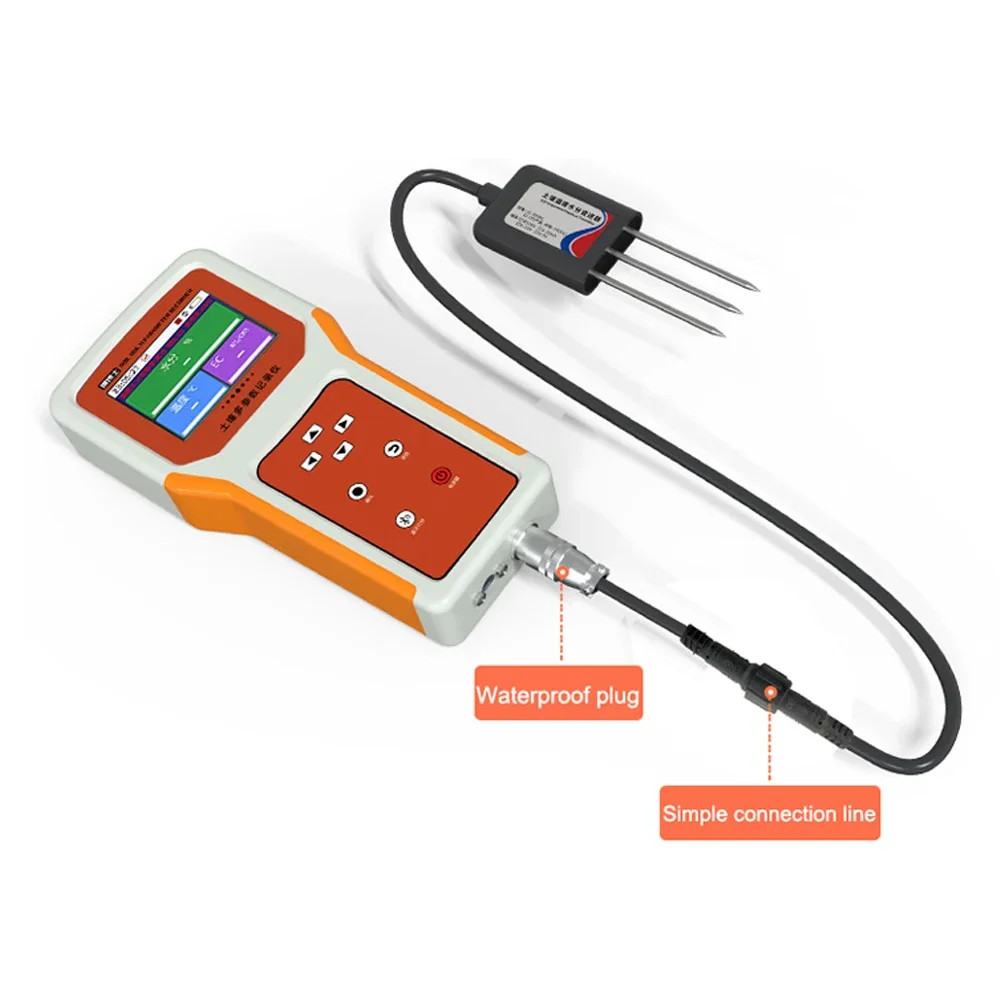

5. The probe plug-in design ensures accurate measurement and reliable performance.
|
item
|
Handheld Display Terminal
|
|
Customized support
|
OEM
|
|
|
|
|
Model Number
|
RS-TRREC-N01-1
|
|
Product name
|
soil moisture datalogger soil analyzer for npk
|
|
Operating Voltage
|
DC 3.7V
|
|
Power supply
|
Battery powered (5000mAh lithium battery)
|
|
data storage
|
1 million data
|
|
working environment
|
Temperature -10℃-50℃
|
|

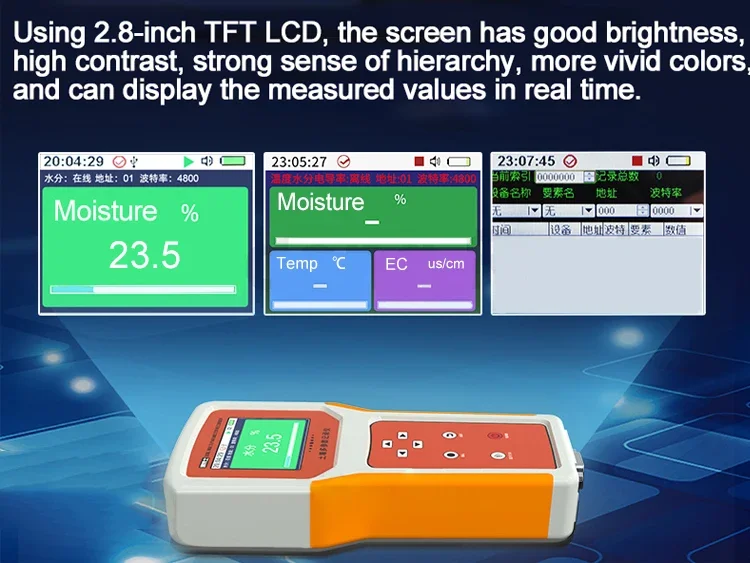

Display
|
2.8 inch LCD display
|
|
letter of agreement
|
Modbus-RTU
|
|
Charging time
|
≤8h
|
|

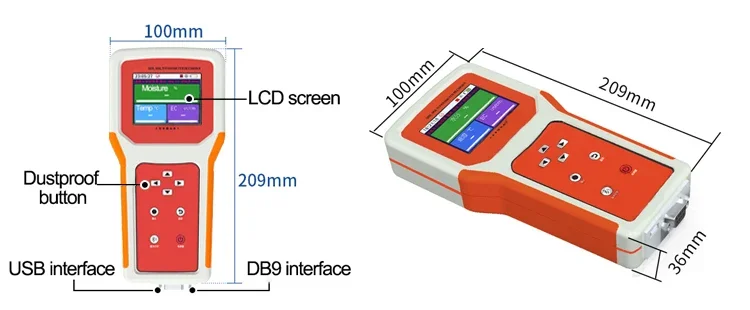

Size
|
209*100*36 mm
|
|
Weight
|
500g
|
|
DC power supply
|
DC4.5-30V
|
|
Conductivity parameter
|
Range: 0-20000us/cm
Resolution: 10us/cm Accuracy: ±3% in the range of 0-10000 us/cm; ±5% in the range of 10000-20000 us/cm |
|
Soil moisture parameter
|
Range: 0-100%
Resolution: 0.1% Accuracy: ±2% within 0-50%, @ (brown soil, 30%, 25℃) ±3% within 50-100%, @ (brown soil, 60%, 25℃) |
|
Soil temperature parameter
|
Range: -40~80°C, resolution: 0.1°C, accuracy: ±0.5°C(25°C)
|
|
Conductivity temperature compensation
|
Built-in temperature compensation sensor, compensation range 0-50 °C
|
|
Protection level
|
IP68
|
|
Sealing material
|
Black flame retardant epoxy resin
|
|
Output signal
|
RS485 (Modbus protocol)
|
|
DC power supply
|
5-30V
|
|
Measuring Range
|
3-9 PH
|
|
Resolution
|
0.1
|
|
Response time
|
≤10S
|
|
Long-term stability
|
≤5%/year
|
|
Probe material
|
Anti-corrosion special electrode
|
|
Sealing material
|
Black flame retardant epoxy resin
|
|
Output signal
|
RS485 (Modbus protocol)
|
