Product parameters

Product Size:9.44*10.03*19.88（in）
Net weight:1.0KG
Package Size:34.00 x 22.00 x 6.00（CM）
Gross weight:1.67KG
Material: Steel
Plate size: 25 * 20cm
Height: 23.5 cm
Airsoft bracket diameter (large): 6.4cm

Features

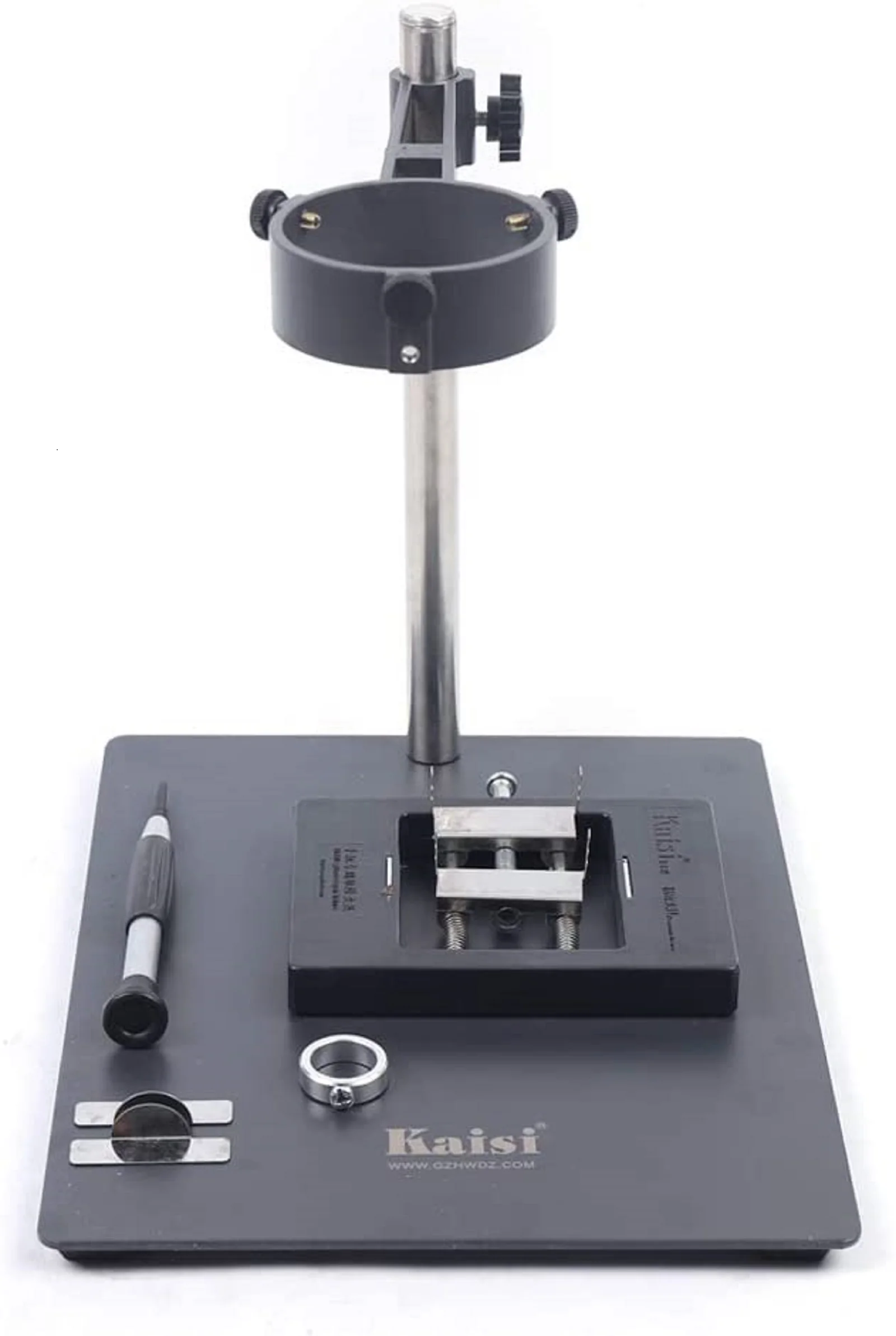

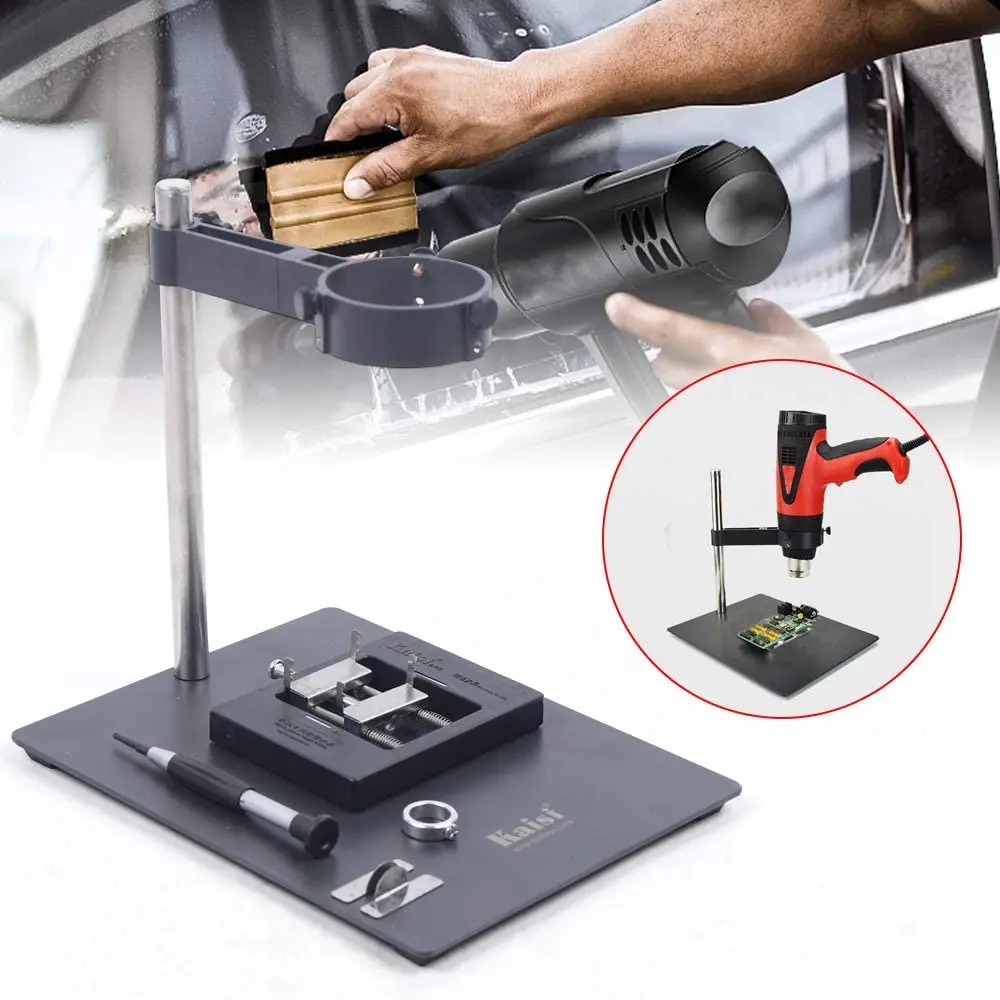

1.The fixture bracket is suitable for hot air guns and desktop handheld hot air guns.
2.Use the adjustment button to adjust the height, place the hot air gun on the shelf, and then you can rotate it 360 degrees.
3.Multifunctional fixture, solid fixed magnet, convenient and stable, the upright clip design can be used to detect debris.
4.The 2-in-1 BGA fixture has the advantage of easy operation.
5.Double bayonet is suitable for different thickness of main board, 4mm and 2mm bayonet respectively.
6.Simple operation, no need to tighten the process, direct positioning.
7.Maximum caving board size: 4.5 cm X unlimited length, minimum length: 2.3 cm X unlimited length.
8.The length and width of the active spindle, by pressing the active spindle to move the different main board control clamps to the desired position.
9.BGA technology is advanced, using imported steel.
10.Maximum chip removal size: 3 * 3.7cm.

Package list

1 * Stainless steel plate
1 * BGA special jig
1 * Pillar
1 * Large air soft mount
4 * Multifunctional fixture
1 * Special screw ring
1 * Screwdriver
