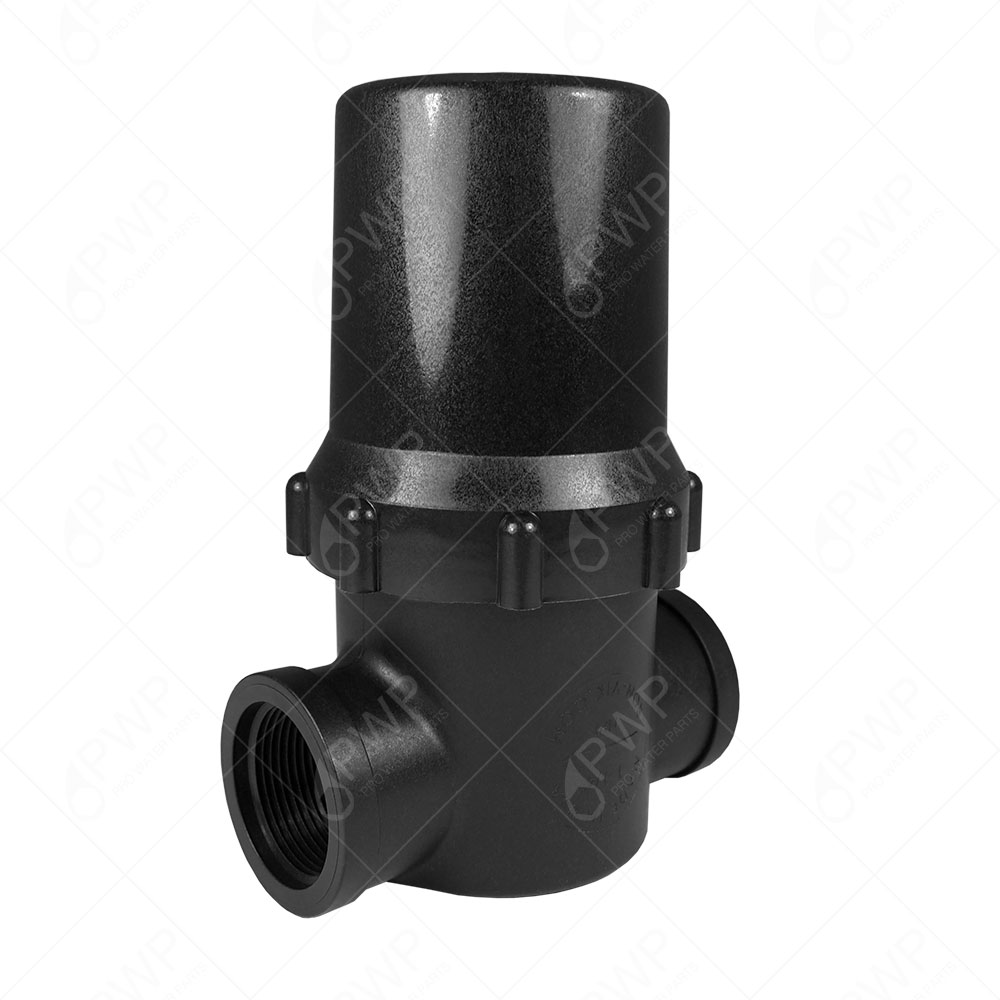

Inline T Screen Water Filter 80 Mesh 1/2" NPT Hydroponic Irrigation Gardening Pump
25.11
Features & benefits
- Stainless steel screen
- Protective coating on the outside
- Easily cleaned or replaced without removing the entire strainer from the line
- Adapted to filter small quantities of impurities at greater flow rates
- Filters can be inserted in line with the rest of the system
Applications
- Agriculture
- Drink water
- Pre-filter
- Car Washes
- Medical Devices
- Pressure Washers
- NOT for residential use
Cleaning
All wire mesh elements can be easily cleaned or replaced, without removing the entire strainer from the line, by removing the bowl.
Do not use chemicals incompatible with the plastic components for cleaning.
Technical Data
| Raw Material (screen) | Stainless Steel |
| Size | 1/2 inch NPT |
| Max Pressure | 150 PSI at 70 degrees F |
| Filtering Grade | 72 Micron |
| End Connection | Threaded |
| Operation | Manual |
| Control | Manual |
| O-Ring | Buna |
| Max Recommended Working Pressure | 8 bar (120 PSI) |
| Filter Screen Area | Double Filter Screen |
| Effective Filtering Area | 47% |
