Product Type: Piston Kit |
Replaces: |
  • Source: Aftermarket

OEM Grade Forged Piston 0.75mm Over Yamaha Banshee YFZ350 64.75mm

Replaces Part Numbers & Specifications

OEM CROSS-REFERENCE PART NUMBERS:
• 2GU-11631-00-94 (standard reference)
• 4L0-11633-00-00 (piston pin)
• 93450-17129-00 (circlip)

SPECIFICATIONS:
• Bore Size: 64.75mm
• Oversize: 0.75mm Over
• Standard Bore: 64mm
• Displacement: 347cc (twin cylinder total)
• Bore x Stroke: 64mm x 54mm
• Engine: 2-Stroke Liquid-Cooled Parallel Twin
• Compression: 6.5:1
• Piston Type: Forged
• Skirt Coating: MOS2
• Material: Aluminum Alloy

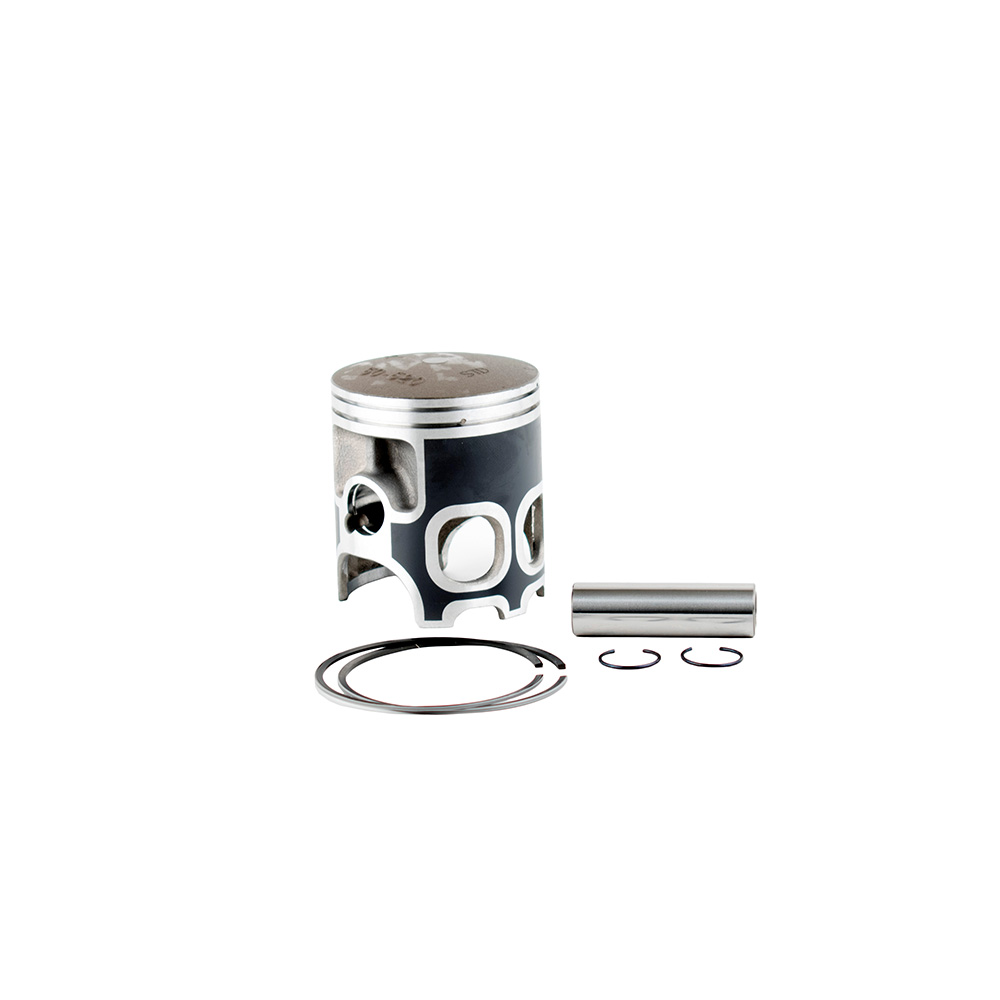

• Kit Contents: Piston, Rings, Wrist Pin, Circlips (per cylinder)

COMPATIBILITY:
• 1987-2006 Yamaha Banshee 350 YFZ350
• 2004 Yamaha Banshee Limited Edition YFZ350LE
• 2005-2006 Yamaha Banshee Special Edition YFZ350SE

Product Notice

As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

YAMAHA BANSHEE YFZ350 APPLICATIONS (1987-2006):

YAMAHA BANSHEE 350:
• Yamaha YFZ350 Banshee (1987-2006)
• Yamaha YFZ350T Banshee (1987)
• Yamaha YFZ350U Banshee (1988)
• Yamaha YFZ350W Banshee (1989)
• Yamaha YFZ350A Banshee (1990)
• 347cc 2-Stroke Liquid-Cooled Parallel Twin
• 64mm Bore x 54mm Stroke
• Compression Ratio: 6.5:1

YAMAHA BANSHEE SPECIAL EDITIONS:
• Yamaha YFZ350LE Banshee Limited Edition (2004)
• Yamaha YFZ350SE Banshee Special Edition (2005-2006)
• Yamaha YFZ350 Banshee 50th Anniversary Edition (2006)

NOTES:
• Twin cylinder engine — each piston kit is for ONE cylinder
• Order two kits for a complete top end rebuild
• Engine derived from Yamaha RZ350 platform
• US models: 1987-2006 / Canada: 1987-2008 / Australia: 1998-2012
• Verify OEM part number before ordering
